Plan 21029DR

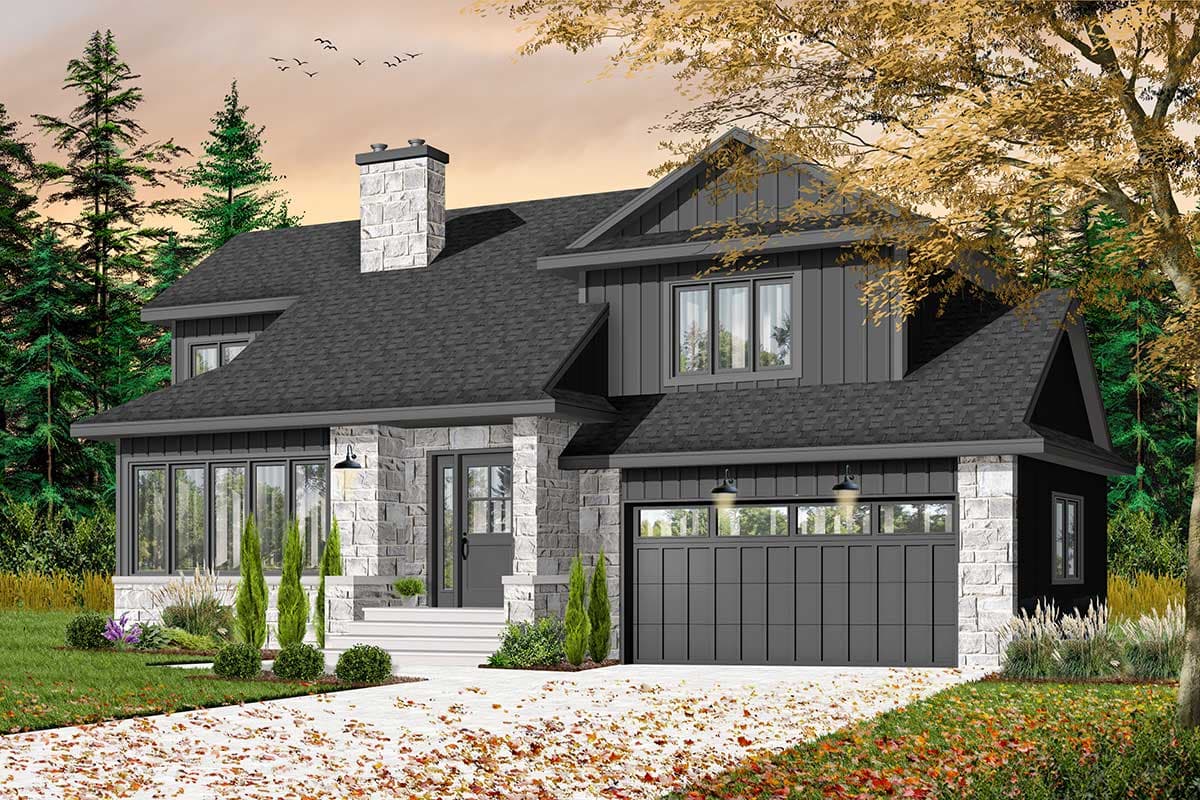

Mezzanine with Views Below

Heated S.F.
1,569
Beds
3
Baths
1.5
Stories
2
Cars
1

Floor Plan

Plan 21029DR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 21029DR

M-F 9am-5pm EST |

1-203-761-8500

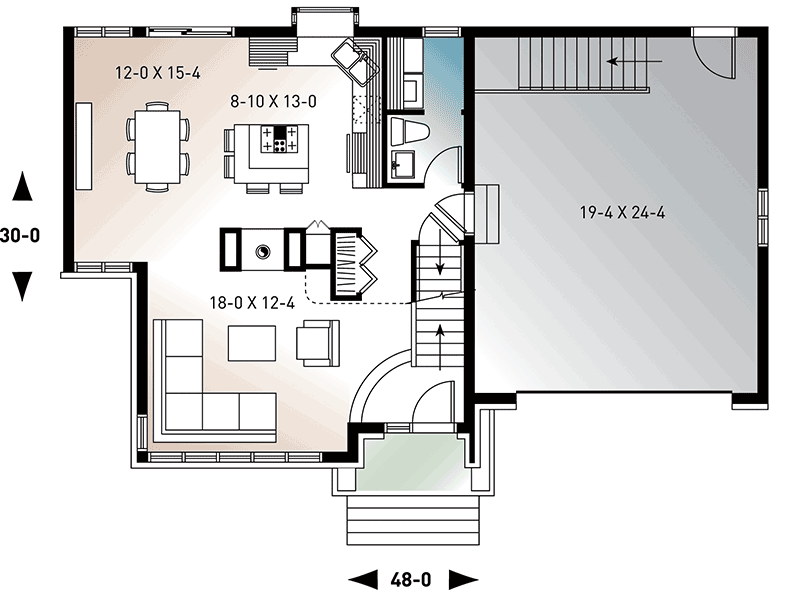

Main Level

Plan 21029DR: Mezzanine with Views Below - Floor Plan - Main Level - Contemporary, New American, Northwest, Transitional

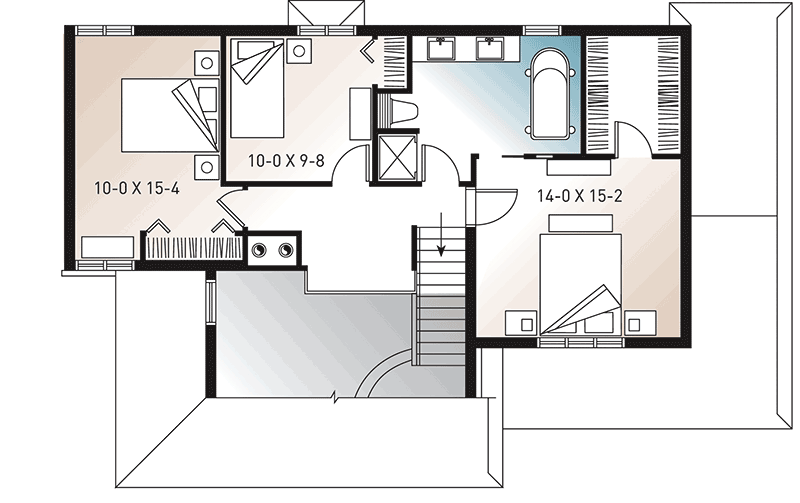

2nd Floor

Plan 21029DR: Mezzanine with Views Below - Floor Plan - 2nd Floor - Contemporary, New American, Northwest, Transitional

Plan Details

  • Walk in off the covered front entrance and you'll notice the see-thru centralized fireplace ahead.
  • You'll enjoy easy access to and from the spacious 2-car garage.
  • The living room features a cathedral ceiling. Above, see family and friends on the mezzanine.
  • The kitchen has room for a spacious island and lunch counter. It is open to the dining room.
  • A half-bath and laundry facilities complete the main floor.
  • The master bedroom is upstairs and features a walk-in closet and a large bath. Two secondary bedrooms share a bath and the mezzanine gives you room to read and play.

What's Included

  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,569 sq. ft.

1st Floor

755 sq. ft.

2nd Floor

814 sq. ft.

Basement Unfinished

755 sq. ft.

Deck

40 sq. ft.

Entry

28 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

30' 0"

Max Ridge Height

24' 9"

Garage

Type

Attached

Area

520 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Contemporary

New American

Northwest

Transitional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Loft

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Metric

Photo Gallery
