Plan 81832AB
Mid-Century Modern Home Plan with Optional Lower Level and 3rd Level Rooftop Deck - 3459 Sq Ft
Heated S.F.
3,459
Beds
3-4
Baths
3.5 - 4.5
Stories
3
Cars
2
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

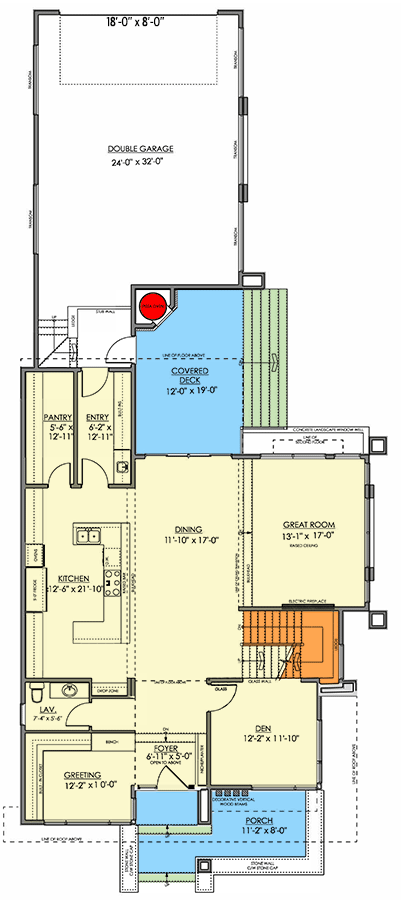

Mid-Century Modern Home Plan with Optional Lower Level and 3rd Level Rooftop Deck - 3459 Sq Ft - 81832AB floor plan - Main Level
2nd Floor
Reverse Floor Plan

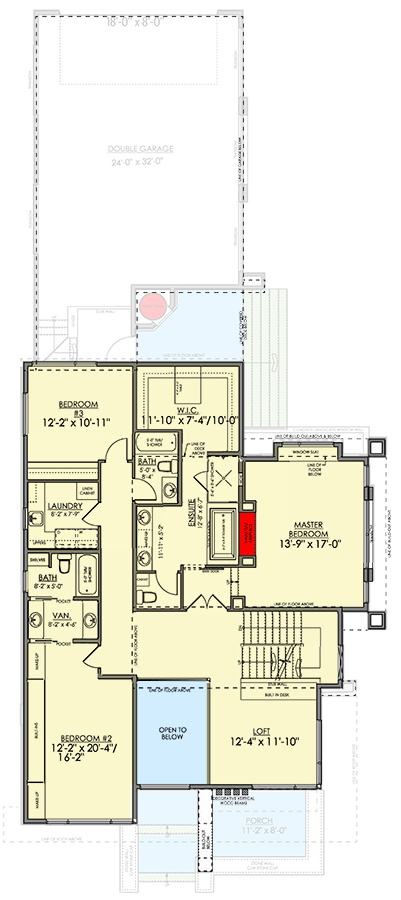

Mid-Century Modern Home Plan with Optional Lower Level and 3rd Level Rooftop Deck - 3459 Sq Ft - 81832AB floor plan - 2nd Floor
Rooftop Deck
Reverse Floor Plan

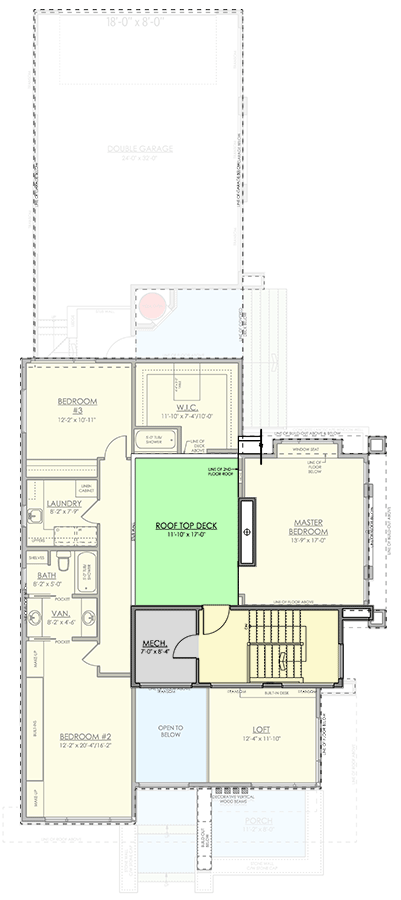

Mid-Century Modern Home Plan with Optional Lower Level and 3rd Level Rooftop Deck - 3459 Sq Ft - 81832AB floor plan - Rooftop Deck
Optional Lower Level
Reverse Floor Plan

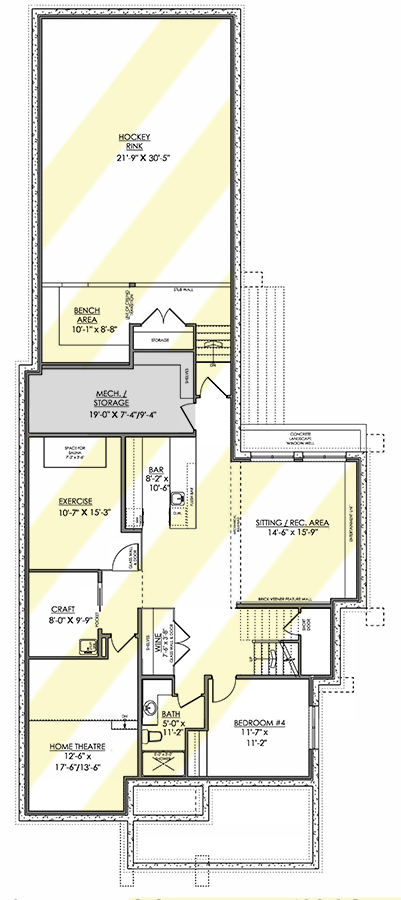

Mid-Century Modern Home Plan with Optional Lower Level and 3rd Level Rooftop Deck - 3459 Sq Ft - 81832AB floor plan - Optional Lower Level
Plan Details
  • This Mid-Century Modern house plan gives you a 3-4 bedrooms, 3.5-4.5 baths and 3,459 square feet of heated living area. A 2-car rear-entry garage has 873 square feet of parking and a third floor 204 square foot rooftop deck.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

What's Not Included
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Mid-Century Modern Home Plan with Optional Lower Level and 3rd Level Rooftop Deck - 3459 Sq Ft

  • 3,459

    Heated s.f.

  • 3-4

    Beds

  • 3.5 - 4.5

    Baths

  • 3

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Rooftop Deck

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,459 sq. ft.
  • 1st Floor: 1,634 sq. ft.
  • 2nd Floor: 1,697 sq. ft.
  • 3rd Floor: 128 sq. ft.
  • Hokcey Area: 861 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 93' 6"
  • Max ridge height: 35' 7"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 873 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 3 on 12
  • Framing Type: Truss
