Modern 2-Bedroom House Plan with Open-Concept Floor Plan

Heated S.F.
1,533
Beds
2
Baths
1.5
Stories
2
Cars
1

Floor Plan

Plan 80916PM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 80916PM

M-F 9am-5pm EST |

1-203-761-8500

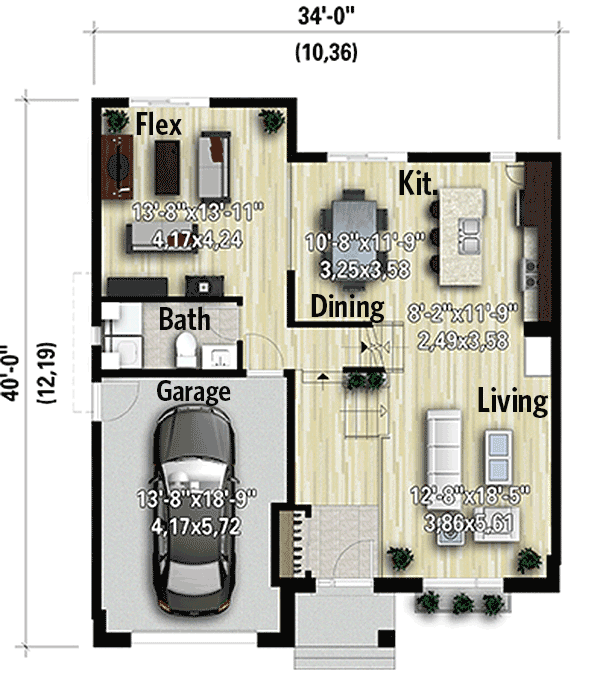

Main Level

Plan 80916PM: Modern 2-Bedroom House Plan with Open-Concept Floor Plan - Floor Plan - Main Level - Contemporary, Northwest

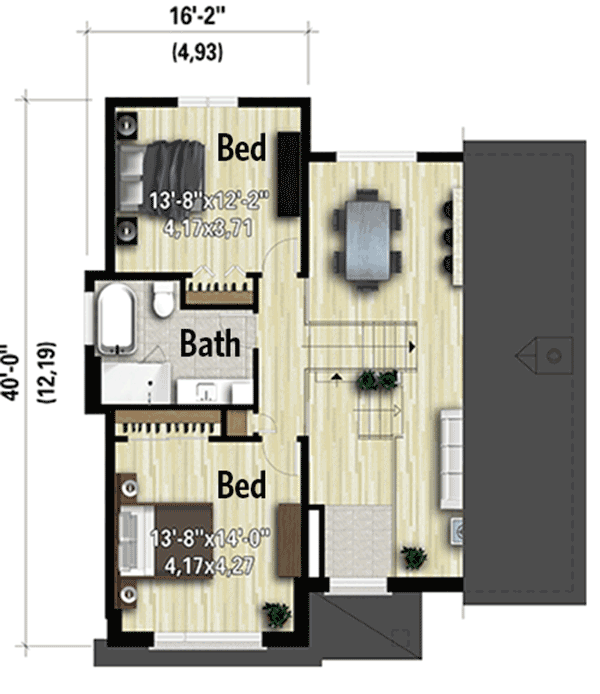

2nd Floor

Plan 80916PM: Modern 2-Bedroom House Plan with Open-Concept Floor Plan - Floor Plan - 2nd Floor - Contemporary, Northwest

Plan Details

  • This lovely, 2-bedroom modern house plan features ample natural light, a brick exterior with wood accents, and a covered, front entry.
  • The living room, kitchen, and dining room offer a high, slanted ceiling and clean sight lines between the rooms.
  • The kitchen features a large island with seating for three, and the adjacent dining room extends outdoors through sliding doors.
  • A second living space is available just past the 1-car garage, and conveniently located next to powder bath and laundry room.
  • Upstairs, two bedrooms share a 4-fixture bathroom.
  • NOTE: Please allow up to 20 business days for delivery.

What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,533 sq. ft.

1st Floor

931 sq. ft.

2nd Floor

602 sq. ft.

Basement Unfinished

637 sq. ft.

Porch, Front

42 sq. ft.

Porch, Rear

80 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

40' 0"

Max Ridge Height

23' 9"

Garage

Type

Attached

Area

274 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

8' 2"

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Northwest

Special Features

Master Suite - Upstairs

Split Level

Plan Collections

Canadian House Plans

Metric

Split Level House Plans

Square Footage Breakdown

Total Heated Area

1,533 sq. ft.

1st Floor

931 sq. ft.

2nd Floor

602 sq. ft.

Basement Unfinished

637 sq. ft.

Porch, Front

42 sq. ft.

Porch, Rear

80 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

40' 0"

Max Ridge Height

23' 9"

Garage

Type

Attached

Area

274 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

8' 2"

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Northwest

Special Features

Master Suite - Upstairs

Split Level

Plan Collections

Canadian House Plans

Metric

Split Level House Plans
