Plan 51917HZ Modern Farmhouse Plan with L-Shaped Front Porch and Master Suite Laundry

2,394 3-4 3.5 - 4.5 1 2
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Modern Farmhouse Plan with L-Shaped Front Porch and Master Suite Laundry

Plan 51917HZ

  • 2,394

    Heated s.f.

  • 3-4

    Beds

  • 3.5 - 4.5

    Baths

  • 1

    Stories

  • 2

    Cars

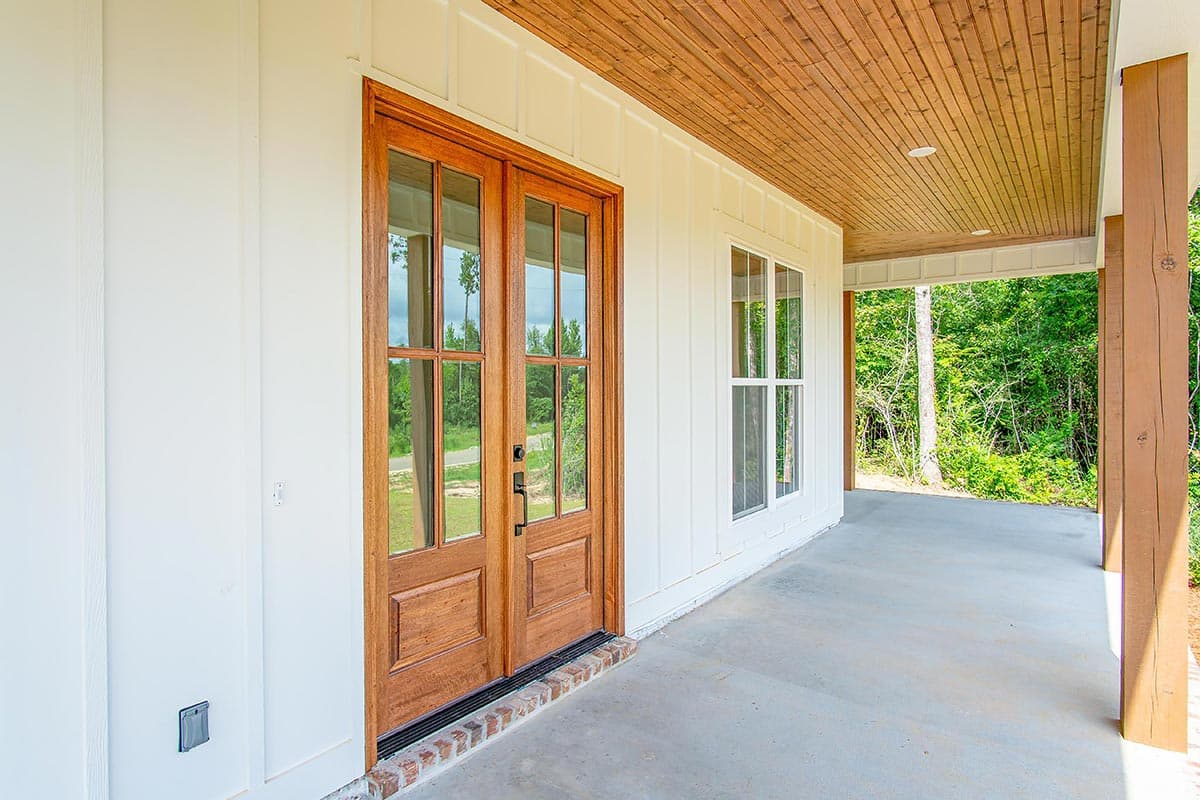

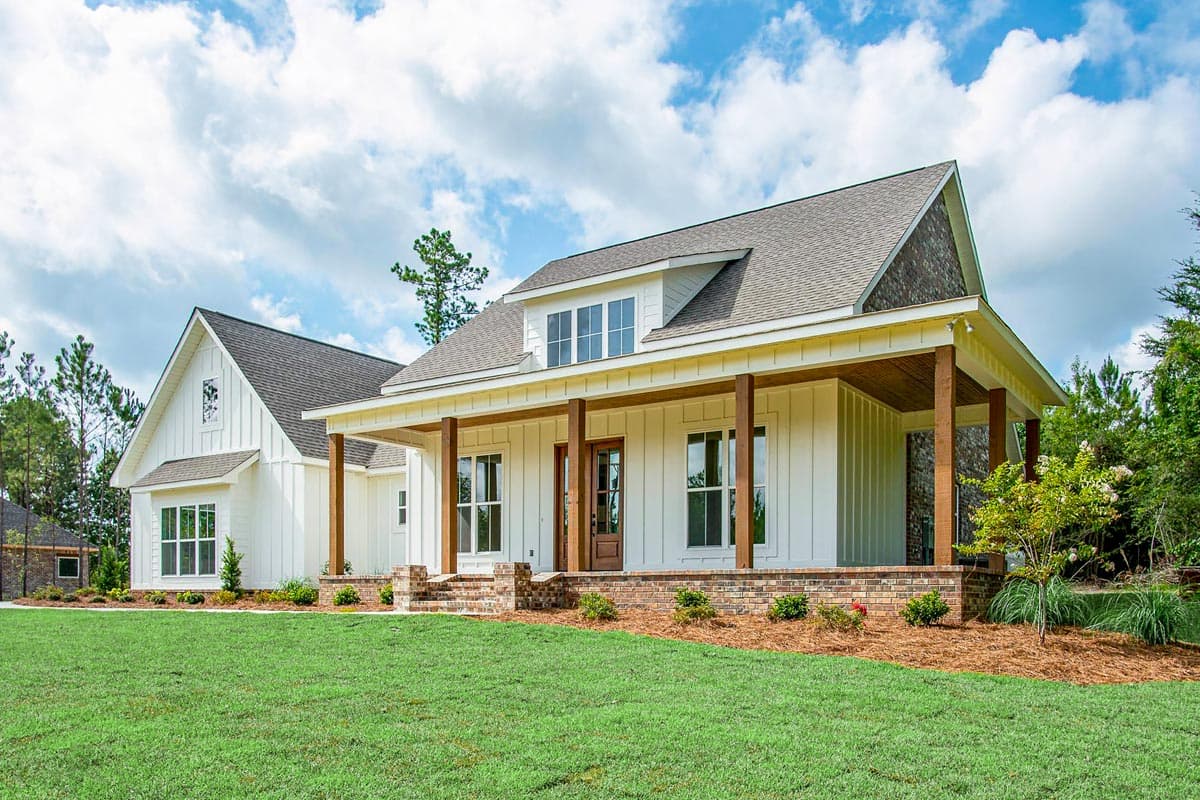

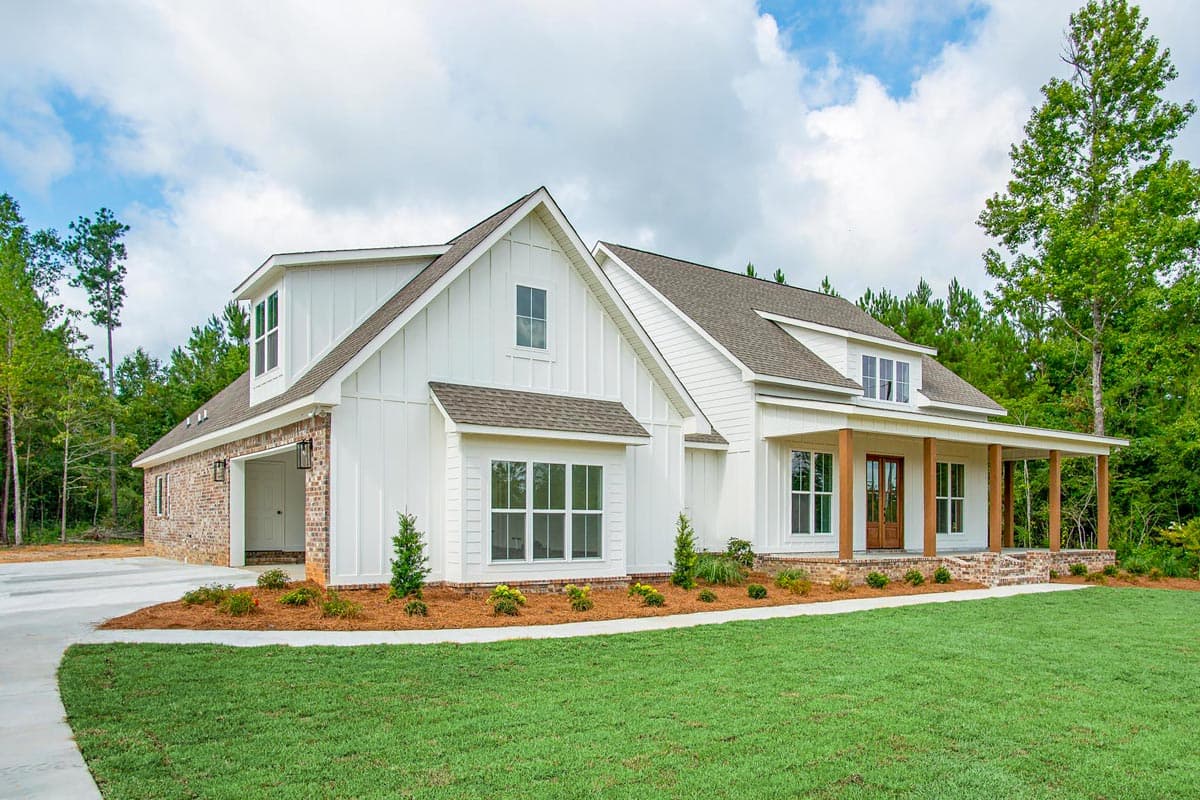

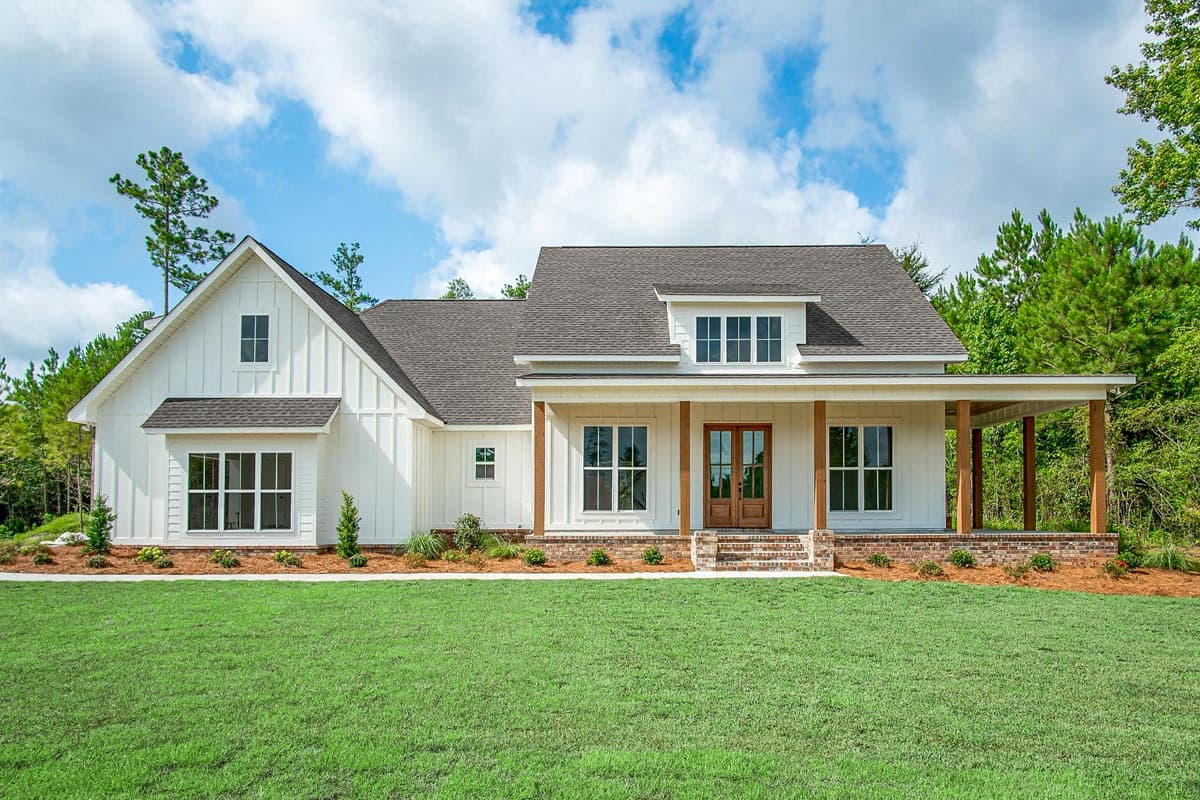

  • An 8'-deep L-shaped porch wraps around the front-right corner of this modern farmhouse plan with 3 bedrooms and bonus expansion above the 2-car side-entry garage.

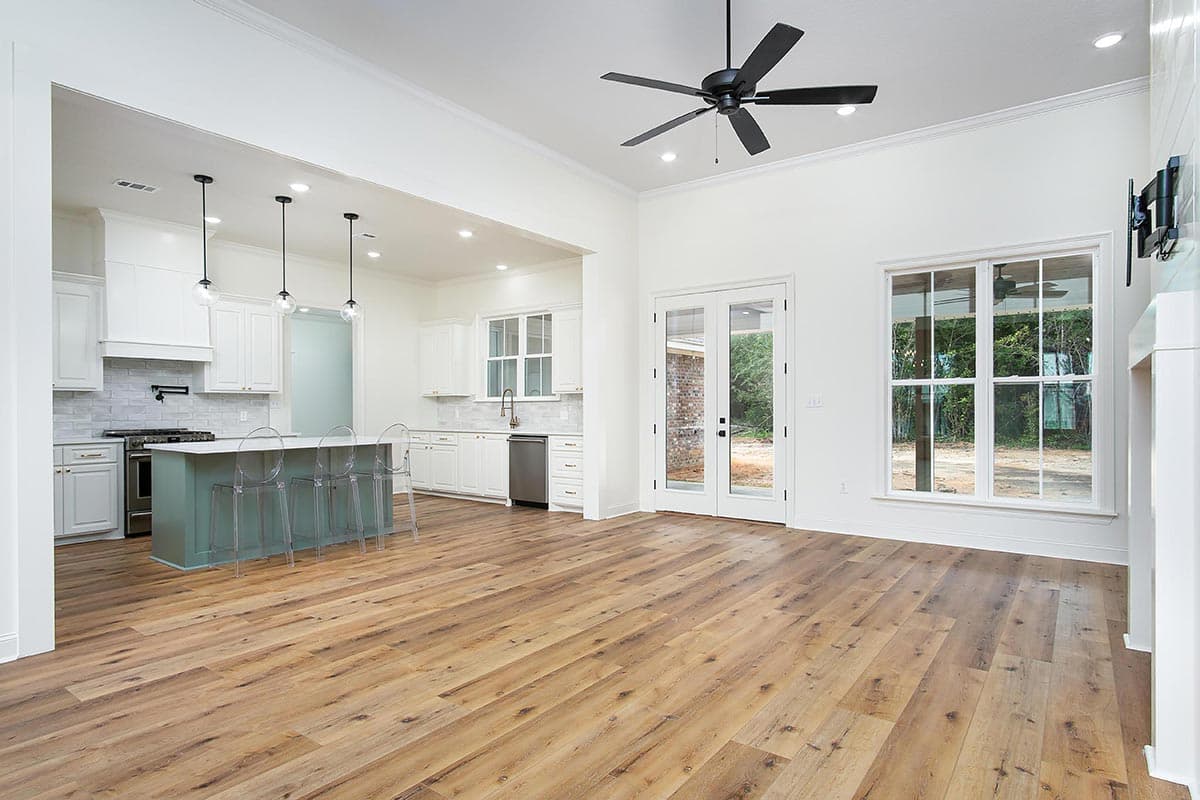

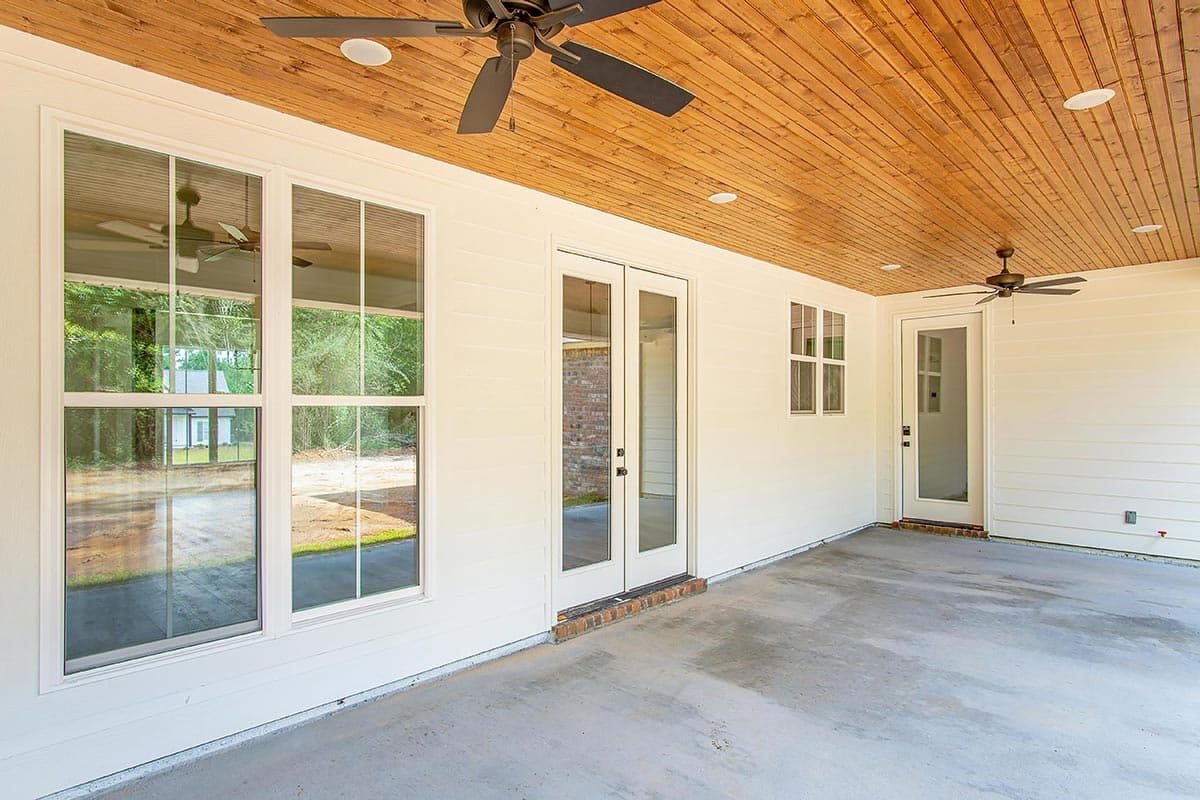

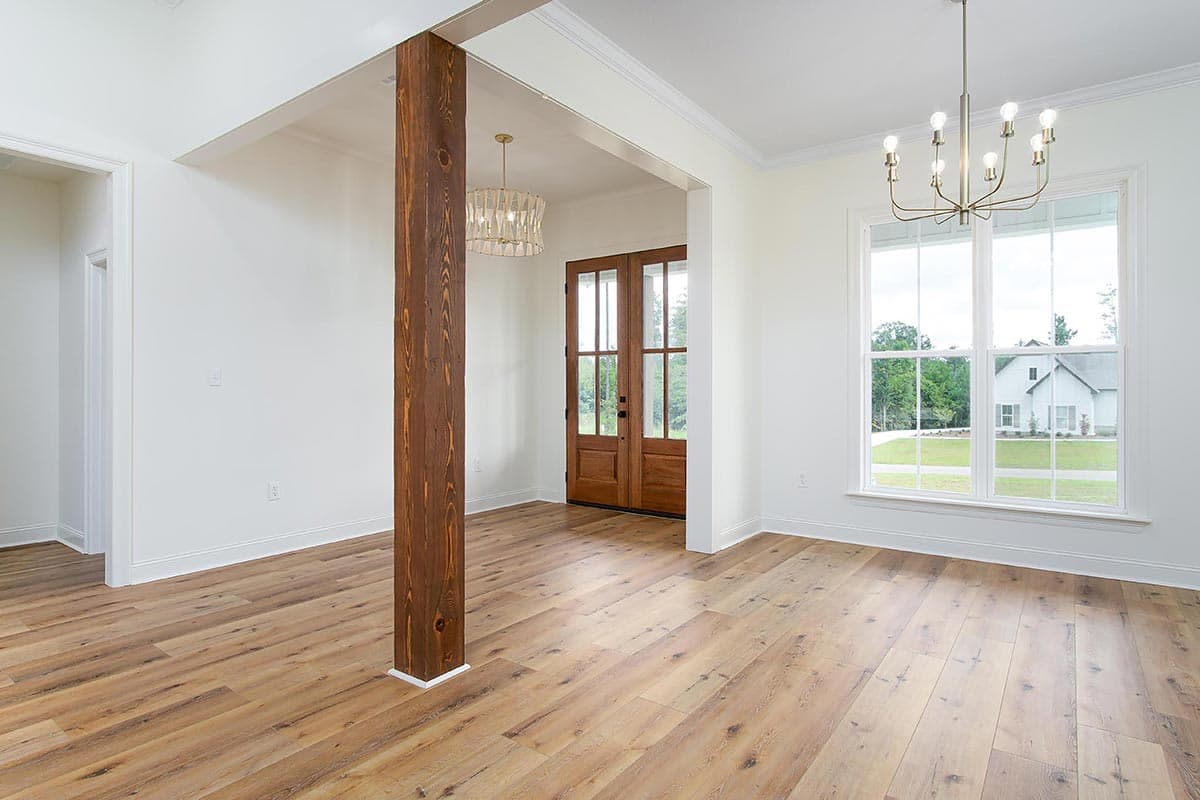

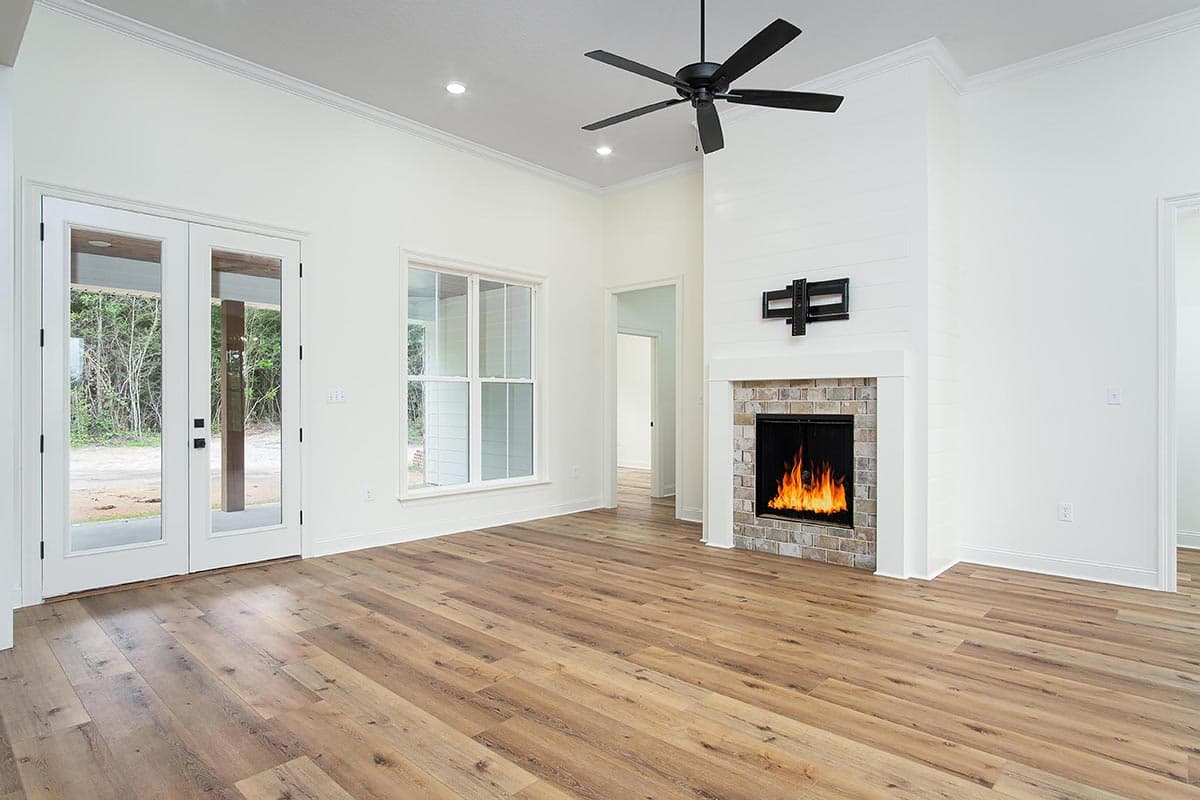

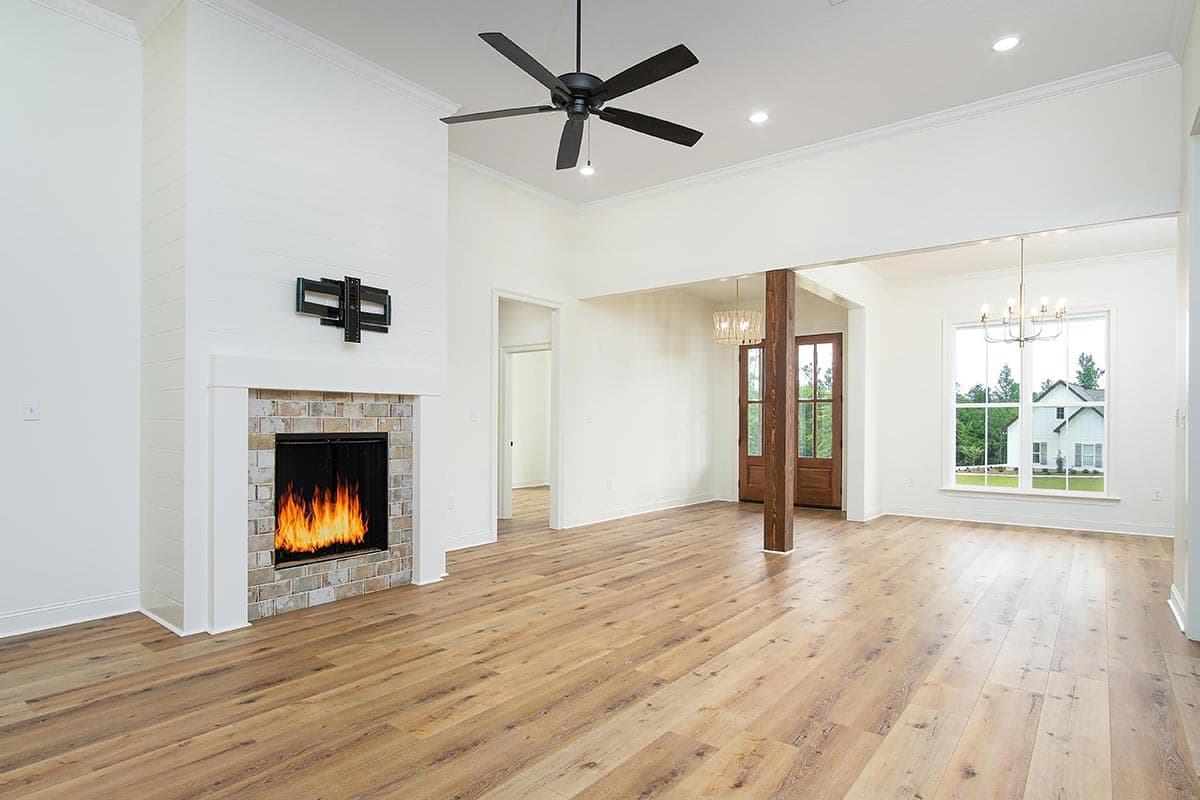

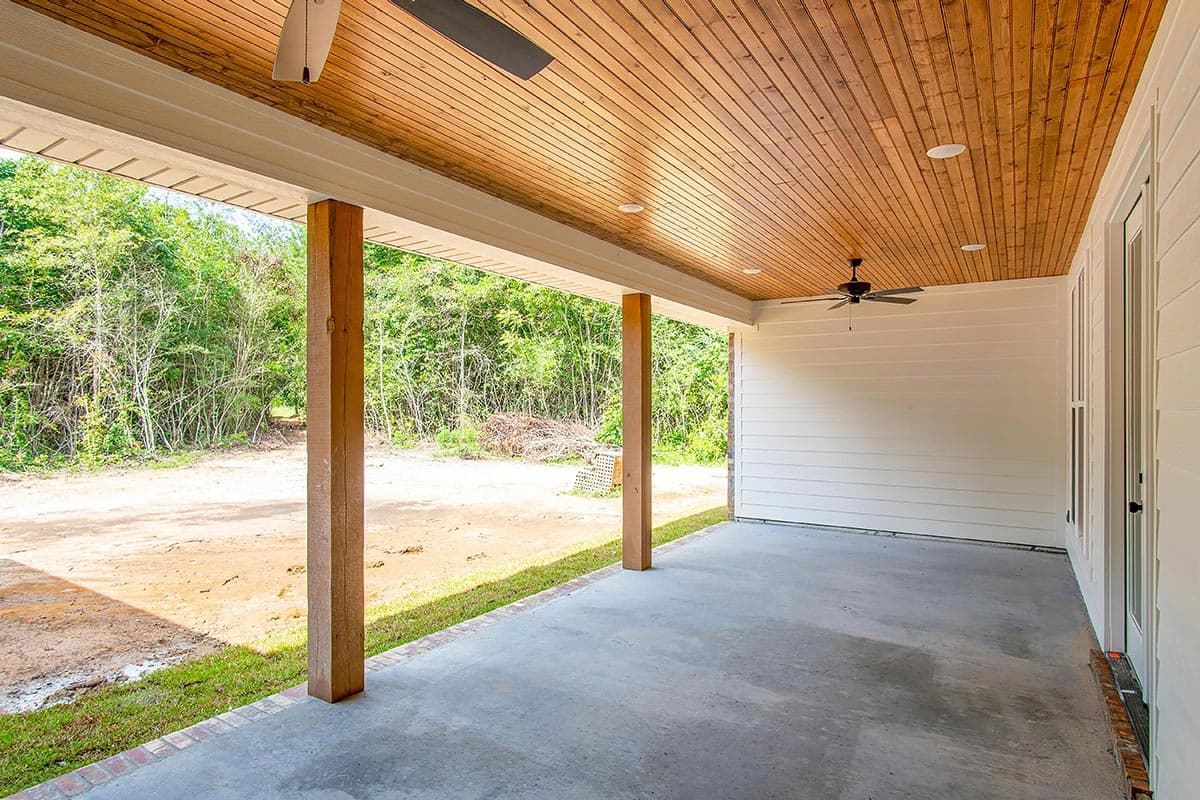

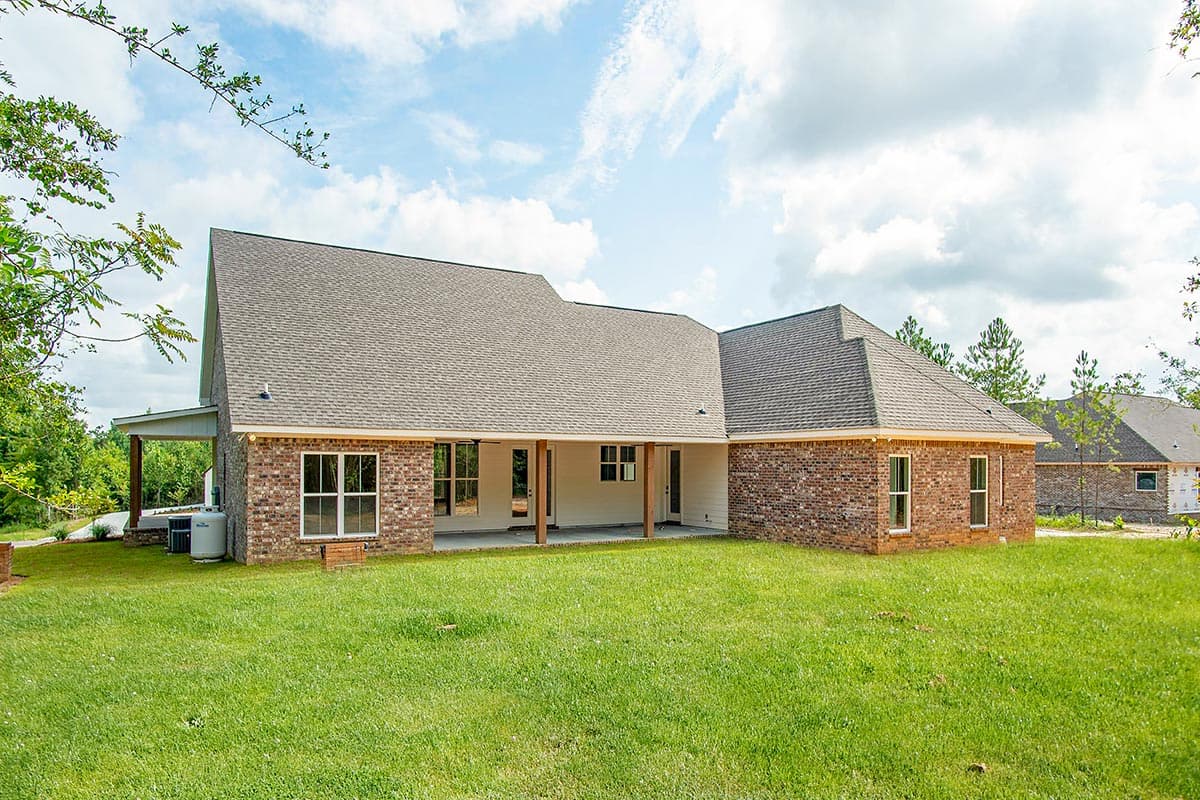

  • Volume ceilings and decorative beams catch your eye from the foyer as you look ahead to the great room with fireplace. Doors on the back wall take you to the 12'-deep rear porch with an outdoor kitchen.

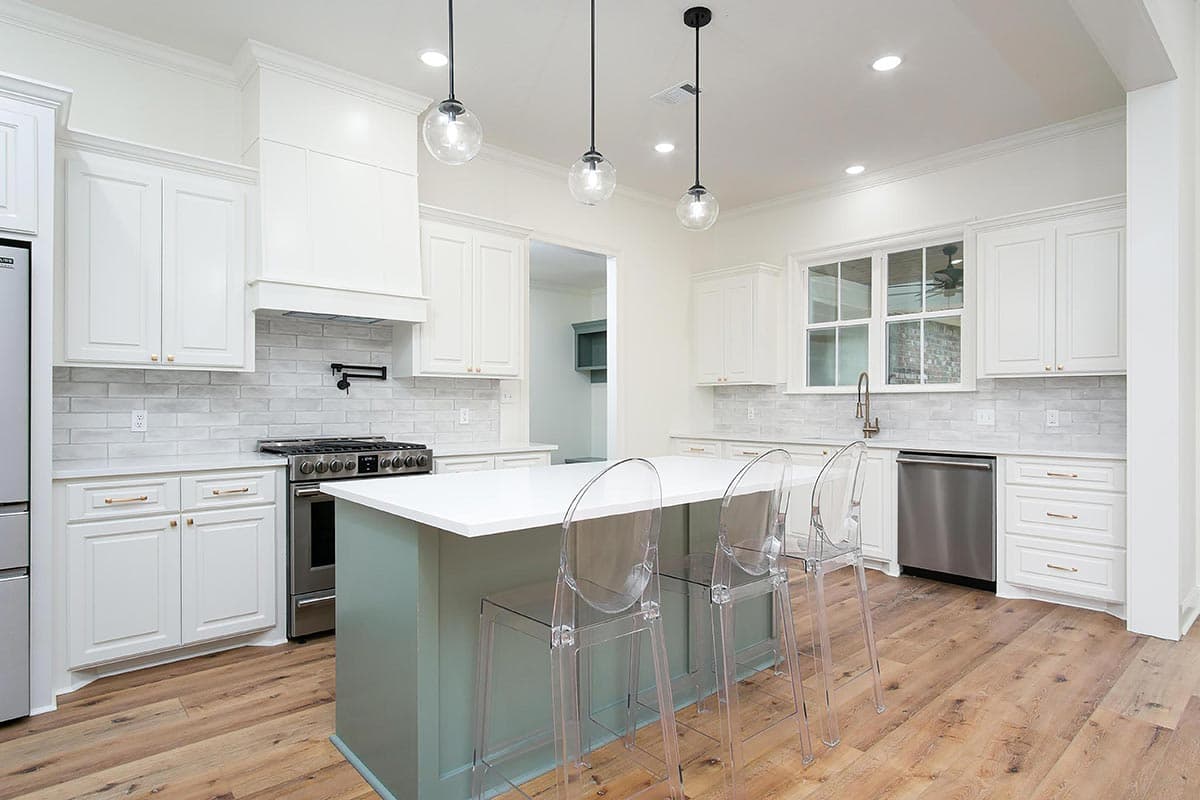

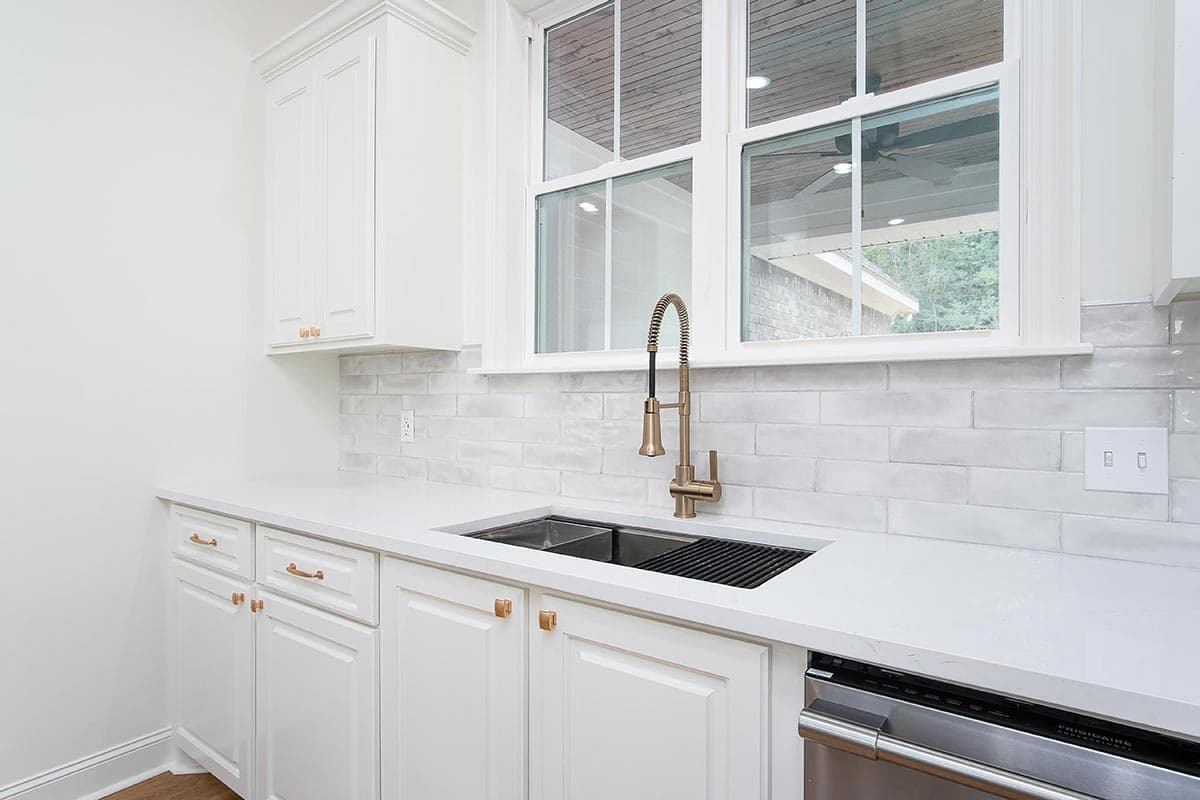

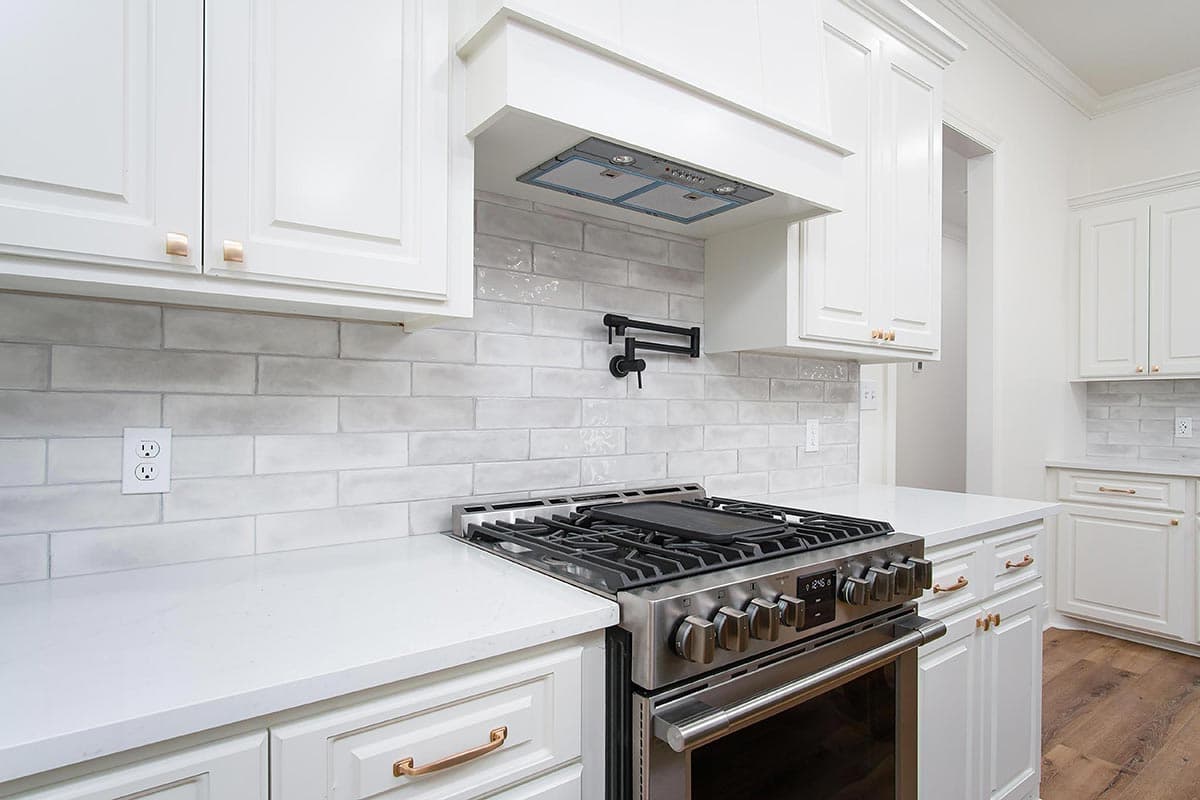

  • The huge kitchen features a 3'8" by 8'8" island and 9' by 4'6" walk-in pantry with an identically sized serving passage to the dining room. A double sink is centered below the windows looking out the back.

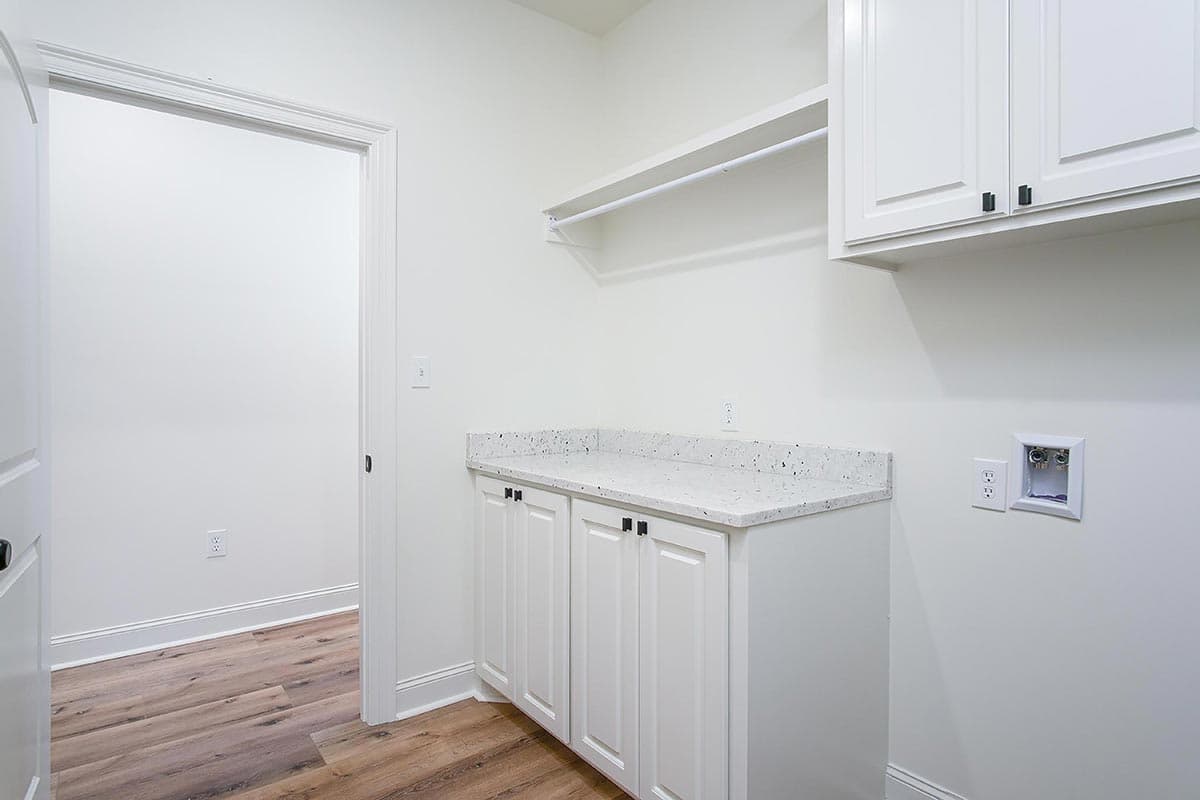

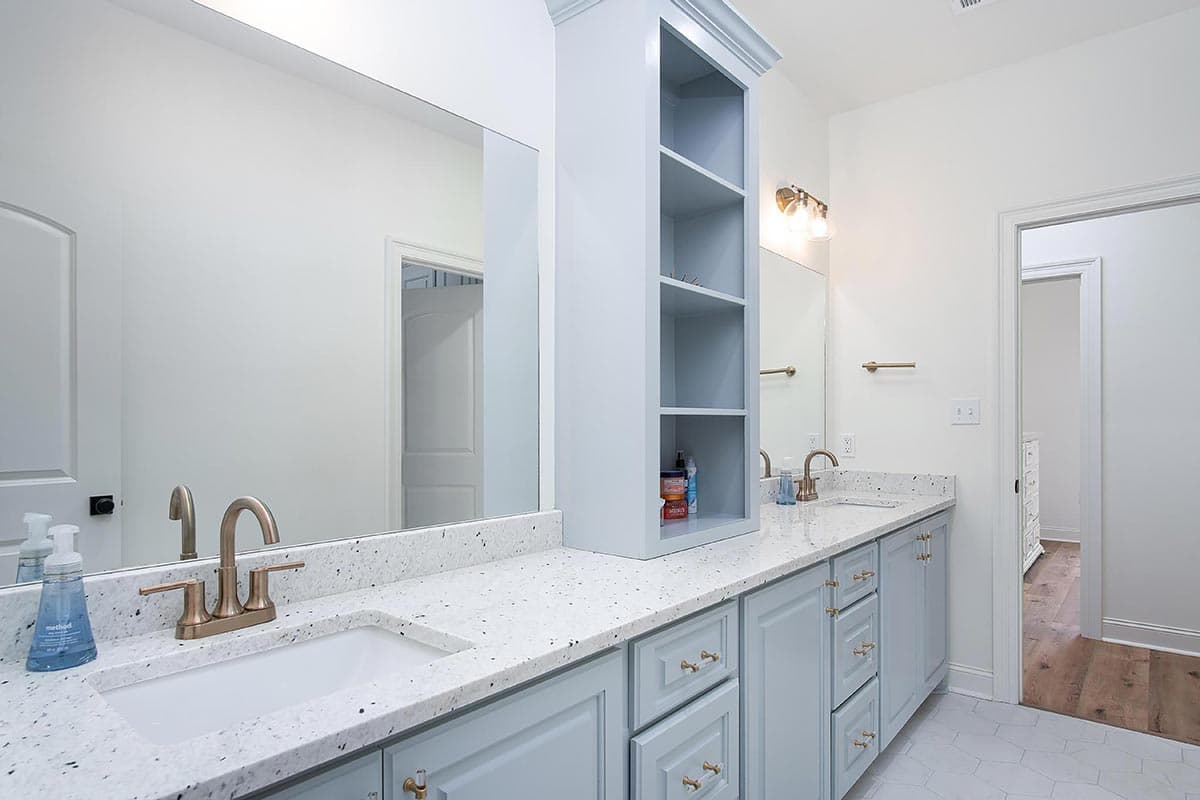

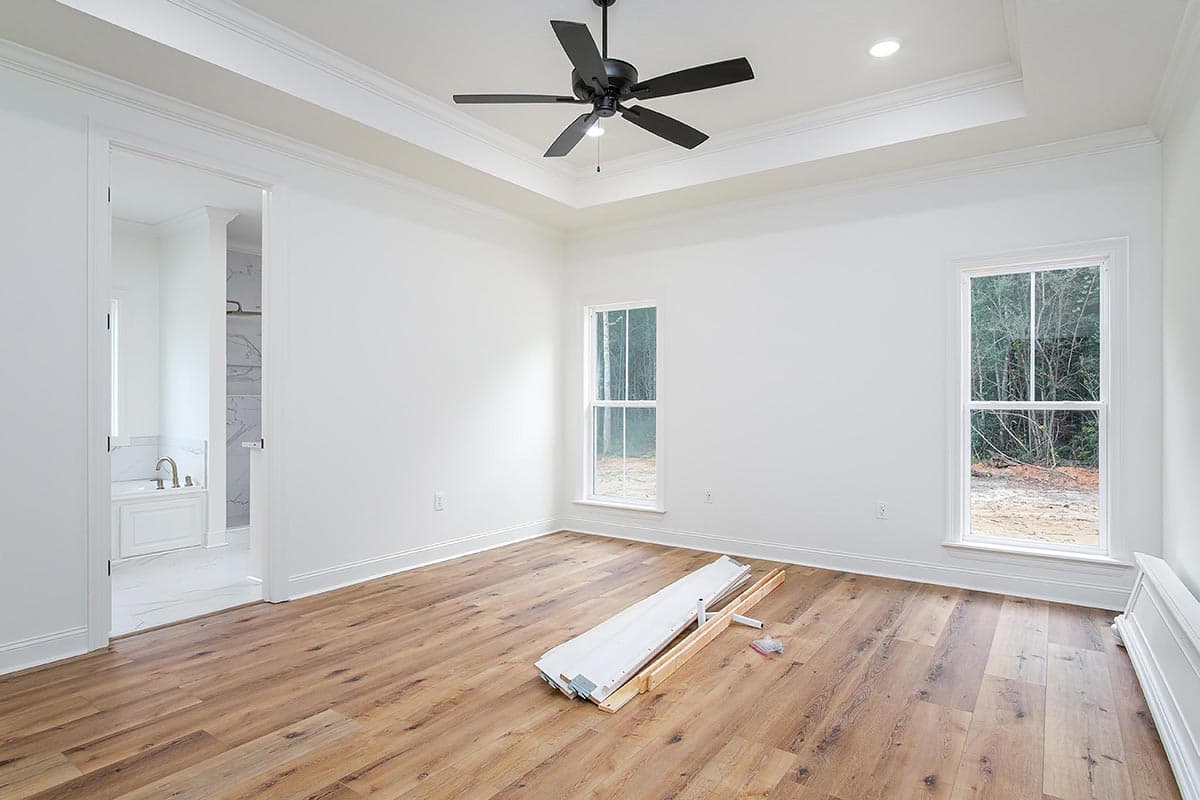

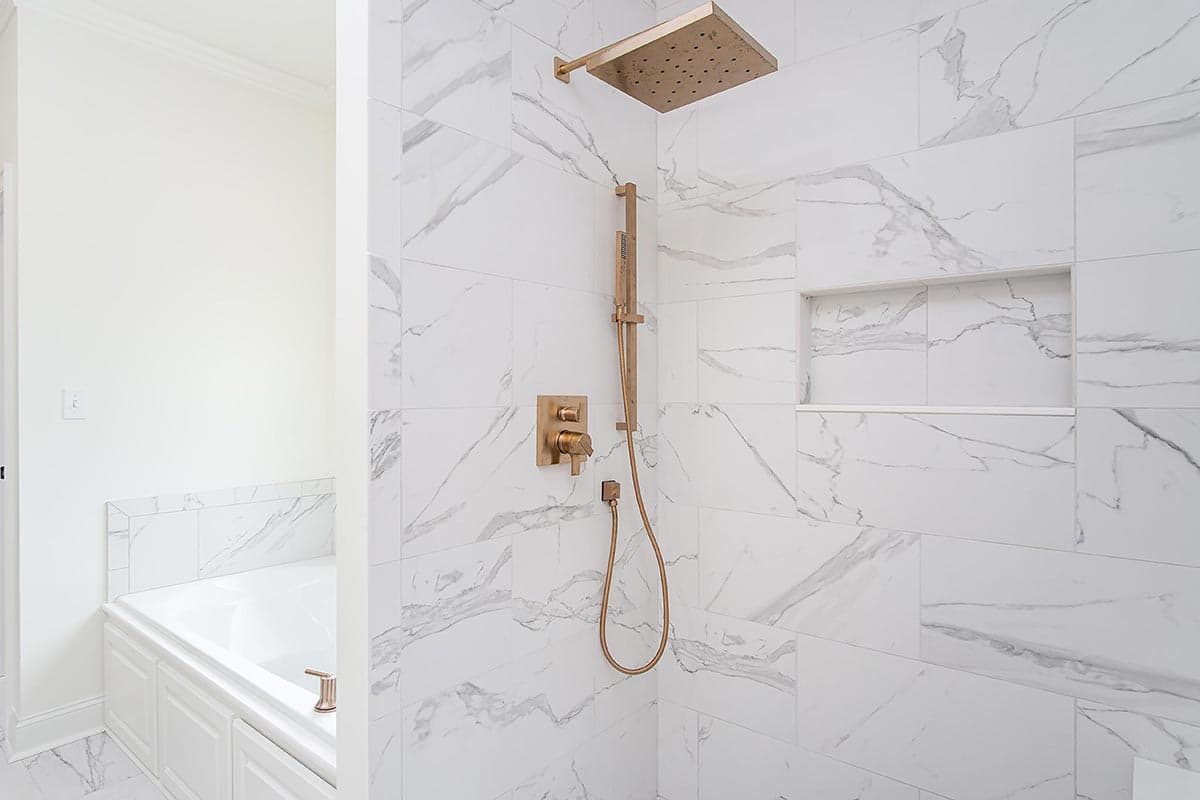

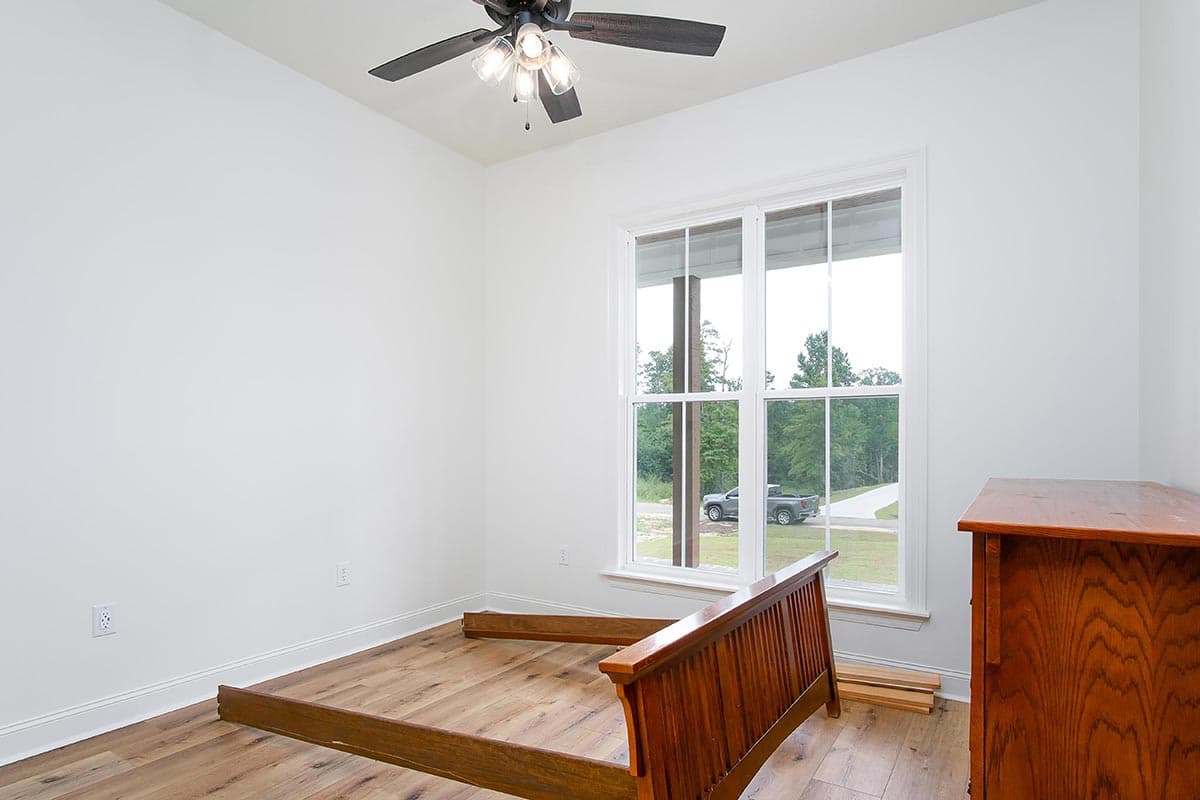

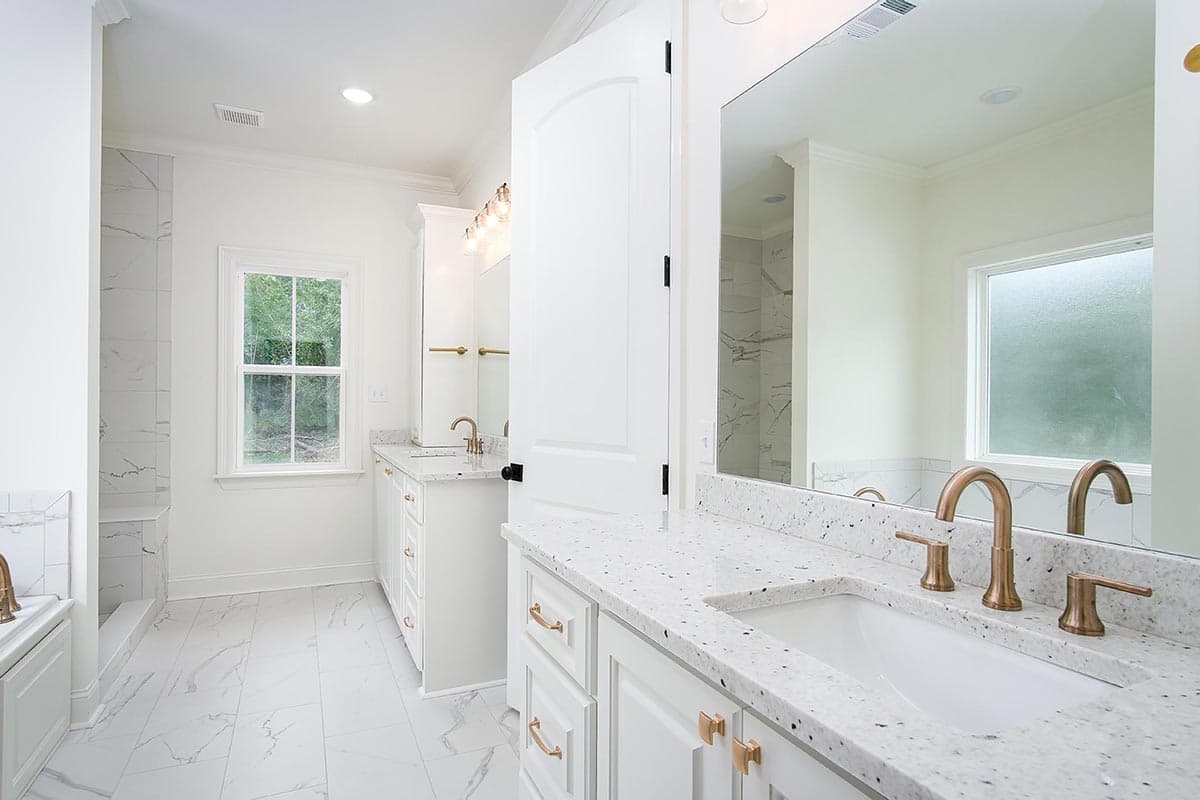

  • Your luxurious main suite has dual vanities and an oversized shower and walk-in closet with direct access to the laundry room.  Across the home, guest bedrooms feature private bathrooms and walk-in closet.

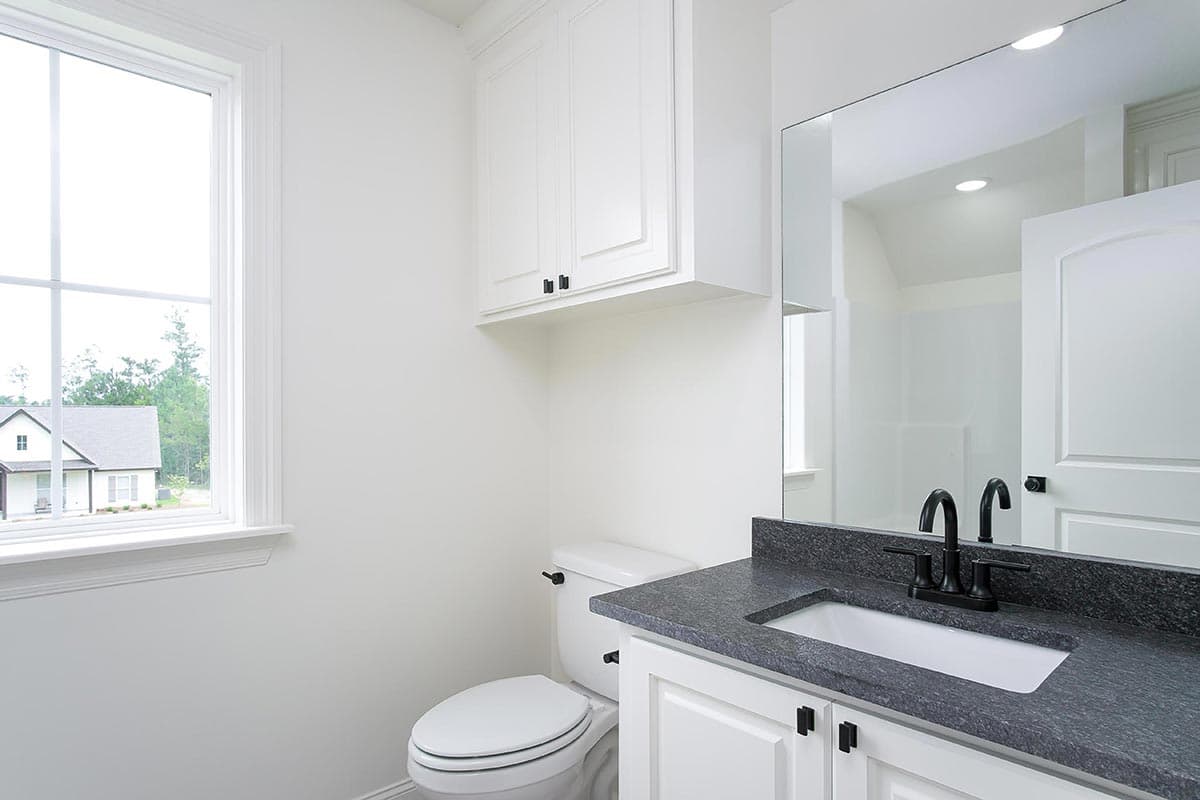

  • Other features include a powder room and lockers by the garage entry and a small office space that can be closed off by pocket doors.
  • Related Plans: Get alternate versions with house plan 51762HZ, 51766HZ and 51801HZ.

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3  Detailed main floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Page 4  Detailed bonus floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

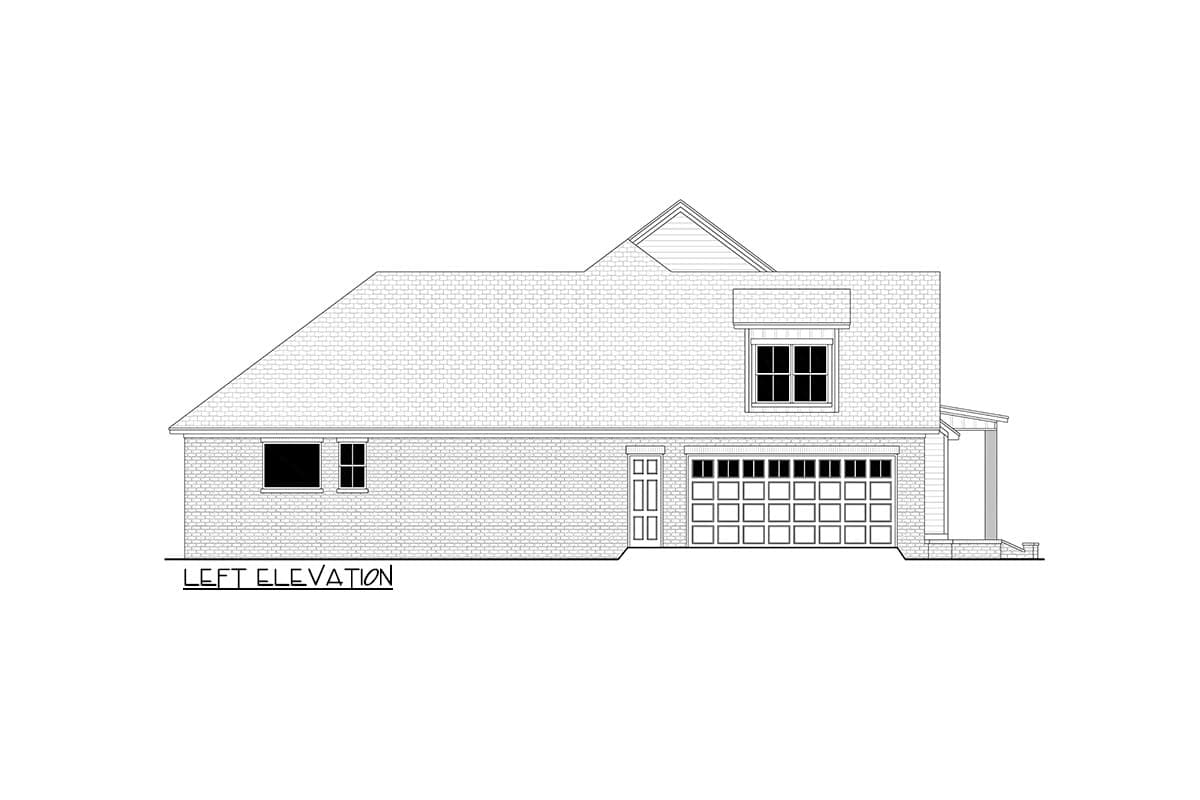

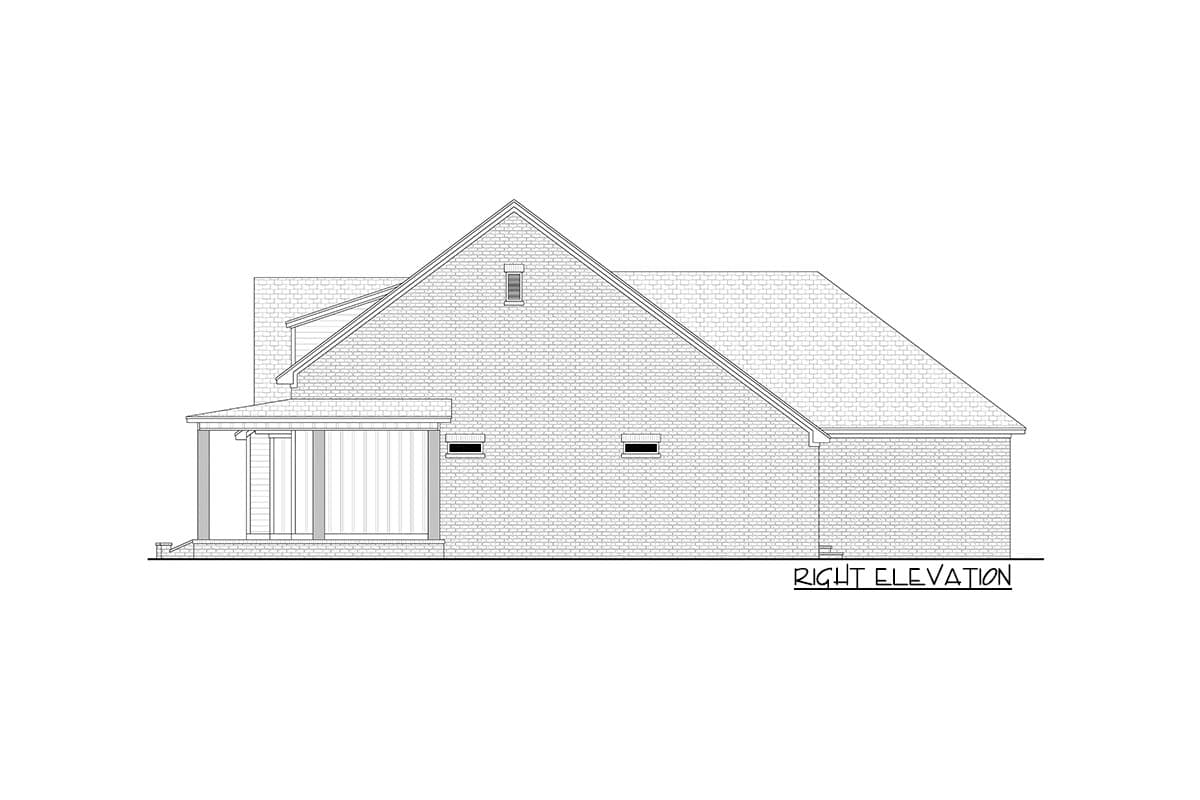

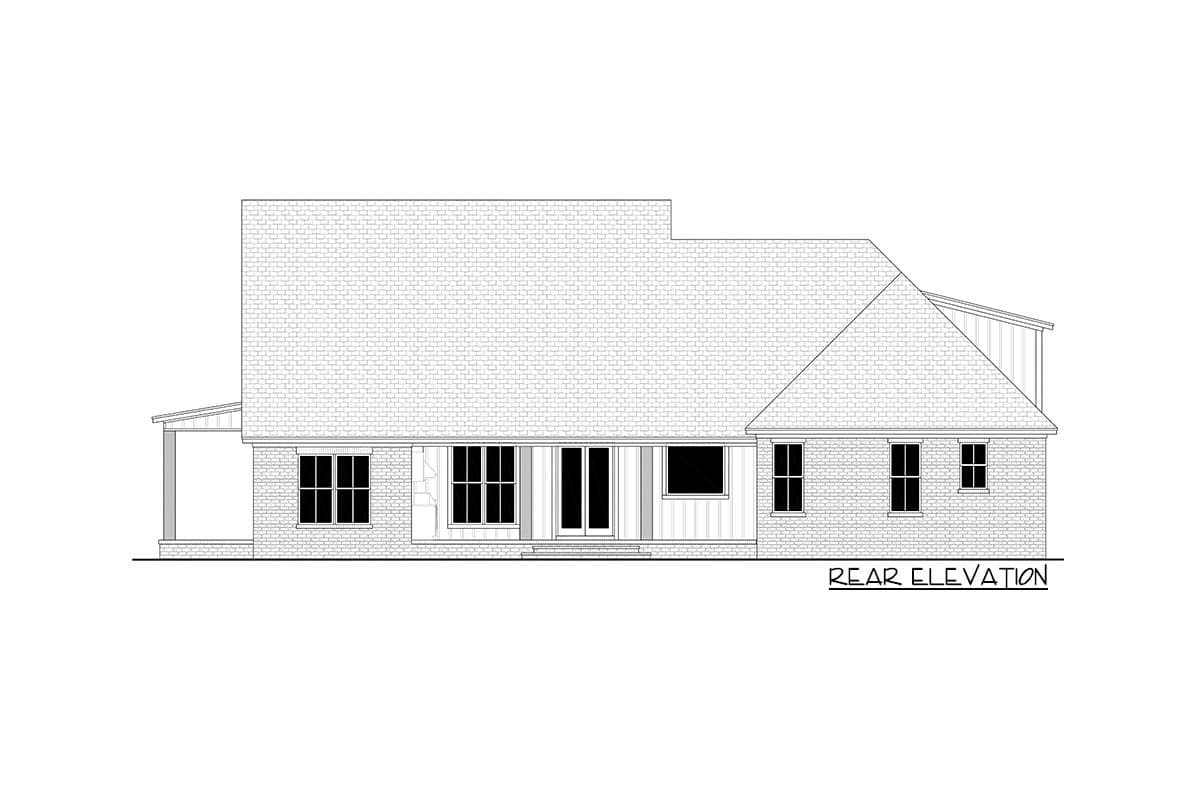

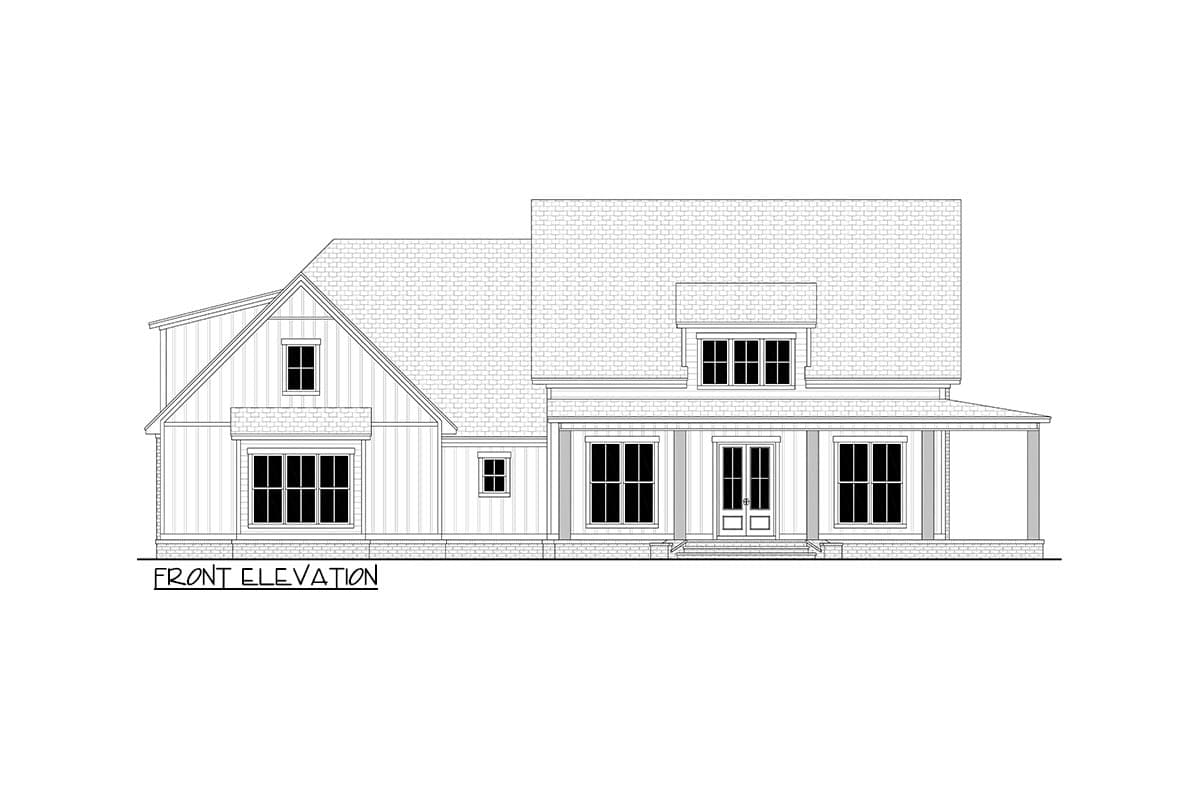

Page 5  Exterior views with additional notes and details and garage section
Page 6  Exterior views with additional notes and details
Page 7  Cross Section & kitchen cabinet views
Page 8  Roof plan and span charts with additional details
Page 9  Electrical plan
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information

The following details are NOT included in the plans:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Sample Plan

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

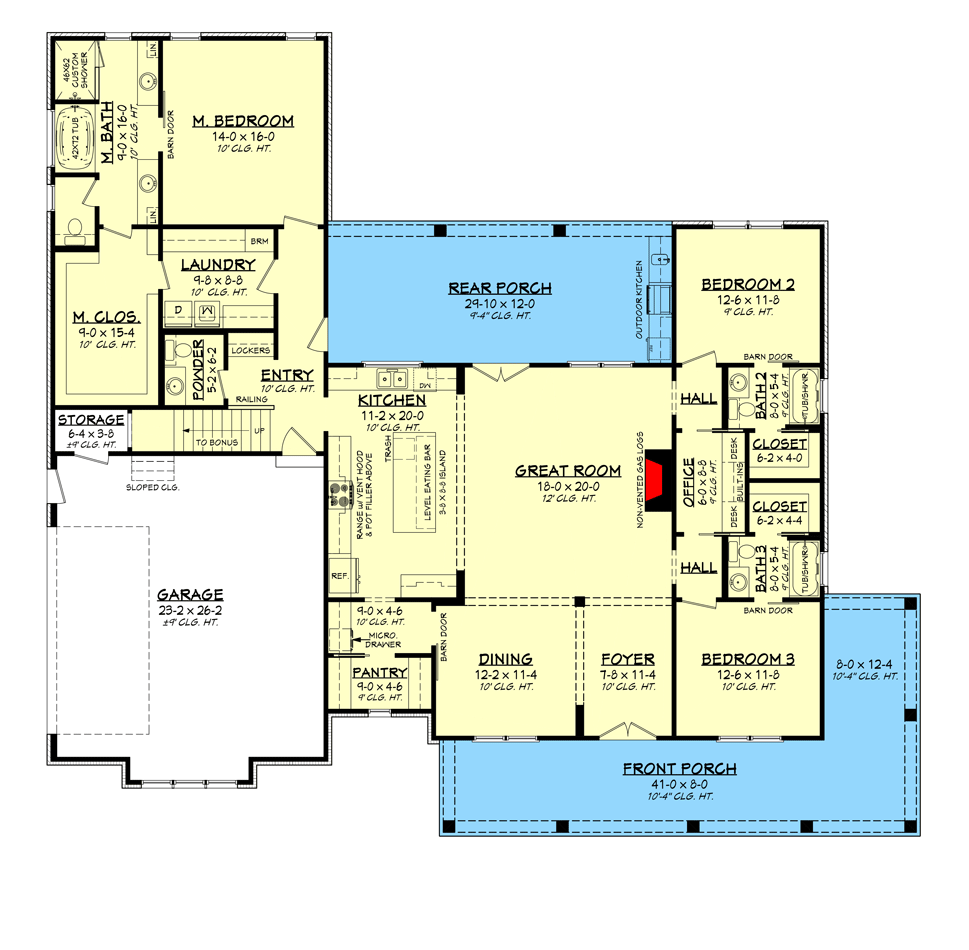

Modern Farmhouse Plan with L-Shaped Front Porch and Master Suite Laundry - 51917HZ floor plan - Main Level

Bonus

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

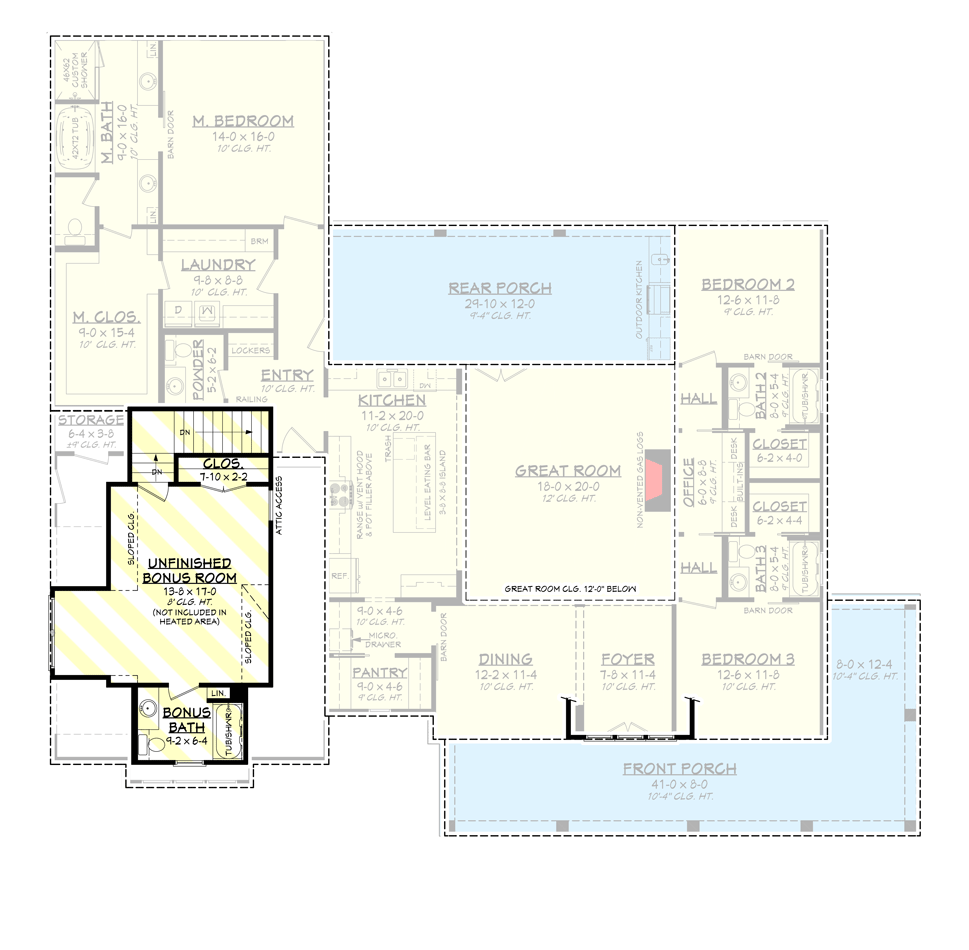

Modern Farmhouse Plan with L-Shaped Front Porch and Master Suite Laundry - 51917HZ floor plan - Bonus

Basement Stairs

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

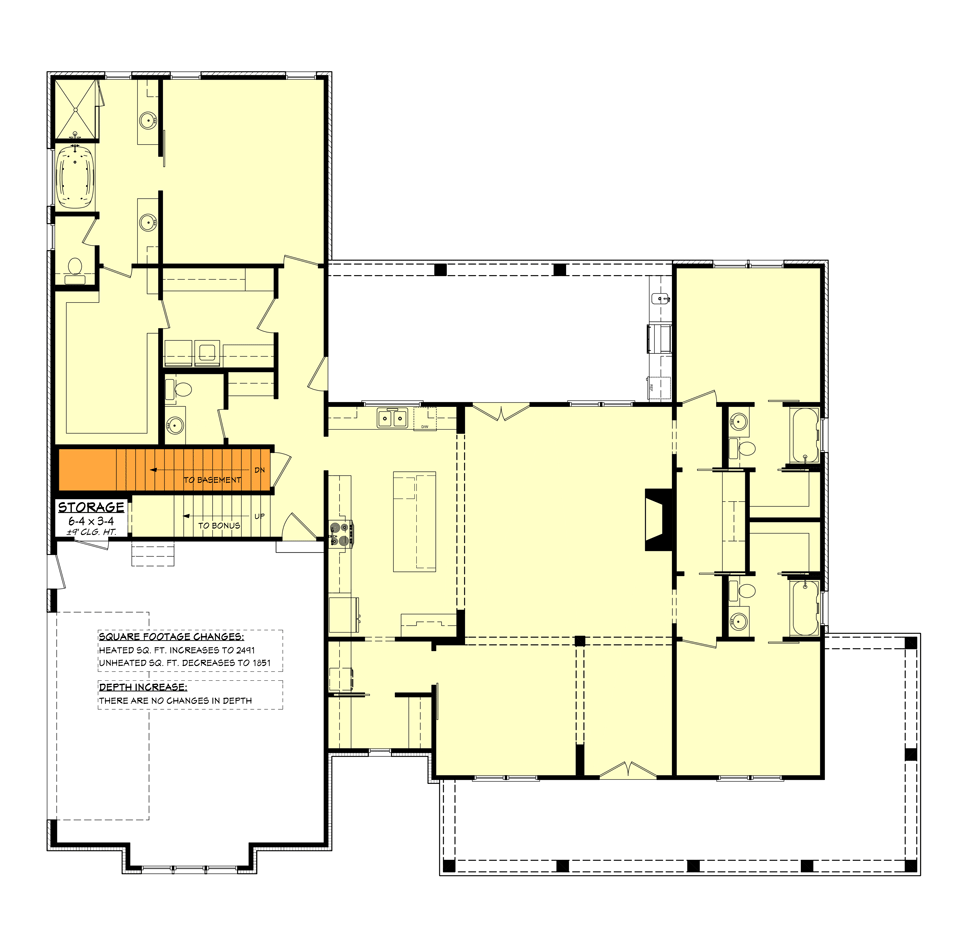

Modern Farmhouse Plan with L-Shaped Front Porch and Master Suite Laundry - 51917HZ floor plan - Basement Stairs

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,394 sq. ft.
  • 1st Floor: 2,394 sq. ft.
  • Storage: 27 sq. ft.
  • Porch, Combined: 785 sq. ft.
  • Porch, Rear: 358 sq. ft.
  • Porch, Front: 427 sq. ft.
  • Bonus: 390 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 75' 0"
  • Depth: 69' 0"
  • Max ridge height: 29' 0"

Garage

  • Type: Attached
  • Area: 651 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Bonus Room 8' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Framing Type: Stick

Architectural Style

Special features

Modern Farmhouse Plan with L-Shaped Front Porch and Master Suite Laundry

  • 2,394

    Heated s.f.

  • 3-4

    Beds

  • 3.5 - 4.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,295
  • 5 Sets +PDF Single-Build $1,545
  • PDF - Unlimited Build $1,995
  • CAD + PDF - Unlimited Build $2,295
  • View all purchase option online

About This Plan

  • An 8'-deep L-shaped porch wraps around the front-right corner of this modern farmhouse plan with 3 bedrooms and bonus expansion above the 2-car side-entry garage.
  • Volume ceilings and decorative beams catch your eye from the foyer as you look ahead to the great room with fireplace. Doors on the back wall take you to the 12'-deep rear porch with an outdoor kitchen.
  • The huge kitchen features a 3'8" by 8'8" island and 9' by 4'6" walk-in pantry with an identically sized serving passage to the dining room. A double sink is centered below the windows looking out the back.
  • Your luxurious main suite has dual vanities and an oversized shower and walk-in closet with direct access to the laundry room.  Across the home, guest bedrooms feature private bathrooms and walk-in closet.
  • Other features include a powder room and lockers by the garage entry and a small office space that can be closed off by pocket doors.
  • Related Plans: Get alternate versions with house plan 51762HZ, 51766HZ and 51801HZ.

Floor Plans

  • Main Level

  • Bonus

  • Basement Stairs

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,394 sq. ft.
  • 1st Floor: 2,394 sq. ft.
  • Storage: 27 sq. ft.
  • Porch, Combined: 785 sq. ft.
  • Porch, Rear: 358 sq. ft.
  • Porch, Front: 427 sq. ft.
  • Bonus: 390 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 75' 0"
  • Depth: 69' 0"
  • Max ridge height: 29' 0"

Garage

  • Type: Attached
  • Area: 651 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Bonus Room 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick
