Modern Farmhouse Ranch House Plan with 4 Beds and Grand Porches

Name: Plan 54072LK: Modern Farmhouse Ranch House Plan with 4 Beds and Grand Porches
Brand: Architectural Designs
SKU: 54072LK
Price: 2750.0 USD
Availability: InStock

Heated S.F.

4,430

Beds

Baths

4.5

Stories

Cars

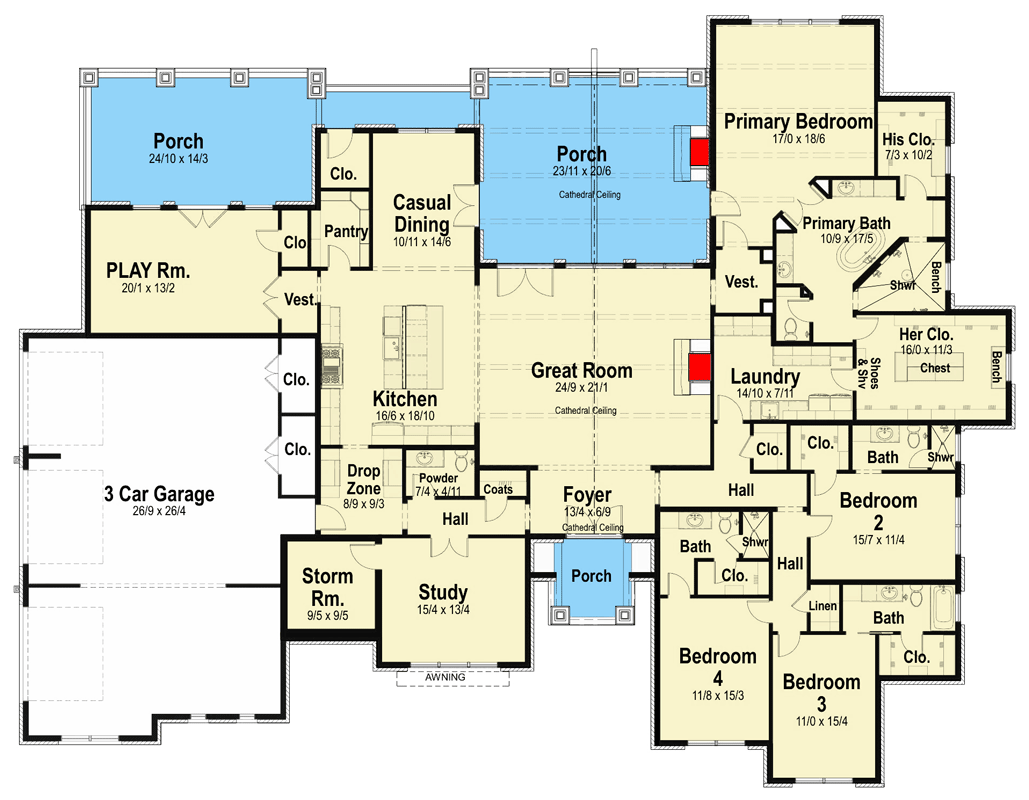

Floor Plan

Plan Details

This expansive 4,430 sq ft Modern Farmhouse Ranch House Plan features 4 bedrooms, 4.5 baths, and an attached 1286 sq ft 3-car garage.
Step through the grand double door entry into a welcoming foyer with 10-foot ceilings, revealing immediate access to a formal dining room and a private library/study.
The main living areas flow seamlessly, with an open-concept layout connecting a gourmet kitchen, breakfast nook, and spacious family room, all designed for comfortable everyday living.
The secluded primary suite offers a private sanctuary, complete with convenient direct access to the main level laundry, while secondary bedrooms are thoughtfully placed for privacy.
A dedicated playroom provides versatile space, perfect for children's activities, a media room, or a flexible hobby area.
Over 1,000 sq ft of combined covered porches extend the living space outdoors, ideal for enjoying morning coffee or hosting gatherings.

What's Included

FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches and outlets.
ELEVATIONS: The front, rear and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
ROOF PLANS: Provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable
BUILDING CROSS SECTION: Shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
INTERIOR ELEVATIONS: Show's how the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.
NOTES AND DETAILS: Provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
