Modern Farmhouse with 2005 Square Feet of Heated Living and an Angled Garage

Plan 444396GDN

  • 2,005

    Heated s.f.

  • 2-4

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This angled garage modern farmhouse design has decorative gable brackets and metal roof accents. Inside, it gives you 3 to 5 bedrooms - depending on how you use the flex room and the bonus room (404 square feet) - and 2,005 square feet of heated living.
  • An open floor plan awaits inside with an array of skylights in the great room, a sun tunnel above the island kitchen, and a dining room that accesses the rear porch.
  • The master suite is accompanied by a bedroom and flexible office space while an optional bonus room welcomes expansion.
  • Additional amenities include a fireplace, mudroom, pantry, and a sink in the utility room.
  • Please allow 20 to 25 days for delivery if it includes the basement foundation option.
  • Please allow 15 to 20 days for delivery if it includes the slab foundation option or 2x6 exterior wall conversion.

1. Cover Sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan
This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans
These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations
The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan
The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations
Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details
Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan
Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

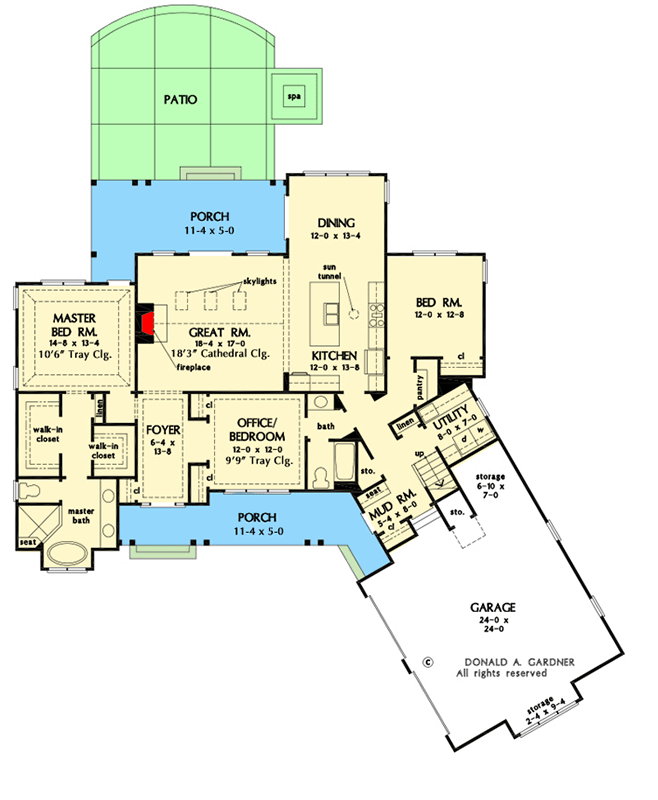

Modern Farmhouse with 2005 Square Feet of Heated Living and an Angled Garage - 444396GDN floor plan - Main Level

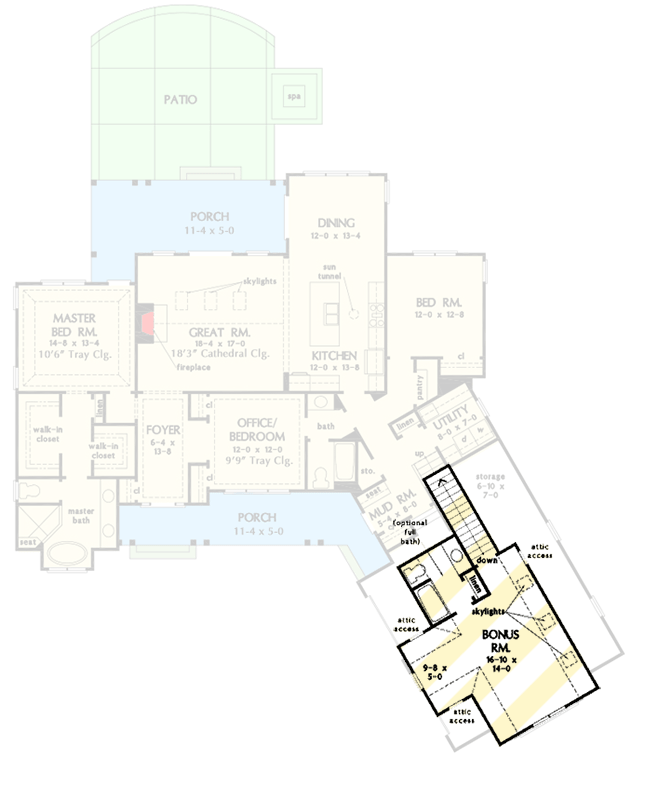

Bonus Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Farmhouse with 2005 Square Feet of Heated Living and an Angled Garage - 444396GDN floor plan - Bonus Level

Main Level - Basement Stairs Location

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

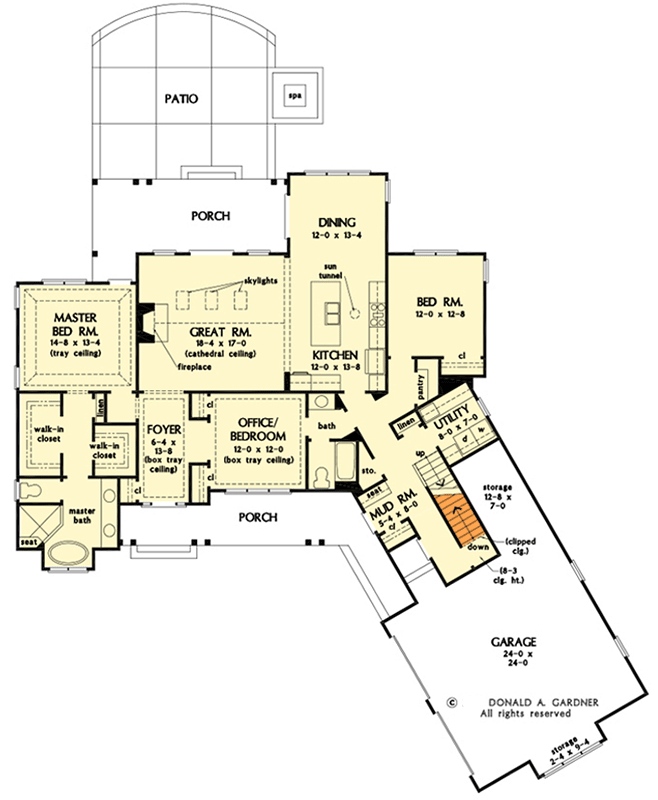

Modern Farmhouse with 2005 Square Feet of Heated Living and an Angled Garage - 444396GDN floor plan - Main Level - Basement Stairs Location

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,005 sq. ft.
  • 1st Floor: 2,005 sq. ft.
  • Porch, Rear: 245 sq. ft.
  • Porch, Front: 200 sq. ft.
  • Bonus: 404 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 76' 6"
  • Depth: 72' 8"
  • Max ridge height: 26' 4"

Garage

  • Type: Attached
  • Area: 712 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Modern Farmhouse with 2005 Square Feet of Heated Living and an Angled Garage

  • 2,005

    Heated s.f.

  • 2-4

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $1,350
  • PDF - Single-Build $1,550
  • CAD Unlimited + PDF $2,725
  • View all purchase option online

About This Plan

  • This angled garage modern farmhouse design has decorative gable brackets and metal roof accents. Inside, it gives you 3 to 5 bedrooms - depending on how you use the flex room and the bonus room (404 square feet) - and 2,005 square feet of heated living.
  • An open floor plan awaits inside with an array of skylights in the great room, a sun tunnel above the island kitchen, and a dining room that accesses the rear porch.
  • The master suite is accompanied by a bedroom and flexible office space while an optional bonus room welcomes expansion.
  • Additional amenities include a fireplace, mudroom, pantry, and a sink in the utility room.
  • Please allow 20 to 25 days for delivery if it includes the basement foundation option.
  • Please allow 15 to 20 days for delivery if it includes the slab foundation option or 2x6 exterior wall conversion.

Floor Plans

  • Main Level

  • Bonus Level

  • Main Level - Basement Stairs Location

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,005 sq. ft.
  • 1st Floor: 2,005 sq. ft.
  • Porch, Rear: 245 sq. ft.
  • Porch, Front: 200 sq. ft.
  • Bonus: 404 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 76' 6"
  • Depth: 72' 8"
  • Max ridge height: 26' 4"

Garage

  • Type: Attached
  • Area: 712 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
Plan 444396GDN
View this and more for this plan by visiting www.architechtecturaldesigns.com/444396GDN
|
