Plan 62668DJ Modern Farmhouse with Angled 3-Car Garage

3,467 4 3.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Modern Farmhouse with Angled 3-Car Garage

Plan 62668DJ

  • 3,467

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This 2-story, Modern Farmhouse plan is highlighted on the exterior by a wrap around porch, metal roof, and board and batten siding.
  • Inside, immediate impressions are made by a cozy study with a fireplace adjacent to the entrance.
  • The main floor also features a large great room and breakfast area that leads to an open kitchen.
  • The kitchen, with expansive work island, lies beneath its own beamed ceiling and is open to the dining area.
  • Just up the stairs, the master suite features a beautiful cathedral ceiling.
  • The master bath features his and her vanities, a walk-in shower, a compartmented toilet, and a massive walk-in closet.
  • Bedroom 2 and 3 share a jack and jill bathroom.
  • The generously proportioned 3-car garage includes ample storage space upstairs.
  • The garage accesses the home through a mudroom, complete with bench and lockers.

This plan set has 10 pages and includes the following details:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinet elevations (3)
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

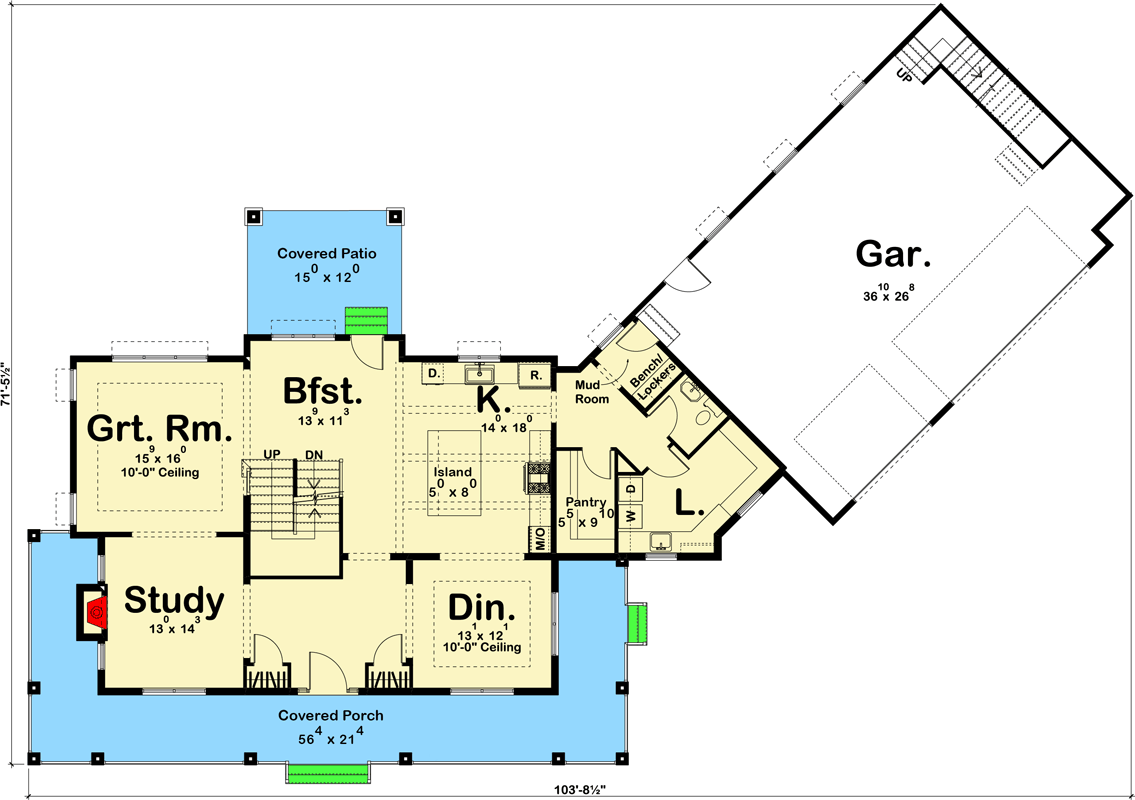

Modern Farmhouse with Angled 3-Car Garage - 62668DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

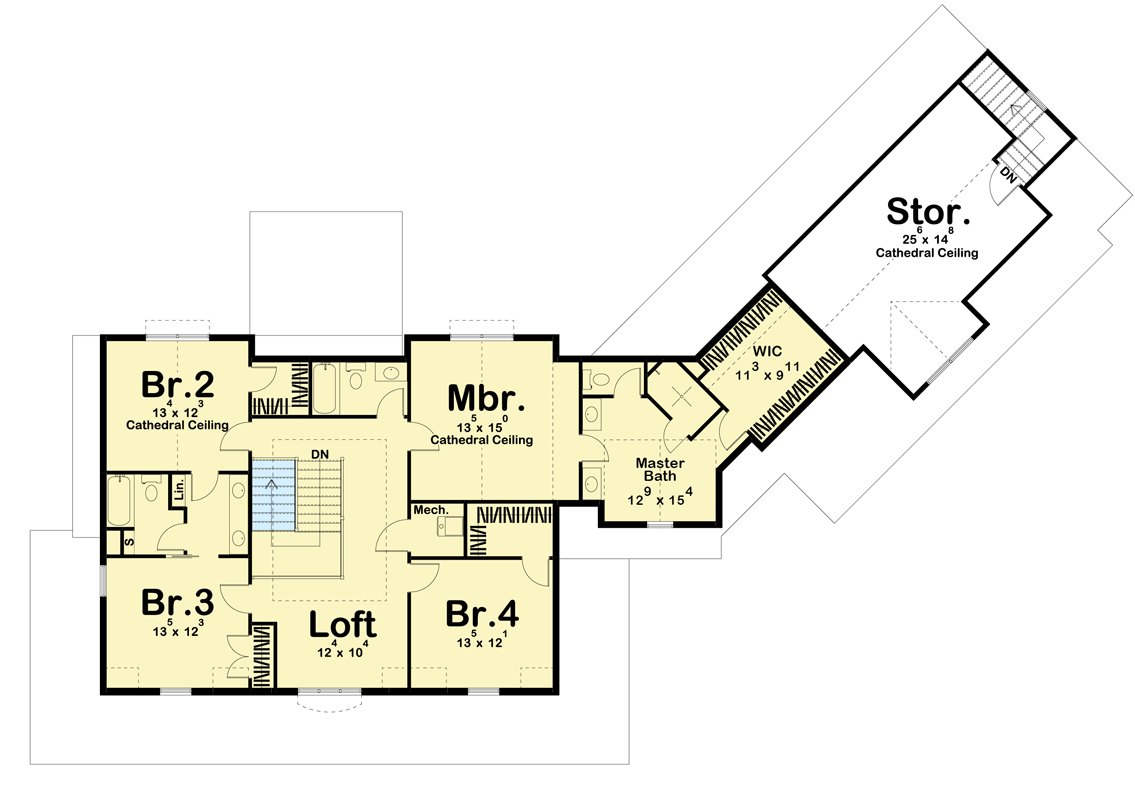

Modern Farmhouse with Angled 3-Car Garage - 62668DJ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,467 sq. ft.
  • 1st Floor: 1,776 sq. ft.
  • 2nd Floor: 1,691 sq. ft.
  • Covered Patio: 180 sq. ft.
  • Porch, Front: 570 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 103' 8"
  • Depth: 71' 5"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 1114 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Modern Farmhouse with Angled 3-Car Garage

  • 3,467

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,700
  • 5 Sets + PDF $1,950
  • PDF - Unlimited Build $2,200
  • CAD + PDF - Single-Build $2,200
  • CAD - Unlimited Build $2,700
  • View all purchase option online

About This Plan

  • This 2-story, Modern Farmhouse plan is highlighted on the exterior by a wrap around porch, metal roof, and board and batten siding.
  • Inside, immediate impressions are made by a cozy study with a fireplace adjacent to the entrance.
  • The main floor also features a large great room and breakfast area that leads to an open kitchen.
  • The kitchen, with expansive work island, lies beneath its own beamed ceiling and is open to the dining area.
  • Just up the stairs, the master suite features a beautiful cathedral ceiling.
  • The master bath features his and her vanities, a walk-in shower, a compartmented toilet, and a massive walk-in closet.
  • Bedroom 2 and 3 share a jack and jill bathroom.
  • The generously proportioned 3-car garage includes ample storage space upstairs.
  • The garage accesses the home through a mudroom, complete with bench and lockers.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,467 sq. ft.
  • 1st Floor: 1,776 sq. ft.
  • 2nd Floor: 1,691 sq. ft.
  • Covered Patio: 180 sq. ft.
  • Porch, Front: 570 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 103' 8"
  • Depth: 71' 5"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 1114 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
Plan 62668DJ
View this and more for this plan by visiting www.architechtecturaldesigns.com/62668DJ
|
Need Help? 800-854-7852
|
Plan 62668DJ
