Plan 666244RAF

Modern House Plan with 2-Bed Main Floor Apartment - 6,471 Sq. Ft.

Heated S.F.
6,471
Beds
7
Baths
6.5
Stories
2
Cars
3

Floor Plan

Plan 666244RAF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 666244RAF

M-F 9am-5pm EST |

1-203-761-8500

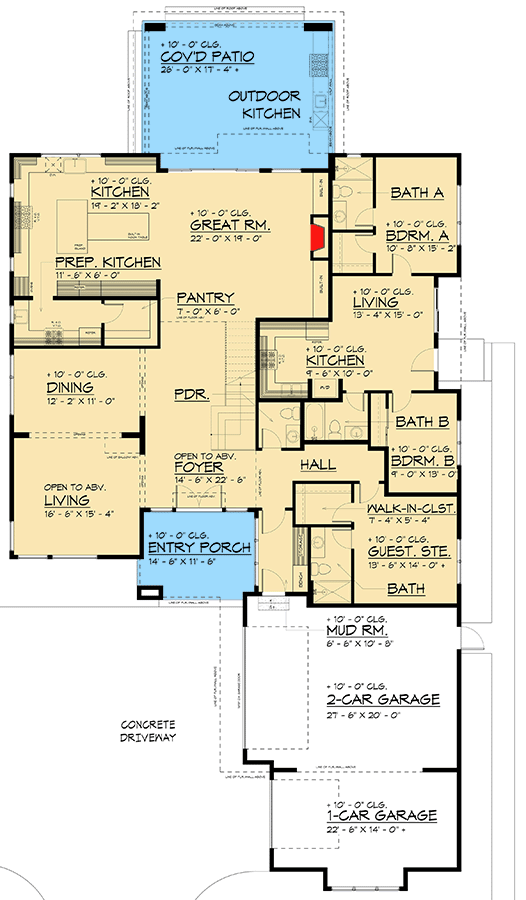

Main Level

Plan 666244RAF: Modern House Plan with 2-Bed Main Floor Apartment - 6,471 Sq. Ft. - Floor Plan - Main Level - Contemporary, Mid Century Modern, Modern, Northwest, Transitional

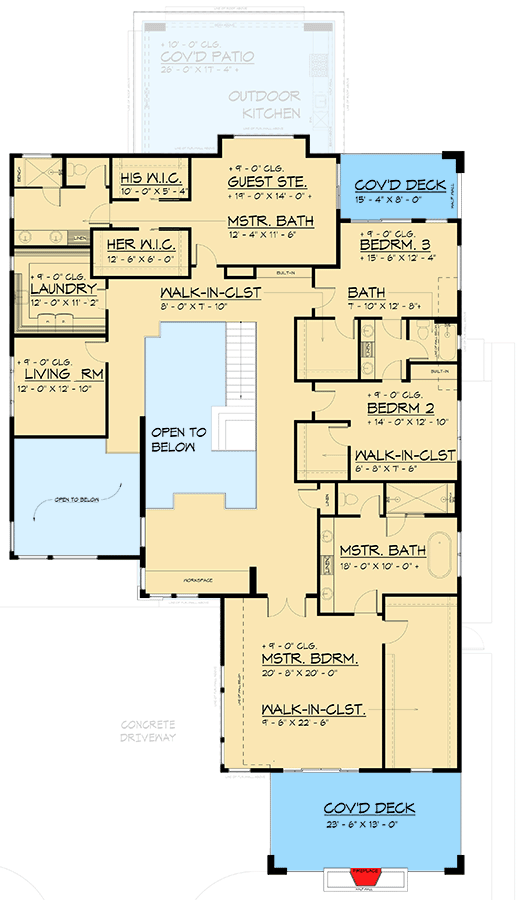

2nd Floor

Plan 666244RAF: Modern House Plan with 2-Bed Main Floor Apartment - 6,471 Sq. Ft. - Floor Plan - 2nd Floor - Contemporary, Mid Century Modern, Modern, Northwest, Transitional

Plan Details

  • This modern house plan gives you a 5 bedroom, 4.5 bath home (5,673 sq. ft.) and a 2 bed, 2 bath apartment (809 sq. ft.).
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

6,471 sq. ft.

1st Floor

2,301 sq. ft.

2nd Floor

3,372 sq. ft.

Porch, Front

180 sq. ft.

Deck

325 sq. ft.

Balcony / Veranda

135 sq. ft.

Covered Patio

543 sq. ft.

Beds/Baths

Bedrooms

7

Full bathrooms

6

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

59' 0"

Depth

96' 4"

Max Ridge Height

31' 6"

Garage

Type

Attached

Area

975 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Architectural Style

Contemporary

Mid Century Modern

Modern

Northwest

Transitional

Special Features

Bedrooms - Split

Courtyard

Formal Dining

In-Law Suite

Jack & Jill Bath

Laundry - Main Level

Laundry - Upstairs

Loft

Master Suite - Upstairs

Mudroom

Outdoor Kitchen

Two Kitchen Islands

Two Master Suites

Walk-in Pantry

Plan Collections

Two Master Suites

Square Footage Breakdown

Total Heated Area

6,471 sq. ft.

1st Floor

2,301 sq. ft.

2nd Floor

3,372 sq. ft.

Porch, Front

180 sq. ft.

Deck

325 sq. ft.

Balcony / Veranda

135 sq. ft.

Covered Patio

543 sq. ft.

Beds/Baths

Bedrooms

7

Full bathrooms

6

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

59' 0"

Depth

96' 4"

Max Ridge Height

31' 6"

Garage

Type

Attached

Area

975 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Architectural Style

Contemporary

Mid Century Modern

Modern

Northwest

Transitional

Special Features

Bedrooms - Split

Courtyard

Formal Dining

In-Law Suite

Jack & Jill Bath

Laundry - Main Level

Laundry - Upstairs

Loft

Master Suite - Upstairs

Mudroom

Outdoor Kitchen

Two Kitchen Islands

Two Master Suites

Walk-in Pantry

Plan Collections

Two Master Suites
