Modern House Plan with an RV Bay and Ground-level Apartment

Plan 680008VR

  • 2,822

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 2

    Stories

  • 3

    Cars

  • This modern house plan has special features like tall RV garage bays, a workshop, a 2-story entry foyer and a ground level apartment.
  • There's a huge covered porch on the ground level and an even bigger uncovered balcony on the upper floor where the main living area is. Tall windows brighten the stairway and foyer.
  • An apartment occupies the back of the ground floor, complete with its own living room, kitchenette and outdoor access.
  • Upstairs, the open layout makes the whole living area feel huge. The family room ceiling vaults from 9' to 19'8" and sliding doors open to the balcony.
  • The master bedroom has a walk-in closet and enjoys balcony access. The second bedroom sits behind barn doors.
  • The left garage bay has a 12' by 13'6" garage door and the right bay has an 18' by 13'6" garage door.
  • Related Plans: Eliminate the lower level apartment with house plans 68814VR, 68618VR (2-bed version) and 68496VR (1-bed version).

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

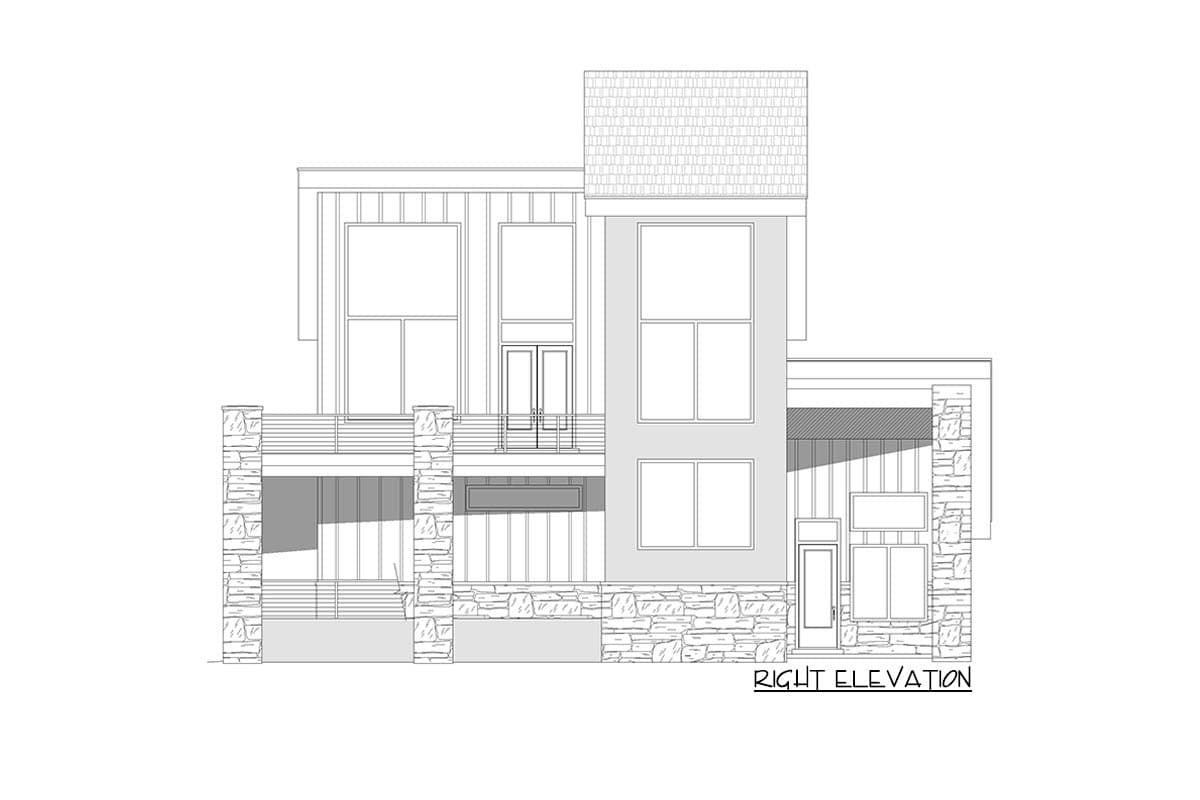

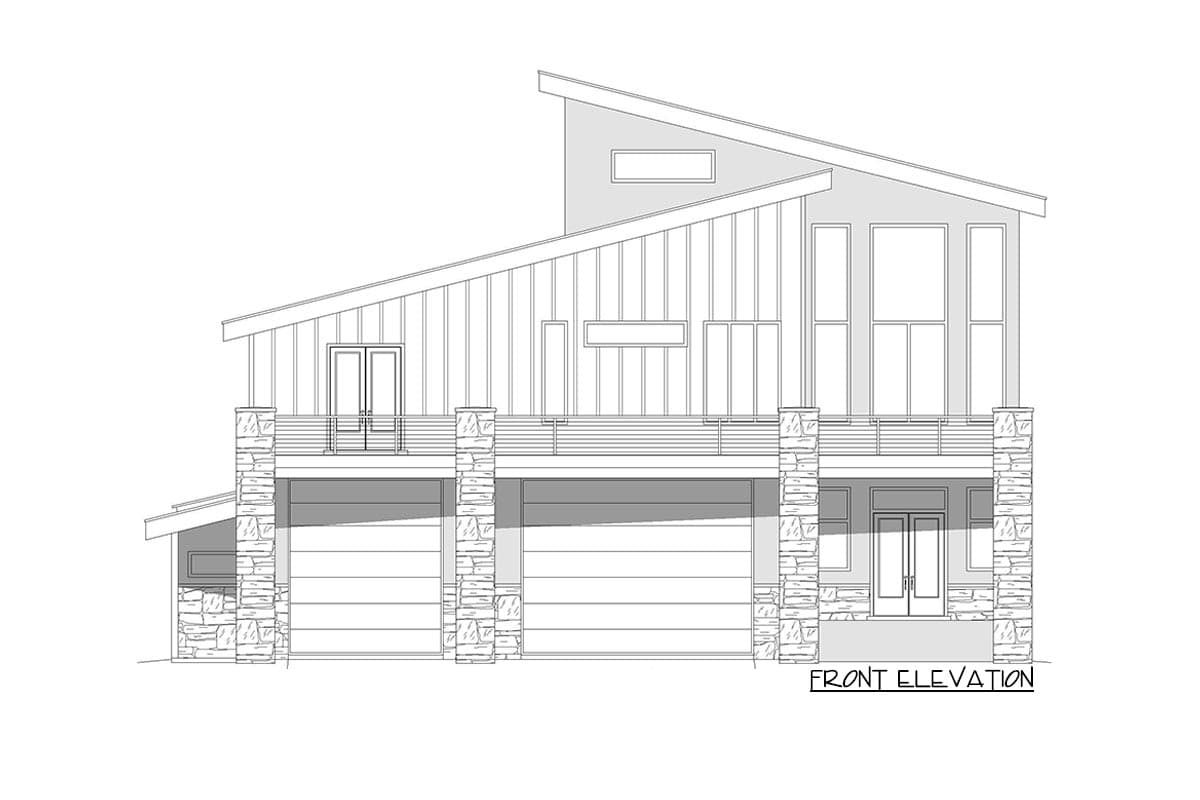

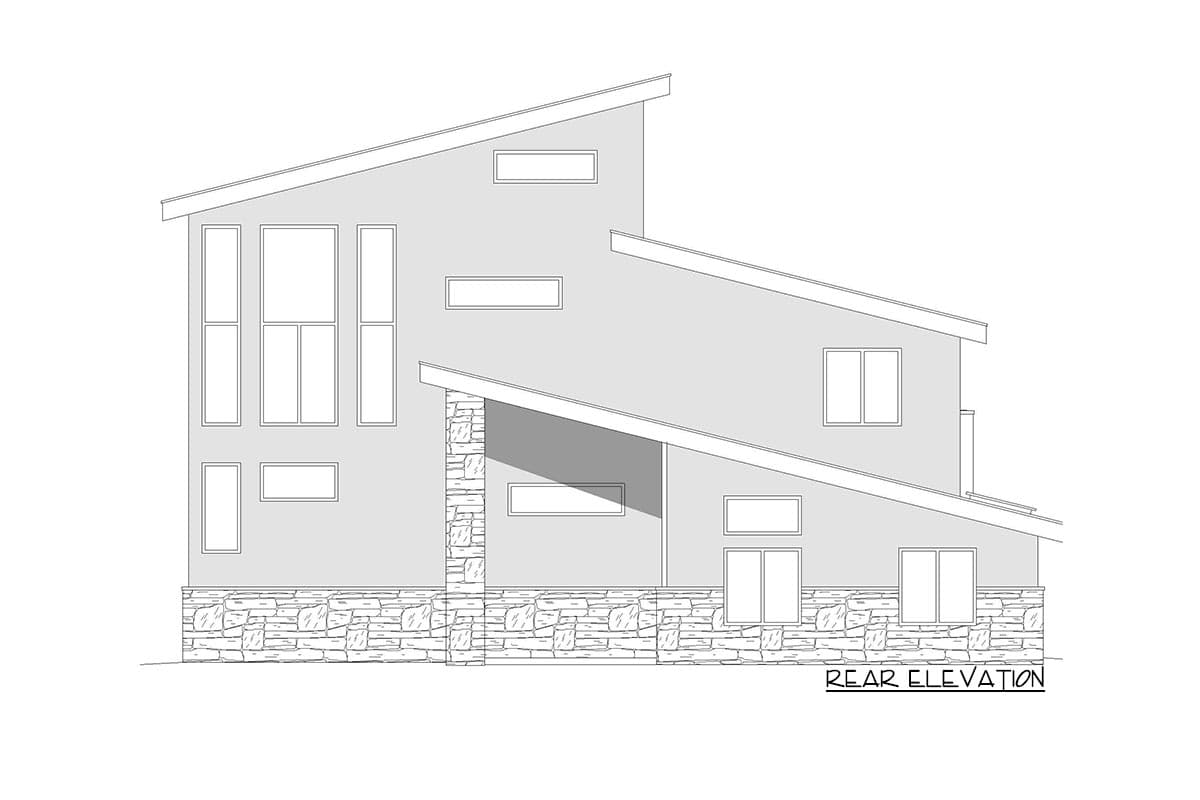

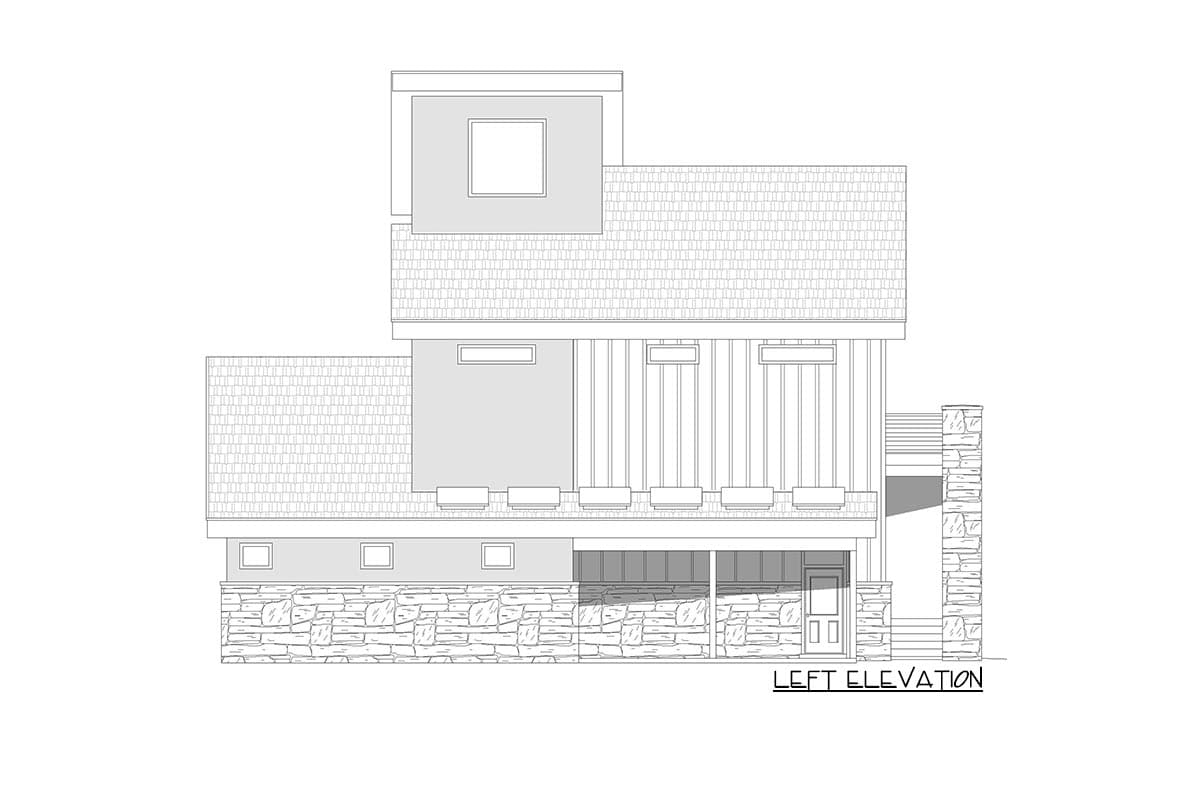

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

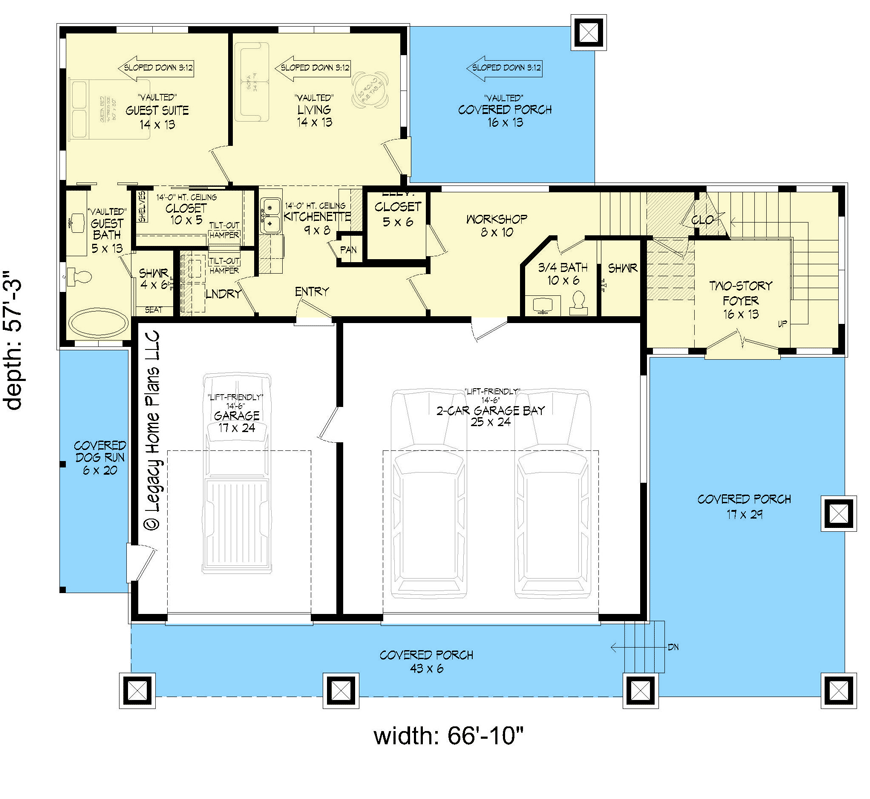

Modern House Plan with an RV Bay and Ground-level Apartment - 680008VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

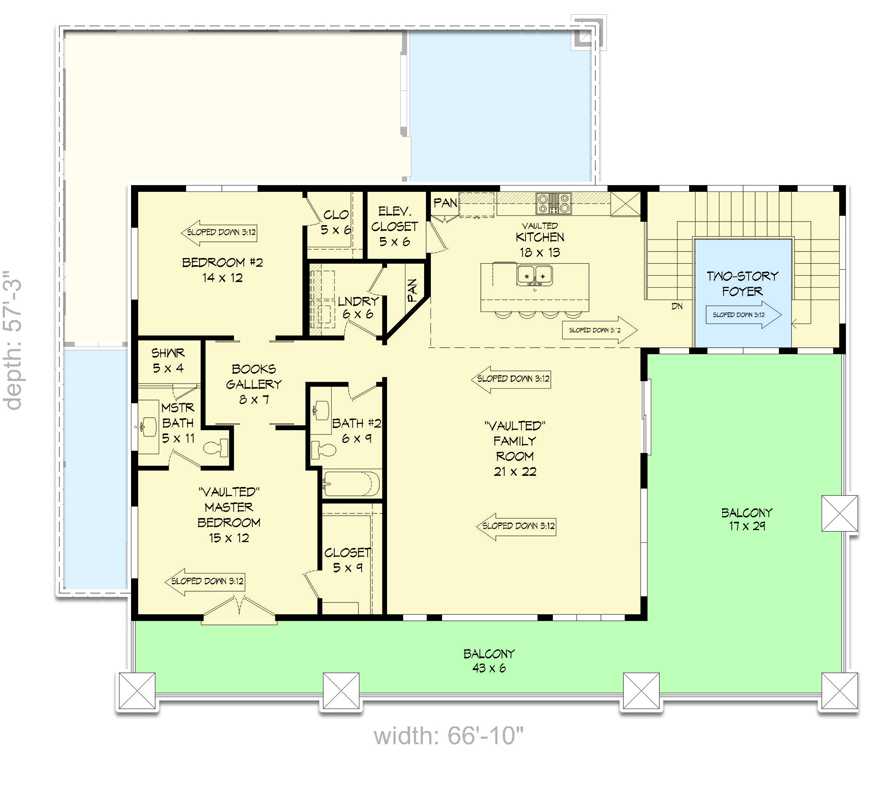

Modern House Plan with an RV Bay and Ground-level Apartment - 680008VR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,822 sq. ft.
  • 1st Floor: 1,194 sq. ft.
  • 2nd Floor: 1,628 sq. ft.
  • Balcony / Veranda: 765 sq. ft.
  • Porch, Combined: 1,085 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 66' 10"
  • Depth: 57' 3"
  • Max ridge height: 41' 1"

Garage

  • Type: Attached
  • Area: 1067 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 14' 0" Second Floor / 19' 8"

Roof Details

  • Primary Pitch: 3 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Modern House Plan with an RV Bay and Ground-level Apartment

  • 2,822

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,575
  • 5 Sets $1,660
  • 5 Sets + PDF $1,805
  • CAD + PDF - Single-Build $2,125
  • View all purchase option online

About This Plan

  • This modern house plan has special features like tall RV garage bays, a workshop, a 2-story entry foyer and a ground level apartment.
  • There's a huge covered porch on the ground level and an even bigger uncovered balcony on the upper floor where the main living area is. Tall windows brighten the stairway and foyer.
  • An apartment occupies the back of the ground floor, complete with its own living room, kitchenette and outdoor access.
  • Upstairs, the open layout makes the whole living area feel huge. The family room ceiling vaults from 9' to 19'8" and sliding doors open to the balcony.
  • The master bedroom has a walk-in closet and enjoys balcony access. The second bedroom sits behind barn doors.
  • The left garage bay has a 12' by 13'6" garage door and the right bay has an 18' by 13'6" garage door.
  • Related Plans: Eliminate the lower level apartment with house plans 68814VR, 68618VR (2-bed version) and 68496VR (1-bed version).
