Plan 81690AB

Modern House Plan with Curved Stair Wall

Name: Plan 81690AB: Modern House Plan with Curved Stair Wall
Brand: Architectural Designs
SKU: 81690AB
Price: 2100.0 USD
Availability: InStock

Heated S.F.

3,880

Beds

Baths

3.5

Stories

Cars

Floor Plan

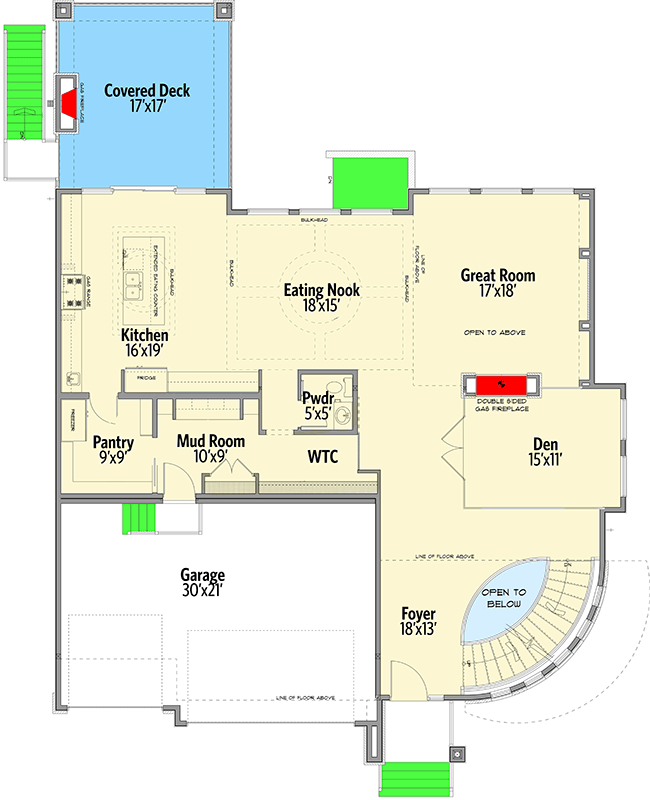

Main Level

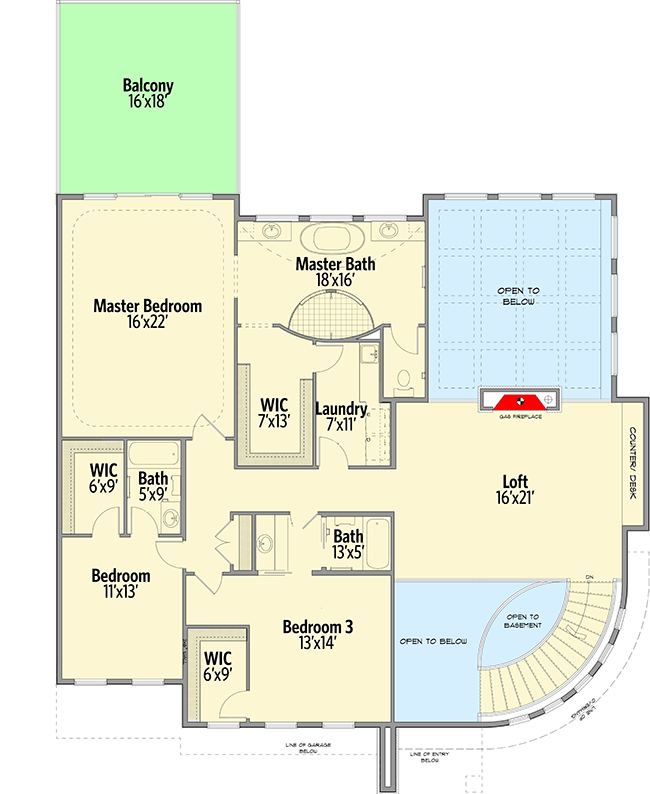

2nd Floor

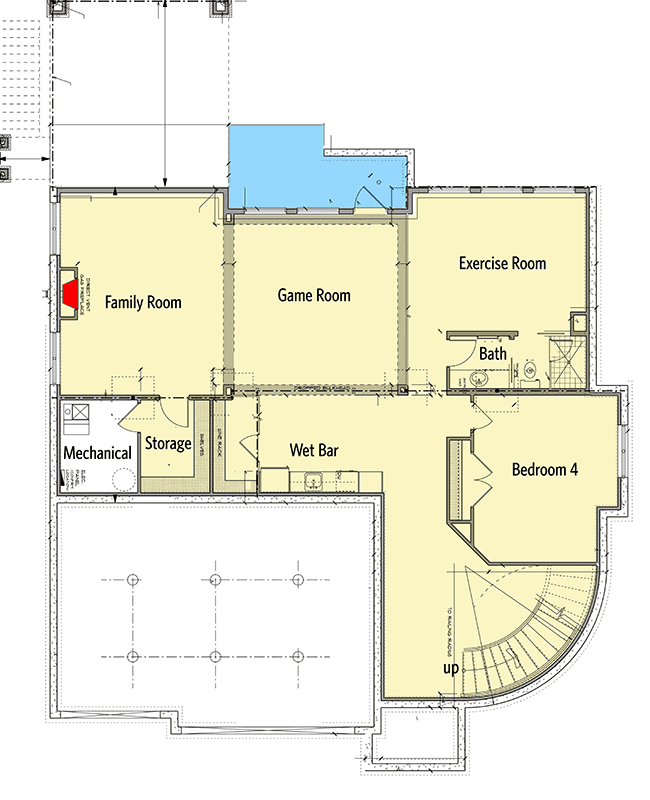

Optional Lower Level

Plan Details

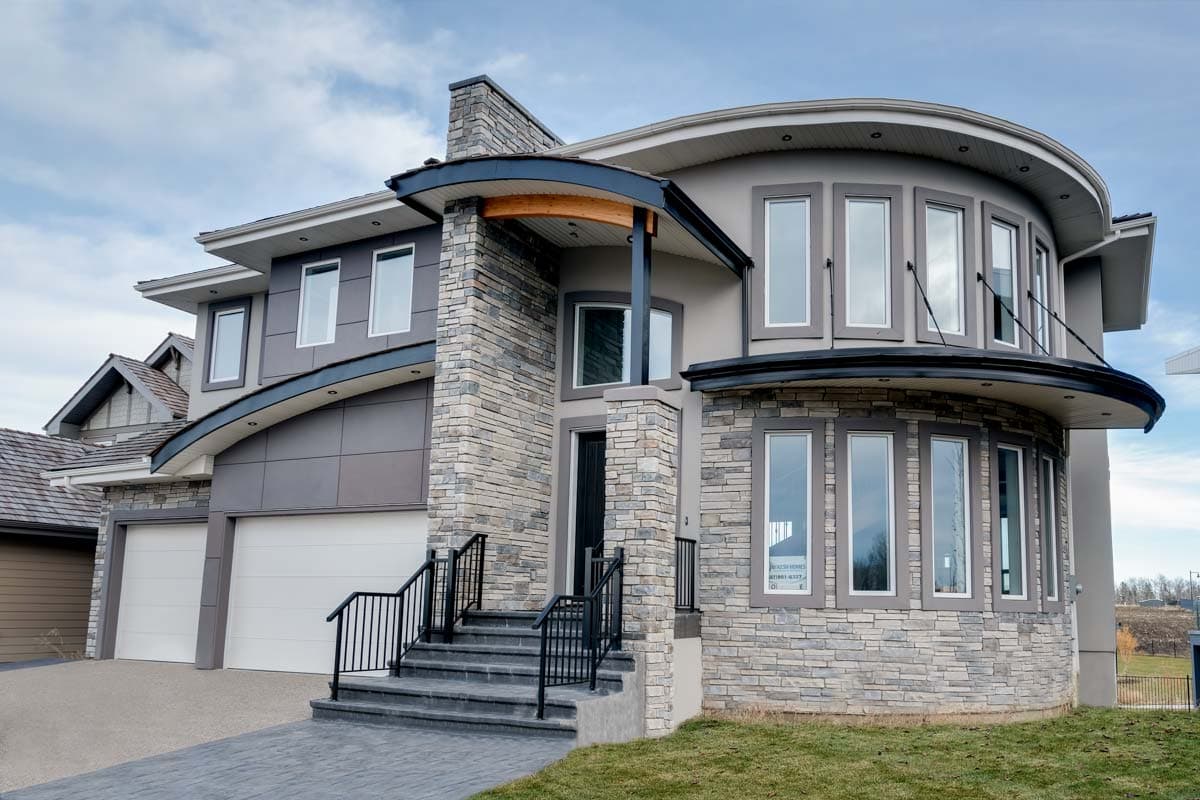

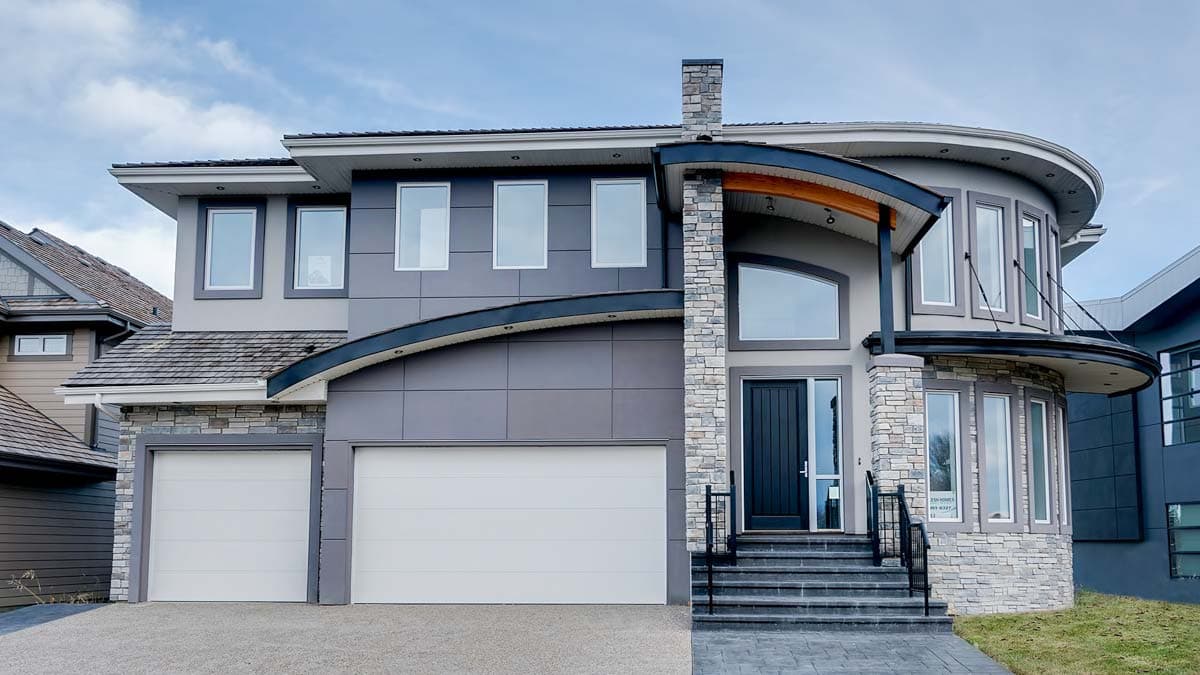

Curved and arched porch roofs and a curved stair wall give a unique look to this Modern house plan.
From the inside, the grand curved staircase catches your eyes as it gently sweeps up.
Double doors open to reveal a den that shares a two-sided fireplace with the two-story great room that has a coffered ceiling at the top.
The open layout gives you clear sight lines into the dining area and the spacious kitchen.
Sliding glass doors take you out to the rear covered deck with its outdoor fireplace.
All three bedrooms on the second floor share the huge loft that has open railing so you can see into the foyer on one side and the great room on the other.
The built-in computer deck is terrific for homework.

What's Included

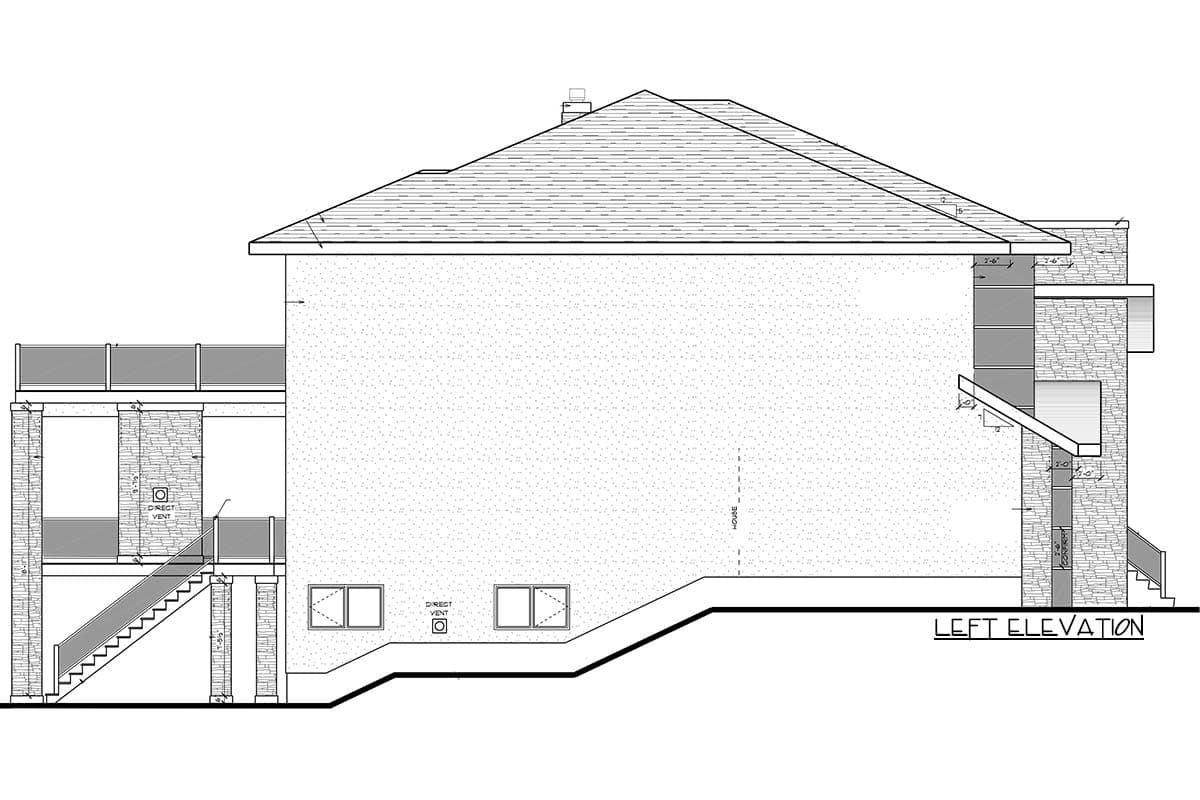

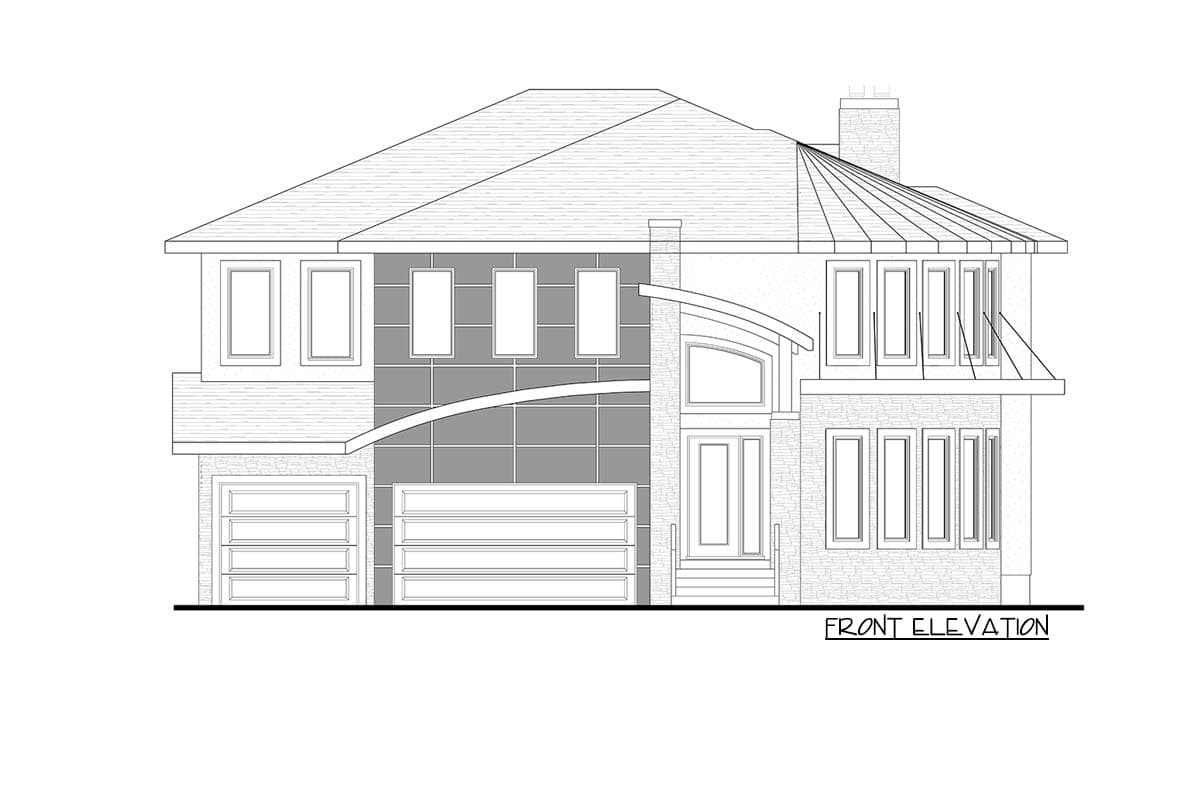

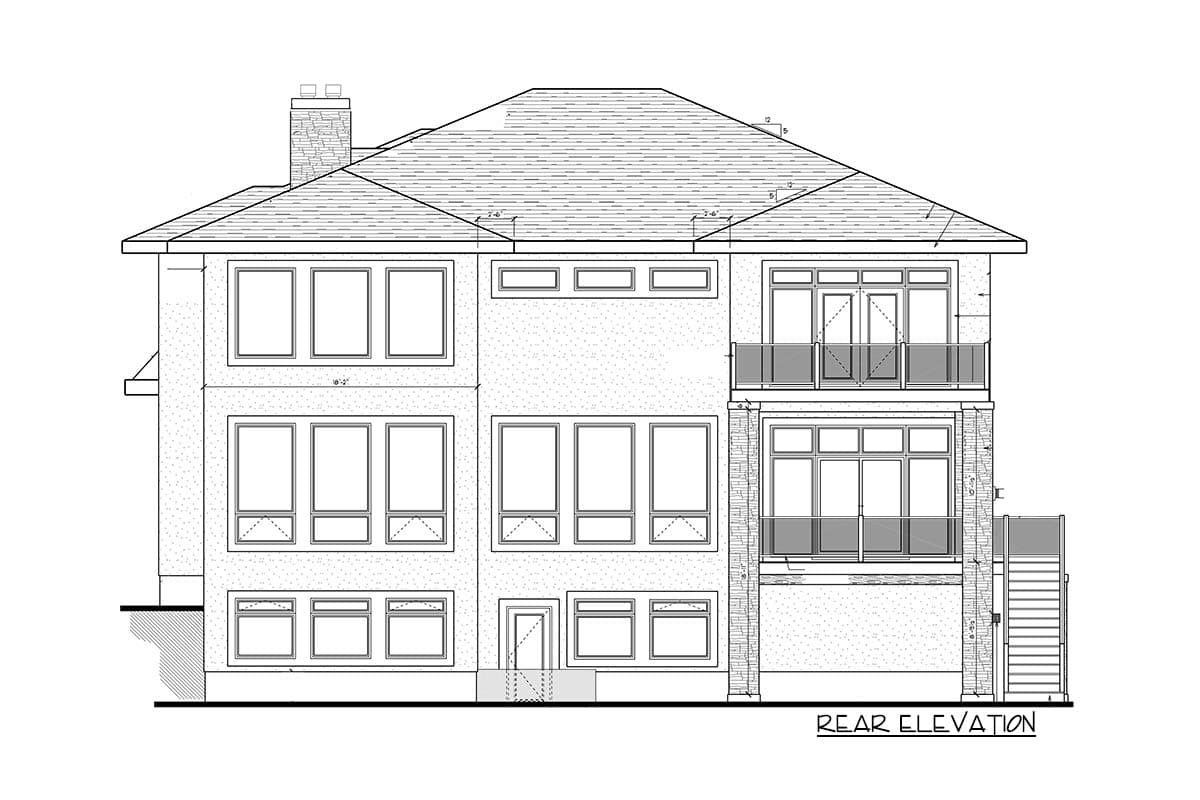

Elevations (Front, Rear, Left and Right)
Floor plans
Foundation plan
Cross section
Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

View Sample Plan

What's Not Included

Electrical plan
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
