Plan 31836DN

Modern Masterpiece

4,226 4 4.5 - 5.5 2 3
Pageloader

Modern Masterpiece

Plan 31836DN

  • 4,226

    Heated s.f.

  • 4

    Beds

  • 4.5 - 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • A stunning Contemporary facade and a spacious layout draw homeowners to this Florida house plan.
  • The enormous great room reveals sliding glass doors that take you to the outdoor livings spaces, both covered and uncovered.
  • Every room in the house gets a special ceiling treatment, giving the home a custom touch.
  • Set in back of the home away from street noise, the very special master suite has a stunning bathroom and large his and her walk-in closets.
  • A second floor lounge is available to friends and family and lies close to the two bedrooms on this floor.
  • Relax in the shade or get some sun on the second floor balconies.

This plan has the following pages:

  • Cover sheet
  • First floor slab plan
  • First floor notes plan
  • First floor dimension plan
  • First floor reflected ceiling plan
  • Second floor slab plan
  • Second floor notes plan
  • Second floor dimension plan
  • Second floor reflected ceiling plan
  • Roof plan
  • Elevations (2 pages)
  • Building section; typical wall section
  • Door, window and finish schedules
  • Interior elevations (2 pages)
  • Electrical plans (2 pages; one for each floor)

Floor Plan

Plan details



Modern Masterpiece

  • 4,226

    Heated s.f.

  • 4

    Beds

  • 5 +

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Reproducible Set $2,495
  • PDF - single-use $2,495
  • CAD $2,995
  • View all purchase option online

About This Plan

  • A stunning Contemporary facade and a spacious layout draw homeowners to this Florida house plan.
  • The enormous great room reveals sliding glass doors that take you to the outdoor livings spaces, both covered and uncovered.
  • Every room in the house gets a special ceiling treatment, giving the home a custom touch.
  • Set in back of the home away from street noise, the very special master suite has a stunning bathroom and large his and her walk-in closets.
  • A second floor lounge is available to friends and family and lies close to the two bedrooms on this floor.
  • Relax in the shade or get some sun on the second floor balconies.

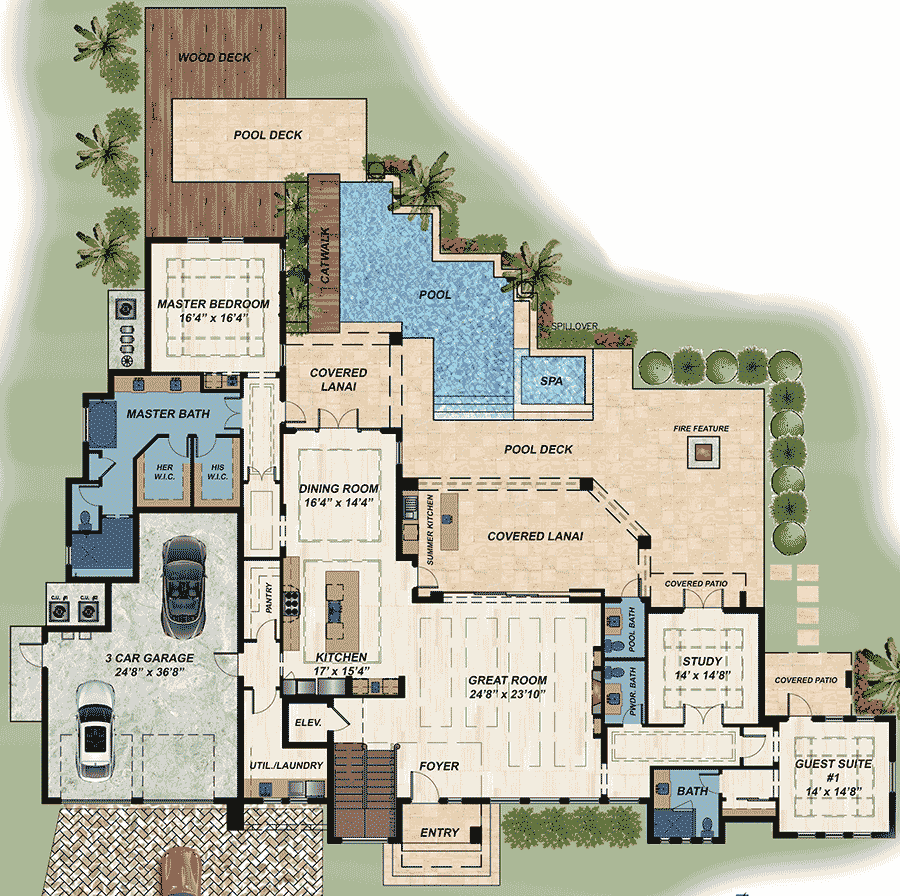

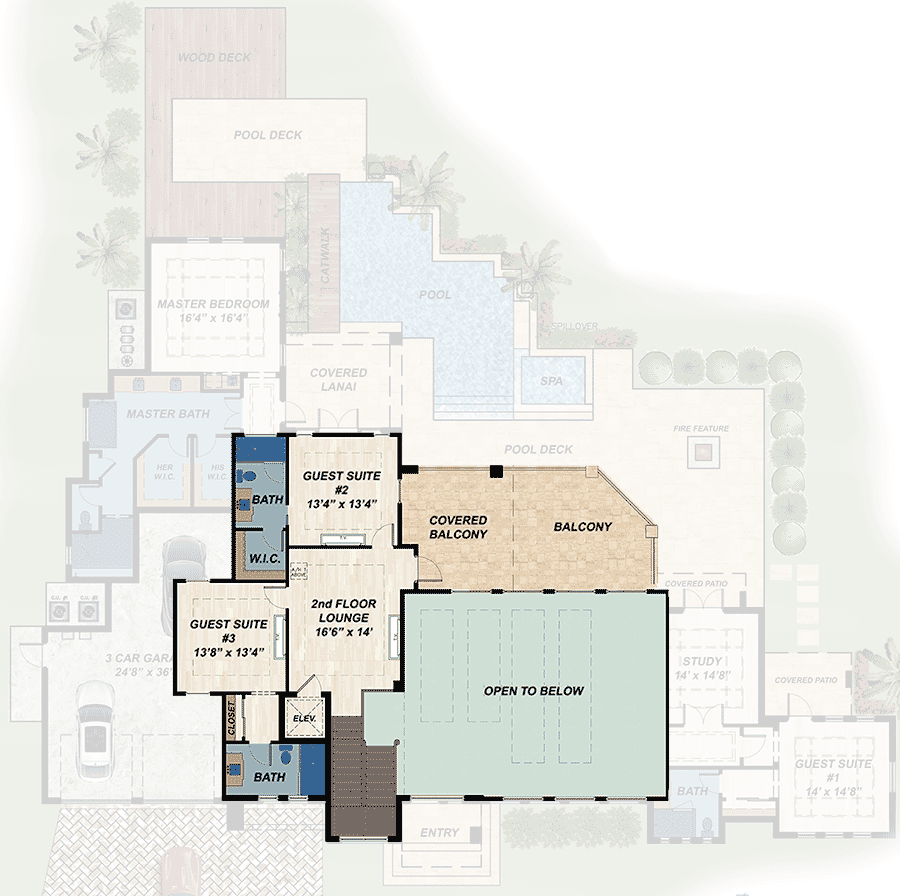

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,226 sq. ft.
  • 1st Floor: 3,285 sq. ft.
  • 2nd Floor: 941 sq. ft.
  • Covered Patio: 313 sq. ft.
  • Lanai: 748 sq. ft.
  • Balcony / Veranda: 487 sq. ft.
  • Entry: 80 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4 or 5
  • Half bathrooms: 1 or 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block

Dimensions

  • Width: 107' 6"
  • Depth: 75' 8"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 753 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Framing Type: Truss
