Plan 666301RAF

Modern Transitional House Plan with 4-Car Garage and Senior Suite

Heated S.F.
5,256
Beds
6
Baths
6.5
Stories
2
Cars
4

Floor Plan

Plan 666301RAF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 666301RAF

M-F 9am-5pm EST |

1-203-761-8500

Main Level

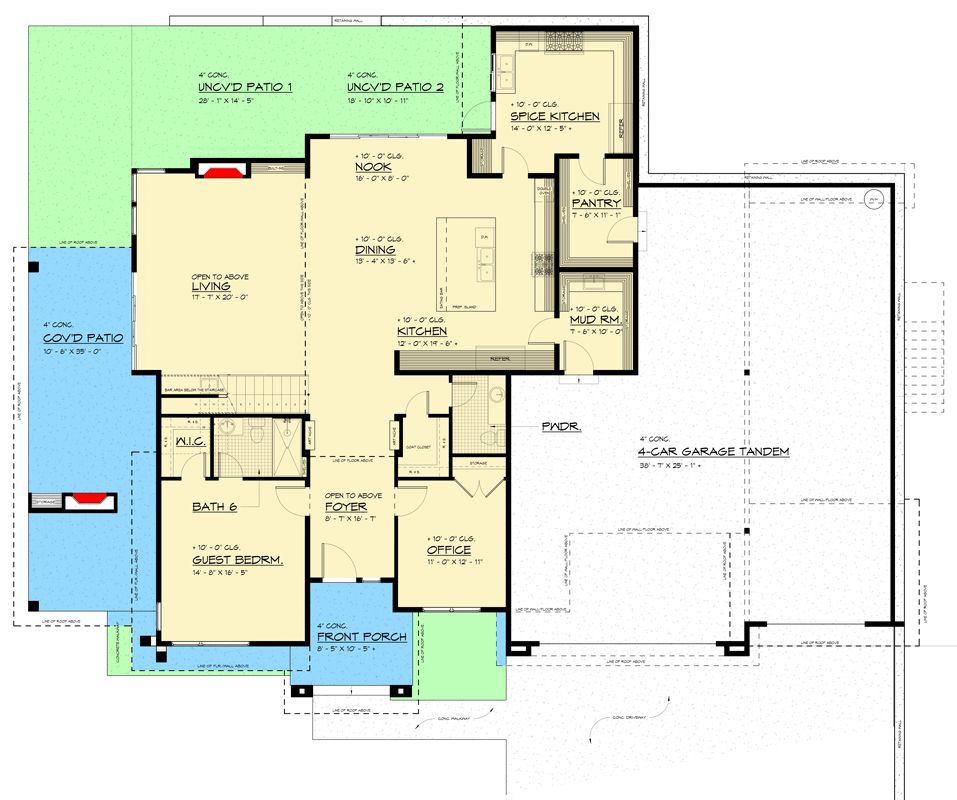

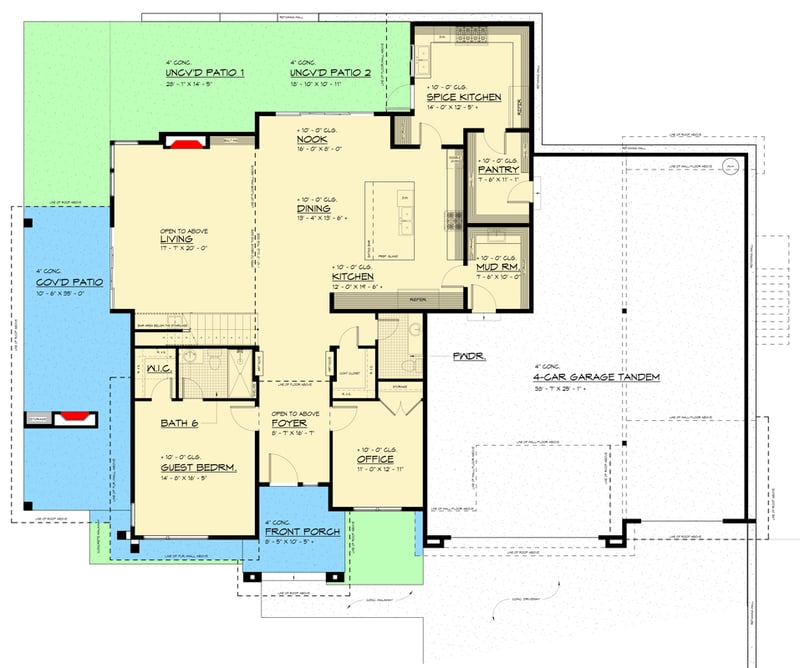

Plan 666301RAF: Modern Transitional House Plan with 4-Car Garage and Senior Suite - Floor Plan - Main Level - Contemporary, Modern, Transitional

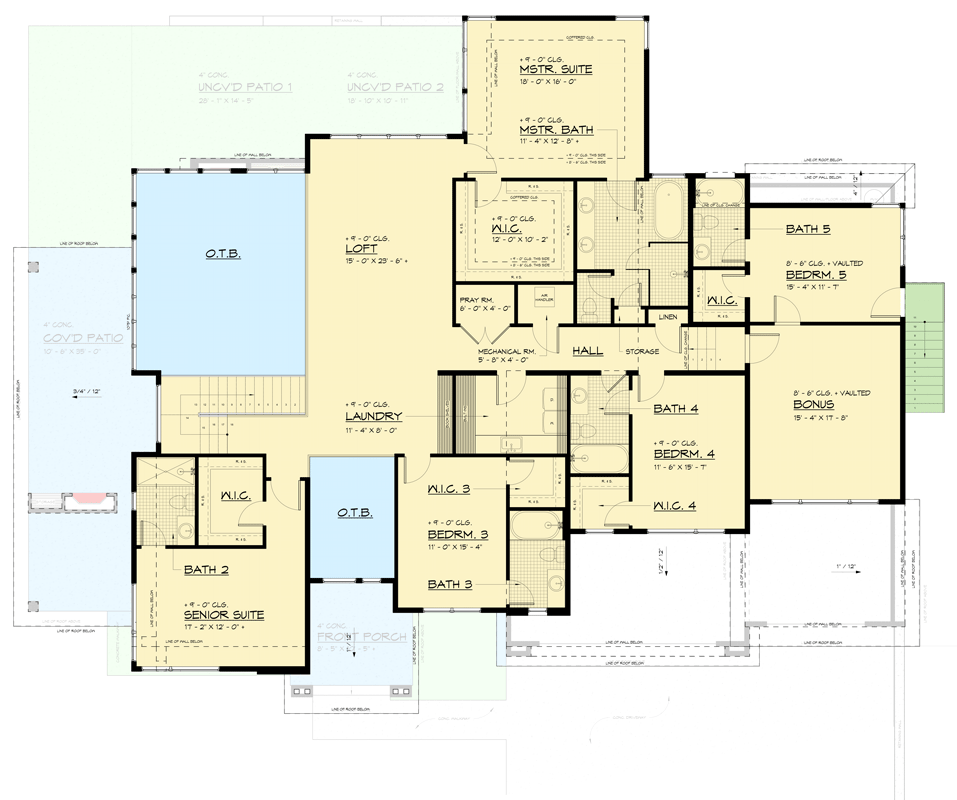

2nd Floor

Plan 666301RAF: Modern Transitional House Plan with 4-Car Garage and Senior Suite - Floor Plan - 2nd Floor - Contemporary, Modern, Transitional

Plan Details

  • This stunning 5,256 sq. ft. modern transitional house plan offers 6 bedrooms, 6.5 bathrooms, and an expansive 1,626 sq. ft. 4-car garage.
  • Enter through a welcoming front entry into a home designed for sophisticated living with 10' ceilings on the first floor.
  • The open-concept main living areas feature a seamless flow between the kitchen, dining, and living spaces, enhanced by a breakfast nook and butler's pantry.
  • The luxurious master suite is conveniently located upstairs, providing a private retreat, while secondary bedrooms are well-appointed throughout the home.
  • A dedicated home office and a finished bonus room offer versatile spaces for work, relaxation, or hobbies.
  • Enjoy outdoor living with a generous covered patio, complete with an outdoor fireplace.
  • Upstairs laundry and a loft provide added functionality and convenience for everyday living.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

5,256 sq. ft.

1st Floor

2,254 sq. ft.

2nd Floor

3,002 sq. ft.

Covered Patio

448 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

6

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

78' 6"

Depth

62' 11"

Max Ridge Height

32' 0"

Garage

Type

Standard, RV Garage

Area

1626 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

null

Architectural Style

Contemporary

Modern

Transitional

Special Features

Bedrooms - Clustered

Breakfast Nook

Finished Bonus Room

Home Office

Laundry - Upstairs

Loft

Master Suite - Upstairs

Mudroom

Outdoor Fireplace

Two Story Great Room

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

5,256 sq. ft.

1st Floor

2,254 sq. ft.

2nd Floor

3,002 sq. ft.

Covered Patio

448 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

6

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

78' 6"

Depth

62' 11"

Max Ridge Height

32' 0"

Garage

Type

Standard, RV Garage

Area

1626 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

null

Architectural Style

Contemporary

Modern

Transitional

Special Features

Bedrooms - Clustered

Breakfast Nook

Finished Bonus Room

Home Office

Laundry - Upstairs

Loft

Master Suite - Upstairs

Mudroom

Outdoor Fireplace

Two Story Great Room

Walk-in Pantry
