Mountain Craftsman Home Plan with Private Master Floor

Plan 81725AB

  • 3,794

    Heated s.f.

  • 3

    Beds

  • 2.5+

    Baths

  • 2

    Stories

  • 4

    Cars

  • Between the home office, craft room, theatre, and wine room, this Mountain Craftsman home plan offers a thoughtful space for everyone in the family to enjoy.
  • The main level consists of an open living space with an accordion-style glass door that encourages outdoor living on the partially-covered deck.
  • The island kitchen is centered between the great room and dining area, and a sizable butler's pantry offers an additional sink and cold storage. The nearby mudroom connects to the 3-car garage to help when unloading groceries.
  • A curved staircase guides you upstairs to find that the master suite consumes the entire  second level. The deluxe ensuite features a coffee bar, laundry closet, dressing area, and a hidden room.
  • The walk-out basement makes this home perfect for sloping lots. The patio is accessible from the rec area with a wet bar and adjacent wine room. Bedrooms 2 and 3 share a 4-fixture bath and the theatre room makes movie night even more enjoyable.

Plans include the following:

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

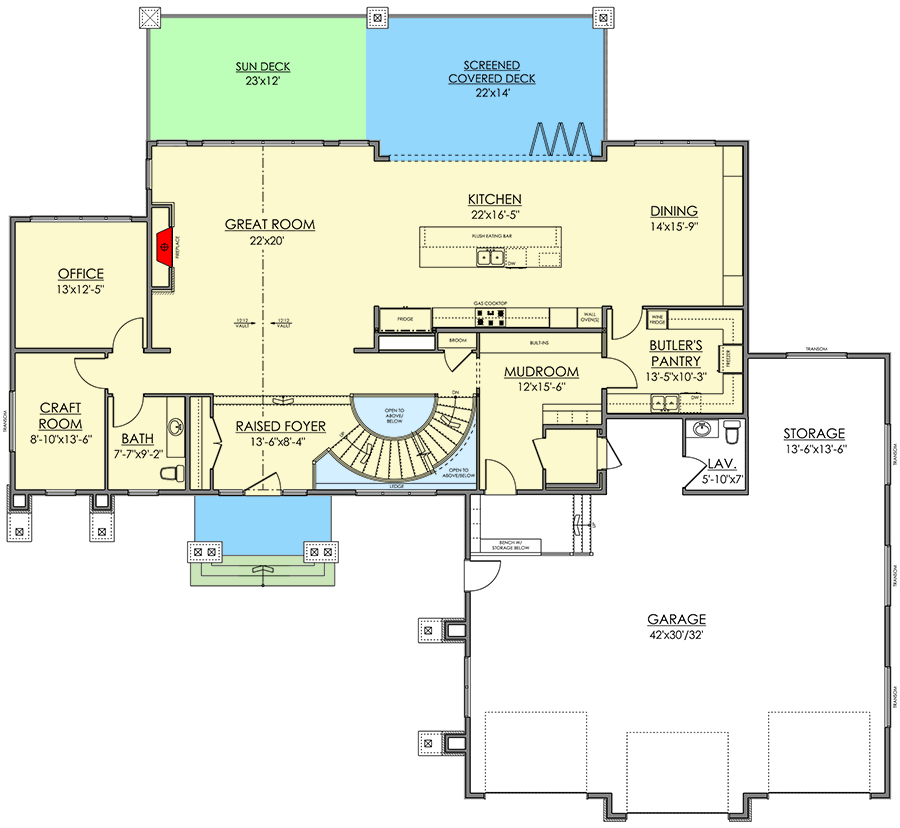

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mountain Craftsman Home Plan with Private Master Floor - 81725AB floor plan - Main Level

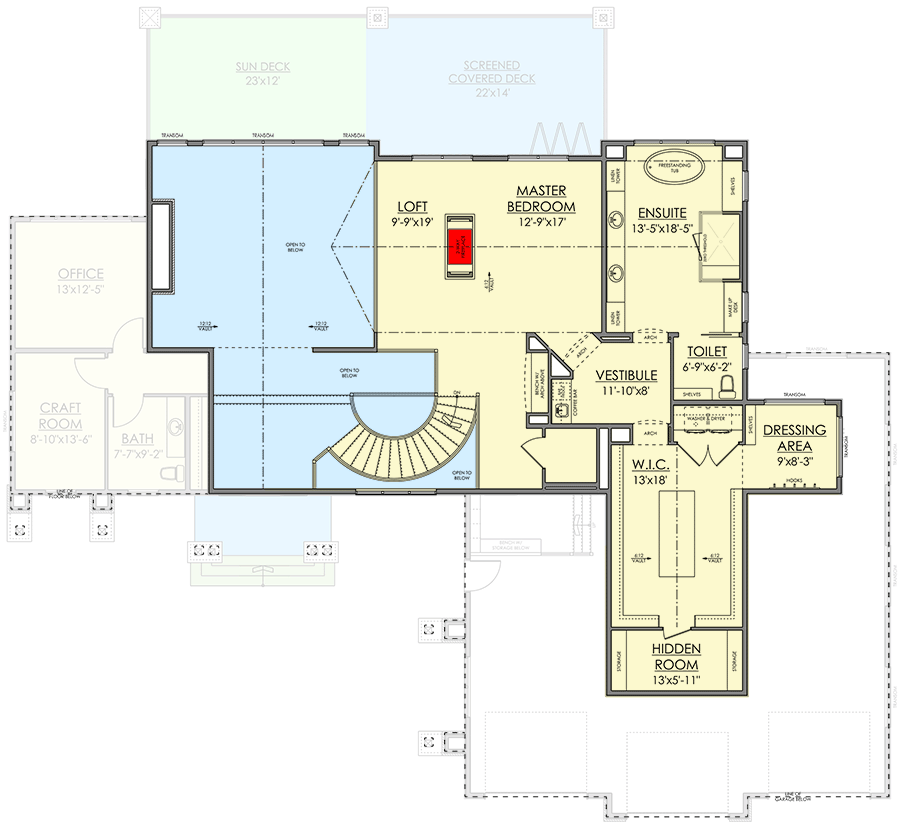

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mountain Craftsman Home Plan with Private Master Floor - 81725AB floor plan - 2nd Floor

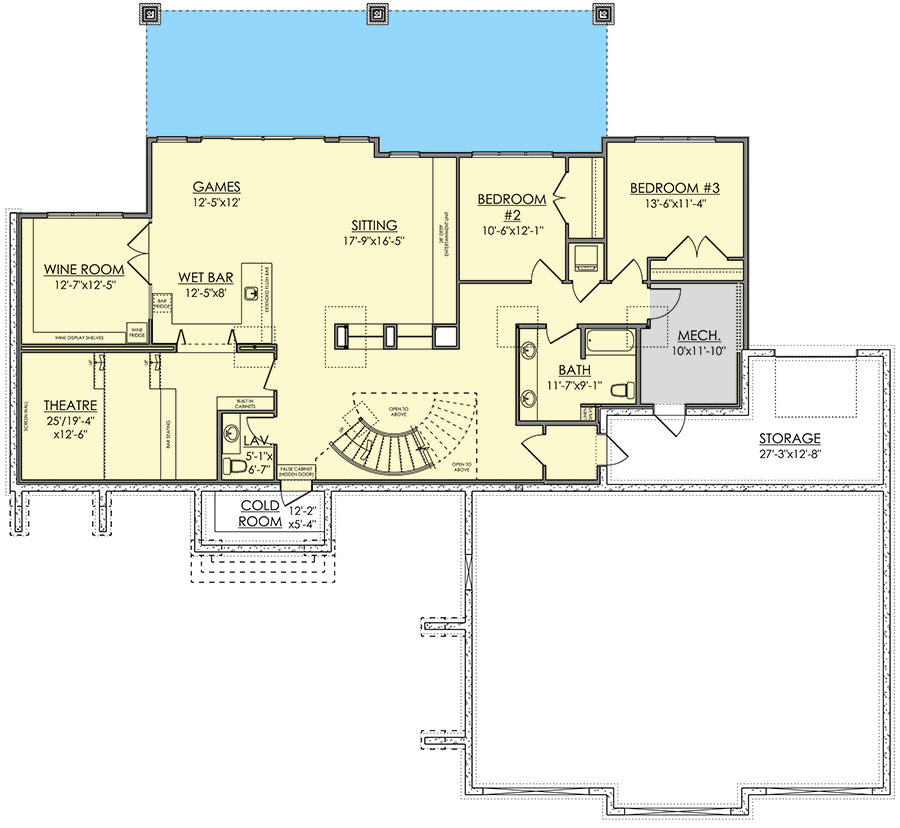

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mountain Craftsman Home Plan with Private Master Floor - 81725AB floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,794 sq. ft.
  • Lower Level: 2,052 sq. ft.
  • 1st Floor: 2,316 sq. ft.
  • 2nd Floor: 1,478 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1 or 2

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 87' 0"
  • Depth: 67' 0"
  • Max ridge height: 34' 11"

Garage

  • Type: Attached
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 10' 1" Second Floor / 9' 1"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Mountain Craftsman Home Plan with Private Master Floor

  • 3,794

    Heated s.f.

  • 3

    Beds

  • 2.5+

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $2,100
  • CAD + PDF - Single Build $2,800
  • CAD Unlimited + PDF $3,300
  • View all purchase option online

About This Plan

  • Between the home office, craft room, theatre, and wine room, this Mountain Craftsman home plan offers a thoughtful space for everyone in the family to enjoy.
  • The main level consists of an open living space with an accordion-style glass door that encourages outdoor living on the partially-covered deck.
  • The island kitchen is centered between the great room and dining area, and a sizable butler's pantry offers an additional sink and cold storage. The nearby mudroom connects to the 3-car garage to help when unloading groceries.
  • A curved staircase guides you upstairs to find that the master suite consumes the entire  second level. The deluxe ensuite features a coffee bar, laundry closet, dressing area, and a hidden room.
  • The walk-out basement makes this home perfect for sloping lots. The patio is accessible from the rec area with a wet bar and adjacent wine room. Bedrooms 2 and 3 share a 4-fixture bath and the theatre room makes movie night even more enjoyable.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,794 sq. ft.
  • Lower Level: 2,052 sq. ft.
  • 1st Floor: 2,316 sq. ft.
  • 2nd Floor: 1,478 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1 or 2

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 87' 0"
  • Depth: 67' 0"
  • Max ridge height: 34' 11"

Garage

  • Type: Attached
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 10' 1" Second Floor / 9' 1"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Truss
