Plan 54220HU
Mountain Living with 3 Vaulted Bedrooms - 2536 Sq. Ft.
Heated S.F.
2,536
Beds
3
Baths
4.5
Stories
1-2
Cars
3
Floor Plan

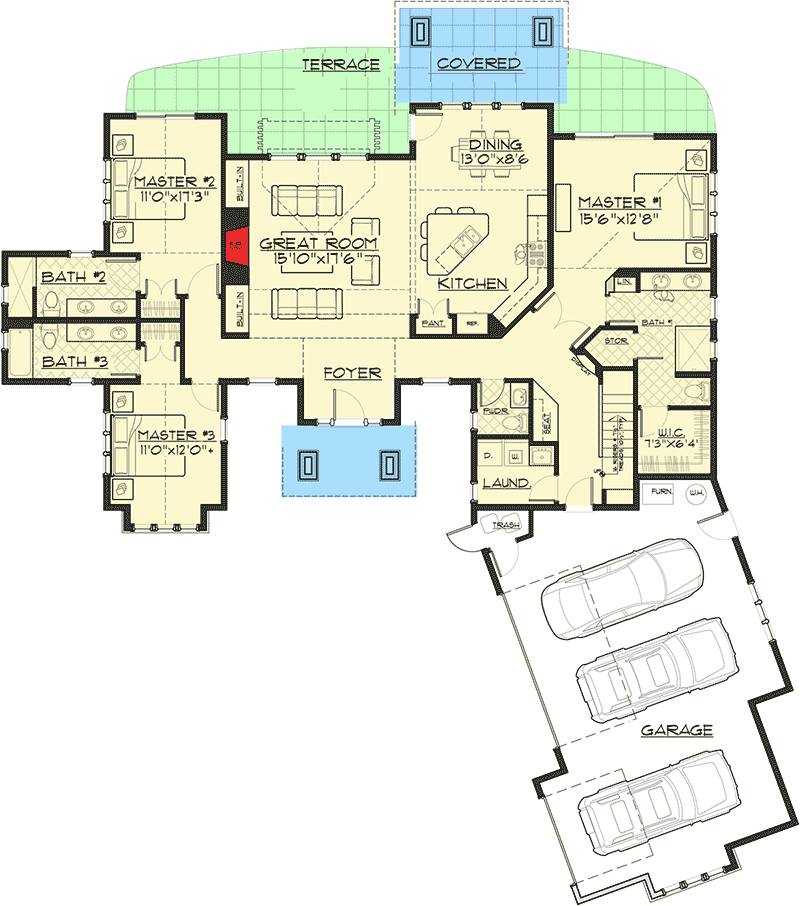

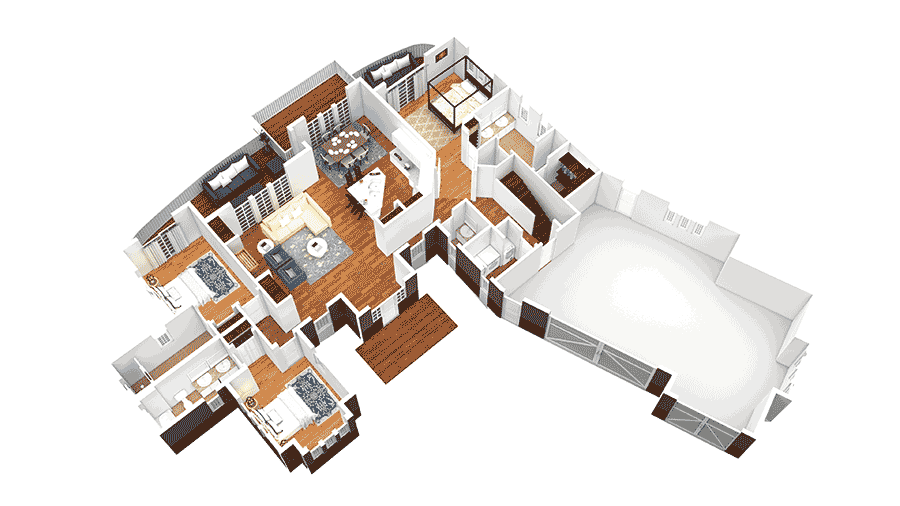

Main Level - 3D Perspective
Reverse Floor Plan
Mountain Living with 3 Vaulted Bedrooms - 2536 Sq. Ft. - 54220HU floor plan - Main Level - 3D Perspective

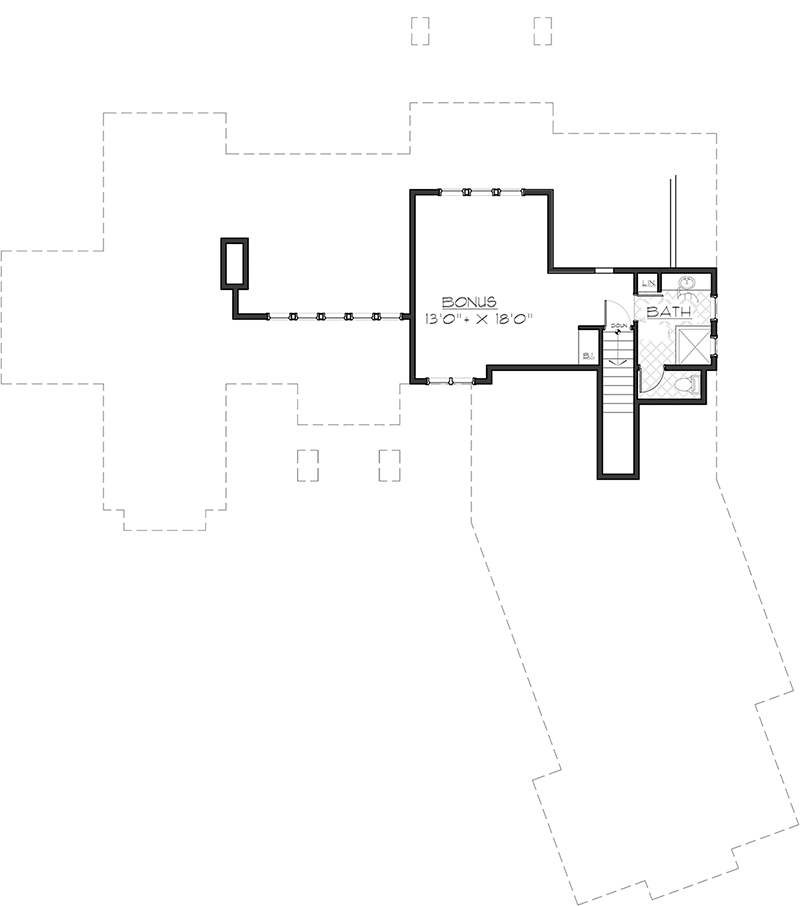

2nd Floor - 3D Perspective
Reverse Floor Plan

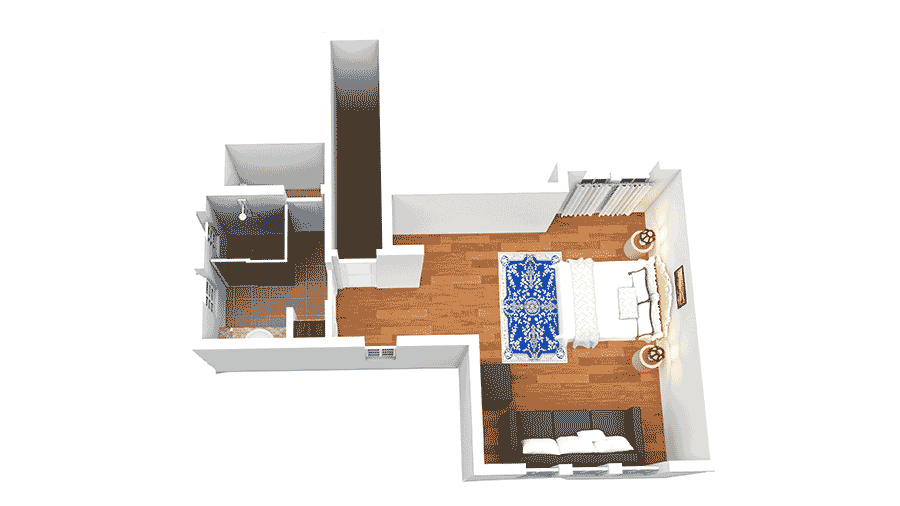

Mountain Living with 3 Vaulted Bedrooms - 2536 Sq. Ft. - 54220HU floor plan - 2nd Floor - 3D Perspective
Plan Details

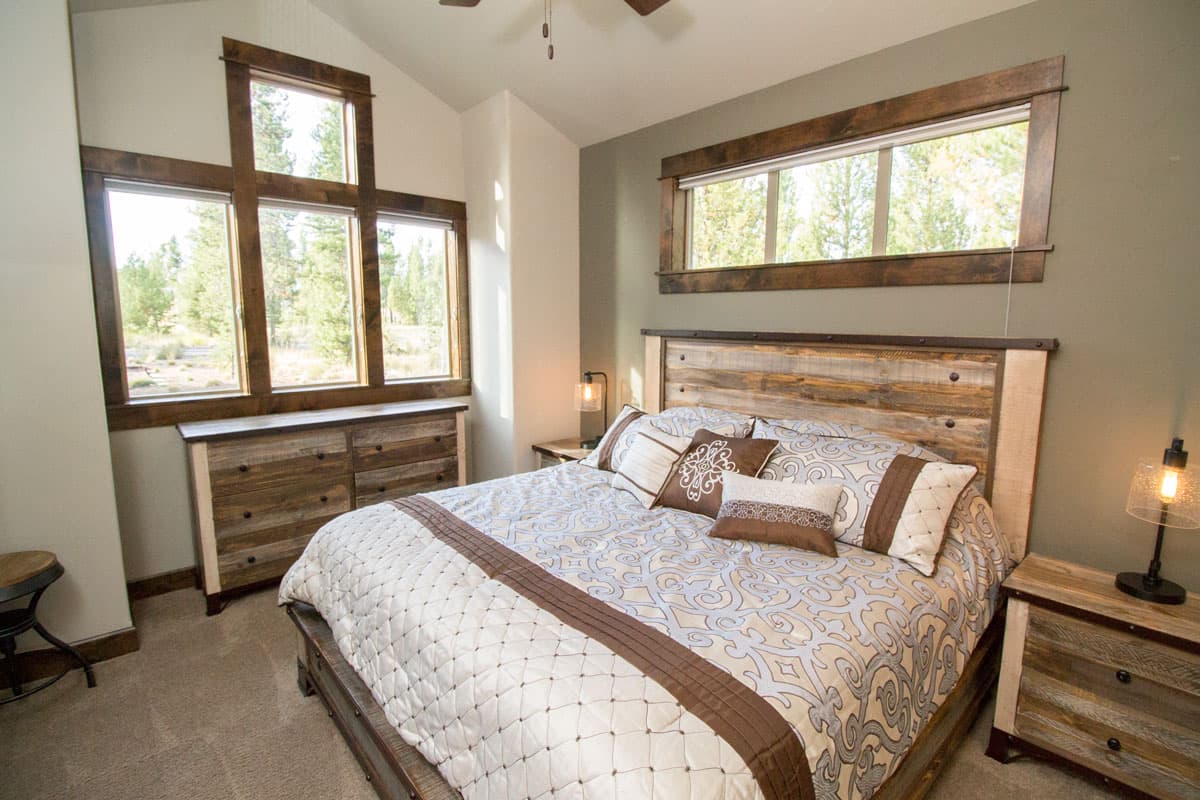

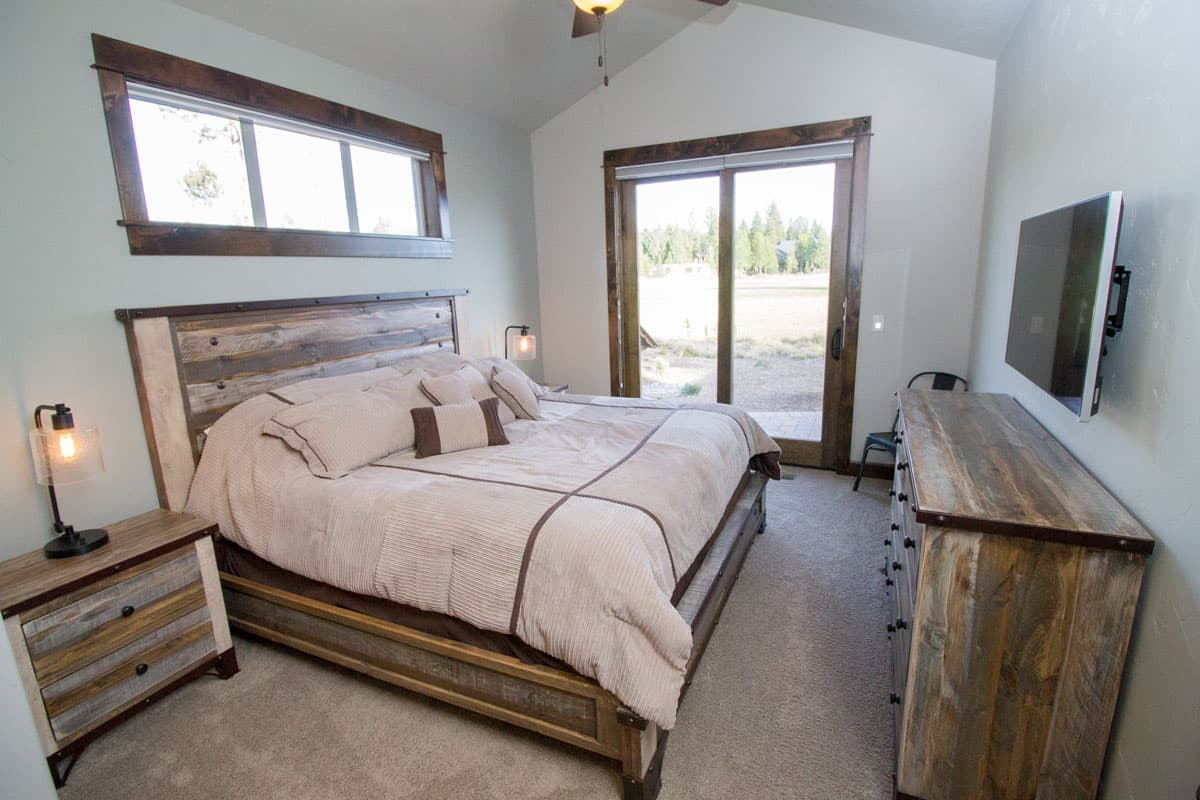

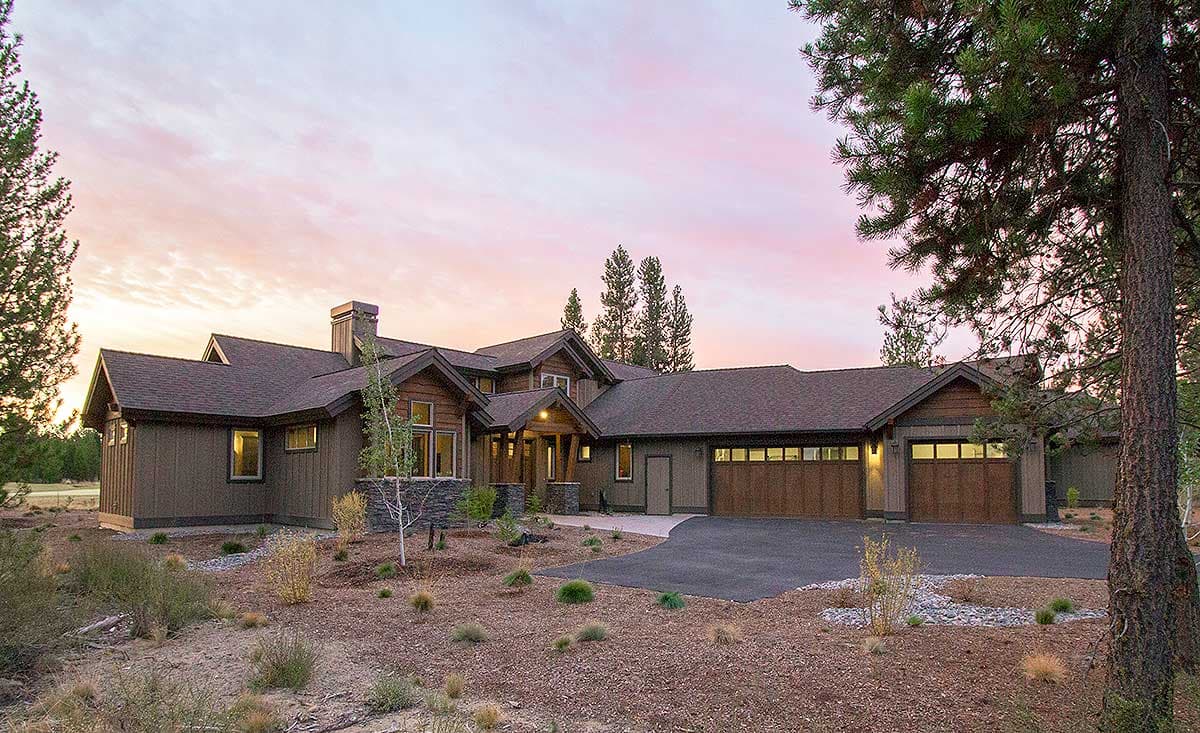

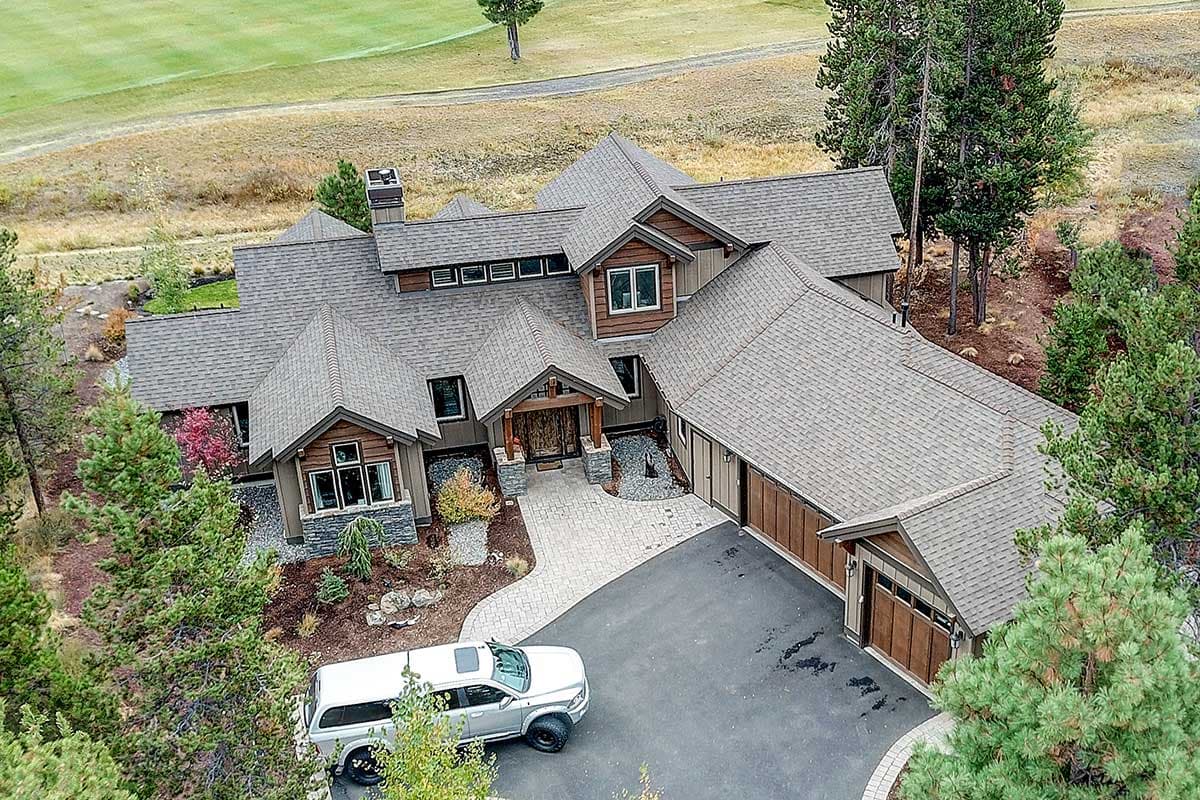

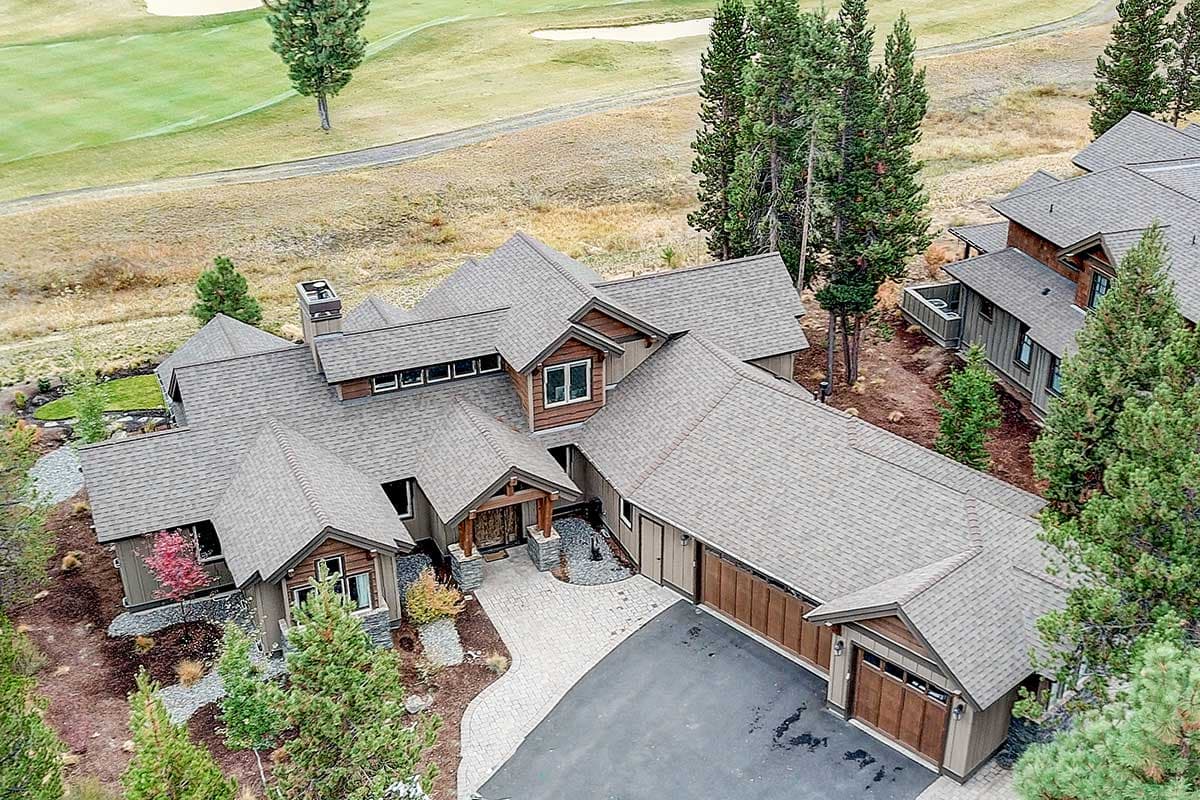

  • All three bedrooms on the main floor have vaulted ceilings in this beautiful mountain living house plan. The exterior has a sturdy look to it and the inside has an elegant flow. Step inside and you're greeted by a foyer with 11' ceilings and clear sightlines into the great room ahead.

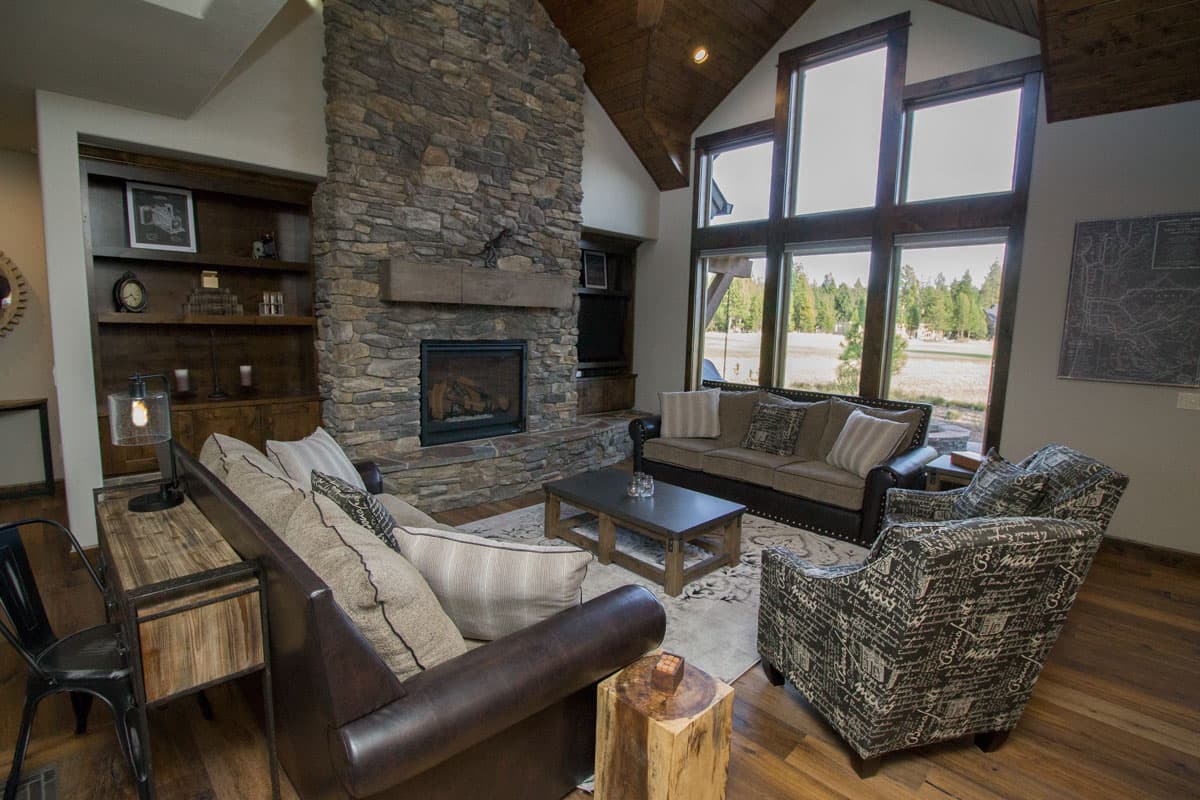

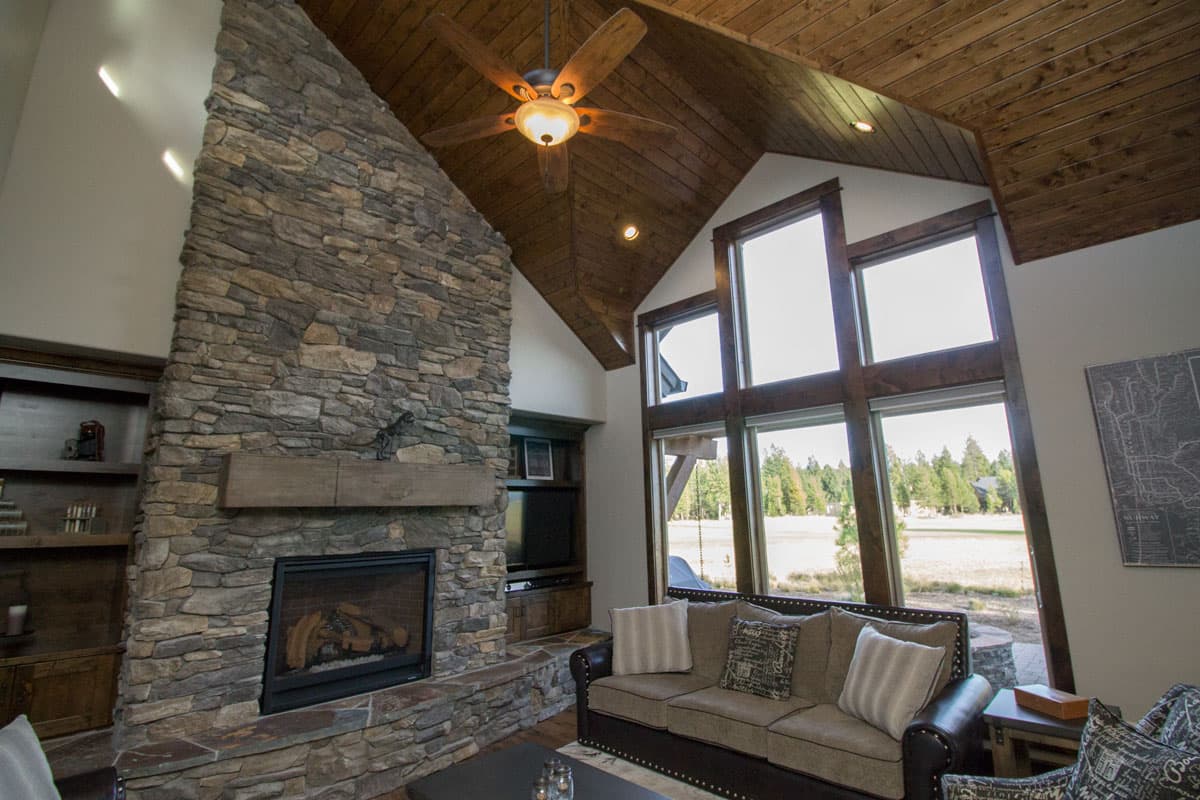

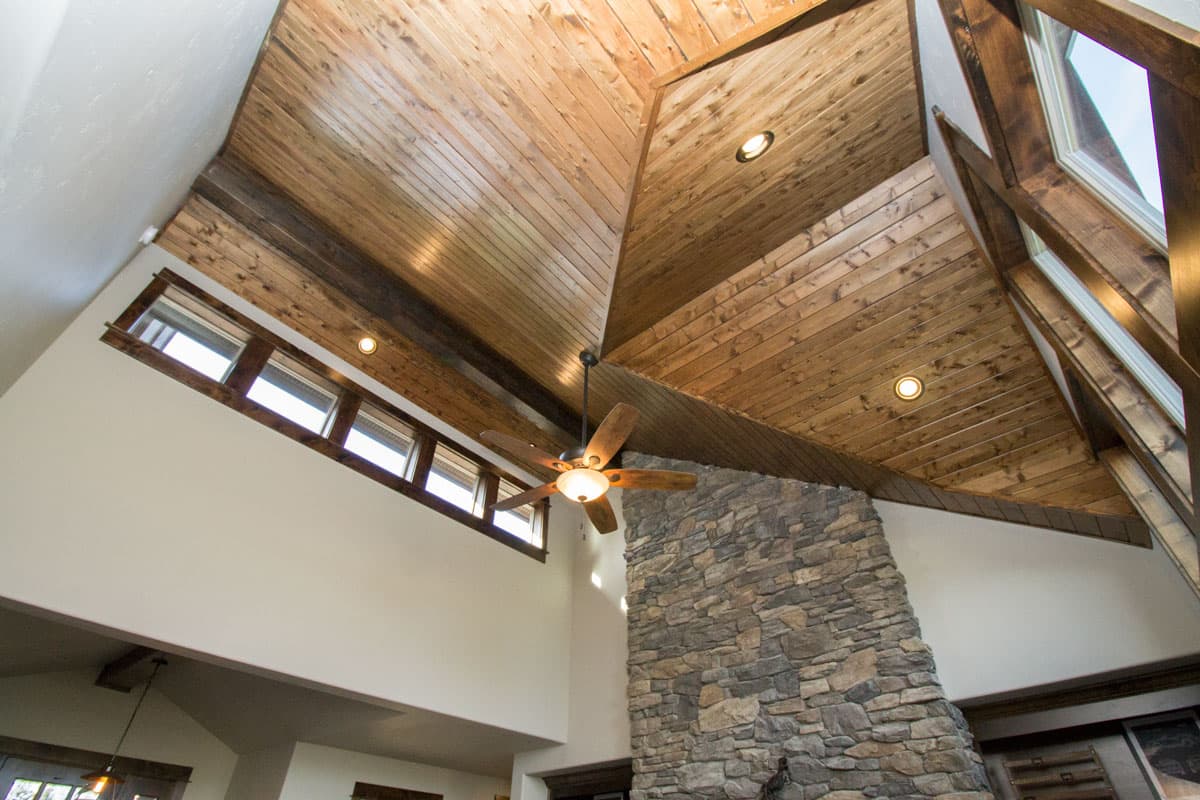

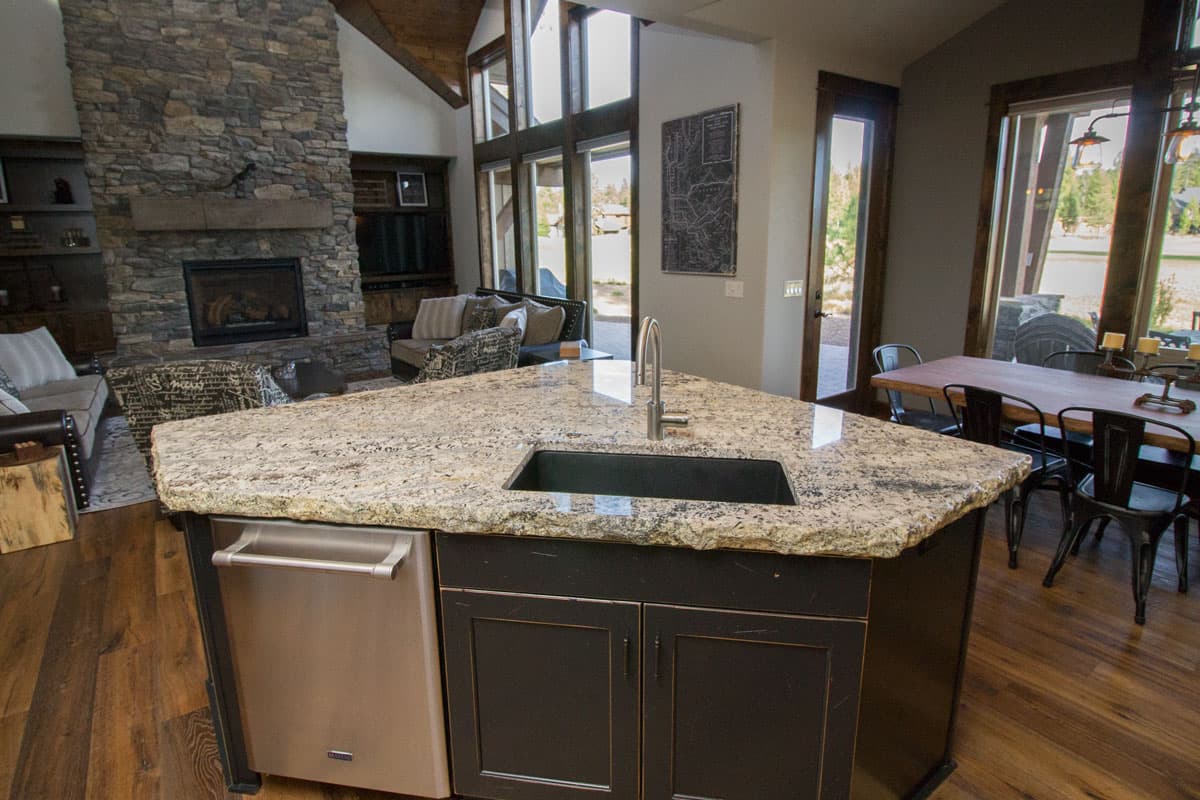

  • The great room is vaulted and gets great natural light from the windows in front and has tremendous views to the rear. The room is open to the kitchen and has a fireplace that soars to the ceiling.

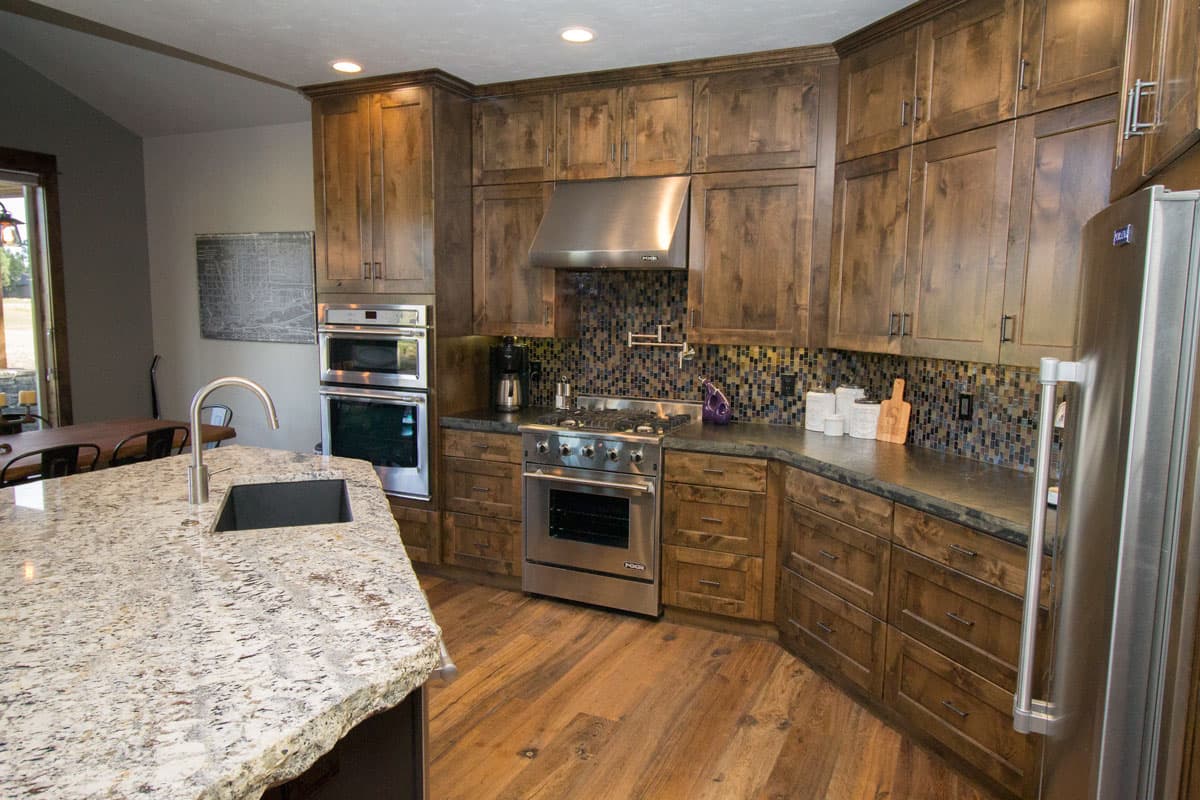

  • The kitchen has 9' ceilings and features a large center island with a raised bar for casual dining or serving and sinks.

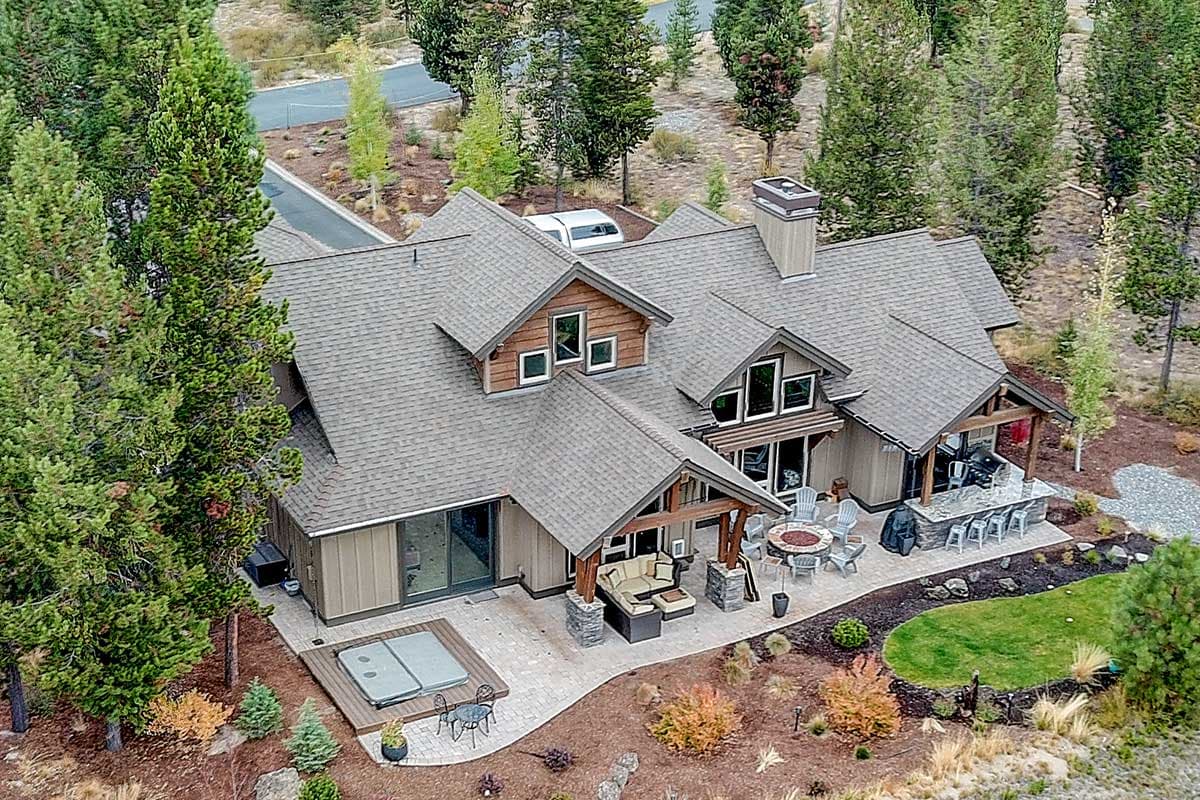

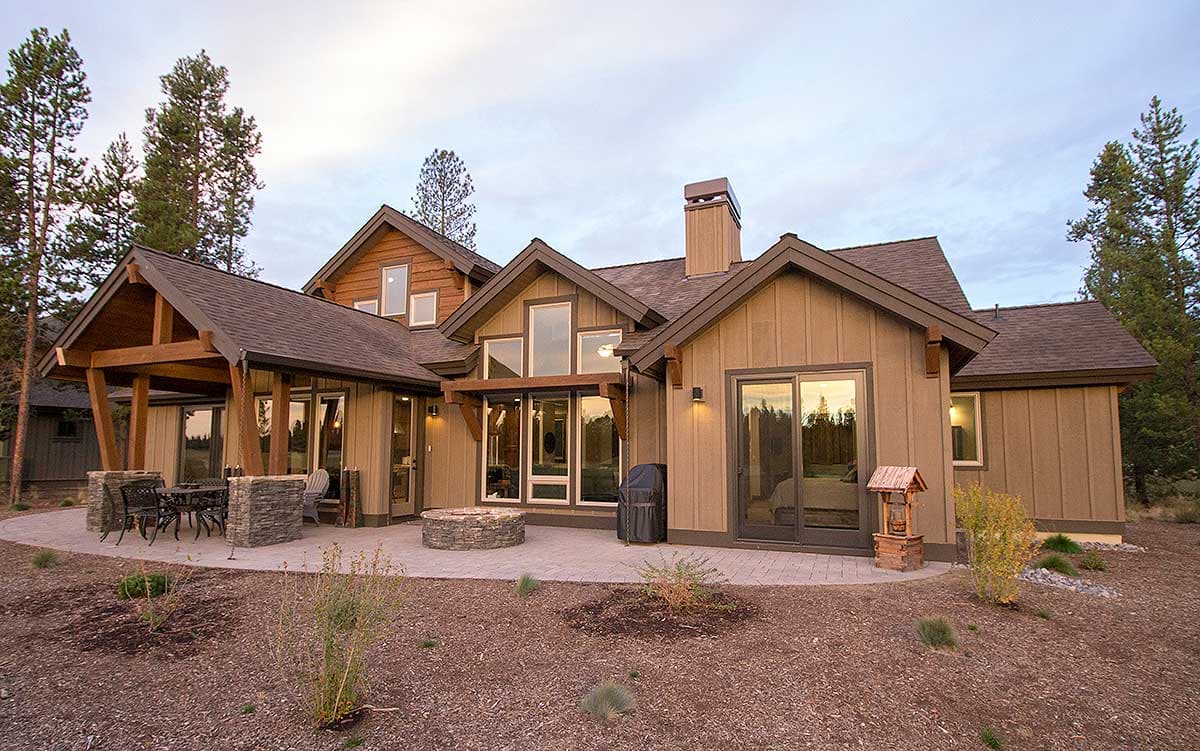

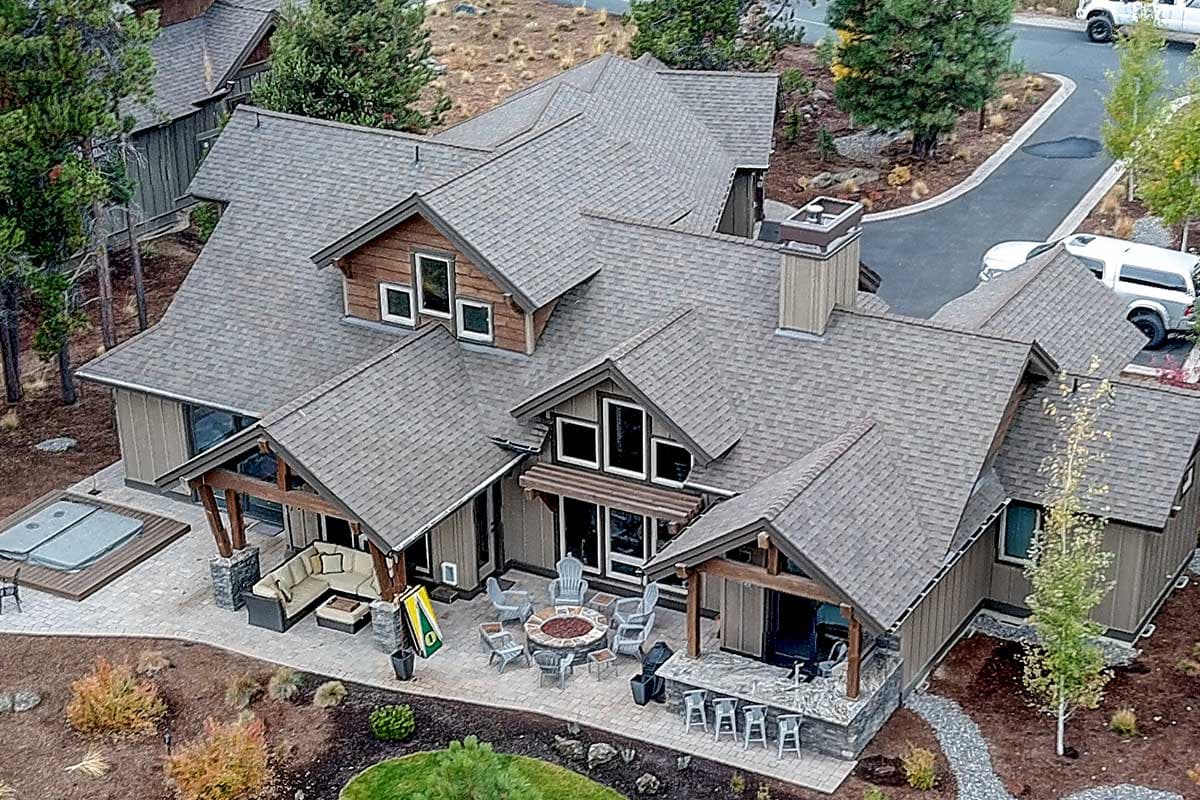

  • Life in the mountains means you need space outside to enjoy the views, and the covered living area and open air terrace deliver two spaces for doing just that in back.

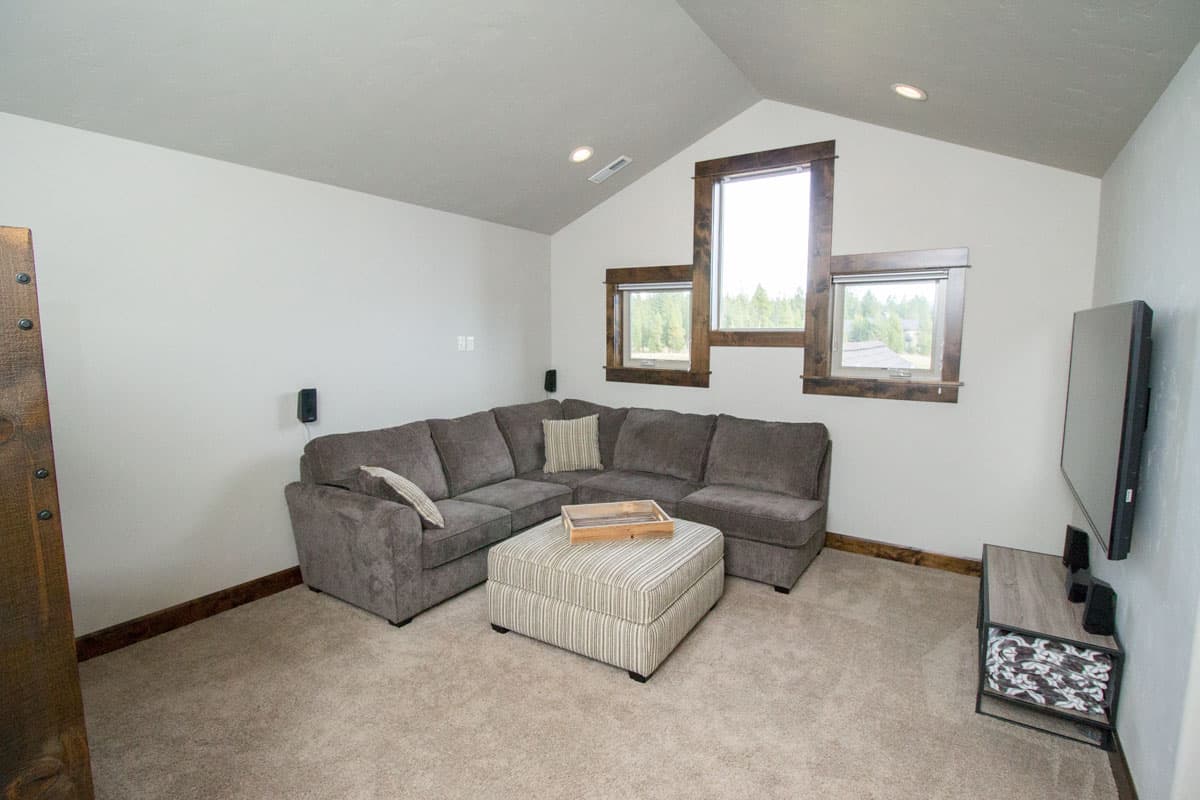

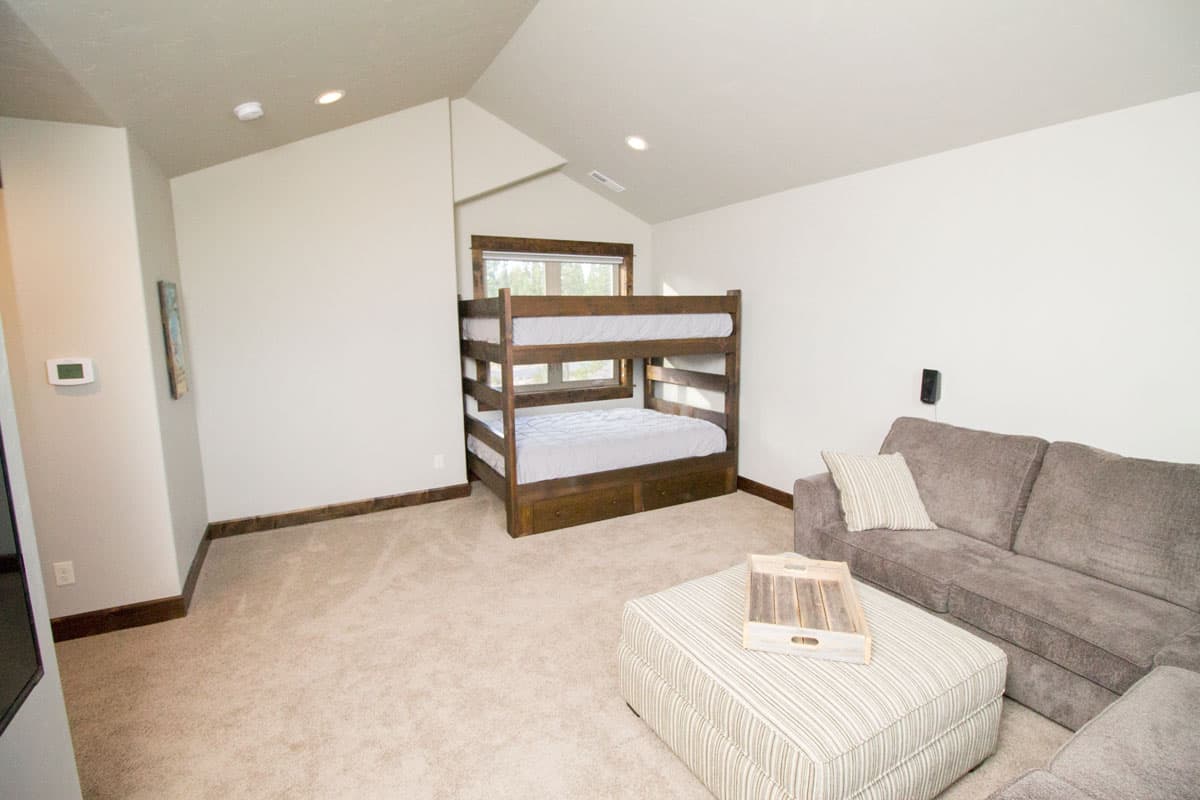

  • The "bonus" second floor, included in the living area figures, gives you a flexible room and a fulll bath and the possibility for four bedrooms or a spot to use as a media room, play room, or man cave.
  • Related Plans: Get a slightly alternate exterior in reverse orientation with house plan 54236HU. Get an angled 2 car garage with house plan 54205HU and a straight 2-car garage with house plans 54221HU and 54239HU. Straighten the garage with house plan 54247HU.
What's Included
Each plan set includes the following:
  • Cover sheet with renderings or photos
  • Site plan from original project for reference, with floor areas and drawing index
  • Main level architectural plan
  • Upper level architectural plan
  • Elevations of four sides
  • Section drawings at ¼” scale
  • Typical construction details and framing details
  • Foundation and floor framing plan
  • Upper level floor and lower roof framing plan
  • Upper roof framing plan
  • Basic lighting plans for main and upper levels available for some plans.  Check availability.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Mountain Living with 3 Vaulted Bedrooms - 2536 Sq. Ft.

  • 2,536

    Heated s.f.

  • 3

    Beds

  • 4.5

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Main Level - 3D Perspective

  • 2nd Floor - 3D Perspective

Plan Details

Square Footage Breakdown

  • Total: 2,536 sq. ft.
  • 1st Floor: 2,107 sq. ft.
  • 2nd Floor: 429 sq. ft.

Dimensions

  • Width: 78' 0"
  • Depth: 87' 0"
  • Max ridge height: 23' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 883 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick and Truss
