Multi-Generational Bungalow House Plan

Plan 80733PM

This plan plants 3 trees

2,588
Heated s.f.
2
Units
38' 0"
Width
42' 0"
Depth

This lovely multi-generational house has a separate side entrance that leads directly to the basement.
The bungalow is 38 feet wide by 42 feet deep and provides 2,588 square feet of living space when you combine both units.
From the common hall entry foyer, you can go straight into the smaller unit which is 642 square feet with its own living room, kitchen, bedroom and large bath.
Or turn right off the entry foyer to enter the larger unit 2.
This larger unit has a dining room, kitchen and bedroom plus a powder room on the main level.
Take the stairs down to the lower level where you will find a big family room, master bedroom and full bathroom.
You also have a huge storage area that can be used as more living space once you finish it off.
This home works well for families who have in-laws or other relatives that want their own private space.
You can also use either unit for rental income.

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:

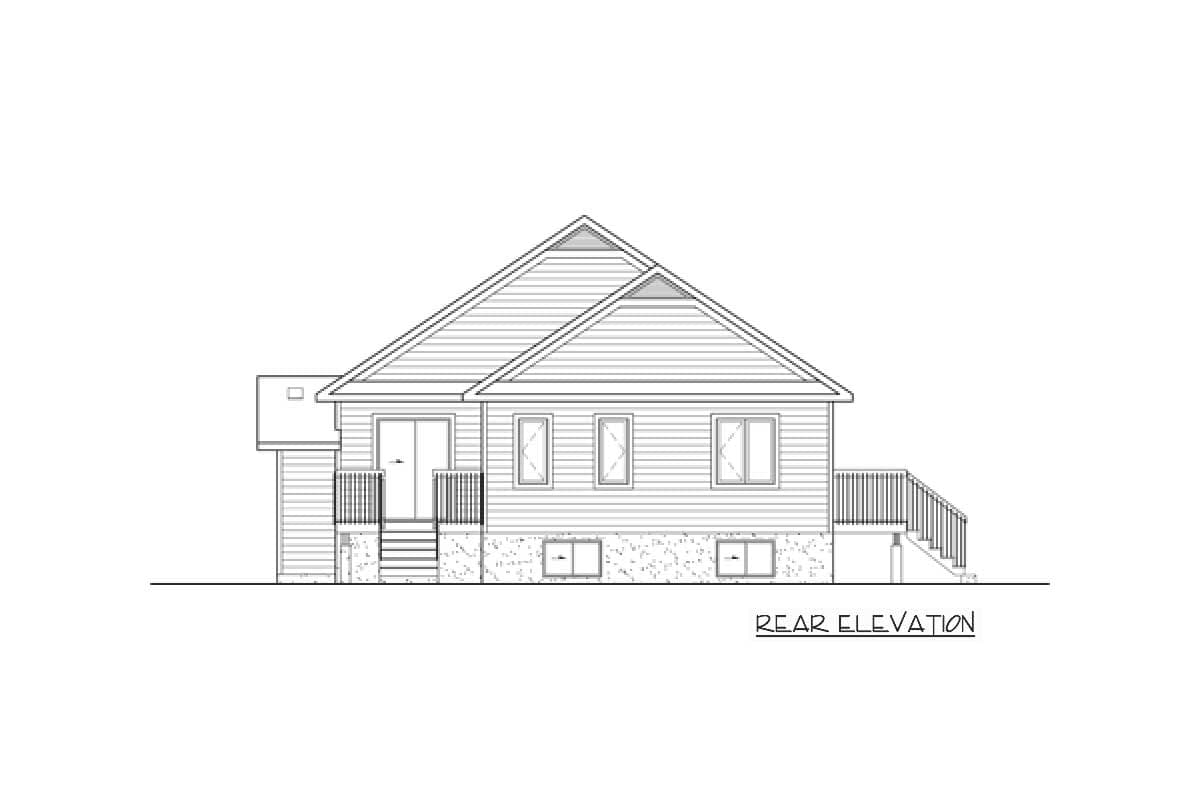

Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

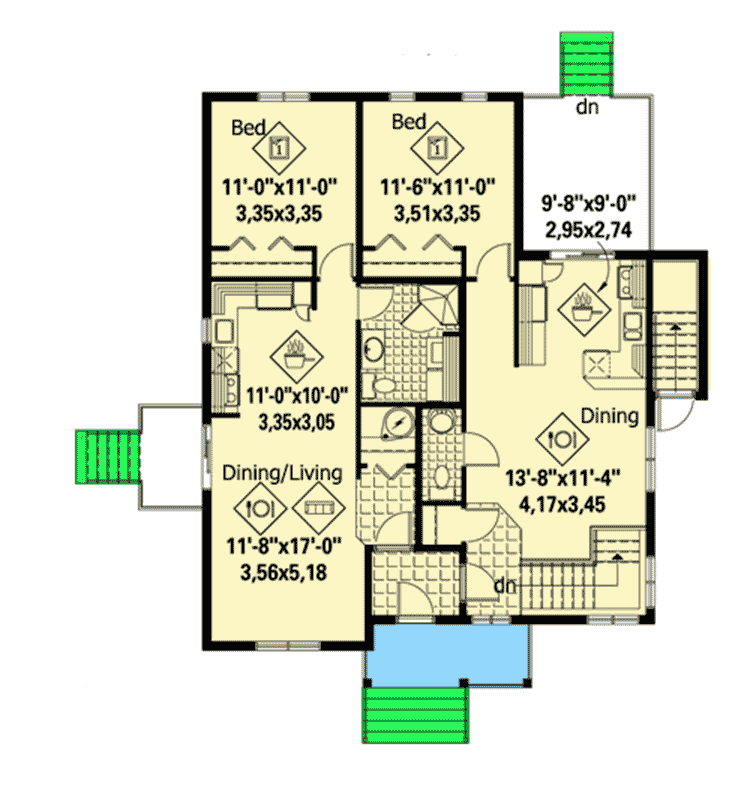

Multi-Generational Bungalow House Plan - 80733PM floor plan - Main Level

Basement

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

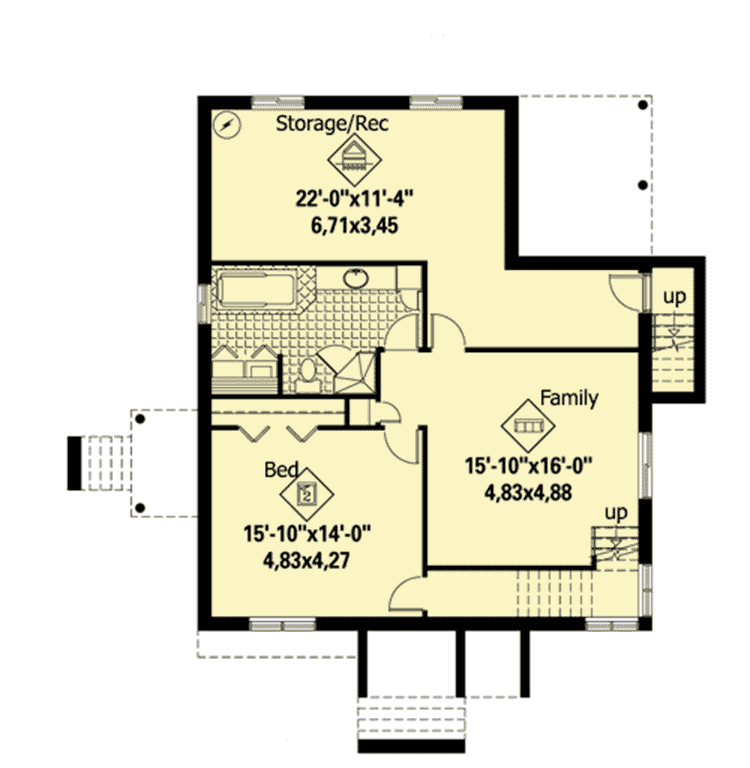

Multi-Generational Bungalow House Plan - 80733PM floor plan - Basement

Plan details

Square Footage Breakdown

Total Heated Area: 2,588 sq. ft.
Lower Level: 1,278 sq. ft.
1st Floor: 1,310 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 2
Half bathrooms: 1

Foundation Type

Standard Foundations: Basement

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 38' 0"
Depth: 42' 0"
Max ridge height: 25' 3"

Roof Details

Framing Type: Truss

Special features
