Narrow Lot Mediterranean House Plan - 3152 Sq Ft

Heated S.F.
3,152
Beds
4 - 5
Baths
4
Stories
2
Cars
2

Floor Plan

Plan 42823MJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 42823MJ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

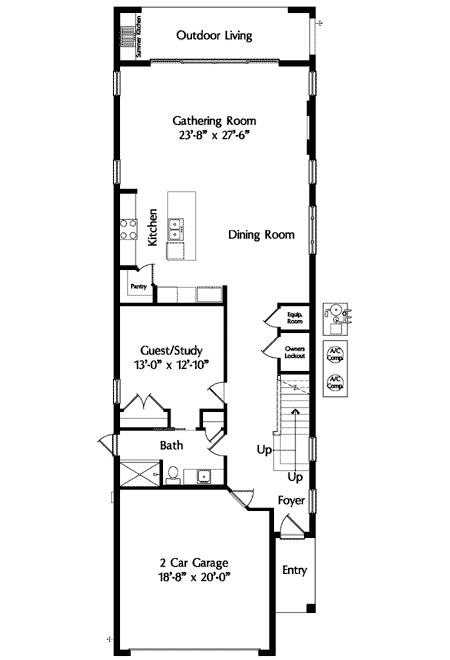

Plan 42823MJ: Narrow Lot Mediterranean House Plan - 3152 Sq Ft - Floor Plan - Main Level - Florida-Style, Mediterranean

2nd Floor

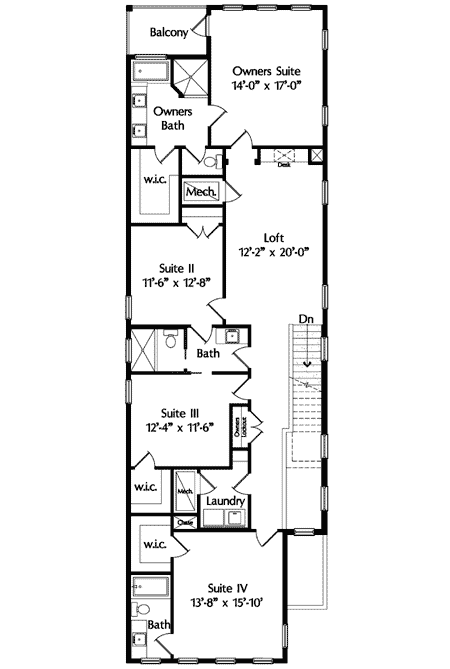

Plan 42823MJ: Narrow Lot Mediterranean House Plan - 3152 Sq Ft - Floor Plan - 2nd Floor - Florida-Style, Mediterranean

Plan Details

  • Only 25' wide, this narrow lot Mediterranean house plan has loads of space inside including 5 bedrooms and a loft.
  • A huge open floor plan gives you room to all be together comfortably on the main floor.
  • Sliding glass doors open to a rear outdoor living area with room for a grill.
  • Use the study as a guest bedroom with its pocket doors to the full bathroom.
  • The remaining bedrooms are all up on the huge second floor along with the laundry room and spacious loft.
  • The roof is a truss design and has a 5 on 12 pitch.
  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.

What's Included

  • Cover Sheet
  • Floor Plans
  • Slab Foundation Plan (plumbing layout)
  • Elevations
  • Sections
  • Stair Sections if applicable
  • Electrical Layout
  • Basic Details Sheet

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Some plans may not include sections. Please contact us for availability.
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,152 sq. ft.

1st Floor

1,378 sq. ft.

2nd Floor

1,774 sq. ft.

Porch, Combined

167 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

25' 0"

Depth

82' 0"

Max Ridge Height

28' 1"

Garage

Type

Attached

Area

399 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Florida-Style

Mediterranean

Special Features

Flex Room

Jack & Jill Bath

Laundry - Upstairs

Library/Study

Loft

Master Suite - Upstairs

Outdoor Kitchen

Square Footage Breakdown

Total Heated Area

3,152 sq. ft.

1st Floor

1,378 sq. ft.

2nd Floor

1,774 sq. ft.

Porch, Combined

167 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

25' 0"

Depth

82' 0"

Max Ridge Height

28' 1"

Garage

Type

Attached

Area

399 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Florida-Style

Mediterranean

Special Features

Flex Room

Jack & Jill Bath

Laundry - Upstairs

Library/Study

Loft

Master Suite - Upstairs

Outdoor Kitchen
