Narrow Lot Traditional Home Plan

Plan 21589DR

  • 1,533

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Stories

  • Designed for a narrow lot, this traditional home plan has an open floor plan that makes it feel larger.
  • An air lock entry keeps the cold air out in the winter.
  • The living room, dining area and kitchen are all open to each other with a french door that opens to the backyard.
  • The master suite enjoys a walk-in closet, with two smaller bedrooms nearby.
  • Related Plans: For a larger home with a bigger wrap-around porch, see house plan 21863DR (1,660 sq. ft).
  • Get an attached garage with house plan 21958DR.

Each plan includes the following:

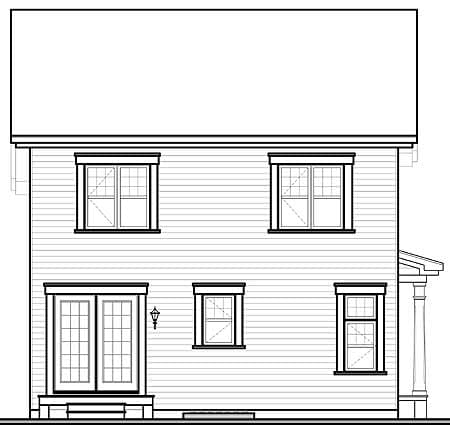

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

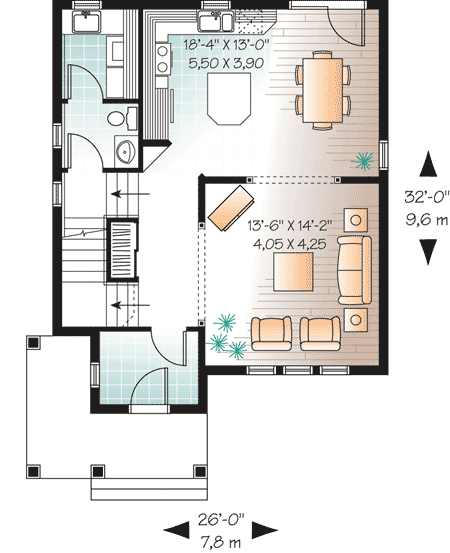

Narrow Lot Traditional Home Plan - 21589DR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

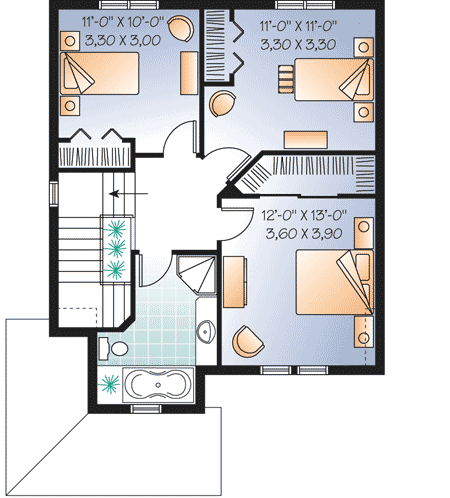

Narrow Lot Traditional Home Plan - 21589DR floor plan - 2nd Floor

Architectural Style

Plan Collections

Narrow Lot Traditional Home Plan

  • 1,533

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,533 sq. ft.
  • 1st Floor: 772 sq. ft.
  • 2nd Floor: 761 sq. ft.

Dimensions

  • Width: 26' 0"
  • Depth: 32' 0"
  • Max ridge height: 28' 2"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Walkout, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"
