Narrow Lot Traditional Home Plan
Heated S.F.
1,660
Beds
3
Baths
1.5
Stories
2
What's Included
Plan Details
  • Designed for a narrow lot, this traditional home plan has an open floor plan that makes it feel larger.
  • An air lock entry keeps the cold air out in the winter.
  • The living room, dining area and kitchen are all open to each other with a french door that opens to the backyard.
  • The master suite enjoys a walk-in closet, with two smaller bedrooms nearby.
  • Related Plans: For a smaller design with a shorter wrap-around porch, see house plan 21589DR (1,533 sq. ft.).
  • Get an attached garage with house plan 21958DR.
What's Included
Each plan includes the following:

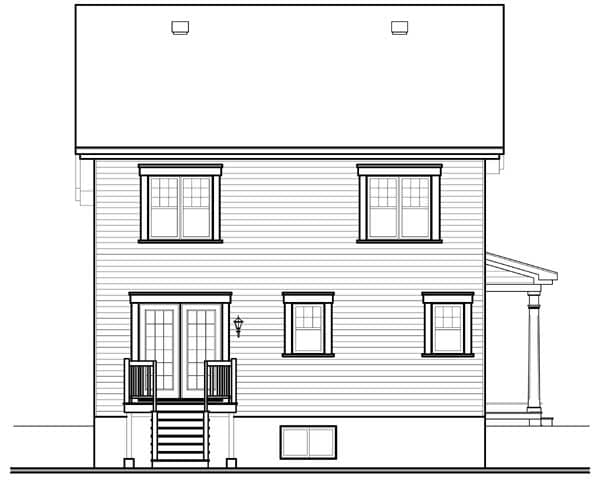

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Narrow Lot Traditional Home Plan

  • 1,660

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Floors

Floor Plan

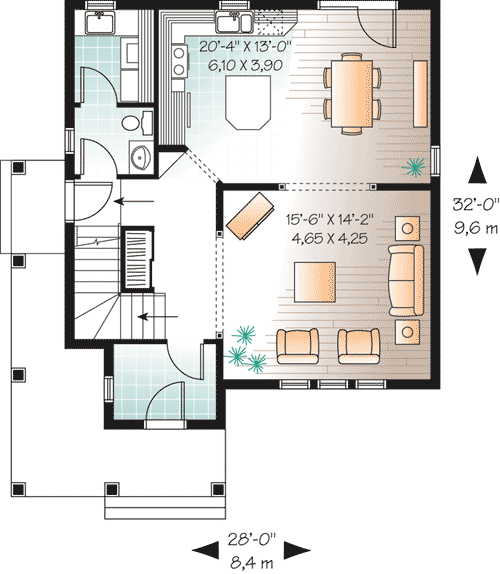

  • Main Level

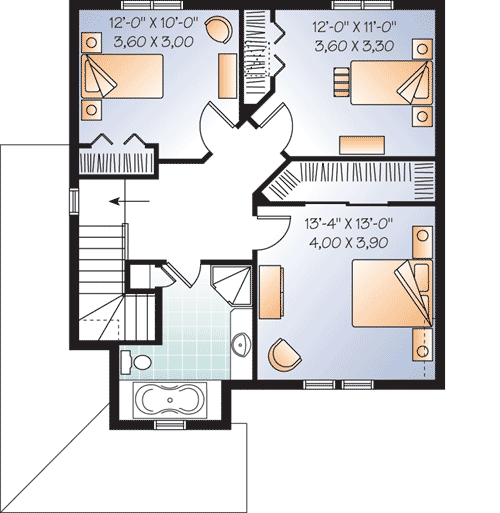

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,660 sq. ft.
  • 1st Floor: 830 sq. ft.
  • 2nd Floor: 830 sq. ft.

Dimensions

  • Width: 28' 0"
  • Depth: 32' 0"
  • Max ridge height: 29' 7"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Walkout, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Truss
