New American Carriage House Plan Under 1600 Square Feet with 2 Beds and 2-Car Garage

Heated S.F.
1,545
Beds
2
Baths
1.5
Stories
2
Cars
2

Floor Plan

Plan 81802AB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 81802AB

M-F 9am-5pm EST |

1-203-761-8500

Main Level

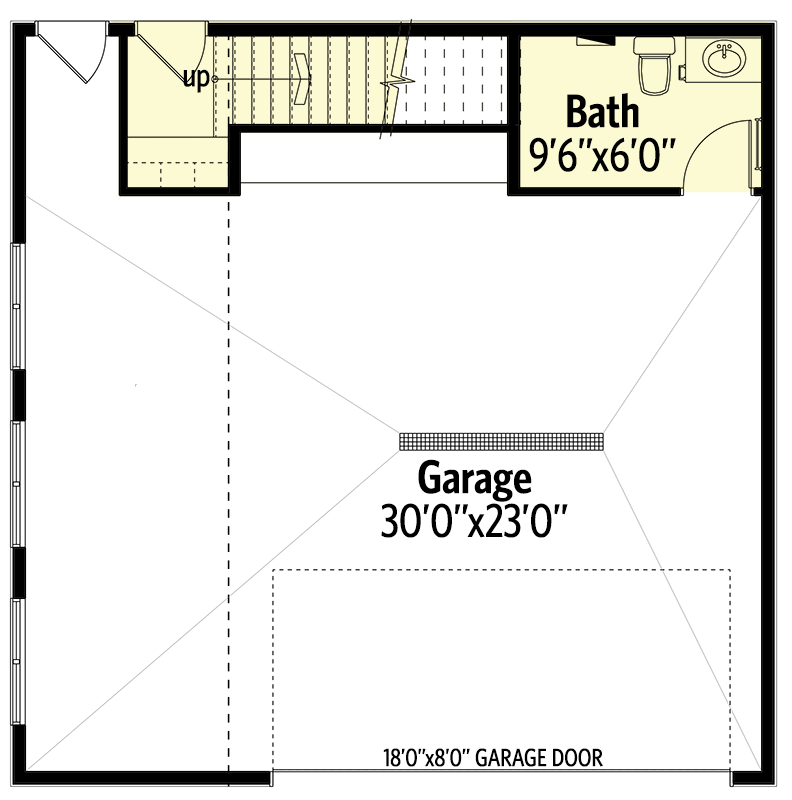

Plan 81802AB: New American Carriage House Plan Under 1600 Square Feet with 2 Beds and 2-Car Garage - Floor Plan - Main Level - Craftsman, New American

2nd Floor

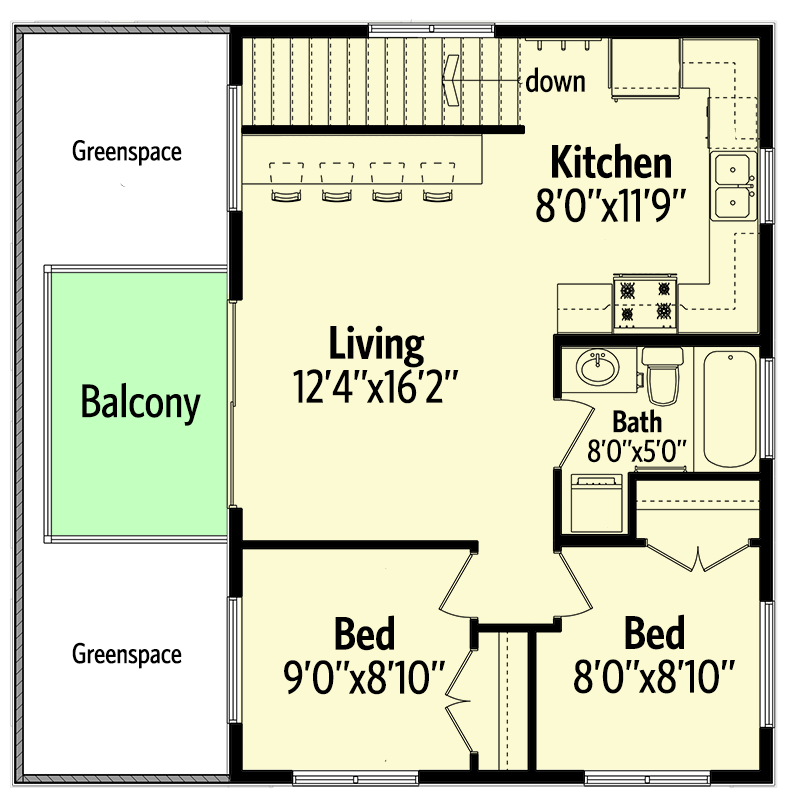

Plan 81802AB: New American Carriage House Plan Under 1600 Square Feet with 2 Beds and 2-Car Garage - Floor Plan - 2nd Floor - Craftsman, New American

Plan Details

  • Board and batten siding extends vertically and draws your eye up to the gabled roof on the exterior of this New American Carriage house plan.
  • The 2-car garage features additional space for storage or a workshop and includes a powder bath.
  • A single 18' by 8' garage door gives you access from the side.
  • Upstairs, the eat-in kitchen provides bar seating and flows into the living room. Glass sliders open to a balcony for outdoor enjoyment.
  • Two bedrooms sit side-by-side and the full bathroom includes a stackable washer / dryer unit.

What's Included

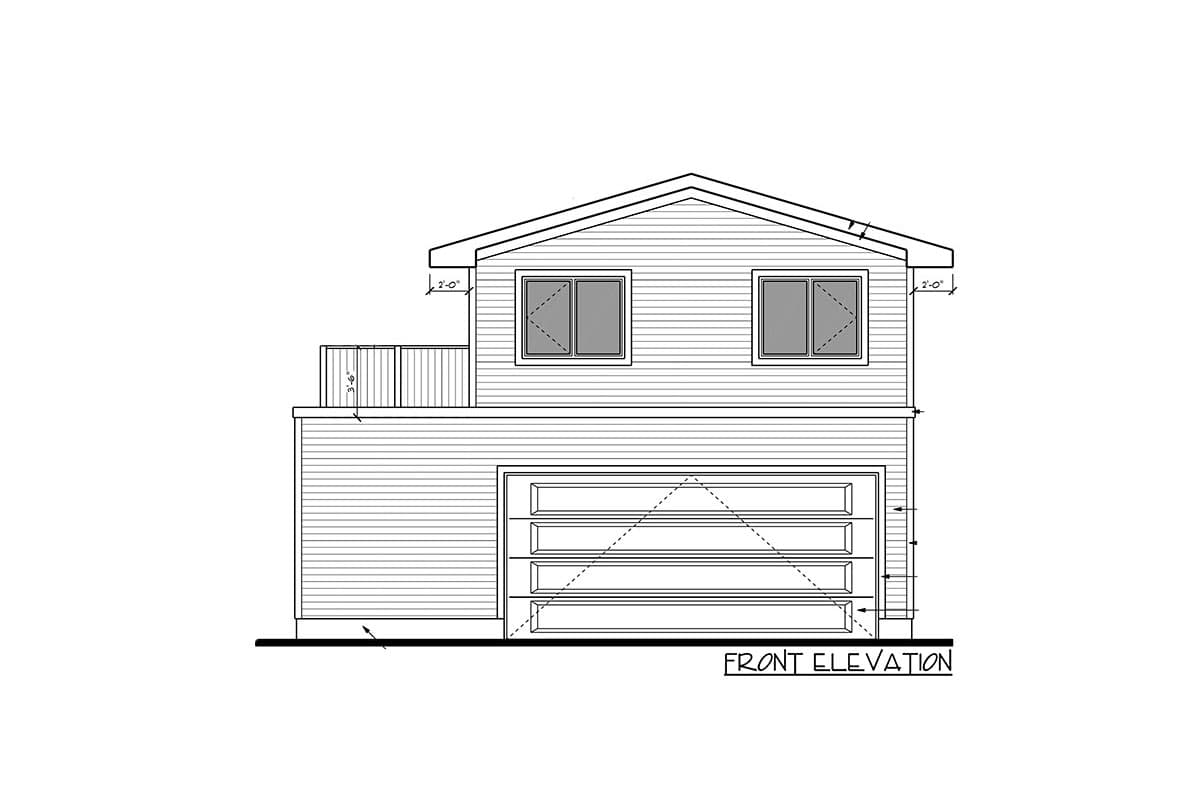

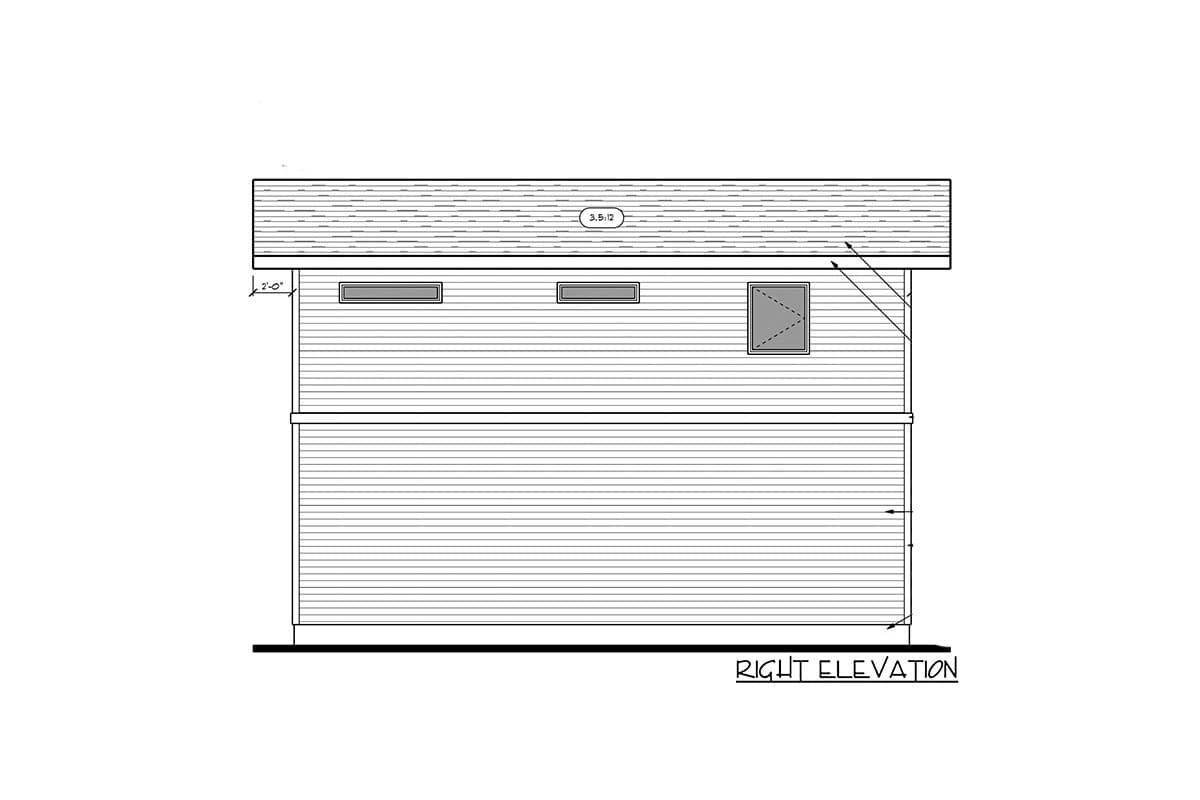

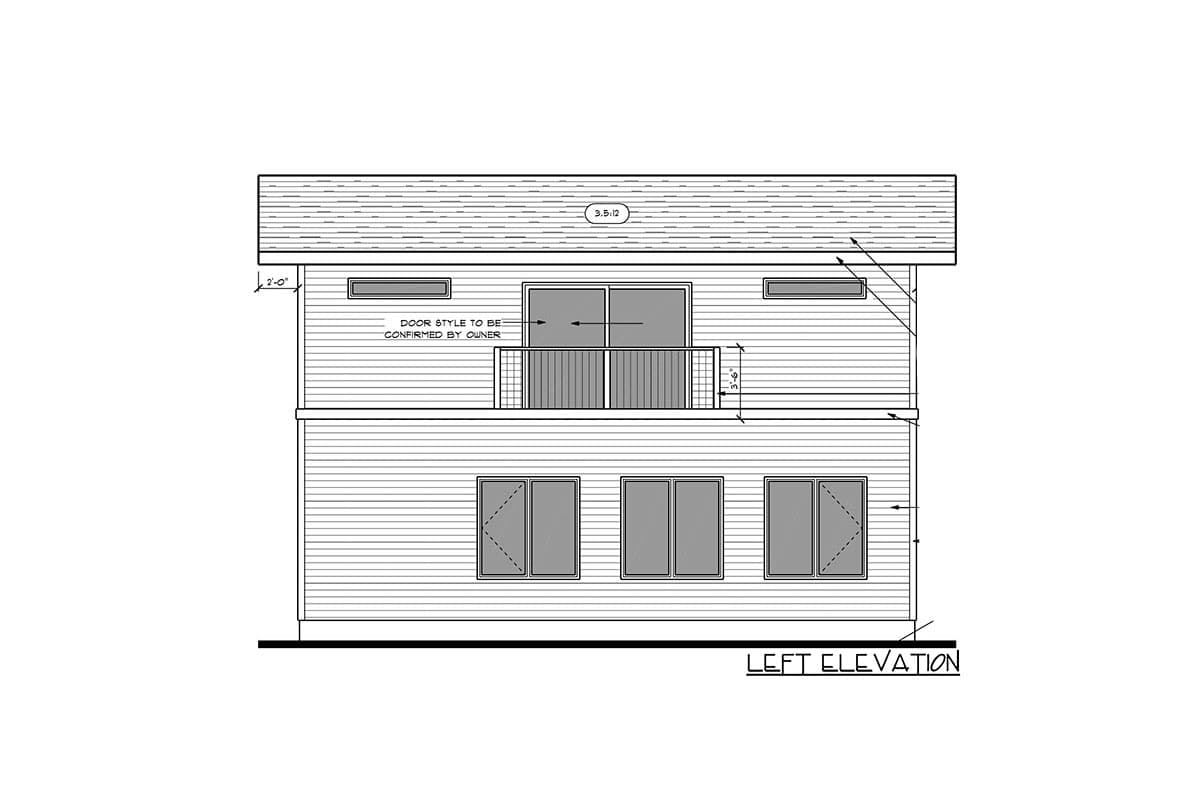

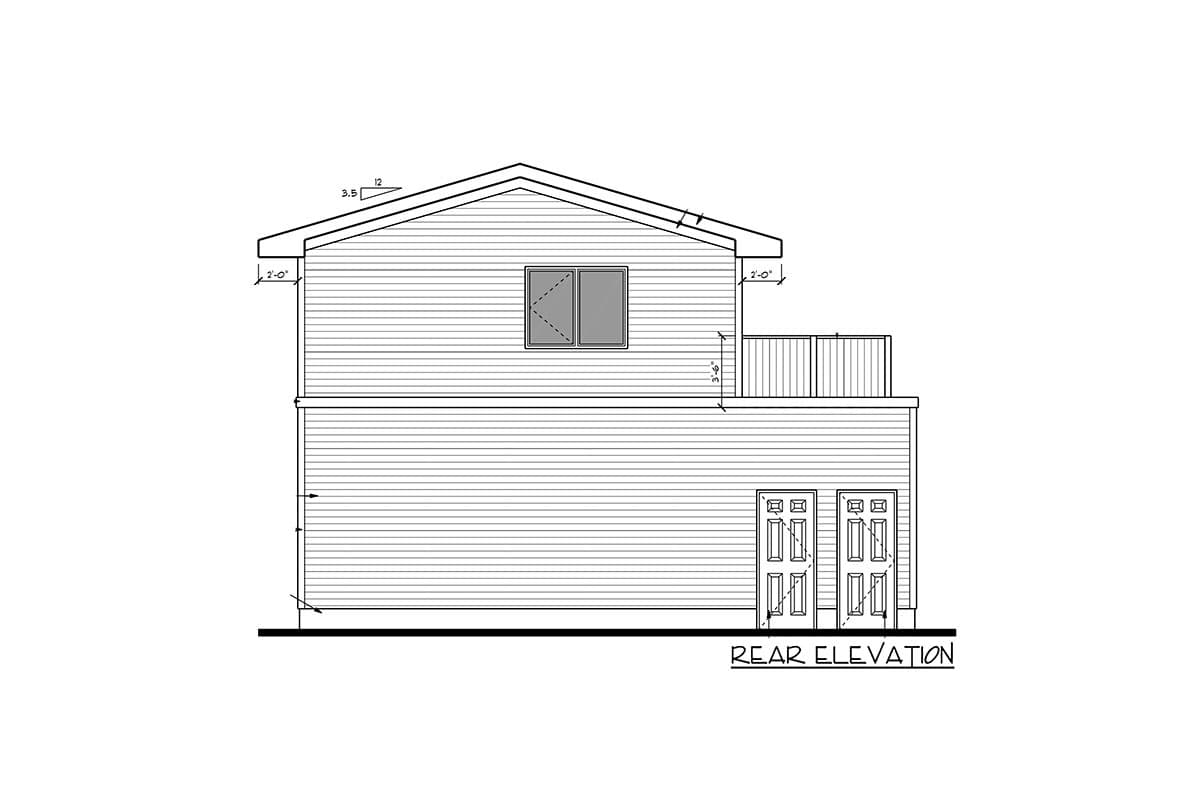

  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

View Sample Plan

What's Not Included

  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,545 sq. ft.

1st Floor

900 sq. ft.

2nd Floor

645 sq. ft.

Apartment

645 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

30' 0"

Max Ridge Height

21' 2"

Garage

Type

Detached

Area

900 sq. ft.

Count

2 Cars

Ceiling Heights

Lower Level

9' 7"

First Floor

8' 1"

Roof Details

Primary Pitch

3.5 on 12

Framing Type

Truss

Architectural Style

Craftsman

New American

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Workshop

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

1,545 sq. ft.

1st Floor

900 sq. ft.

2nd Floor

645 sq. ft.

Apartment

645 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

30' 0"

Max Ridge Height

21' 2"

Garage

Type

Detached

Area

900 sq. ft.

Count

2 Cars

Ceiling Heights

Lower Level

9' 7"

First Floor

8' 1"

Roof Details

Primary Pitch

3.5 on 12

Framing Type

Truss

Architectural Style

Craftsman

New American

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Workshop

Plan Collections

Canadian House Plans
