Plan 270058AF
Newport-style House Plan with an Optionally Finished Lower Level
Heated S.F.
3,538
Beds
4-7
Baths
3.5 - 5.5
Stories
2
Cars
2
Floor Plan
Optionally Finished Basement
Reverse Floor Plan
Newport-style House Plan with an Optionally Finished Lower Level - 270058AF floor plan - Optionally Finished Basement
Plan Details

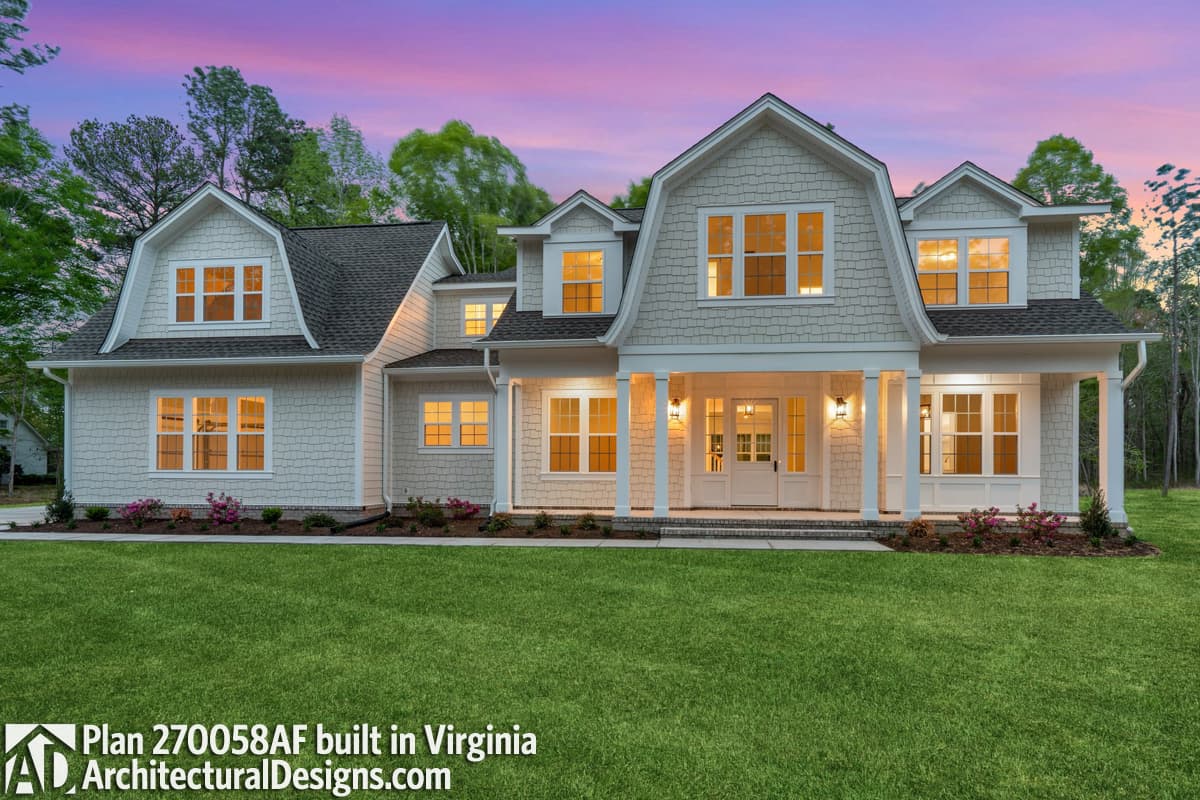

  • Shake siding lies beneath gambrel roof lines on the exterior of this Newport-style house plan.

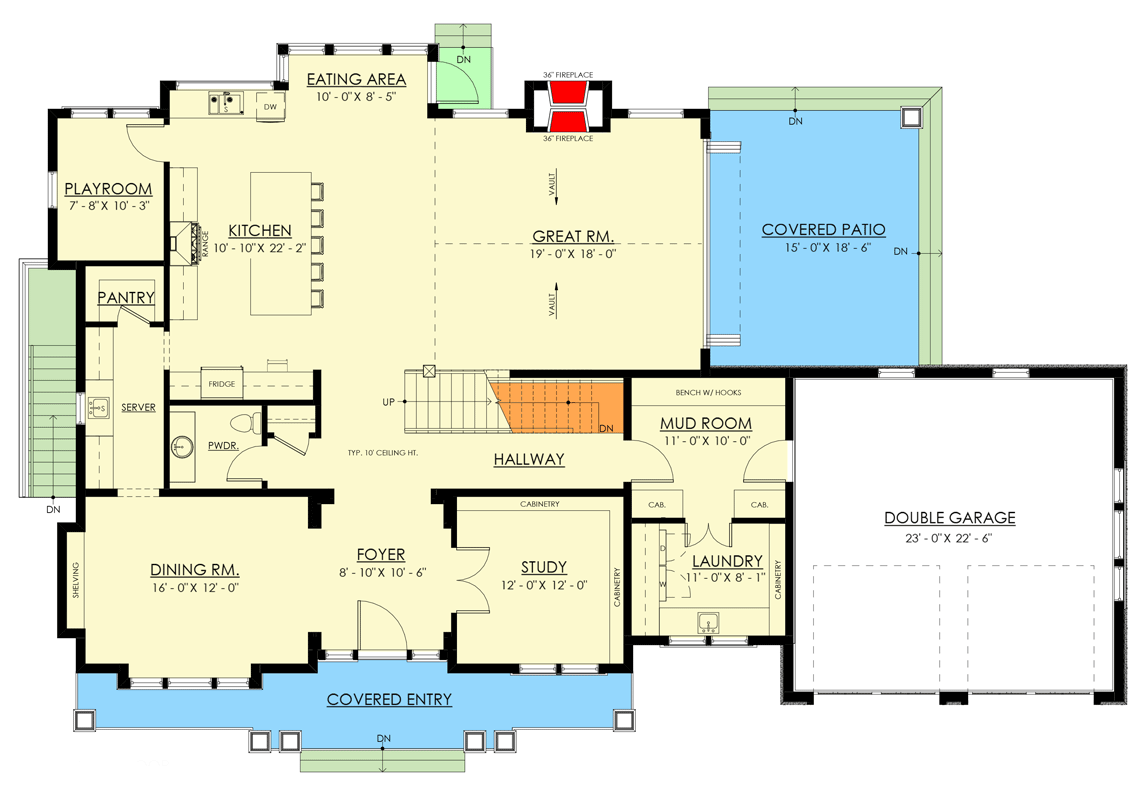

  • An elongated covered entry welcomes you inside, where you'll find a quiet study and formal dining room on either side of the foyer. The combined great room and kitchen is enhanced by an accordion-style door that retracts to extend the living space outdoors.
  • The massive island provides ample workspace in the kitchen, and a walk-in pantry neighbors a butler's pantry with a bar sink. A convenient playroom sits next to the kitchen so you can multi-task and keep toys contained to a particular area.

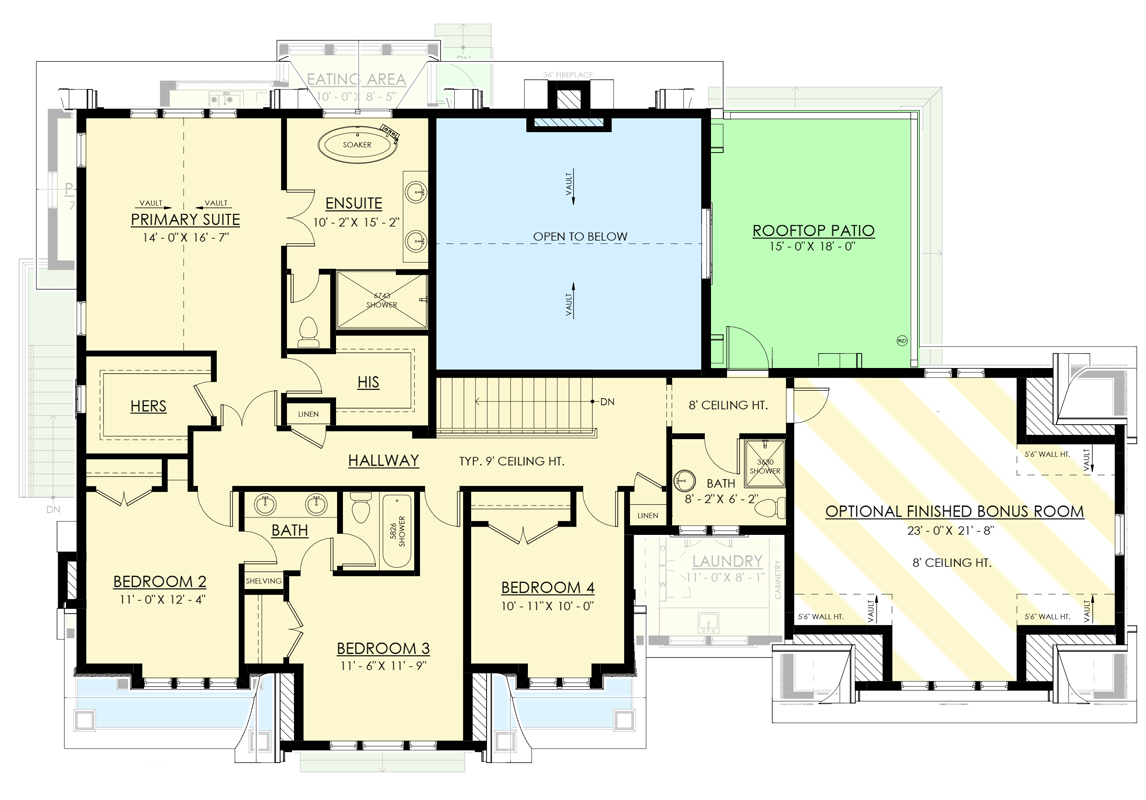

  • Upstairs, the master suite is joined by three secondary bedrooms, and a rooftop patio offers a fun space to get some vitamin D. Finish the optional bonus room for an additional 418 sq ft of living space.

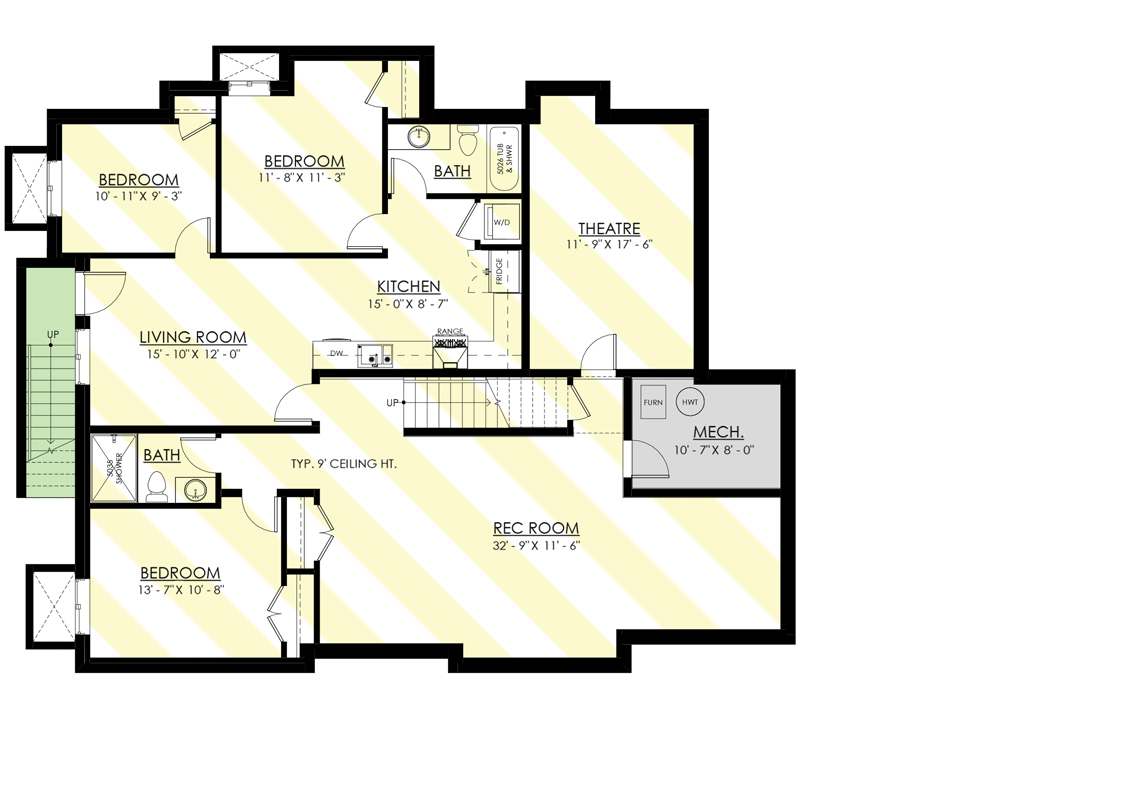

  • Retreat to the optionally finished lower level to find a home theatre, game room, gym, and bedroom. The 2-bedroom apartment with a private entrance can be used as an in-law suite or income property.
  • Related Plan: Get an alternative version with an angled garage with plan 270039AF
What's Included
  • Foundation Plan
  • Floor Plan(s) with Door and Window Opening Sizes
  • Roof Plan showing pitches, valleys, ridges

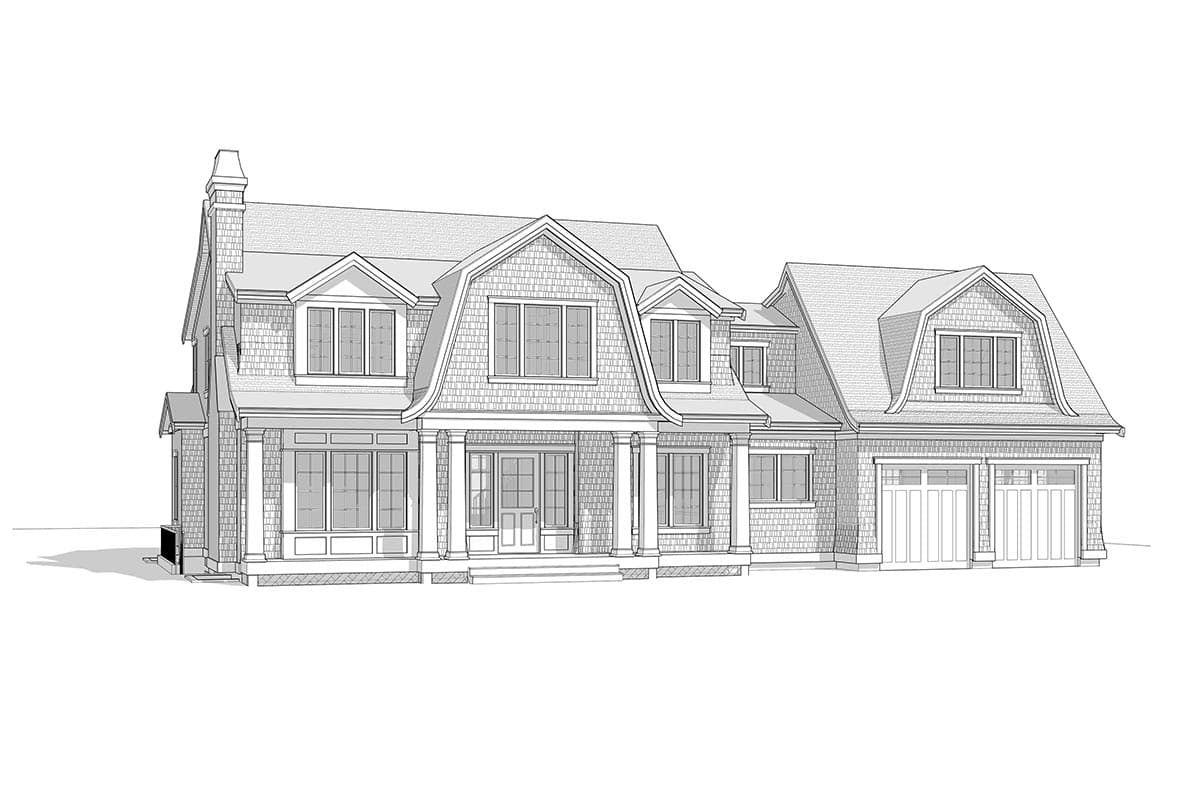

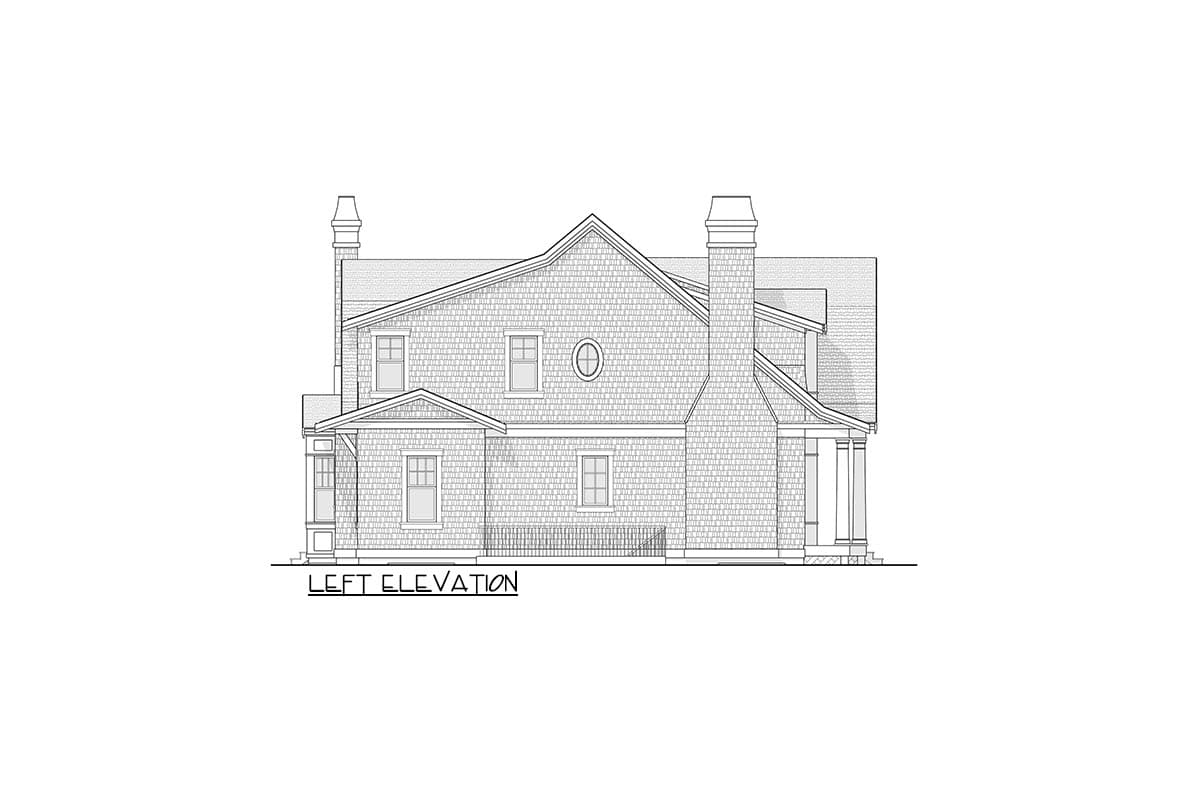

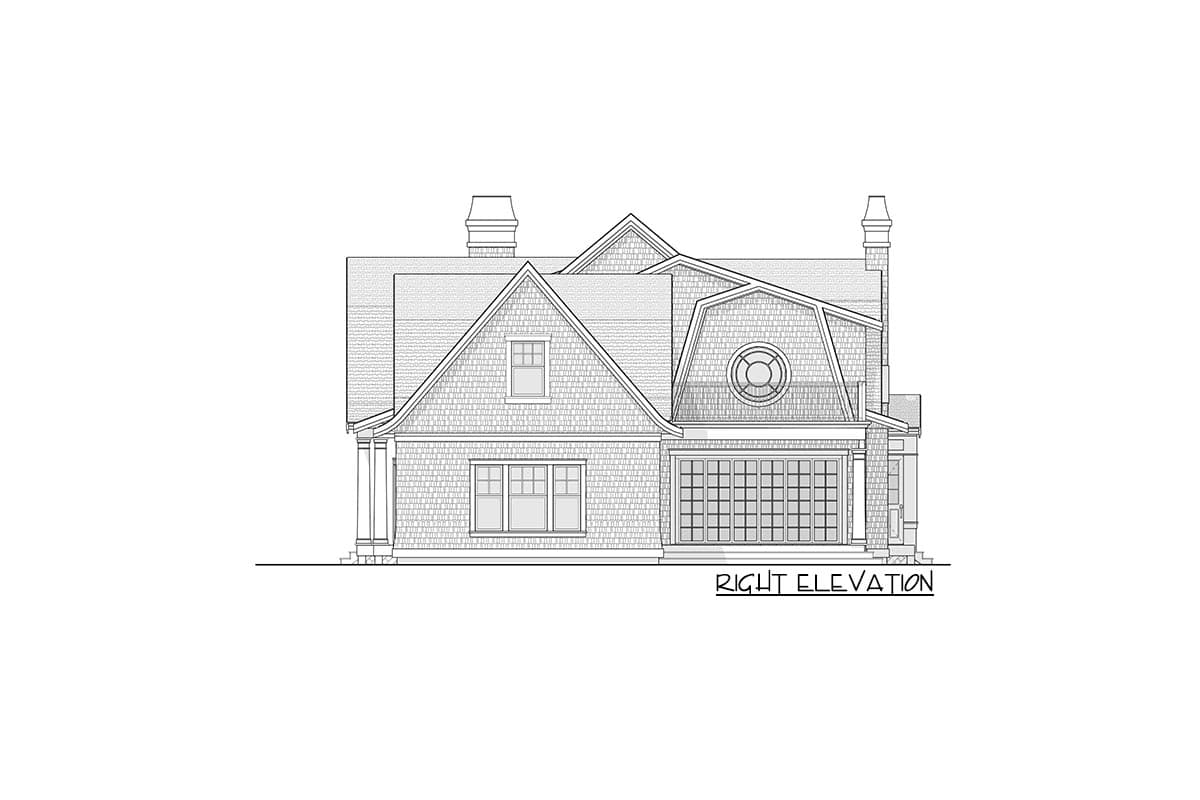

  • Exterior Elevations
  • Building Section
  • Typical Construction Details/Sections

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Plumbing & Electrical plans
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Framing - layouts with beam sizes and locations
  • Renderings, photography, or marketing imagery
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Newport-style House Plan with an Optionally Finished Lower Level

  • 3,538

    Heated s.f.

  • 4-7

    Beds

  • 3.5 - 5.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optionally Finished Basement

Plan Details

Square Footage Breakdown

  • Total: 3,538 sq. ft.
  • 1st Floor: 2,008 sq. ft.
  • 2nd Floor: 1,530 sq. ft.

Dimensions

  • Width: 76' 6"
  • Depth: 46' 6"
  • Max ridge height: 31' 7"

Beds/Baths

  • Bedrooms: 4, 5, 6, or 7
  • Full bathrooms: 3, 4, or 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 564 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

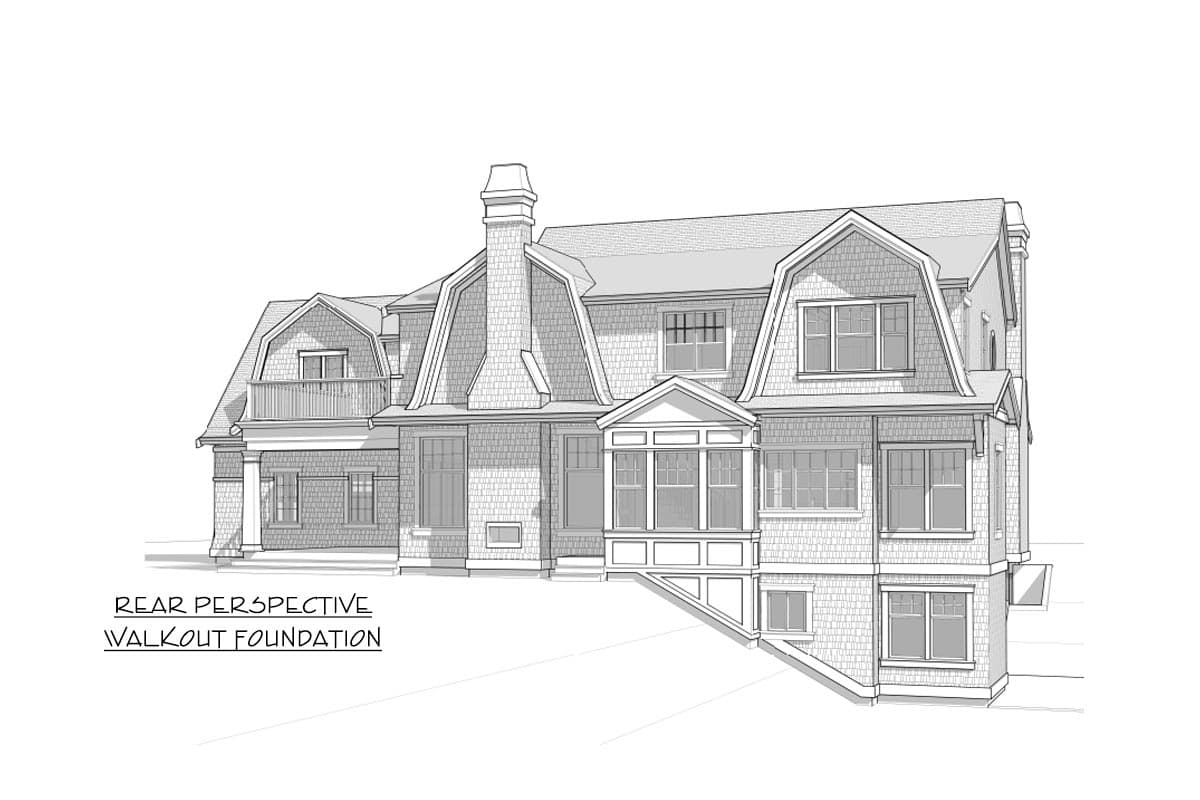

    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick And Truss
