Plan 360033DK

One-Level Craftsman House Plan with Angled 2-Car Garage - 2070 Sq Ft

Heated S.F.
2,070
Beds
3
Baths
2
Stories
1
Cars
2

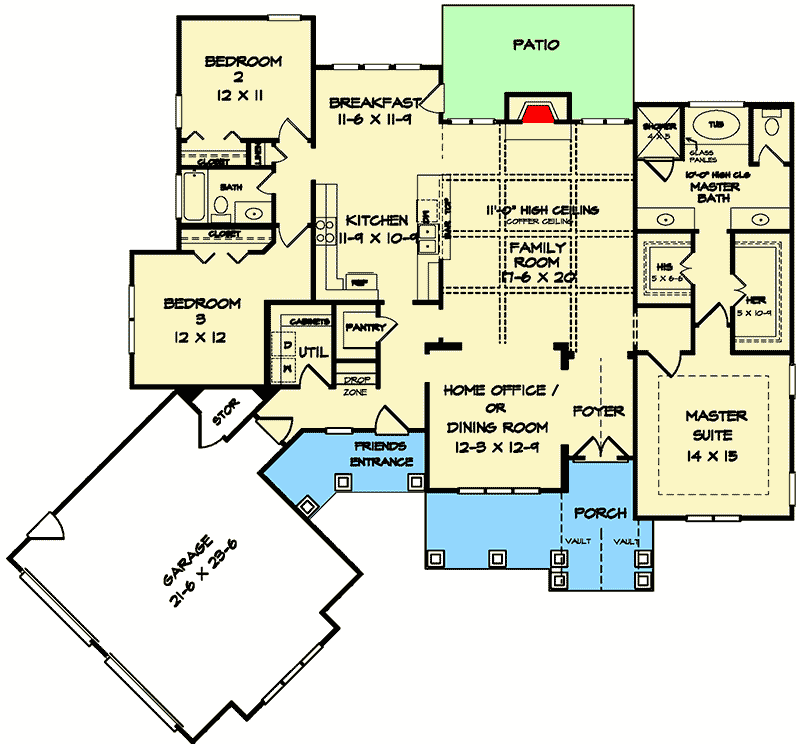

Floor Plan

Plan 360033DK

Main Level
Main Level

Plan 360033DK

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 360033DK: One-Level Craftsman House Plan with Angled 2-Car Garage - 2070 Sq Ft - Floor Plan - Main Level - Craftsman, Mountain, Northwest, Ranch

Plan Details

  • Timber-frame gable roofs, stone accents, and warm tones create an inviting exterior for this one-level house plan. The angled 2-car garage contributes character to the overall design.
  • The sprawling family room boasts high, coffered ceilings, a fireplace, and an attached dining room, or office for the work-at-home resident.
  • The kitchen counter provides bar-height seating, and connects the family room with the kitchen, while a patio off the breakfast nook encourages outdoor living.
  • The master suite is privately situated on the right side of the home, and boasts a step ceiling, dual closets, and a 5-fixture ensuite.
  • A full bath separates bedrooms 2 and 3 on the opposite side of the home.
  • A drop zone near the garage provides an area for keys, mail, etc to help remain organized.
  • Related Plans: Get an alternate layout with house plan 360095DK. Angle bedrooms 2 and 3 with house plans 36063DK, 36029DK and 36043DK.

What's Included

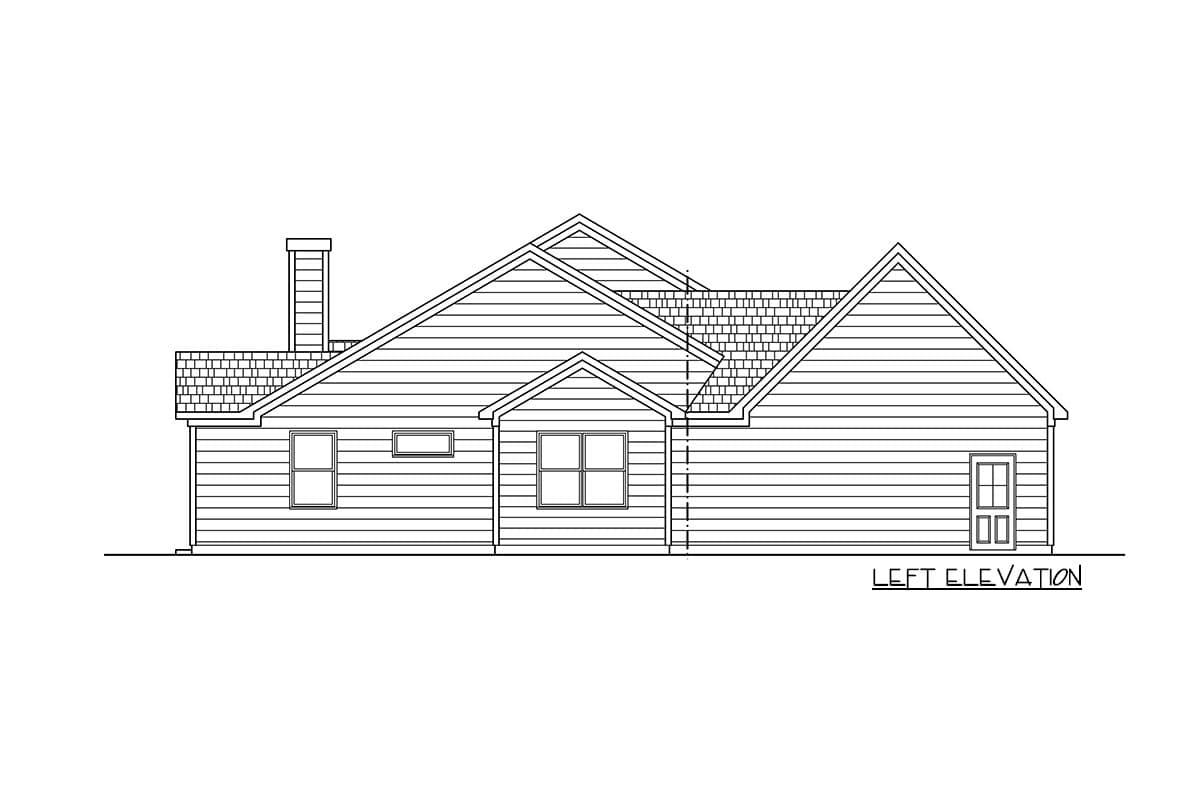

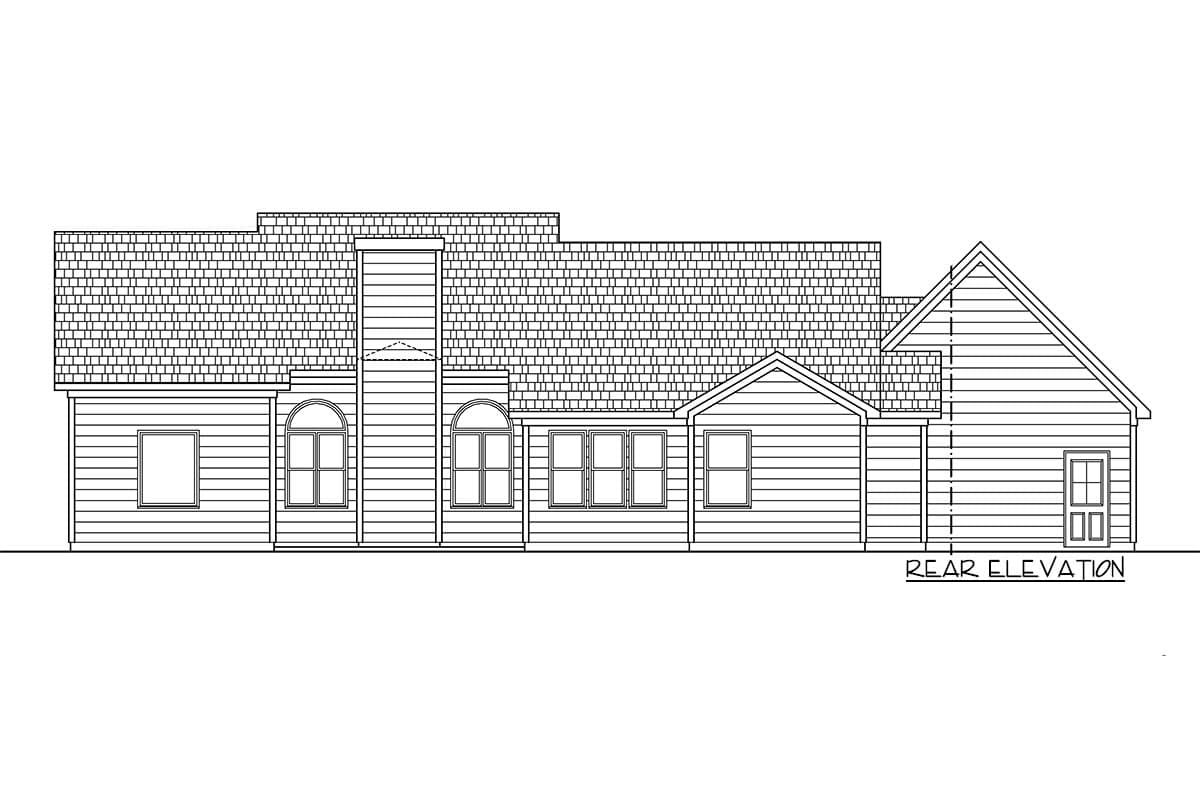

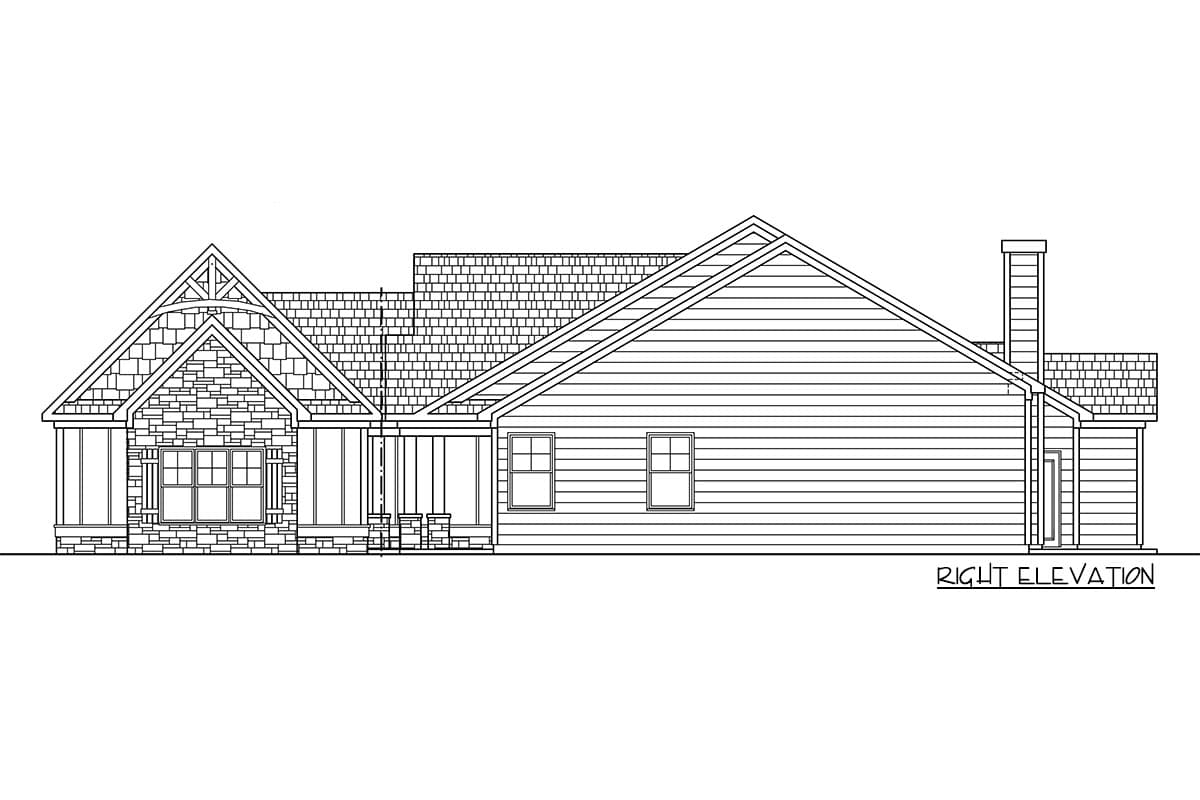

  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,070 sq. ft.

1st Floor

2,070 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

75' 6"

Depth

70' 1"

Max Ridge Height

28' 5"

Garage

Type

Attached

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Craftsman

Mountain

Northwest

Ranch

Special Features

Angled Garage

Bedrooms - Split

Breakfast Nook

Formal Dining

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

2,070 sq. ft.

1st Floor

2,070 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

75' 6"

Depth

70' 1"

Max Ridge Height

28' 5"

Garage

Type

Attached

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Craftsman

Mountain

Northwest

Ranch

Special Features

Angled Garage

Bedrooms - Split

Breakfast Nook

Formal Dining

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Plan Collections

Home Office
