Plan 5987ND
One Story House Plan with Private Master Suite
Heated S.F.
2,169
Beds
3-4
Baths
2
Stories
1
Cars
2
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

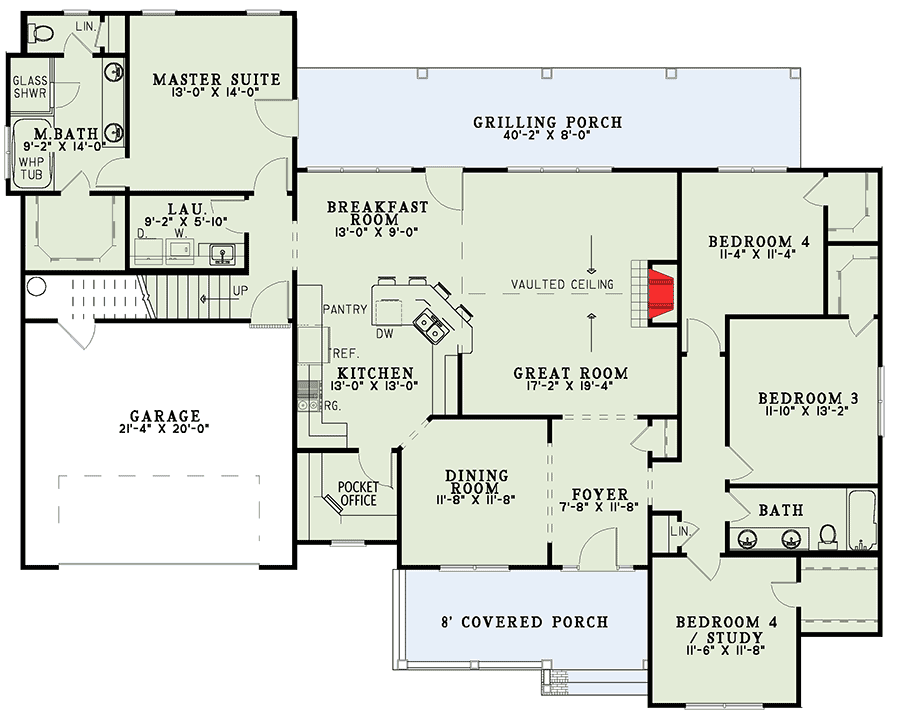

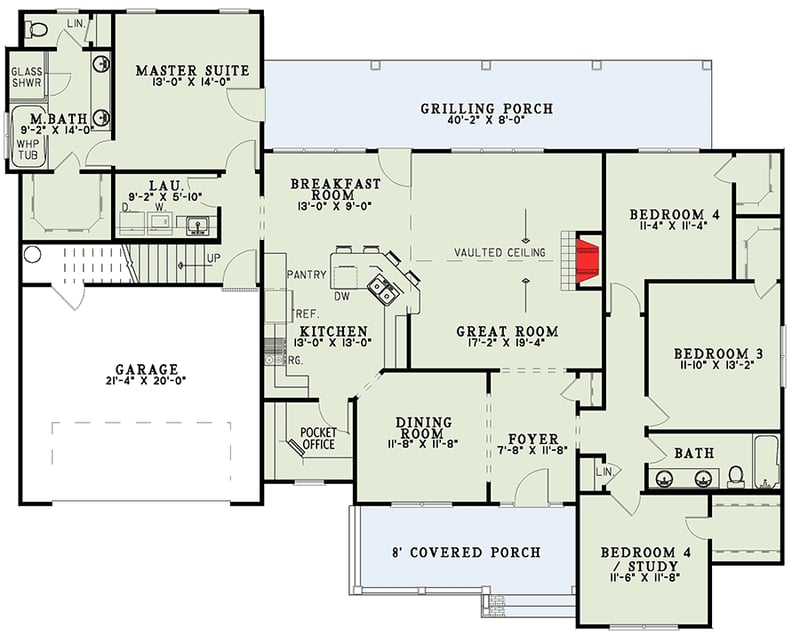

One Story House Plan with Private Master Suite - 5987ND floor plan - Main Level
Bonus Over Garage
Reverse Floor Plan

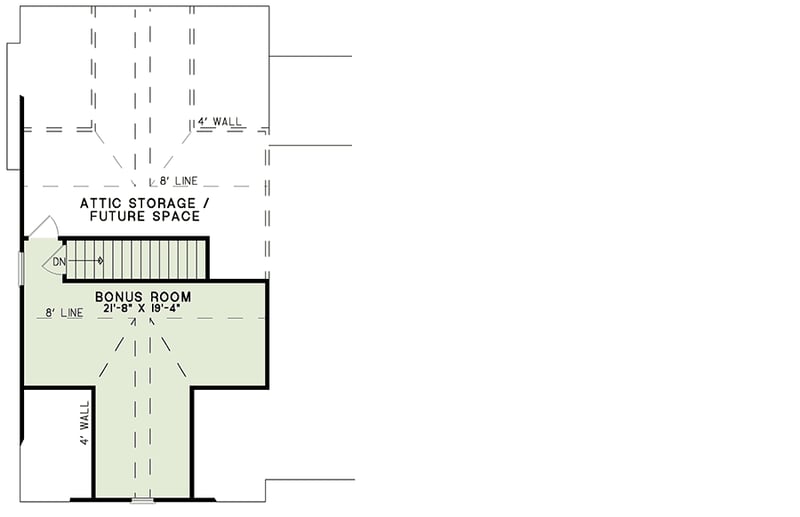

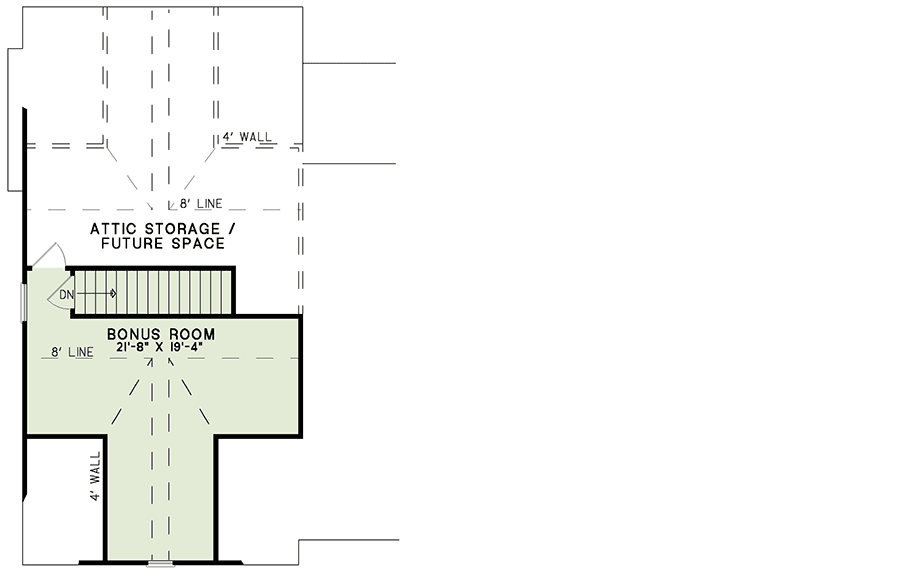

One Story House Plan with Private Master Suite - 5987ND floor plan - Bonus Over Garage
Plan Details
  • With a split bedroom design, this traditional charmer offers privacy for the owners of this house.
  • A vaulted ceiling crowns the great room, which flows into the breakfast room and then the kitchen with its angled snack bar. Note the outdoor grilling porch.
  • The formal dining room is nicely sited between the foyer and kitchen. Off the kitchen, there is a computer room.
  • Grouped together, three other family bedrooms share a hall bath; each has a walk-in closet. The front-facing bedroom would also work well as a study.
  • Upstairs, bonus space allows for expansion.
  • Related Plans: Get an alternate version with house plan 70661MK. Eliminate the bonus room with house plan 5988ND and check out these related plans - 5989ND, 59545ND and 59569ND.
What's Included
Each plan set includes the following:
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One Story House Plan with Private Master Suite

  • 2,169

    Heated s.f.

  • 3-4

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Bonus Over Garage

Plan Details

Square Footage Breakdown

  • Total: 2,169 sq. ft.
  • 1st Floor: 2,169 sq. ft.

Dimensions

  • Width: 69' 10"
  • Depth: 55' 6"
  • Max ridge height: 24' 2"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 461 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick
