One-Story New American Ranch House Plan with Board and Batten Siding - 2330 Sq Ft

Heated S.F.
2,330
Beds
3
Baths
2.5
Stories
1
Cars
2
Customer Photos

Floor Plan

Plan 51820HZ

Main Level
Main Level
Basement Stair Location
Basement Stair Location

Plan 51820HZ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

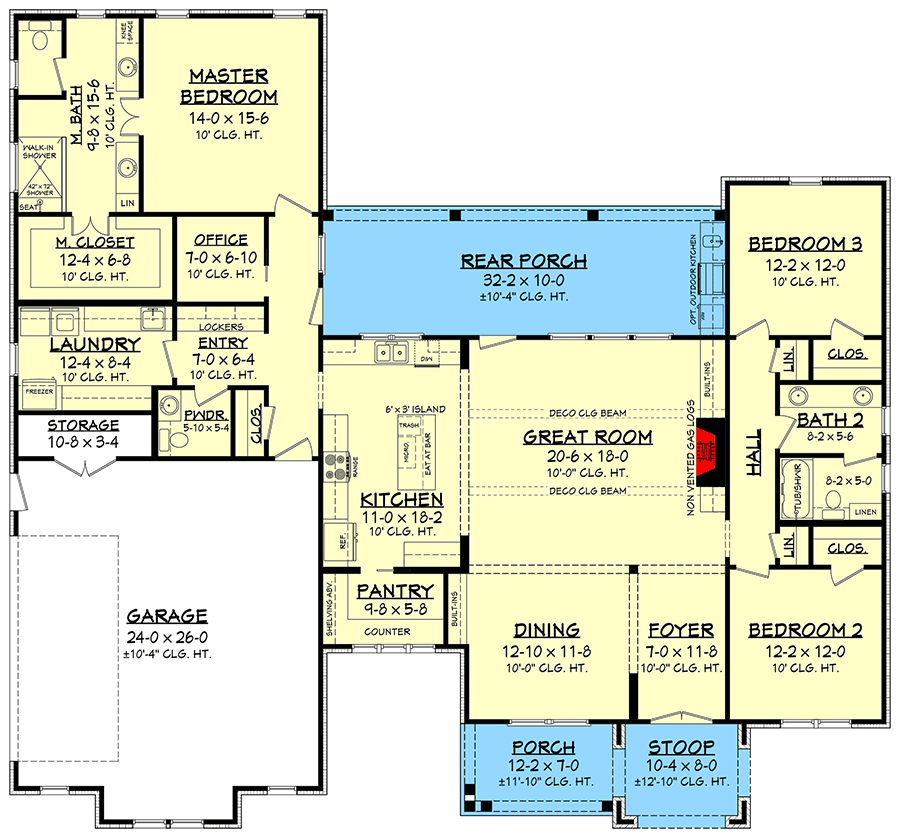

Plan 51820HZ: One-Story New American Ranch House Plan with Board and Batten Siding - 2330 Sq Ft - Floor Plan - Main Level - Contemporary, Country, New American, Prairie, Ranch

Basement Stair Location

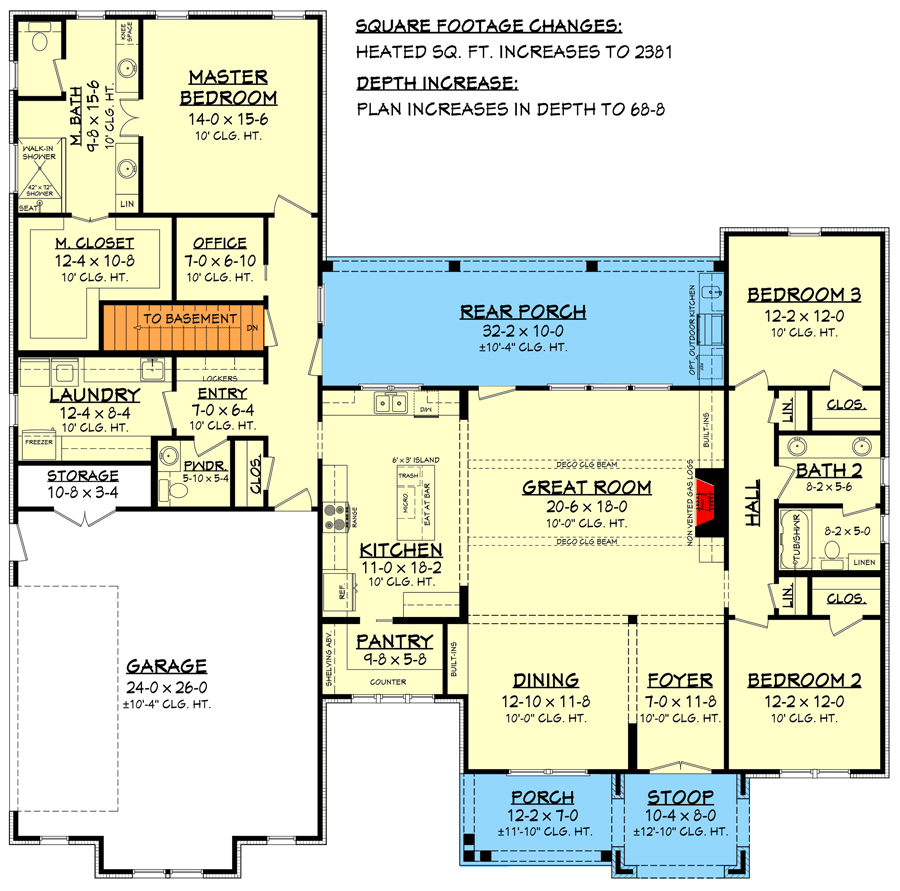

Plan 51820HZ: One-Story New American Ranch House Plan with Board and Batten Siding - 2330 Sq Ft - Floor Plan - Basement Stair Location - Contemporary, Country, New American, Prairie, Ranch

Plan Details

  • This attractive New American house plan gives you one-story living wrapped up in an attractive exterior with deep Usonian eaves, wood accents and board and batten siding. Available on a slab and crawl with basement options, it fits in all areas of the country.
  • Inside, you get an open floor plan with the great room open to the kitchen and dining room. A door on the back wall takes you to the roomy back porch with an optional outdoor kitchen.
  • The kitchen has a 6' by 3' island with a sink on one side and bar seating on the other. A large walk-in pantry can be hidden behind a pocket door and can be filled with groceries brought in from the garage entrance around the corner, just steps away.
  • The master suite is privately located past the pocket office on the left and gives you a five-fixture bath and roomy walk-in closet. Two more bedrooms share a bath across the home.
  • Related Plan: Get a smaller version with house plan 52033HZ (1,883 sq. ft.).
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.

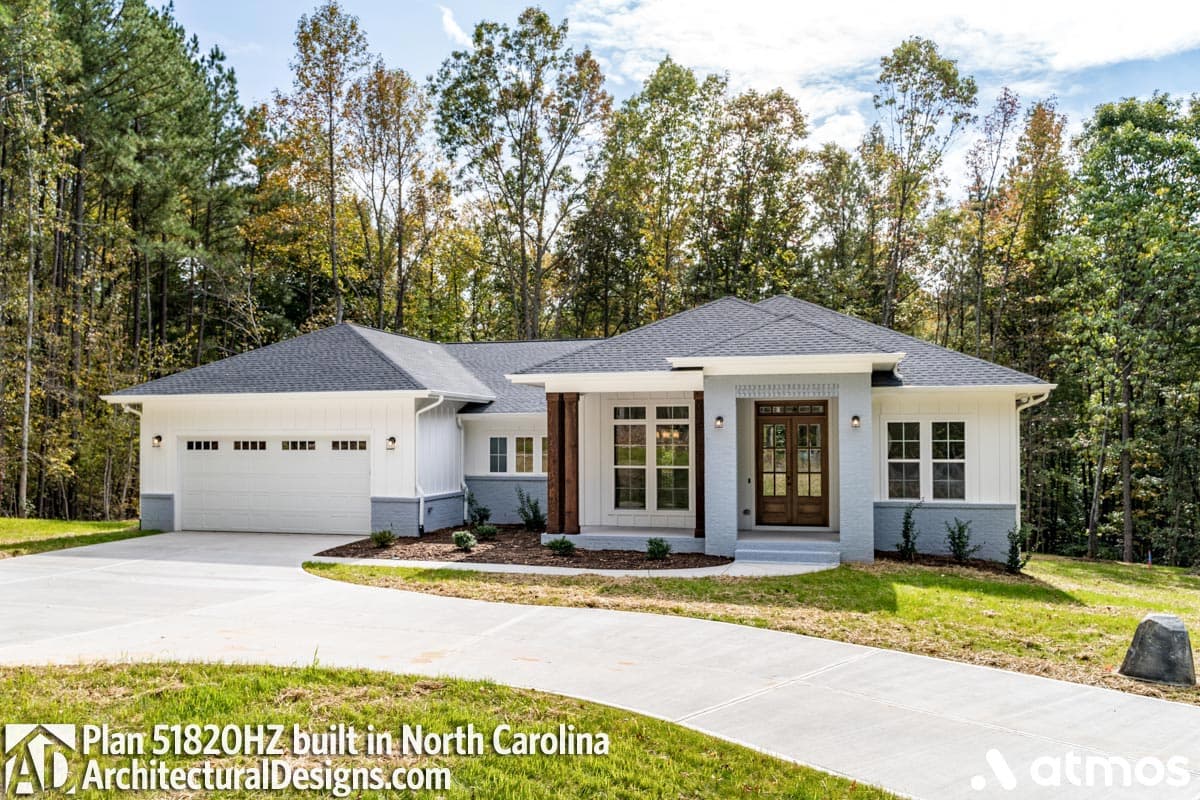

build gallery item - Ranch Home Plan 51820HZ Comes to Life in North Carolina

Ranch Home Plan 51820HZ Comes to Life in North Carolina

19

Photos

What's Included

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,330 sq. ft.

1st Floor

2,330 sq. ft.

Porch, Front

168 sq. ft.

Porch, Rear

302 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

69' 8"

Depth

64' 8"

Max Ridge Height

20' 0"

Garage

Type

Attached

Area

674 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

3.75 on 12

Framing Type

Stick

Architectural Style

Contemporary

Country

New American

Prairie

Ranch

Special Features

Bedrooms - Split

Formal Dining

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Kitchen

Walk-in Pantry

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,330 sq. ft.

1st Floor

2,330 sq. ft.

Porch, Front

168 sq. ft.

Porch, Rear

302 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

69' 8"

Depth

64' 8"

Max Ridge Height

20' 0"

Garage

Type

Attached

Area

674 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

3.75 on 12

Framing Type

Stick

Architectural Style

Contemporary

Country

New American

Prairie

Ranch

Special Features

Bedrooms - Split

Formal Dining

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Kitchen

Walk-in Pantry

Plan Collections

Photo Gallery
