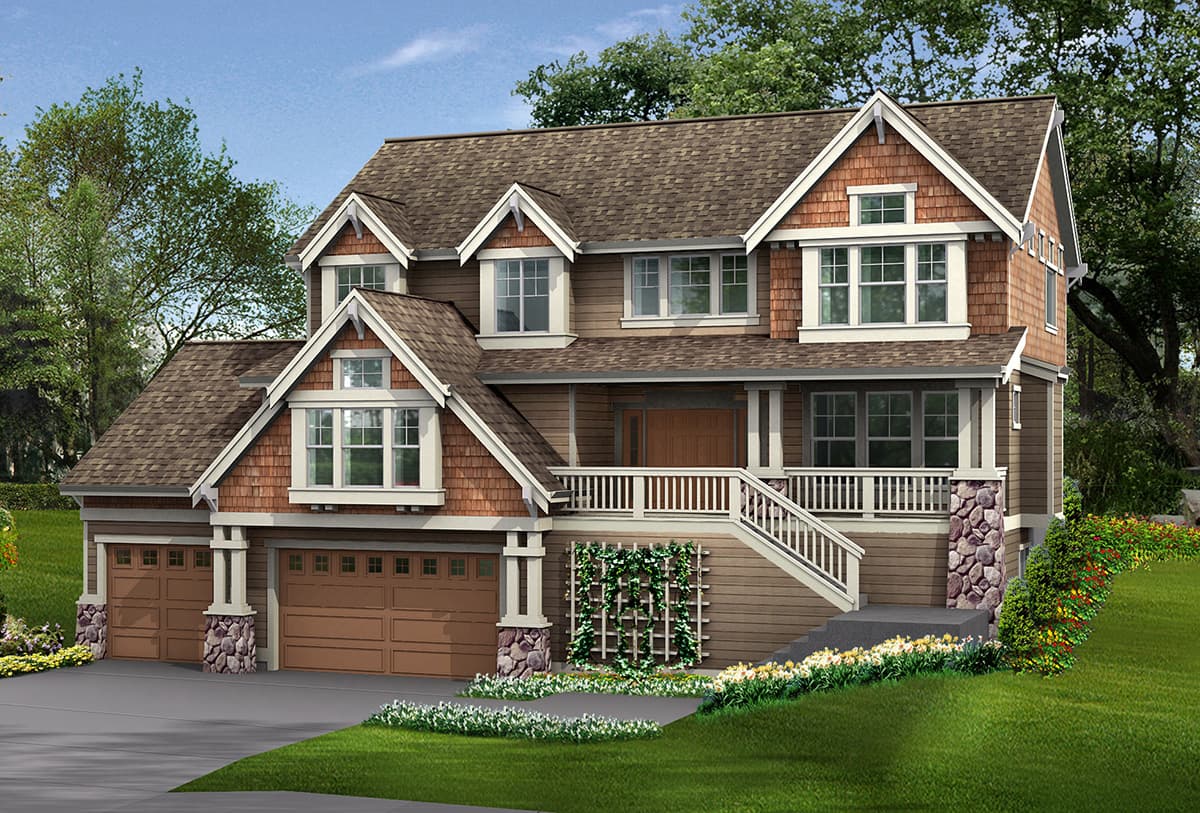

Open Floor Plan with Garage Options

Plan 23064JD

  • 3,155

    HEATED S.F.

  • 4

    BEDS

  • 4

    BATHS

  • 2

    FLOORS

  • 3

    CAR GARAGE

About this Plan

  • Related Plans: For other garage options, see house plan 23109JD (2-car) and 23110JD (4-car tandem).
  • Go smaller with house plan 23404JD (2,380 sq. ft.).
  • Get more room with house plans 23353JD (4,379 sq. ft.) and 2376JD (4,120 sq. ft.).
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

See What's Included in this Plan...

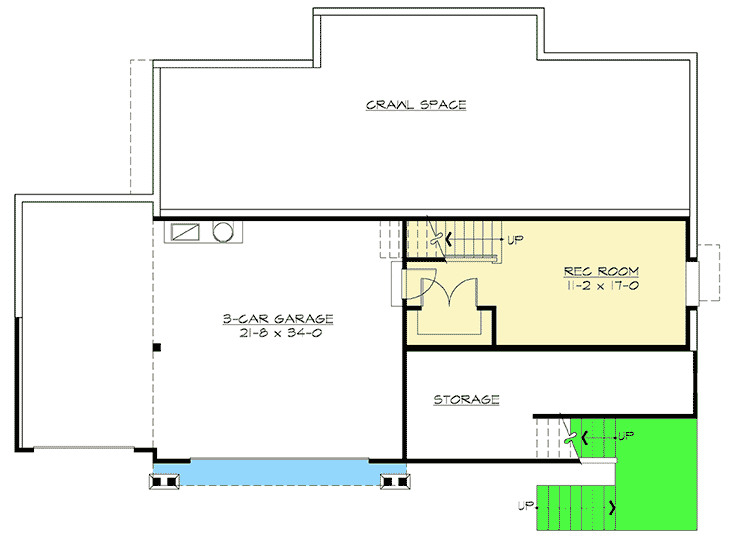

Floor Plan

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,155 sq. ft.
  • Lower Level: 312 sq. ft.
  • 1st Floor: 1,583 sq. ft.
  • 2nd Floor: 1,260 sq. ft.
  • Porch, Front: 197 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Dimensions

  • Width: 63' 0"
  • Depth: 46' 0"
  • Max ridge height: 27' 10"

Garage

  • Type: Drive Under
  • Area: 760 sq. ft.
  • Details: 3 Cars
  • Location: Front

Foundation Type

  • Standard Foundations: Combo Basement-Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
