• 1,379

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Stories

  • 2

    Cars

  • With room for 2 cars plus an office and bath on the ground floor, this carriage house plan packs a lot into its space.
  • On the second floor main living level, the great room, dining area and kitchen are all open to each other, creating a spacious feeling. Double doors lead out to the covered deck.
  • The " suite has its own private bath and two closets.
  • Another good-sized bedroom and a hall bath complete this design.
  • The width of 44' does not include the deck which adds 10'.
  • The garage and shop total 1,183 square feet and the stairwell is 134 square feet.
  • Related Plans: Get more room with house plan 35490GH (2,030 sq. ft.) and 35513GH (2,068 sq. ft.). Get a man-cave version with house plan 35245GH (2x6 exterior walls), 35396GH (ICF exterior walls) and 35485GH for a larger version (2,025 sq. ft.). Get room for 5 cars on the lower level with house plan 35401GH.

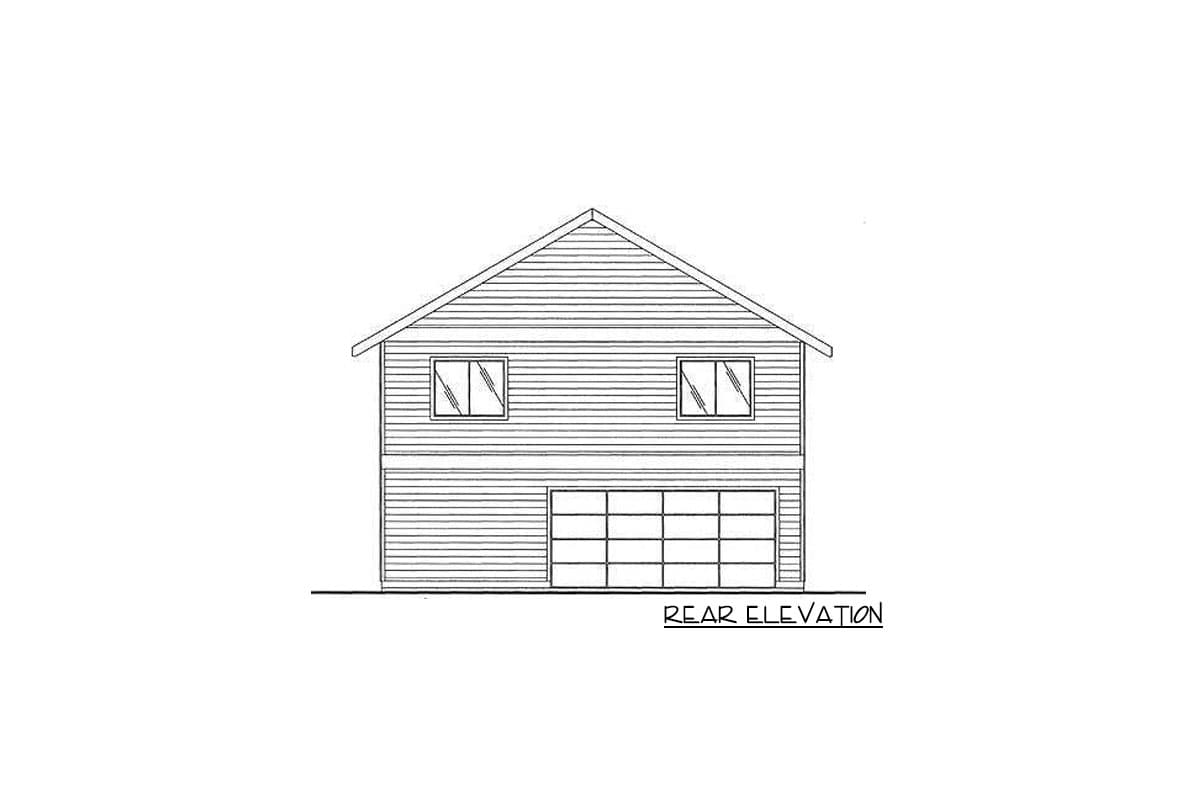

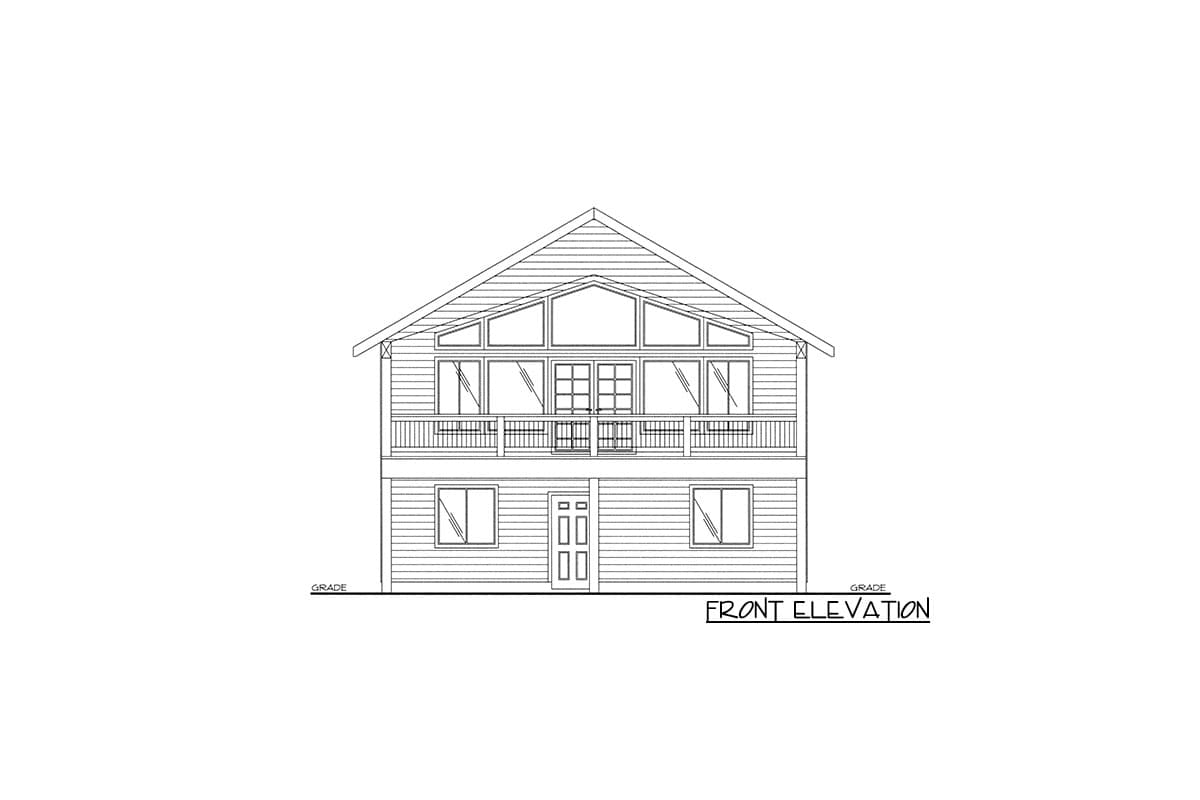

1. Elevations, custom window framing detail

2. Lower/main level floor plans with dimensions, window/door schedule

3. Foundation and main floor framing plan with details

4. Roof framing plan with details

5. Cross sections and details

6. Basic electrical plan

7. General notes to cover the entire project

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

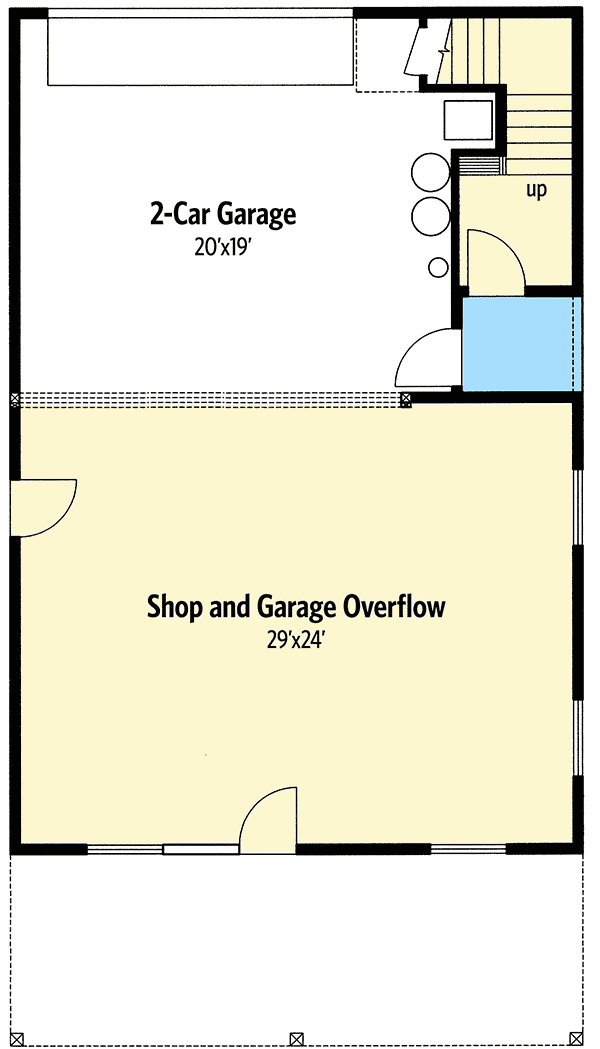

Popular Compact Design - 35361GH floor plan - Ground Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

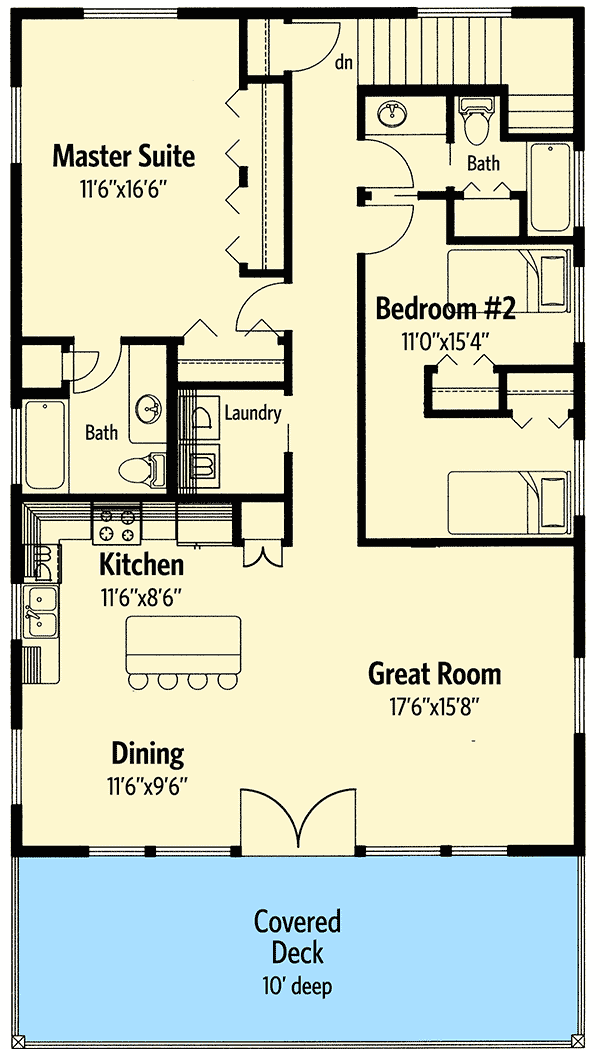

Popular Compact Design - 35361GH floor plan - Second Level

Plan details

Popular Compact Design

  • 1,379

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,095
  • PDF + CAD - Single Build $1,195
  • 5 Sets + PDF $1,345
  • CAD + PDF - Unlimited Build $1,895
  • View all purchase option online

About This Plan

  • With room for 2 cars plus an office and bath on the ground floor, this carriage house plan packs a lot into its space.
  • On the second floor main living level, the great room, dining area and kitchen are all open to each other, creating a spacious feeling. Double doors lead out to the covered deck.
  • The " suite has its own private bath and two closets.
  • Another good-sized bedroom and a hall bath complete this design.
  • The width of 44' does not include the deck which adds 10'.
  • The garage and shop total 1,183 square feet and the stairwell is 134 square feet.
  • Related Plans: Get more room with house plan 35490GH (2,030 sq. ft.) and 35513GH (2,068 sq. ft.). Get a man-cave version with house plan 35245GH (2x6 exterior walls), 35396GH (ICF exterior walls) and 35485GH for a larger version (2,025 sq. ft.). Get room for 5 cars on the lower level with house plan 35401GH.

Floor Plans

  • Ground Level

  • Second Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,379 sq. ft.
  • Lower Level: 103 sq. ft.
  • 1st Floor: 103 sq. ft.
  • 2nd Floor: 1,276 sq. ft.
  • Deck: 300 sq. ft.
  • Porch, Front: 300 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 30' 0"
  • Depth: 54' 0"
  • Max ridge height: 27' 1"

Garage

  • Type: Detached
  • Area: 1186 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: Lower Level / 8' 10" First Floor / 8' 0"

Roof

  • Primary Pitch: N on N
  • Secondary Pitch: N on N
  • Framing Type: Truss
