Plan 18223BE Popular Cottage Home Plan

Popular Cottage Home Plan

Plan 18223BE

  • 3,241

    Heated s.f.

  • 3-6

    Beds

  • 4

    Baths

  • 2

    Stories

  • 2

    Cars

  • The vaulted spaces - foyer, living & dining rooms, and kitchen - add comfortable volume to nicely proportioned room sizes.
  • Abundant windows maximize views and natural light. The dormer over the foyer brings additional light into the living, dining and kitchen areas.
  • Wide hallways and doorways make for easy traffic flow, even for those that need Barrier Free Access. The front flex room off the foyer is perfect for a den or home office.
  • The kitchen is designed for both efficiency and aesthetics. The large island aids in food preparation, additional storage and allows for a nice seating area. There are both pantry cabinets and a spacious closet pantry.
  • The owners' suite has an attractive bay window with window seat. The handsome master bath has an extra spacious shower.
  • A second floor guest suite has two bedrooms and a kitchenette. It is great for guests or can be turned into a second master suite or home office.
  • The lower level is packed with a family room and game room, two bedrooms and workshop.
  • The 2-car garage is wider and deeper than most garages, with 10'-wide by 8'-high doors.
  • Related Plans: Get an unfinished lower level with house plan 18221BE (2,339 sq. ft.). Save money with second floor bonus space you can finish later with house plan 18222BE (1,634 sq. ft.). Get a larger version with an elevator with house plan 18238BE (3,994 sq. ft.). Get a 3-car garage with house plan 18249BE. Gain a first floor guest suite with house plans 18290BE (with bonus second floor suite) and 18241BE (without a bonus level). And get a dramatic screened porch off the master suite with house plan 18245BE (3,253 sq. ft.).

Plans include the following

  • General Notes & Design Criteria
  • Perspective views
  • Foundation plan
  • Floor plan
  • Exterior elevations
  • Cross sections
  • Door & window schedules
  • Roof plan and room finish schedule
  • Electrical plan

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations

Plan details



Popular Cottage Home Plan

  • 3,241

    Heated s.f.

  • 3 - 6

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,135
  • Reproducible Set $1,135
  • PDF - Single-Build $1,135
  • 8 Sets $1,335
  • CAD - Single-Build $1,745
  • View all purchase option online

About This Plan

  • The vaulted spaces - foyer, living & dining rooms, and kitchen - add comfortable volume to nicely proportioned room sizes.
  • Abundant windows maximize views and natural light. The dormer over the foyer brings additional light into the living, dining and kitchen areas.
  • Wide hallways and doorways make for easy traffic flow, even for those that need Barrier Free Access. The front flex room off the foyer is perfect for a den or home office.
  • The kitchen is designed for both efficiency and aesthetics. The large island aids in food preparation, additional storage and allows for a nice seating area. There are both pantry cabinets and a spacious closet pantry.
  • The owners' suite has an attractive bay window with window seat. The handsome master bath has an extra spacious shower.
  • A second floor guest suite has two bedrooms and a kitchenette. It is great for guests or can be turned into a second master suite or home office.
  • The lower level is packed with a family room and game room, two bedrooms and workshop.
  • The 2-car garage is wider and deeper than most garages, with 10'-wide by 8'-high doors.
  • Related Plans: Get an unfinished lower level with house plan 18221BE (2,339 sq. ft.). Save money with second floor bonus space you can finish later with house plan 18222BE (1,634 sq. ft.). Get a larger version with an elevator with house plan 18238BE (3,994 sq. ft.). Get a 3-car garage with house plan 18249BE. Gain a first floor guest suite with house plans 18290BE (with bonus second floor suite) and 18241BE (without a bonus level). And get a dramatic screened porch off the master suite with house plan 18245BE (3,253 sq. ft.).

Floor Plans

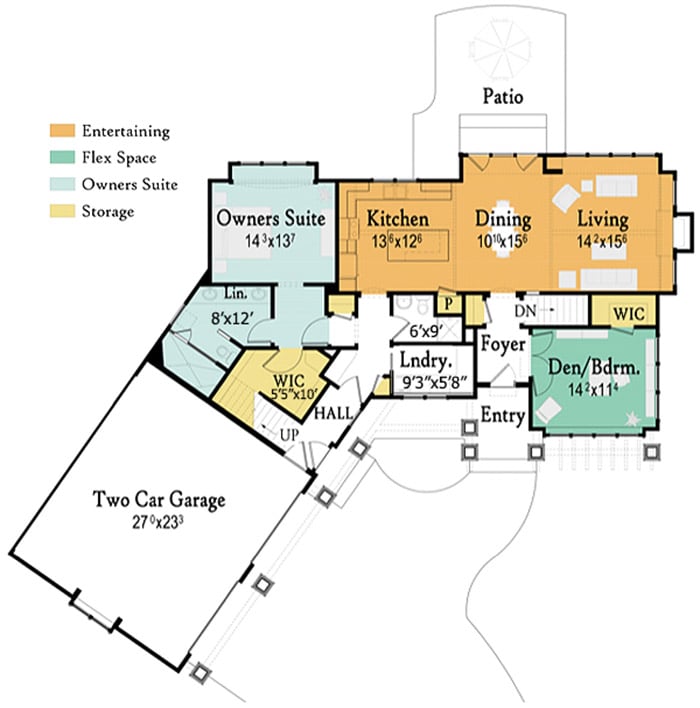

  • Main Level

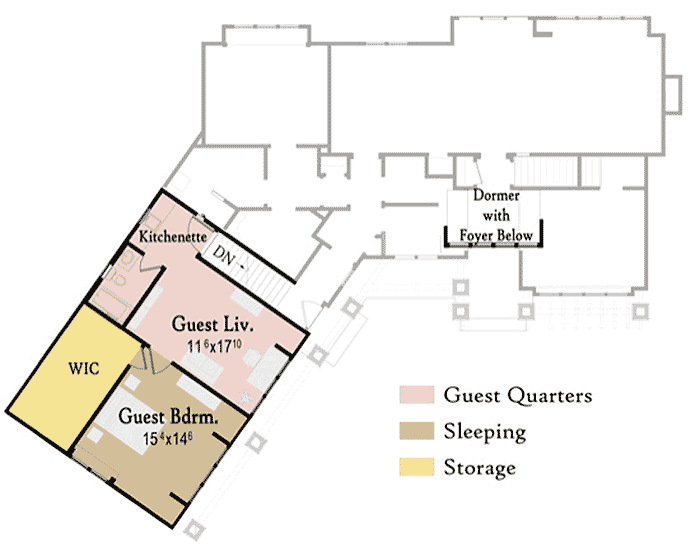

  • 2nd Floor

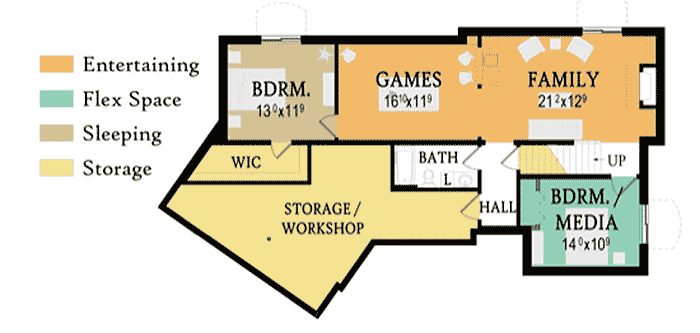

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,241 sq. ft.
  • Lower Level: 1,091 sq. ft.
  • 1st Floor: 1,457 sq. ft.
  • 2nd Floor: 693 sq. ft.
  • Porch, Front: 146 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, 5, & 6
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Basement, Walkout
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 75' 1"
  • Depth: 61' 4"
  • Max ridge height: 24' 0"

Garage

  • Type: Attached
  • Area: 664 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick and Truss
