Rustically Elegant Luxury House Plan

Plan 36148TX

This plan plants 3 trees

6,093
Heated s.f.
4
Beds
5.5
Baths
2
Stories
3
Cars

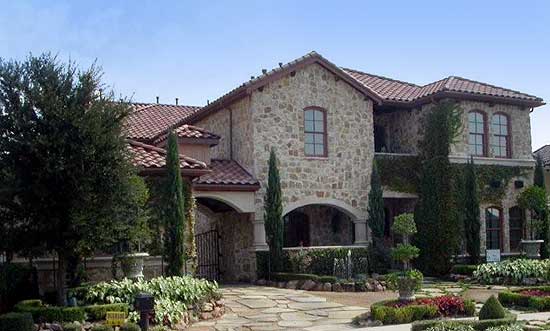

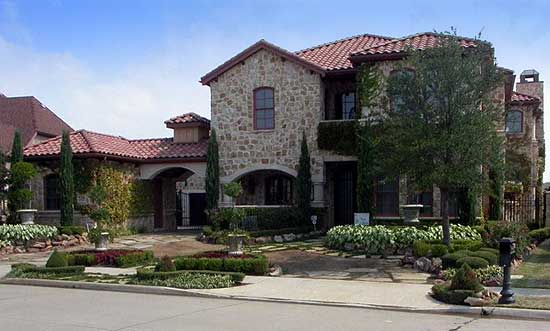

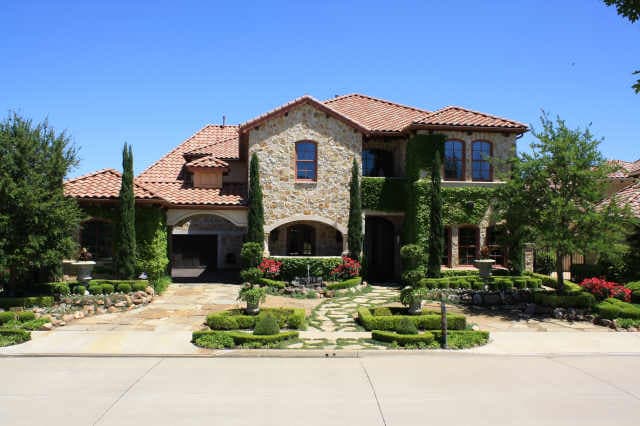

Featuring a stone and stucco exterior, this stunning luxury hill country house plan has unusual features such as a sunken grotto with fireplace. Tumbled cast stone, clay tile roof and distressed fir corbels exude confidence.

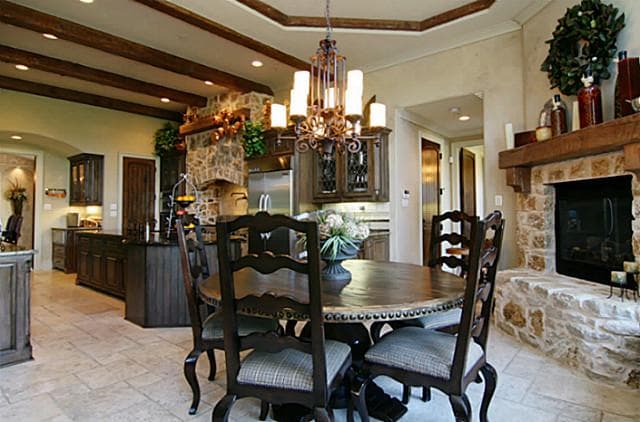

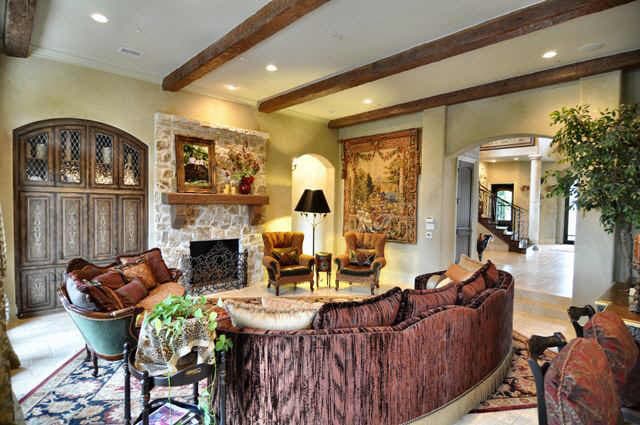

Beamed ceilings in the Kitchen, family room and patio add a rustic feel to the home while a barrel vaulted ceiling in the dining room rises to 11'.

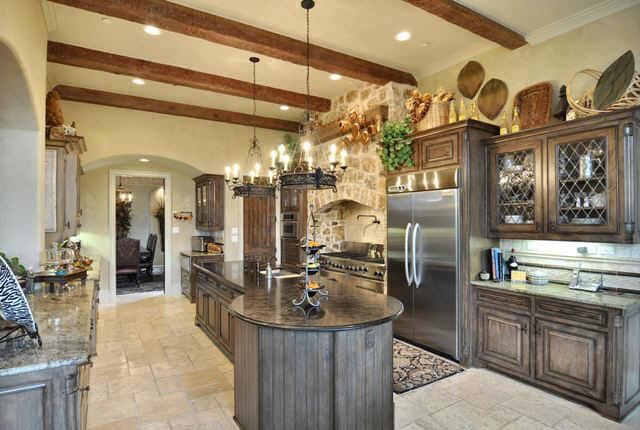

The gourmet kitchen, complete with bistro island, is open to the hearth and family rooms.

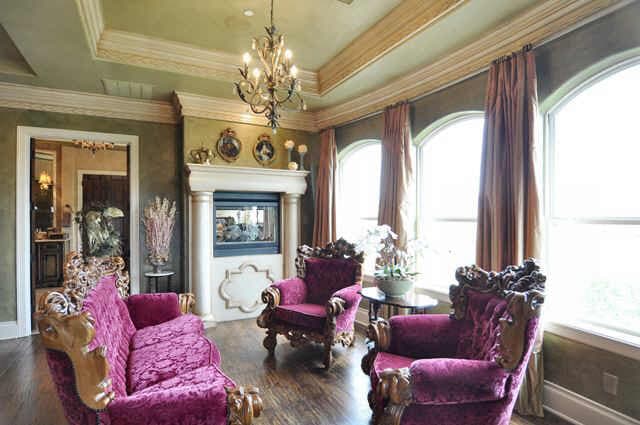

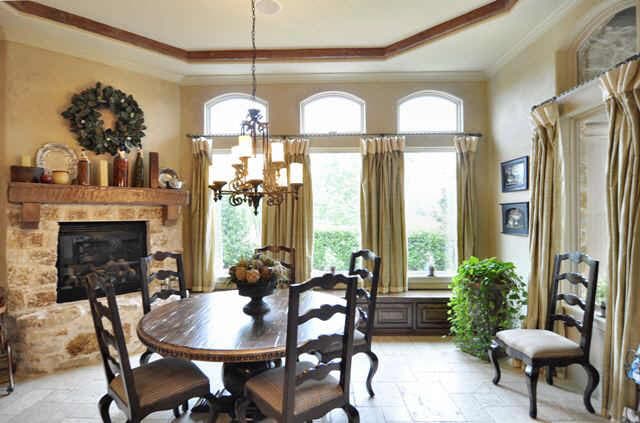

Start your day in the breakfast nook with a 12' tray ceiling with a warming fireplace and views to the rear through a wall of windows.
All the bedrooms are on the spacious second floor with the luxurious master suite as the crown jewel. Enjoy the sitting area with wet bar and your own private balcony.

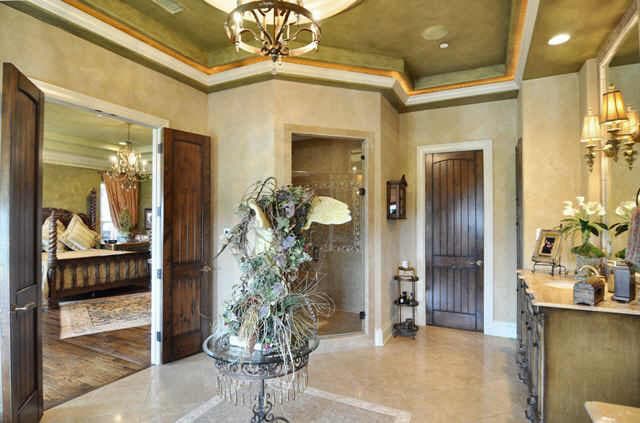

The spa-like master bath boasts a domed ceiling and a huge shower as well as a corner jetted tub. The massive walk-in closet opens into a second floor laundry room for convenience.

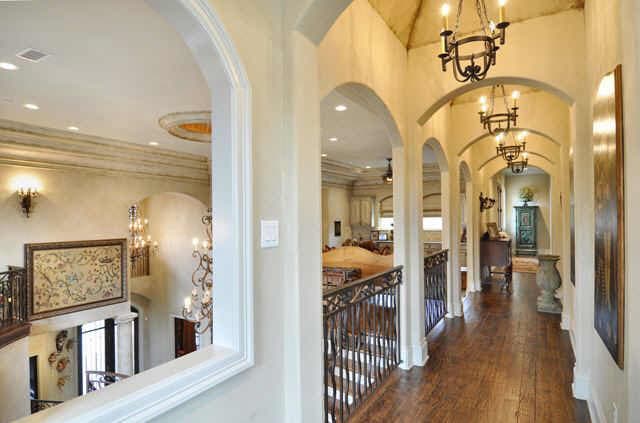

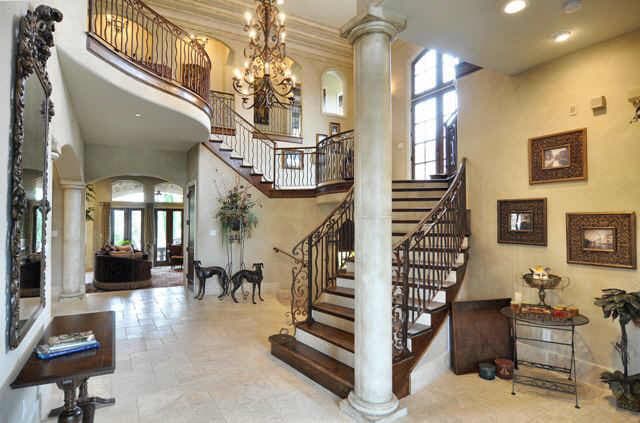

Both the game room with wet bar and the loft with a small balcony are open to the foyer below.

Plan set includes the following:

1. Cover sheet

2. Foundation Plan

3. First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4. Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5. First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6. Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

7. Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

8. Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9. Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10. Sections page

11. Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

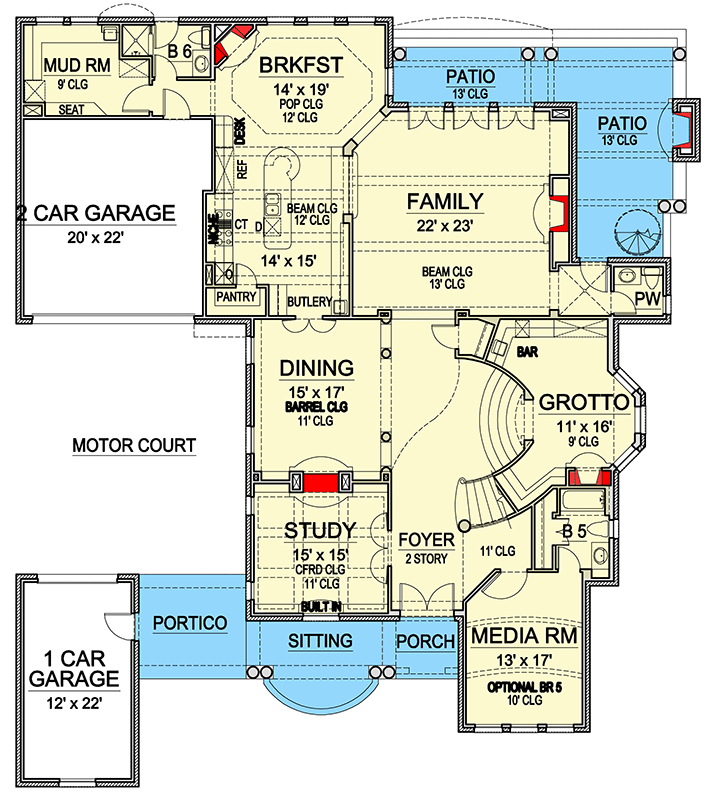

Rustically Elegant Luxury House Plan - 36148TX floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

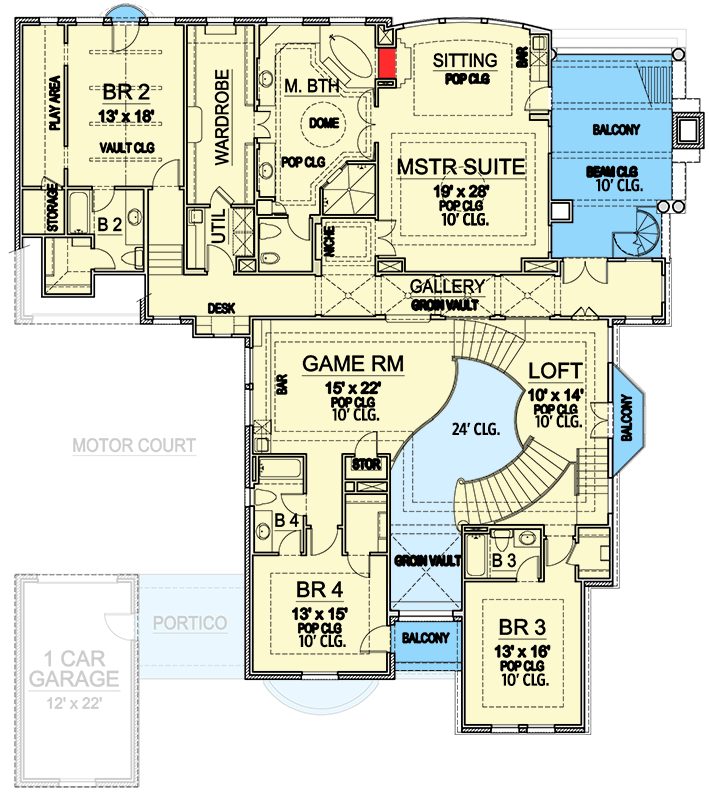

Rustically Elegant Luxury House Plan - 36148TX floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 6,093 sq. ft.
1st Floor: 3,107 sq. ft.
2nd Floor: 2,986 sq. ft.

Balcony / Veranda: 395 sq. ft.
Porch, Front: 191 sq. ft.

Beds/Baths

Bedrooms: 4

Full bathrooms: 5
Half bathrooms: 1

Foundation Type

Standard Foundations: Slab

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Dimensions

Width: 77' 0"
Depth: 86' 0"
Max ridge height: 34' 0"

Garage

Type: Attached
Area: 806 sq. ft.
Count: 3 Cars
Entry Location: Front, Rear

Ceiling Heights

Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"

Architectural Style

Special features

Plan Collections
