Sleek Modern House Plan

Plan 90304PD

  • 1,477

    Heated s.f.

  • 2

    Beds

  • 1.5

    Baths

  • 2

    Stories

  • 1

    Cars

  • The split level layout of this sleek, Modern house plan gives the exterior an interesting look.
  • The garage is one step down from the foyer and then it just takes three steps up to the first floor living area.
  • The flex room at the top of the stairs makes a great study.
  • In a space-saving measure, the half bath is combined with the washer/dryer and further back there's a big living room with an outdoor porch.
  • Take the short flight of stairs up to the kitchen, dining room and two bedrooms that share the four piece bathroom.
  • Another outdoor living room is reached through sliding glass doors.

Each plan set includes the following:

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Ground Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

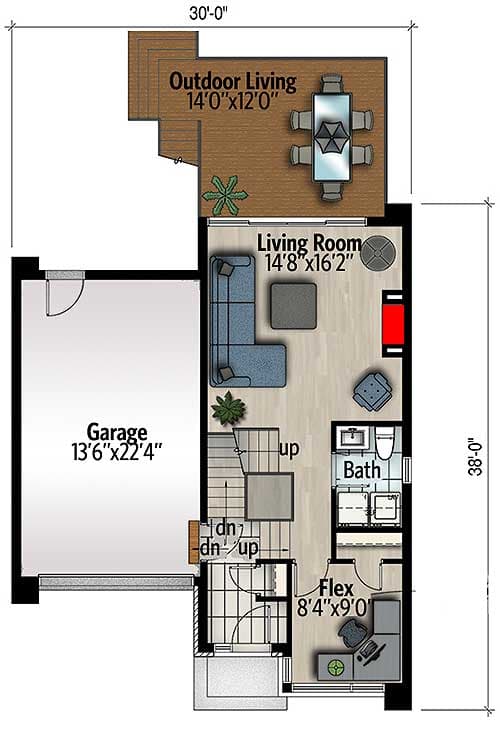

Sleek Modern House Plan - 90304PD floor plan - Ground Level

Upper Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

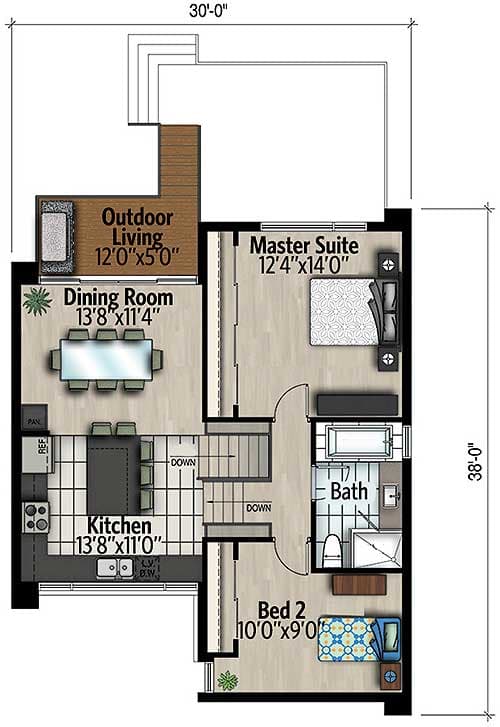

Sleek Modern House Plan - 90304PD floor plan - Upper Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,477 sq. ft.
  • Lower Level: 558 sq. ft.
  • 1st Floor: 919 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 30' 0"
  • Depth: 38' 0"
  • Max ridge height: 24' 0"

Garage

  • Type: Attached
  • Area: 344 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Sleek Modern House Plan

  • 1,477

    Heated s.f.

  • 2

    Beds

  • 1.5

    Baths

  • 2

    Floors

  • 1

    Car garage

Buy This Plan
  • 5 Sets $892
  • 8 Sets $935
  • PDF - Single-Build $1,273
  • CAD - Single-Build $1,897
  • View all purchase option online

About This Plan

  • The split level layout of this sleek, Modern house plan gives the exterior an interesting look.
  • The garage is one step down from the foyer and then it just takes three steps up to the first floor living area.
  • The flex room at the top of the stairs makes a great study.
  • In a space-saving measure, the half bath is combined with the washer/dryer and further back there's a big living room with an outdoor porch.
  • Take the short flight of stairs up to the kitchen, dining room and two bedrooms that share the four piece bathroom.
  • Another outdoor living room is reached through sliding glass doors.

Floor Plans

  • Ground Level

  • Upper Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,477 sq. ft.
  • Lower Level: 558 sq. ft.
  • 1st Floor: 919 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 30' 0"
  • Depth: 38' 0"
  • Max ridge height: 24' 0"

Garage

  • Type: Attached
  • Area: 344 sq. ft.
  • Count: 1 Cars
