Sloping Lot Vacation Home Plan

Plan 2104DR

  • 1,482

    Heated s.f.

  • 2

    Beds

  • 1.5

    Baths

  • 2

    Stories

  • Designed for a sloping lot, this vacation home features a good-sized screened porch that extends entertaining space beyond the living area and the deck in front. Numerous multi-paned windows, including an arched window set within a gable brighten the interior.
  • A corner fireplace radiates warmth into the open family and dining rooms. A peninsula snack bar and a free-standing pantry closet separate the dining room from the well-equipped kitchen. The first floor also contains a storage room and a powder room with laundry facilities.
  • Upstairs, a full bath with a garden tub and separate shower serves two spacious bedrooms, both of which enjoy ample closet space. The ceiling is sloped on the second floor.
  • Related Plans: See these related house plans - 21569DR and 2177DR.
  • Get a drive-under garage with house plan 22310DR.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

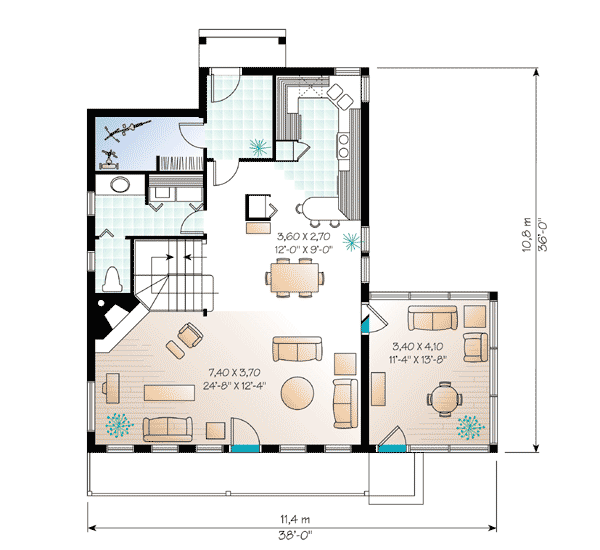

Sloping Lot Vacation Home Plan - 2104DR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

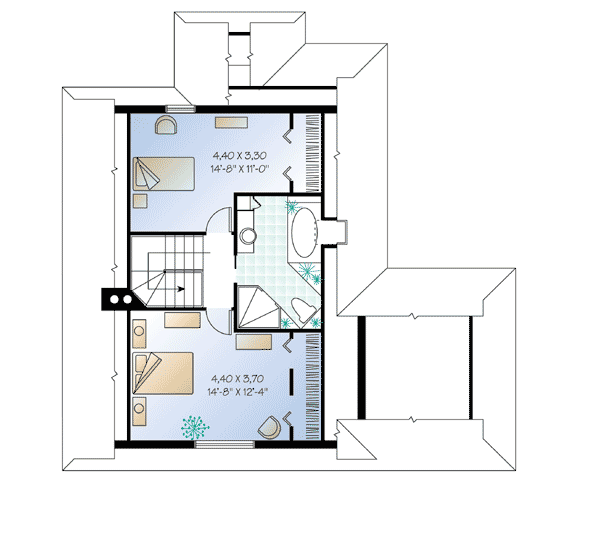

Sloping Lot Vacation Home Plan - 2104DR floor plan - 2nd Floor

Plan details

Sloping Lot Vacation Home Plan

  • 1,482

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Floors

Buy This Plan
  • Reproducible Set $1,055
  • PDF - Single-Build $1,055
  • 5 Sets + PDF $1,180
  • CAD + PDF - Single-Build $1,655
  • View all purchase option online

About This Plan

  • Designed for a sloping lot, this vacation home features a good-sized screened porch that extends entertaining space beyond the living area and the deck in front. Numerous multi-paned windows, including an arched window set within a gable brighten the interior.
  • A corner fireplace radiates warmth into the open family and dining rooms. A peninsula snack bar and a free-standing pantry closet separate the dining room from the well-equipped kitchen. The first floor also contains a storage room and a powder room with laundry facilities.
  • Upstairs, a full bath with a garden tub and separate shower serves two spacious bedrooms, both of which enjoy ample closet space. The ceiling is sloped on the second floor.
  • Related Plans: See these related house plans - 21569DR and 2177DR.
  • Get a drive-under garage with house plan 22310DR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,482 sq. ft.
  • 1st Floor: 895 sq. ft.
  • 2nd Floor: 587 sq. ft.
  • Screened Porch: 180 sq. ft.
  • Porch, Front: 104 sq. ft.
  • Basement Unfinished: 895 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 0"
  • Depth: 36' 0"
  • Max ridge height: 24' 8"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
