Plan 15833GE
Soaring Outdoor Living Room
Heated S.F.
2,954
Beds
4
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • Details throughout this well-planned house plan make this design special. The front elevation is a combination of brick, stone and wood and a covered porch of columns with stone and timber accents.
  • Step inside and you'll discover a great floor plan with a 2-story foyer that opens to a formal dining. Beyond, through a wall of glass is a soaring outdooor living space with an optional 2-sided fireplace perfect for all seasons.
  • A gourmet kitchen opens to the family room and casual dining area each with a coffered ceiling.
  • Upstairs, Bed 2 has a great sitting area. The master has a tray ceiling, spacious walk-in closet and five-fixture bath.
  • Related Plan: Get an alternate exterior with house plan 15832GE.
  • Get more room with house plan 15618GE (3,186 sq. ft.).
What's Included

The plan set includes the following:

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.

 These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Soaring Outdoor Living Room

  • 2,954

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

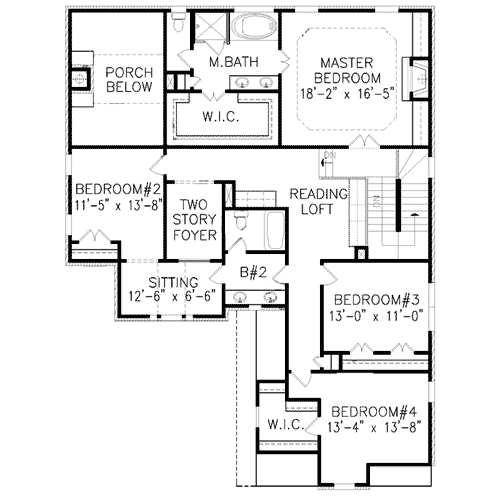

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,954 sq. ft.
  • 1st Floor: 1,244 sq. ft.
  • 2nd Floor: 1,710 sq. ft.

Dimensions

  • Width: 45' 4"
  • Depth: 59' 4"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 455 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6
