Plan 666033RAF

Spacious Contemporary House Plan with Three Levels

Spacious Contemporary House Plan with Three Levels

Plan 666033RAF

  • 5,553

    Heated s.f.

  • 4

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 4

    Cars

  • Slanted shed roofs create unique angles in this spacious Contemporary house plan.
  • Horizontal and vertical siding adds to the modern feel.
  • With a wrap-around deck on the main level, it's easy to step outside for a breathe of fresh air.
  • While the kitchen, great room and dining room are open to each other, the living room can be closed off with double doors.
  • A first floor guest suite and a large home office are added amenities.
  • Topside, two of the bedrooms have fireplaces with the master suite enjoying a large private deck.
  • The second floor laundry room has a walk-in closet, giving you excellent storage.
  • On the ground level, a tandem four car garage opens up to the huge media room that comes with a bathroom and walk-in closet.

This 17 plan set includes the following:

  •  Cover sheet
  • Sheet index and general notes
  • Lower floor plan
  • Main floor plan
  • Upper floor plan
  • Front & rear elevations
  • Right & left elevations
  • Building cross section, stair details, ceiling detail
  • Window schedule, interior stair and railing details
  • Roof layout
  • General details
  • Sections
  • Sections
  • Basement level foundation
  • Main floor framing plan
  • Upper floor framing plan
  • Roof framing plan














Plan details



Spacious Contemporary House Plan with Three Levels

  • 5,553

    Heated s.f.

  • 4

    Beds

  • 6

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - single-use $1,779
  • 5 Sets $1,934
  • 8 Sets $2,039
  • CAD $4,575
  • View all purchase option online

About This Plan

  • Slanted shed roofs create unique angles in this spacious Contemporary house plan.
  • Horizontal and vertical siding adds to the modern feel.
  • With a wrap-around deck on the main level, it's easy to step outside for a breathe of fresh air.
  • While the kitchen, great room and dining room are open to each other, the living room can be closed off with double doors.
  • A first floor guest suite and a large home office are added amenities.
  • Topside, two of the bedrooms have fireplaces with the master suite enjoying a large private deck.
  • The second floor laundry room has a walk-in closet, giving you excellent storage.
  • On the ground level, a tandem four car garage opens up to the huge media room that comes with a bathroom and walk-in closet.

Floor Plans

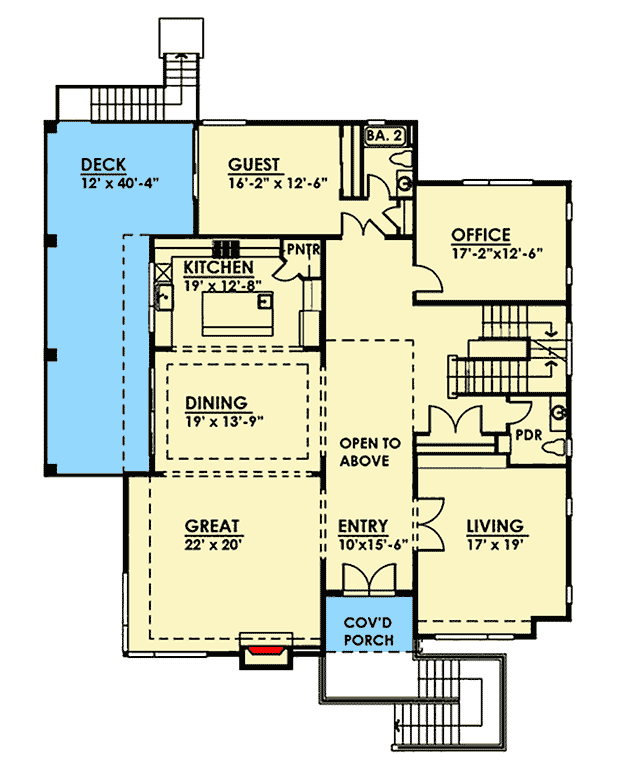

  • Main Level

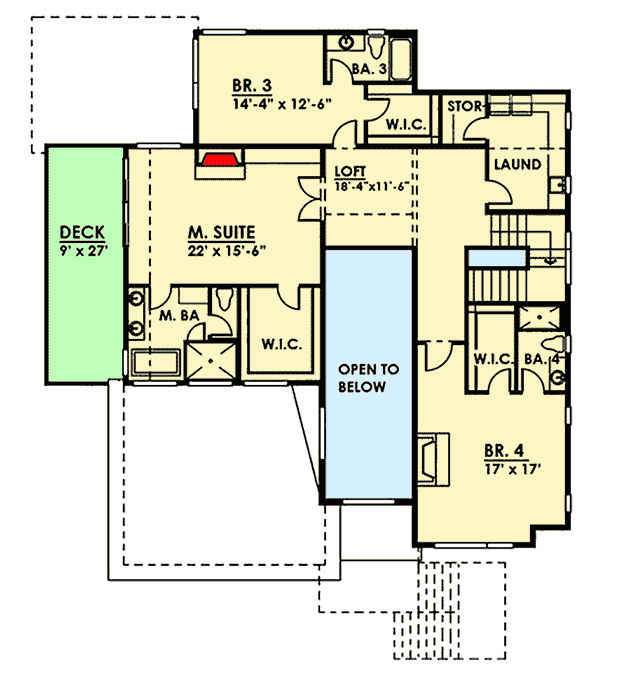

  • 2nd Floor

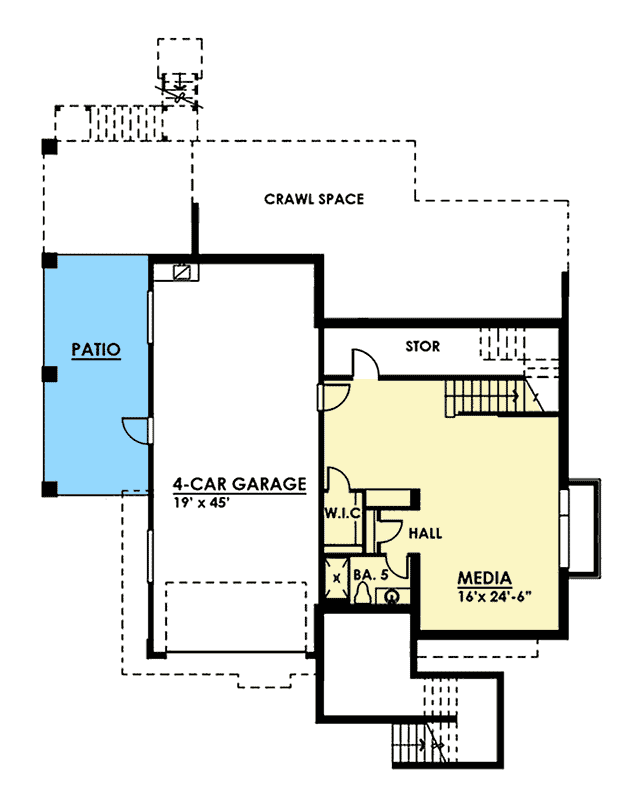

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,553 sq. ft.
  • Lower Level: 946 sq. ft.
  • 1st Floor: 2,701 sq. ft.
  • 2nd Floor: 1,906 sq. ft.
  • Covered Patio: 330 sq. ft.
  • Deck: 797 sq. ft.
  • Porch, Front: 133 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 60' 0"
  • Depth: 63' 0"

Garage

  • Type: Drive Under, Attached
  • Area: 851 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Framing Type: Stick
