Plan 33050ZR Spanish Influenced Energy Saver

1,644 3 2 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Spanish Influenced Energy Saver

Plan 33050ZR

  • 1,644

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This Energy Saver Plus home plan can save 40%-50% on energy costs when built to specs. This Spanish-influenced house plan has a bit of a southwestern flair with its clay red roof tiles and stucco faзade.
  • It features a delightful floor plan that incorporates luxury design features such as tray ceilings, pocket doors, lighted niches and double sinks to name a few.
  • Retreat to the master wing where you can open the French doors and enjoy the evening breeze on your 310 square foot covered porch.
  • The guest bedrooms have been creatively designed to provide privacy from the kitchen and living areas.
  • The abundance of room in this home plan can be attributed to the layout of the dining room in the rear and the den in the front of the home. The den has pocket doors on two walls giving you the ability to make this a private or more public space.
  • French doors and triple windows enhance the beauty of the dining area whether used for casual or formal dining.
  • Related Plans: Get alternate exteriors with house plan 33048ZR and 33049ZR.

COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.



WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.

FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.

SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.

FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.

ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.

REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.



EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.



CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)



ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

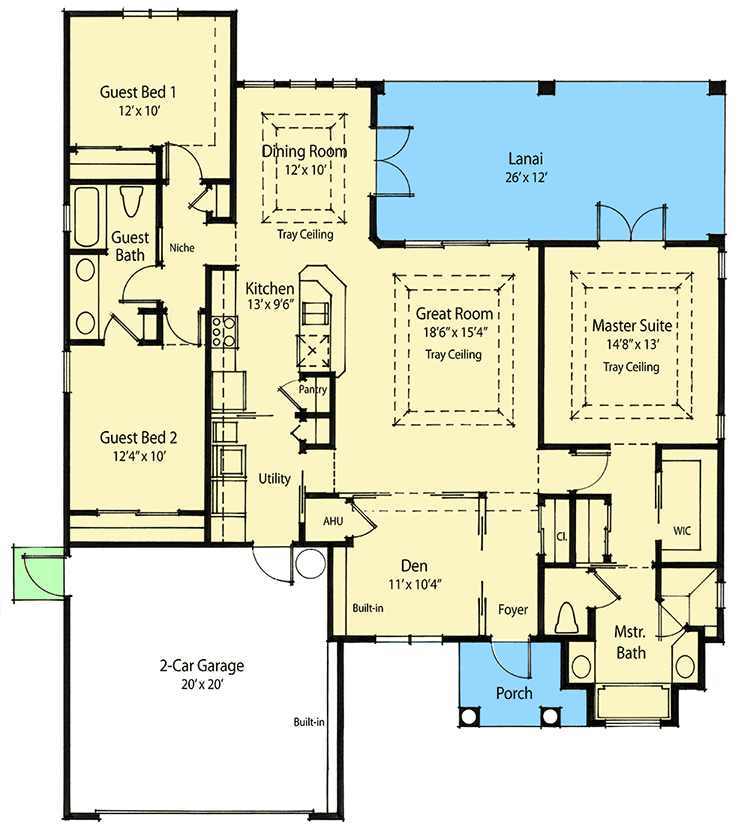

Spanish Influenced Energy Saver - 33050ZR floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,644 sq. ft.
  • 1st Floor: 1,644 sq. ft.
  • Porch, Front: 44 sq. ft.
  • Porch, Rear: 310 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Stem Wall, Crawl

Exterior Walls

  • Standard Type(s): 2x6 or Block / CMU (main floor)

Dimensions

  • Width: 49' 6"
  • Depth: 60' 0"
  • Max ridge height: 23' 6"

Garage

  • Type: Attached
  • Area: 442 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 7 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Spanish Influenced Energy Saver

  • 1,644

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $995
  • CAD + PDF - Single-Build $1,295
  • View all purchase option online

About This Plan

  • This Energy Saver Plus home plan can save 40%-50% on energy costs when built to specs. This Spanish-influenced house plan has a bit of a southwestern flair with its clay red roof tiles and stucco faзade.
  • It features a delightful floor plan that incorporates luxury design features such as tray ceilings, pocket doors, lighted niches and double sinks to name a few.
  • Retreat to the master wing where you can open the French doors and enjoy the evening breeze on your 310 square foot covered porch.
  • The guest bedrooms have been creatively designed to provide privacy from the kitchen and living areas.
  • The abundance of room in this home plan can be attributed to the layout of the dining room in the rear and the den in the front of the home. The den has pocket doors on two walls giving you the ability to make this a private or more public space.
  • French doors and triple windows enhance the beauty of the dining area whether used for casual or formal dining.
  • Related Plans: Get alternate exteriors with house plan 33048ZR and 33049ZR.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,644 sq. ft.
  • 1st Floor: 1,644 sq. ft.
  • Porch, Front: 44 sq. ft.
  • Porch, Rear: 310 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Stem Wall, Crawl

Exterior Walls

  • Standard Type(s): 2x6 or Block / CMU (main floor)

Dimensions

  • Width: 49' 6"
  • Depth: 60' 0"
  • Max ridge height: 23' 6"

Garage

  • Type: Attached
  • Area: 442 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Truss
