Split Level Home Plan with Lower Level

Plan 21948DR

  • 1,963

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 1

    Cars

  • Stone and shakes accent the exterior of this split level home plan with a finished lower level.
  • The formal living room is on the main level while a rec room can be found on the lower level along with another bedroom and bath.
  • Related Plans: Get a detached garage with house plan 21662DR.
  • Remove the garage and lower level with house plans 21949DR (1,362 sq. ft.), 21279DR (1,094 sq. ft.), 21499DR (1,217 sq. ft.).
  • Delivery:  Please allow 12 business days for delivery.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

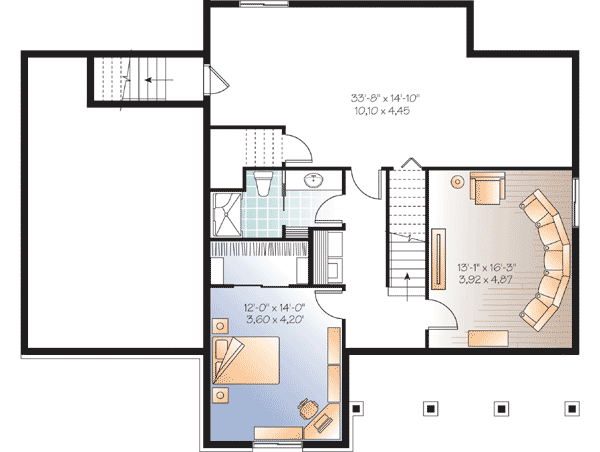

Split Level Home Plan with Lower Level - 21948DR floor plan - Basement

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

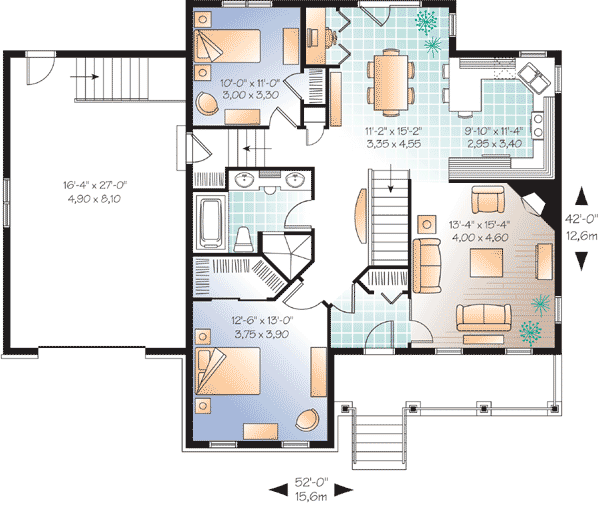

Split Level Home Plan with Lower Level - 21948DR floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,963 sq. ft.
  • Lower Level: 725 sq. ft.
  • 1st Floor: 1,238 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 52' 0"
  • Depth: 42' 0"
  • Max ridge height: 24' 9"

Garage

  • Type: Attached
  • Area: 484 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0"

Roof Details

  • Framing Type: Truss

Special features

Plan Collections

Split Level Home Plan with Lower Level

  • 1,963

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 1

    Car garage

Buy This Plan
  • PDF - Single-Build $1,195
  • Reproducible Set $1,195
  • 5 Sets + PDF $1,320
  • CAD + PDF - Single-Build $1,795
  • View all purchase option online

About This Plan

  • Stone and shakes accent the exterior of this split level home plan with a finished lower level.
  • The formal living room is on the main level while a rec room can be found on the lower level along with another bedroom and bath.
  • Related Plans: Get a detached garage with house plan 21662DR.
  • Remove the garage and lower level with house plans 21949DR (1,362 sq. ft.), 21279DR (1,094 sq. ft.), 21499DR (1,217 sq. ft.).
  • Delivery:  Please allow 12 business days for delivery.
