Plan 15817GE

Stately Traditional Home Plan

Pageloader

Stately Traditional Home Plan

Plan 15817GE

  • 4,987

    Heated s.f.

  • 4-5

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Stately curb appeal abounds with this gorgeous European luxury home.
  • The vaulted keeping room opens to a gourmet kitchen and breakfast area.
  • Enjoy the warmth of any of the four fireplaces that enhance this beautiful home.
  • A rear covered porch is accessed from the two story grand room.
  • Two walk in closets, master bathroom and sitting area crafted with a fireplace highlight the master suite.
  • Three secondary bedrooms, bonus room and kids/ T.V. loft round out the second floor of this Traditional style house plan.
  • Related Plans: For something smaller see house plan 15616GE (4,353 sq. ft.), 15611GE (3,886 sq. ft.) and 15658GE (hip roof; 4,392 sq. ft.).

The plan set includes the following:

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • The plans are designed to meet the International Residential Code but are not designed for a specific area.  These plans do not come engineered or with structural drawings. They do not include framing plans.
  • Plans do include wall and cornice sections, general foundation sections and details.

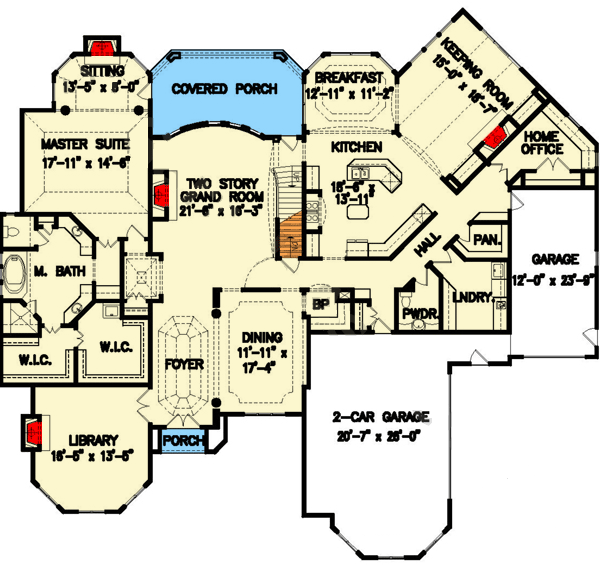

Floor Plan

Plan details



Stately Traditional Home Plan

  • 4,987

    Heated s.f.

  • 4 - 5

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $2,495
  • CAD $3,645
  • View all purchase option online

About This Plan

  • Stately curb appeal abounds with this gorgeous European luxury home.
  • The vaulted keeping room opens to a gourmet kitchen and breakfast area.
  • Enjoy the warmth of any of the four fireplaces that enhance this beautiful home.
  • A rear covered porch is accessed from the two story grand room.
  • Two walk in closets, master bathroom and sitting area crafted with a fireplace highlight the master suite.
  • Three secondary bedrooms, bonus room and kids/ T.V. loft round out the second floor of this Traditional style house plan.
  • Related Plans: For something smaller see house plan 15616GE (4,353 sq. ft.), 15611GE (3,886 sq. ft.) and 15658GE (hip roof; 4,392 sq. ft.).

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,987 sq. ft.
  • 1st Floor: 3,473 sq. ft.
  • 2nd Floor: 1,514 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 84' 10"
  • Depth: 78' 6"

Garage

  • Type: Attached
  • Area: 800 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side
