Stone and Shakes

Plan 21500DR

  • 946

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • A wonderful open floor plan makes this compact home feel spacious.

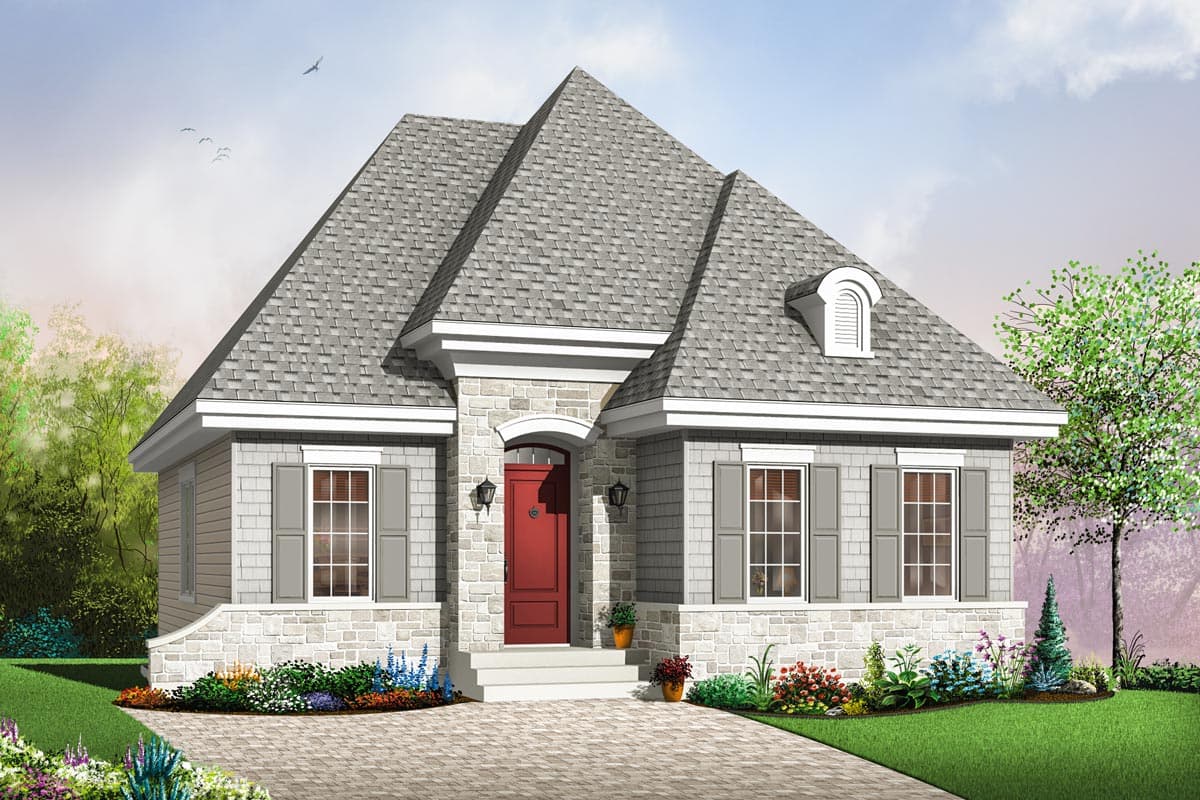

  • Stone and shakes on the outside and a hip roof add curb appeal.
  • Related Plans: Gain a finished lower level with house plan 21950DR.
  • For a larger version with a porch, see house plan 21279DR (1,094 sq. ft.).
  • Get a garage with house plan 21662DR (detached) and 21947DR (attached).
  • Get an alternate exterior with house plan 21499DR (1,217 sq. ft.).

Each plan includes the following:

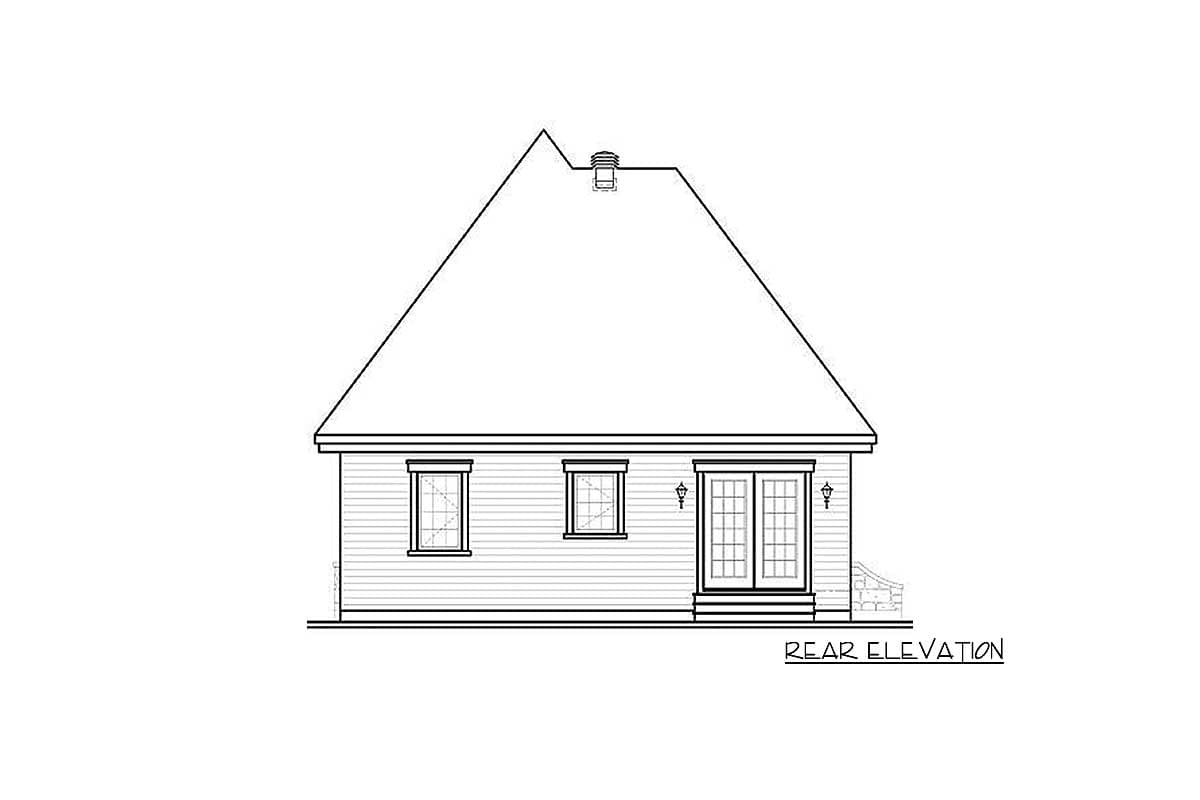

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

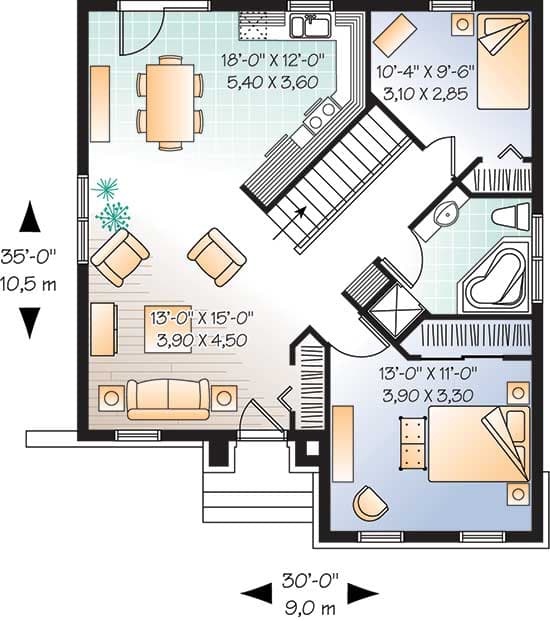

Stone and Shakes - 21500DR floor plan - Main Level

Architectural Style

Special features

Plan Collections

Stone and Shakes

  • 946

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 946 sq. ft.
  • 1st Floor: 946 sq. ft.

Dimensions

  • Width: 30' 0"
  • Depth: 35' 0"
  • Max ridge height: 28' 4"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Daylight, Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"
