Plan 666309RAF

Striking Northwest New American House Plan with 4 Beds and Versatile Flex Spaces

Heated S.F.
3,068
Beds
4
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 666309RAF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 666309RAF

M-F 9am-5pm EST |

1-203-761-8500

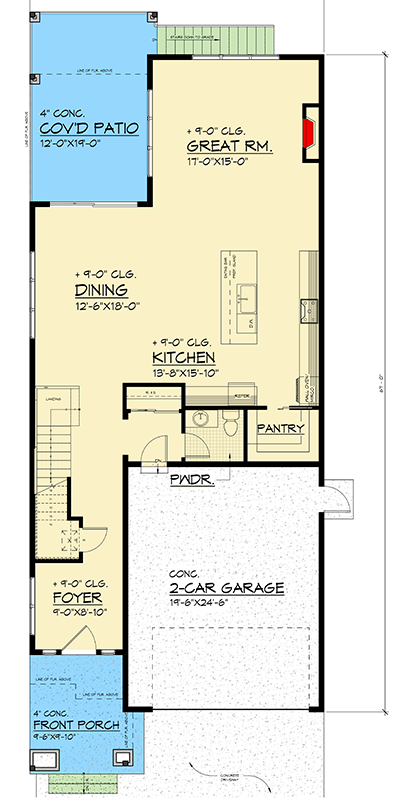

Main Level

Plan 666309RAF: Striking Northwest New American House Plan with 4 Beds and Versatile Flex Spaces - Floor Plan - Main Level - Contemporary, New American, Northwest, Traditional

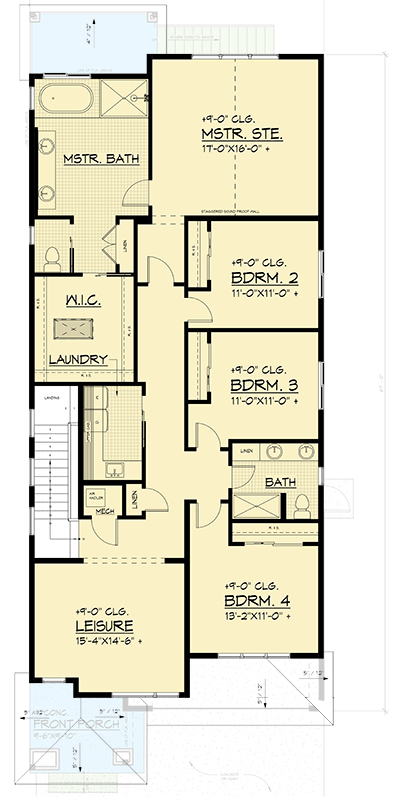

2nd Floor

Plan 666309RAF: Striking Northwest New American House Plan with 4 Beds and Versatile Flex Spaces - Floor Plan - 2nd Floor - Contemporary, New American, Northwest, Traditional

Plan Details

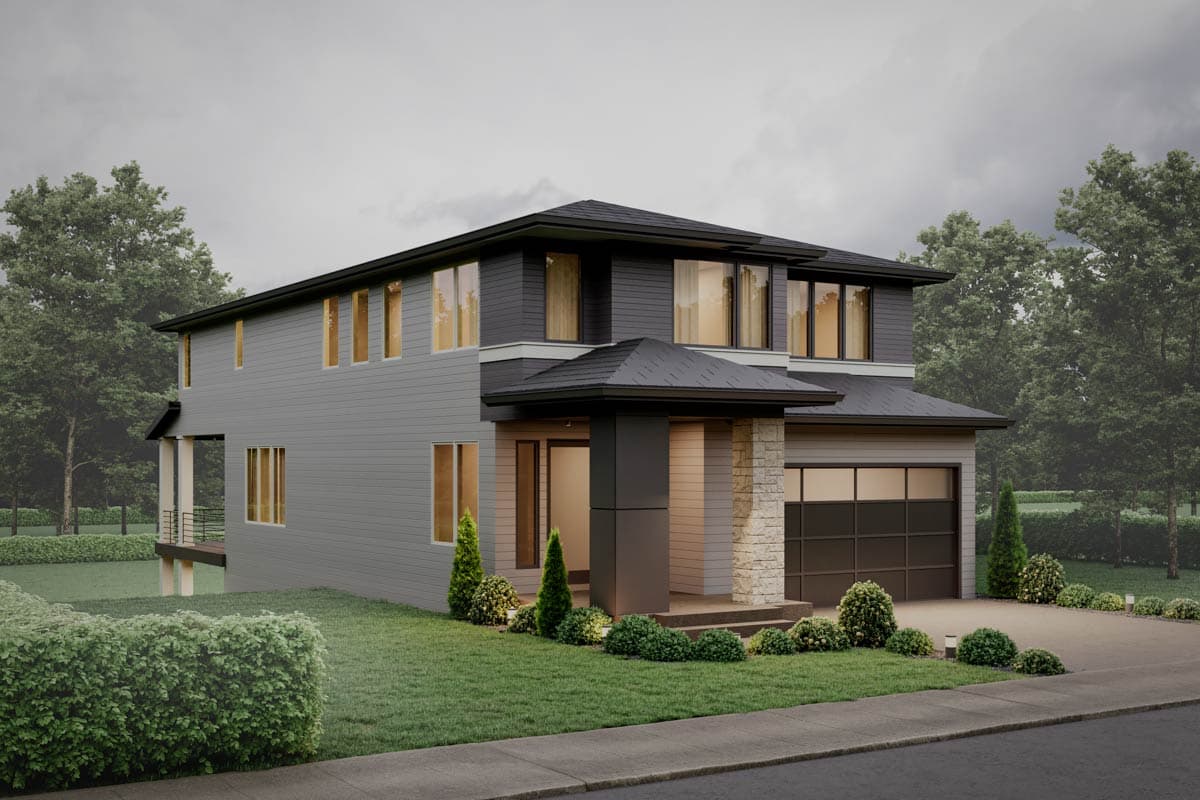

  • This 3,068 sq. ft. New American house plan offers 4 bedrooms, 2 full bathrooms, 1 half bathroom, and an attached 503 sq. ft. two-car garage, all wrapped in a sleek contemporary exterior with mixed materials and clean lines.
  • Step inside to discover a thoughtfully designed layout featuring a 9-foot ceiling on the first floor. The entry hall leads into an open-concept living area, creating an immediate sense of spaciousness, while a dedicated flex room near the entrance offers an ideal space for a private home office or formal sitting area.
  • The heart of the home seamlessly connects the great room, dining area, and a gourmet kitchen, perfect for everyday living and effortless entertaining. A butler's walk-in pantry provides ample storage and convenience, enhancing the kitchen’s functionality and flow.
  • Retreat upstairs to the private master suite, strategically located on the second floor for ultimate tranquility. The remaining three bedrooms are clustered together on the second floor, offering comfortable accommodations and convenient access to the upstairs laundry.
  • The second floor also boasts a versatile loft, a dedicated game/rec room, and a playful playroom, providing diverse zones for relaxation, entertainment, and family activities.
  • Enjoy morning coffee on the inviting 129 sq. ft. front porch or host evening gatherings on the generous 244 sq. ft. covered patio, extending your living space seamlessly outdoors.
  • This plan includes a finished bonus room upstairs, providing additional adaptable space that can be customized to suit your unique lifestyle needs, from a media room to an additional guest suite.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,068 sq. ft.

1st Floor

1,272 sq. ft.

2nd Floor

1,796 sq. ft.

Porch, Front

129 sq. ft.

Covered Patio

244 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

71' 4"

Max Ridge Height

24' 4"

Garage

Type

Standard, Attached

Area

503 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Contemporary

New American

Northwest

Traditional

Special Features

Bedrooms - Clustered

Finished Bonus Room

Flex Room

Formal Dining

Game/Rec Room

Laundry - Upstairs

Loft

Master Suite - Upstairs

Playroom

Walk-in Pantry
