Plan 66276WE

Stunning Tuscan House Plan

Name: Plan 66276WE: Stunning Tuscan House Plan
Brand: Architectural Designs
SKU: 66276WE
Price: 2400.0 USD
Availability: InStock

Heated S.F.

5,164

Beds

Baths

4.5

Stories

Cars

Floor Plan

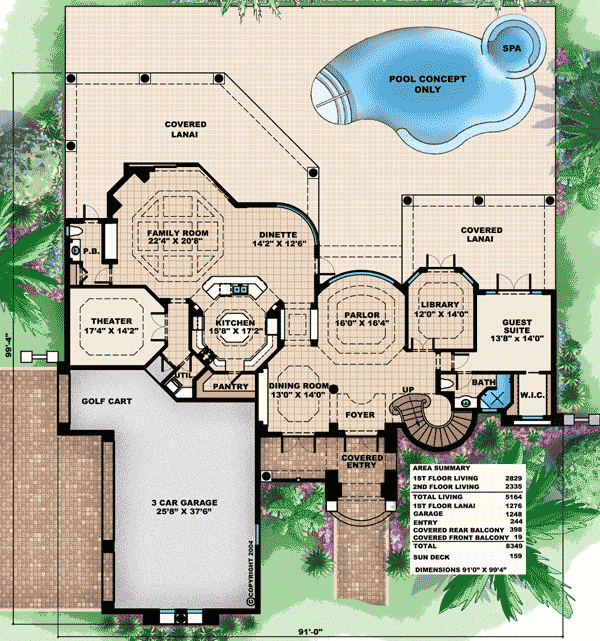

Main Level

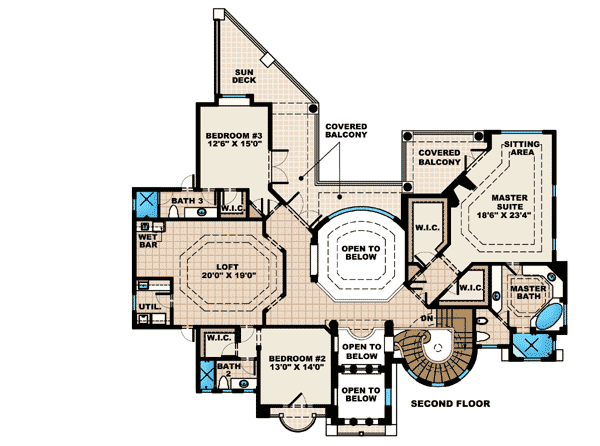

2nd Floor

Plan Details

This is a stunning Tuscan house plan with view orientation in mind. The floor plan lays out with a 3-car garage plus room for your golf cart.
A theater room, library, sizeable guest suite and an awesome kitchen, family & dinette area featuring a radial glass window and zero pocket doors for maximum view exposure.
The other guest rooms and master suite are located upstairs of this house design, with a loft and wet bar, additional utility room, covered balcony and sun deck.
The parlor ceiling from the first floor extends up into the second floor giving this floor plan an even more open feel.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
