Plan 21760DR

Tiny Getaway Retreat with Two Deliverables

Pageloader

Tiny Getaway Retreat with Two Deliverables

Plan 21760DR

  • 320

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Stories

  • They don't come much simpler than this. In the main area you'll find a kitchenette, table area and a few chairs and also a space for a wood stove. When its time to turn in, you'll find a shower and room for simple beds or bunk.
  • SPECIAL BONUS: Purchase of this plan gets you two versions. Choose which one you want to build. The 3-Season Version is not insulated or heated and gives you 2x4 exterior walls, 2x8 floor joists and 2x8 roof rafters. The 4-Season Version gives you 2x6 exterior walls , 2x10 floor joists and a truss roof design. Both versions are provided on screw piles to ensure stability.
  • Related Plans: For a slightly larger getaway, see house plan 21761DR (384 sq. ft.). Gain a front porch with 21762DR (400 sq. ft.). Gain more sleeping space and light from clerestory windows with this vacation house plan - 21763DR (480 sq. ft.). And gain even more room with 21764DR (540 sq. ft.).

Each plan includes the following:

  • 4 Elevations
  •  Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Truss Diagrams & Building Section
  •  Construction Details
  • Typical Wall Section
Please note that electrical plans are not included.

Floor Plan

Plan details

Architectural Style

Plan Collections



Tiny Getaway Retreat with Two Deliverables

  • 320

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • 5 Sets $640
  • 8 Sets $670
  • Reproducible Set $750
  • PDF - single-use $750
  • CAD $1,370
  • View all purchase option online

About This Plan

  • They don't come much simpler than this. In the main area you'll find a kitchenette, table area and a few chairs and also a space for a wood stove. When its time to turn in, you'll find a shower and room for simple beds or bunk.
  • SPECIAL BONUS: Purchase of this plan gets you two versions. Choose which one you want to build. The 3-Season Version is not insulated or heated and gives you 2x4 exterior walls, 2x8 floor joists and 2x8 roof rafters. The 4-Season Version gives you 2x6 exterior walls , 2x10 floor joists and a truss roof design. Both versions are provided on screw piles to ensure stability.
  • Related Plans: For a slightly larger getaway, see house plan 21761DR (384 sq. ft.). Gain a front porch with 21762DR (400 sq. ft.). Gain more sleeping space and light from clerestory windows with this vacation house plan - 21763DR (480 sq. ft.). And gain even more room with 21764DR (540 sq. ft.).

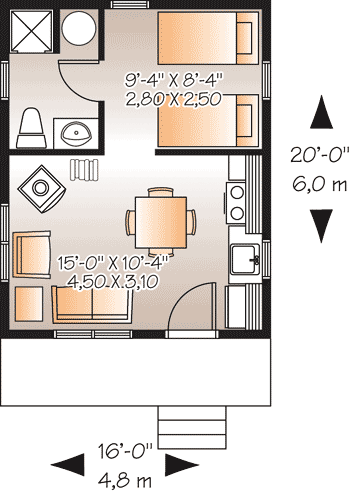

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 320 sq. ft.
  • 1st Floor: 320 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Piling

Exterior Walls

  • Standard Type(s): 2x4 or 2x6

Dimensions

  • Width: 16' 0"
  • Depth: 20' 0"
  • Max ridge height: 14' 1"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Framing Type: Stick And Truss
