Transitional 2-Story House Plan with Over 6,200 Square Feet of Living Space
Heated S.F.
6,202
Beds
5
Baths
5.5
Stories
2
Cars
3
What's Included
Plan Details
  • With over 6,200 square feet of living space, this Transitional 2-Story house plan gives you 5 bedrooms and 5.5 baths, along with a side-entry garage for 3 vehicles.

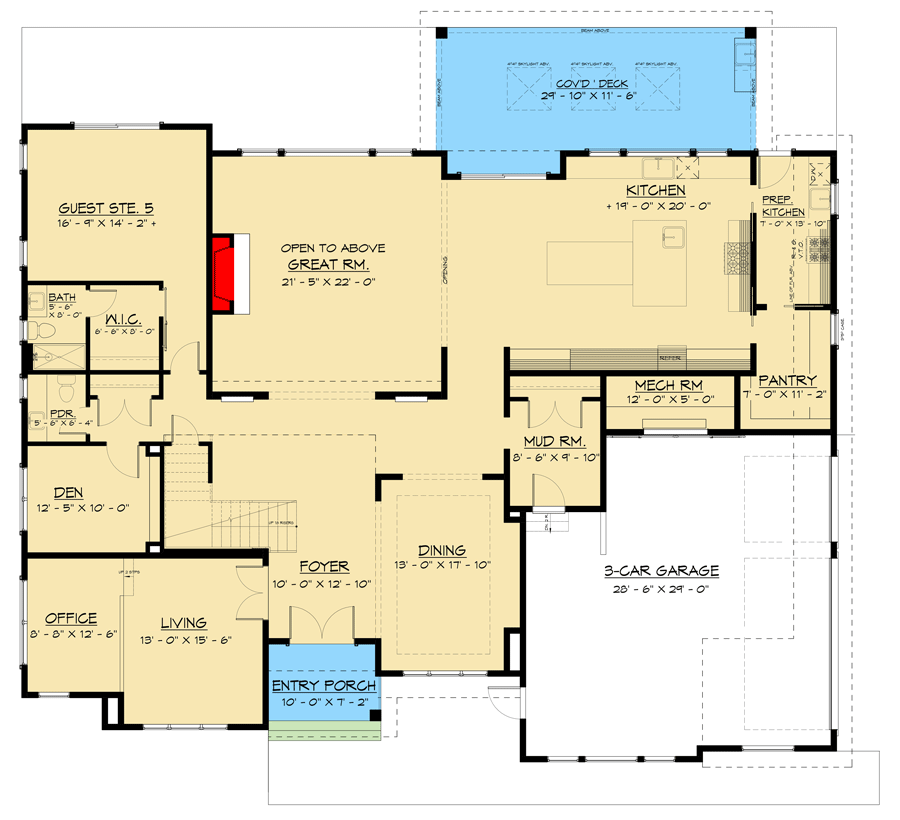

  • Double doors invite you into a foyer with tall ceilings that continue into the light-filled great room, and a formal living area / office resides behind french doors, across the entry from the formal dining room.
  • Entertaining is a breeze in this gourmet kitchen that is supported by a pass-thru prep kitchen / pantry.
  • A bedroom suite on the main level is perfect for guests and a mudroom allows you to consolidate shoes, bags, and outerwear.

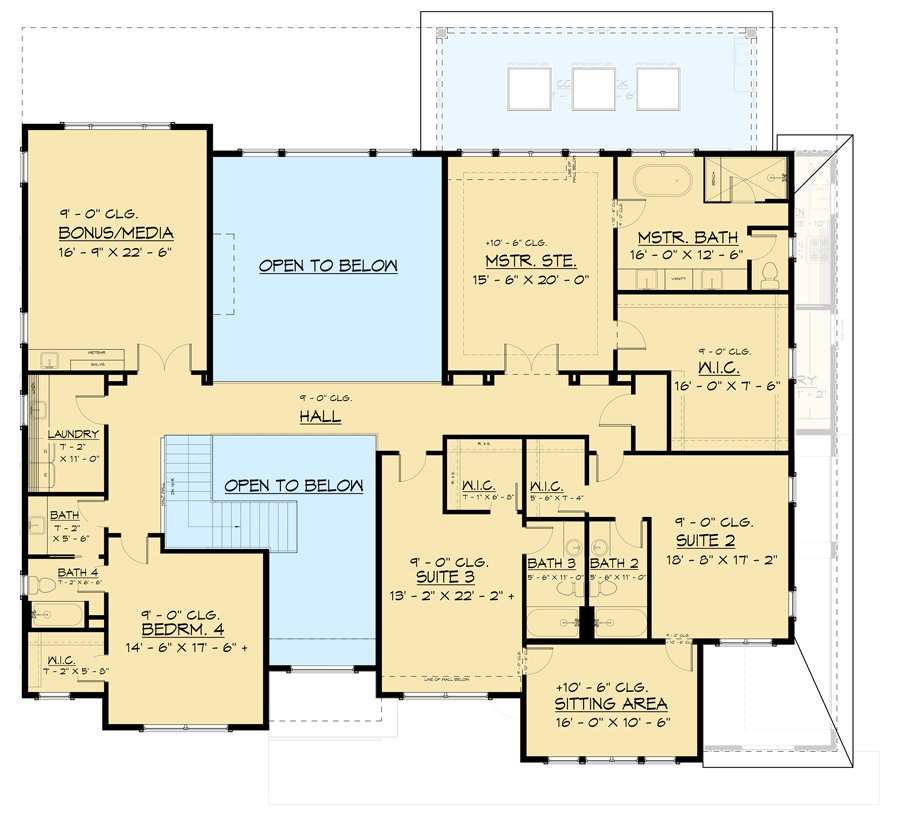

  • Upstairs, a spacious master suite serves as a true oasis for the homeowner. Across the hall, two bedroom suites share a sitting area / play room, while a catwalk takes you to bedroom 4 and a generous bonus / media room.
What's Included
  • Cover Sheet with plan info
  • General notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building cross section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans   - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Transitional 2-Story House Plan with Over 6,200 Square Feet of Living Space

  • 6,202

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 6,202 sq. ft.
  • 1st Floor: 3,193 sq. ft.
  • 2nd Floor: 3,009 sq. ft.

Dimensions

  • Width: 76' 0"
  • Depth: 60' 0"
  • Max ridge height: 32' 6"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 824 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 5 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site
