Two Bedroom Contemporary House Plan
Heated S.F.
1,514
Beds
2
Baths
1.5
Stories
2
What's Included
Plan Details
  • A two-story wall of glass sends light streaming into the great room of this Contemporary house plan.
  • The open layout gives you sightlines in all directions and a corner fireplace can be seen by all the main rooms.
  • Two sliding glass doors take you out to the triangular deck where you can soak up the sun.
  • On the upper floor, the two bedrooms (each with a walk-in closet) share a large four piece washroom.
  • There's just enough space for a wrap-around desk to be tucked into the loft.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Two Bedroom Contemporary House Plan

  • 1,514

    Heated s.f.

  • 2

    Beds

  • 1.5

    Baths

  • 2

    Floors

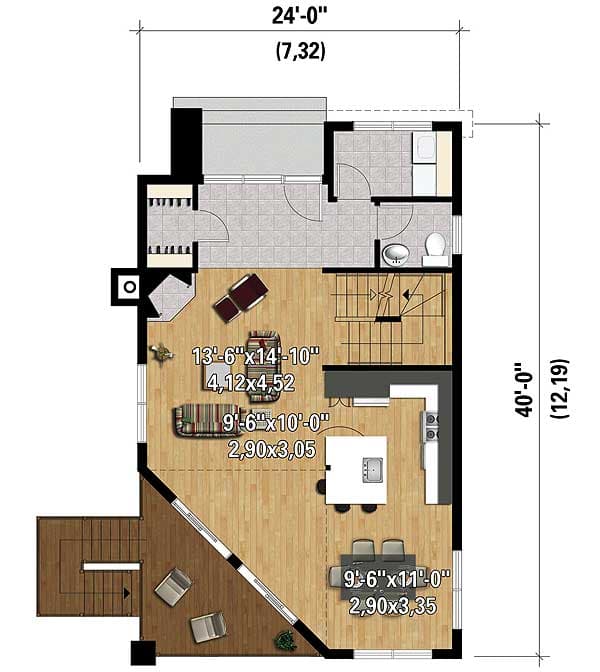

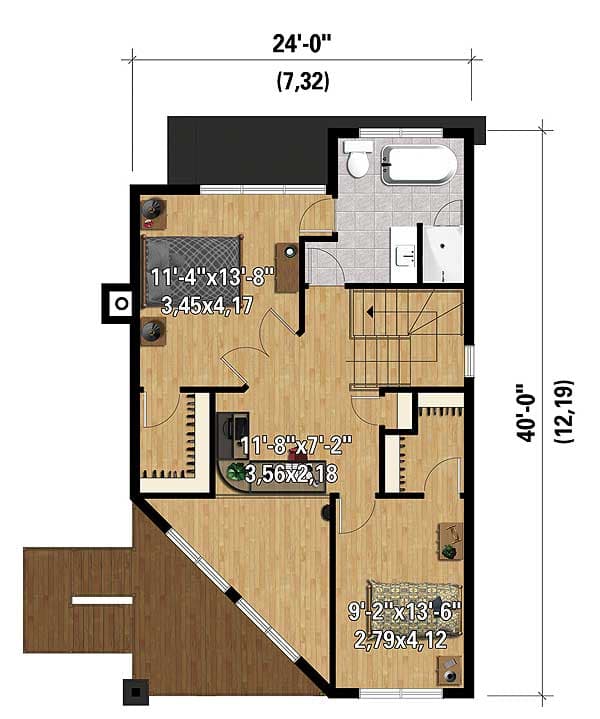

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,514 sq. ft.
  • 1st Floor: 806 sq. ft.
  • 2nd Floor: 708 sq. ft.

Dimensions

  • Width: 24' 0"
  • Depth: 40' 0"
  • Max ridge height: 34' 2"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
