Plan 666290RAF

Two-Story Contemporary House Plan with Guest Suite - 4687 Sq Ft

Heated S.F.
4,687
Beds
5
Baths
4.5
Stories
2
Cars
2

Floor Plan

Plan 666290RAF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 666290RAF

M-F 9am-5pm EST |

1-203-761-8500

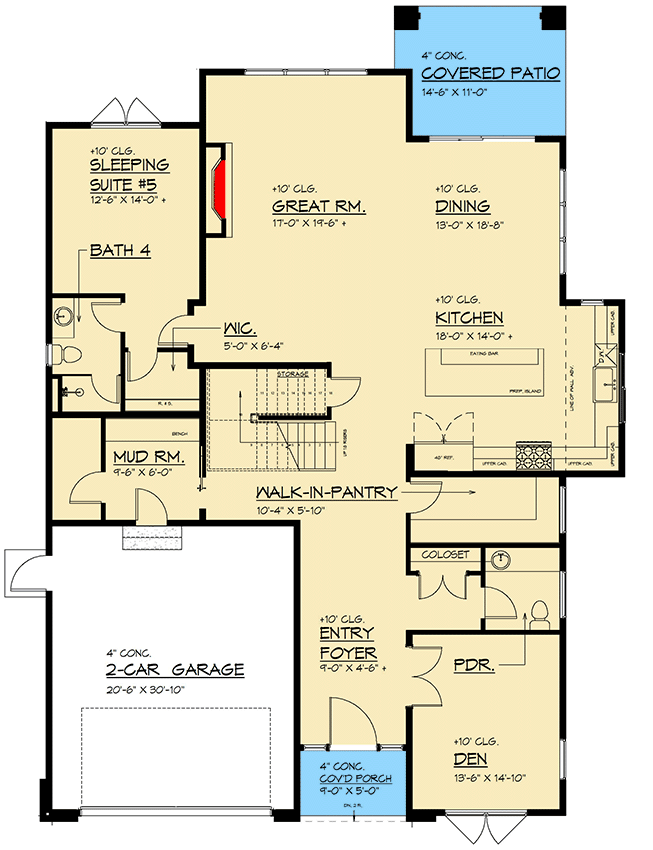

Main Level

Plan 666290RAF: Two-Story Contemporary House Plan with Guest Suite - 4687 Sq Ft - Floor Plan - Main Level - Contemporary, Northwest, Scandinavian

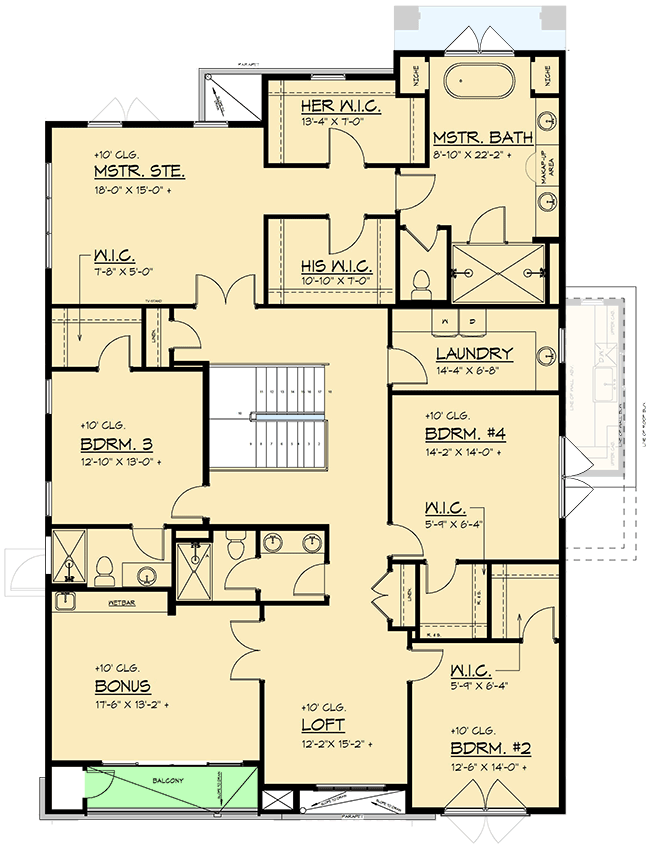

2nd Floor

Plan 666290RAF: Two-Story Contemporary House Plan with Guest Suite - 4687 Sq Ft - Floor Plan - 2nd Floor - Contemporary, Northwest, Scandinavian

Plan Details

  • This striking 4,687 sq ft Contemporary Northwest House Plan offers 5 bedrooms, 4.5 bathrooms, and an attached 629 sq ft 2-car garage, embodying modern Pacific Northwest aesthetics.
  • Step into a welcoming entry foyer that immediately reveals the expansive open-concept layout, featuring a dedicated den perfect for a home office or quiet retreat.
  • The main living space flows effortlessly from the grand great room, ideal for gathering, into the gourmet kitchen with an eating bar and prep island, and an elegant formal dining area, all designed for seamless entertaining and daily life.
  • The main floor features a private guest suite with its own bath, while the upstairs hosts the luxurious primary master suite, additional bedrooms, and a conveniently located upstairs laundry.
  • A practical mudroom with direct garage access, a large walk-in butler's pantry off the kitchen, an upstairs loft, and a versatile flex room provide ample functionality and adaptable spaces for any lifestyle.
  • Enjoy morning coffee on the charming covered front porch or host al fresco dinners on the spacious covered patio, extending the living space outdoors.
  • An flexible bonus room upstairs presents an opportunity to customize a dedicated space, whether for a home theater, gym, or additional living area.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

4,687 sq. ft.

1st Floor

2,155 sq. ft.

2nd Floor

2,532 sq. ft.

Porch, Front

45 sq. ft.

Covered Patio

262 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

49' 0"

Depth

68' 6"

Max Ridge Height

28' 3"

Garage

Type

Attached

Area

629 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

6 on 12

Architectural Style

Contemporary

Northwest

Scandinavian

Special Features

Bedrooms - Clustered

Den

Finished Bonus Room

Flex Room

Formal Dining

Home Office

Laundry - Upstairs

Loft

Master Suite - Upstairs

Mudroom

Two Master Suites

Walk-in Pantry

Wet Bar

Plan Collections
