Plan 770522JME
Two-Story Mountain Cabin House Plan with Two Master Suites - 2791 Sq Ft
Heated S.F.
2,791
Beds
6
Baths
4
Stories
2
Cars
1
Floor Plan

Plan 770522JME

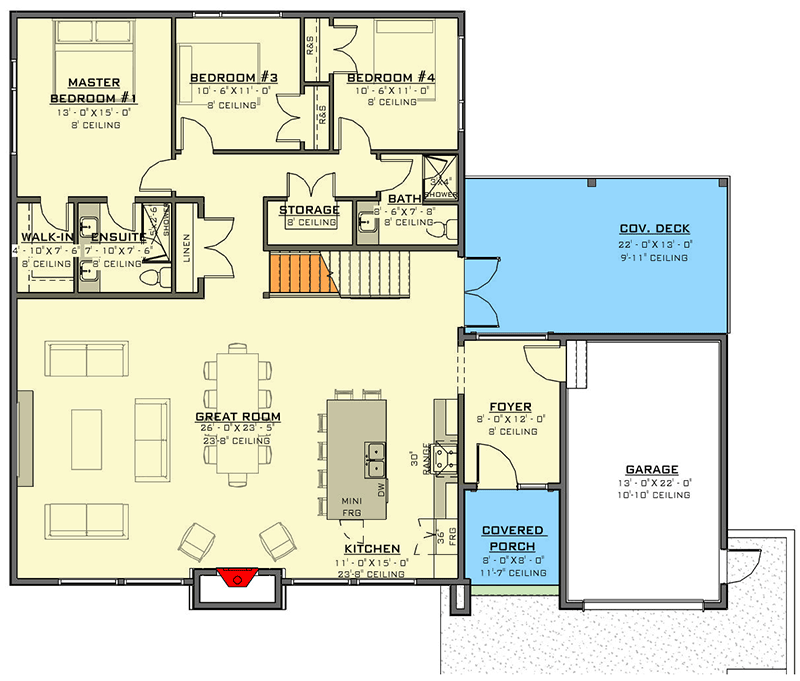

Main Level
slide image 0

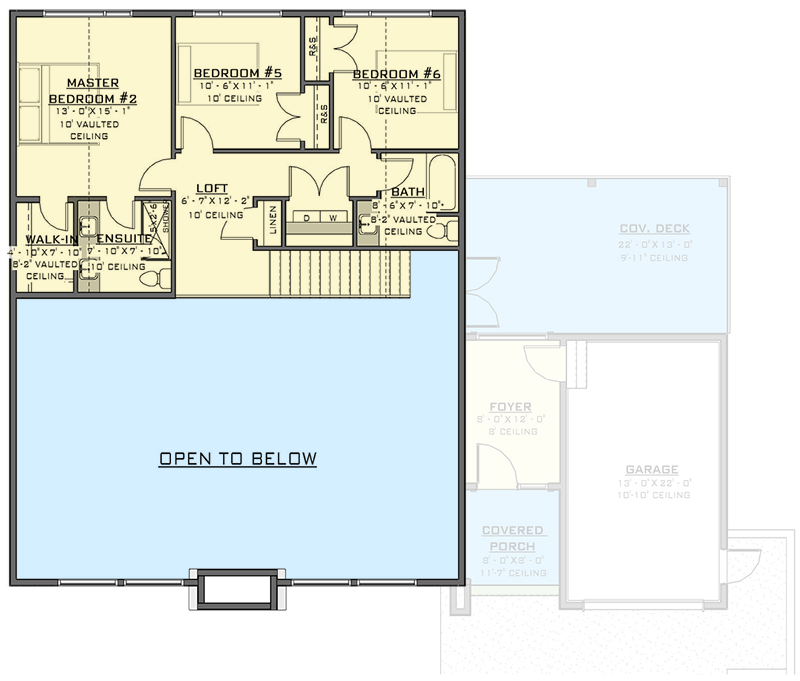

2nd Floor
slide image 1
Optional Lower Level
slide image 2

Plan 770522JME

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Optional Lower Level
floor plan image Optional Lower Level
Plan Details
  • This mountain cabin house plan features 2,791 square feet of heated living space, including 6 bedrooms, 4 bathrooms, and a 332 square foot 1-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover sheet
  • Foundation plan
  • Floor plans
  • Floor joist layout
  • Roof truss layout
  • Sections

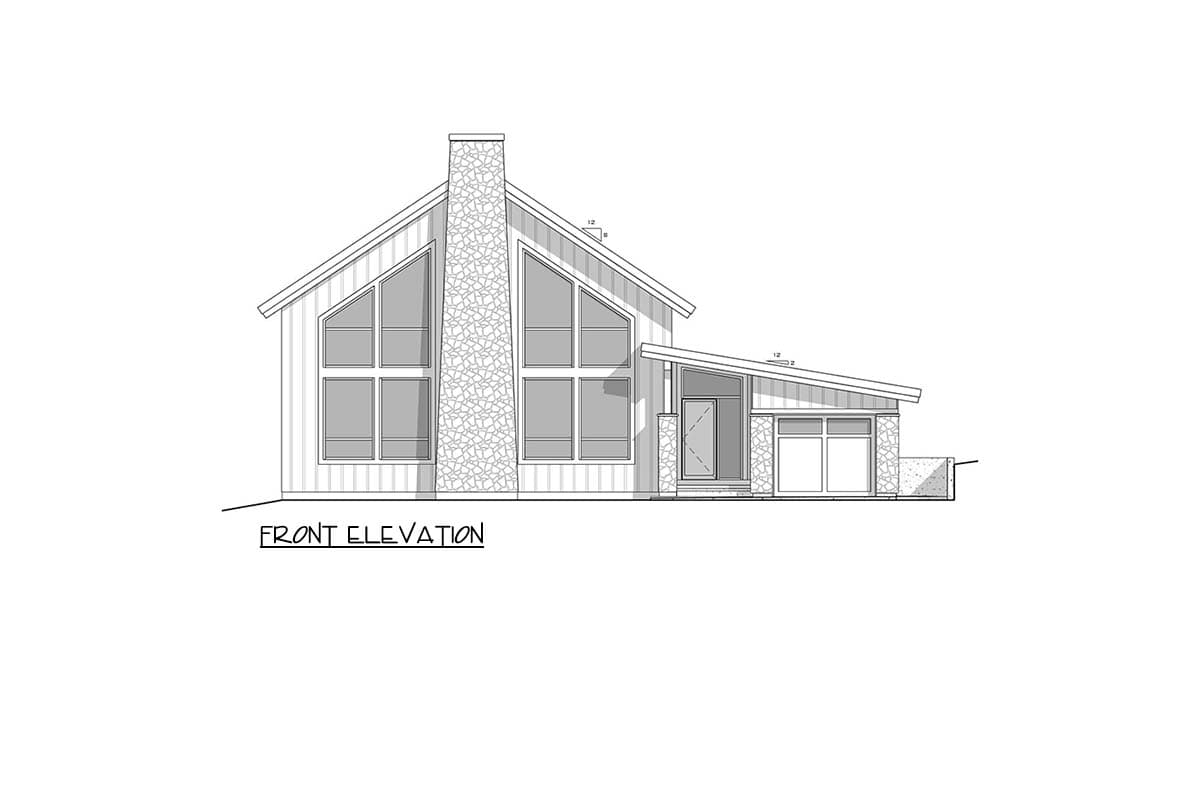

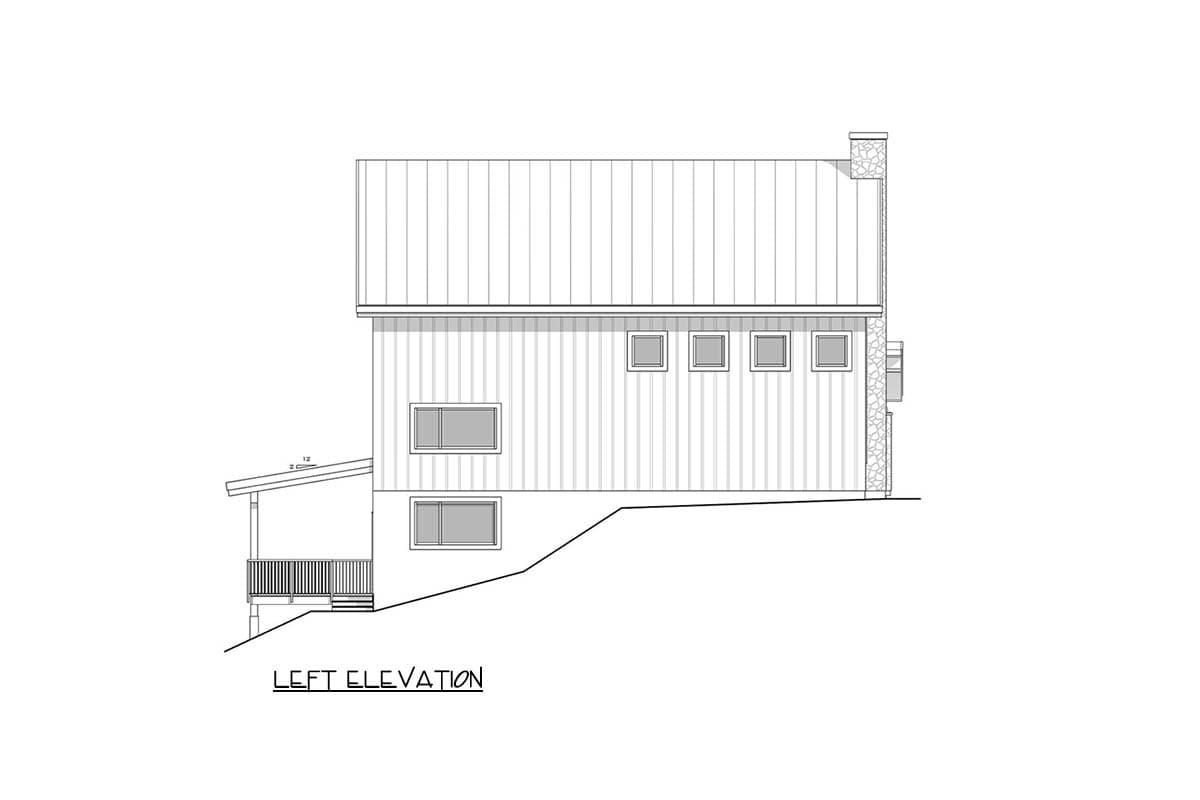

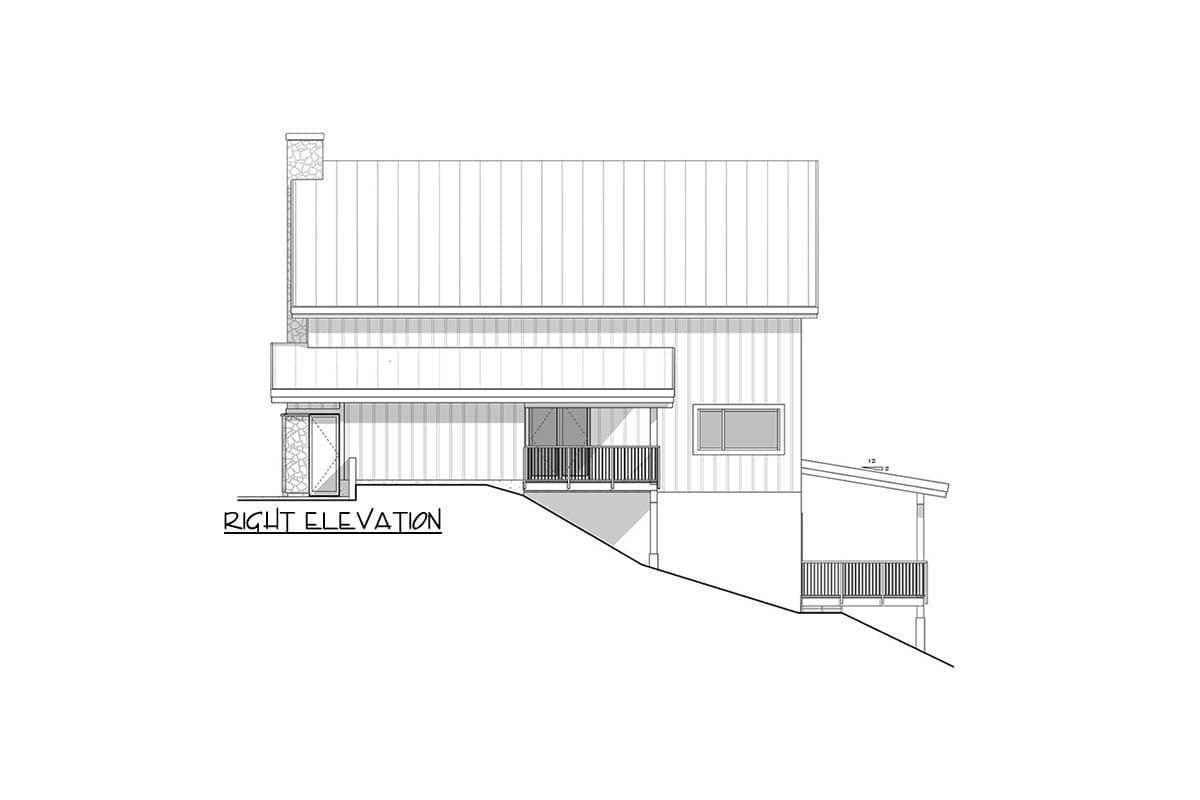

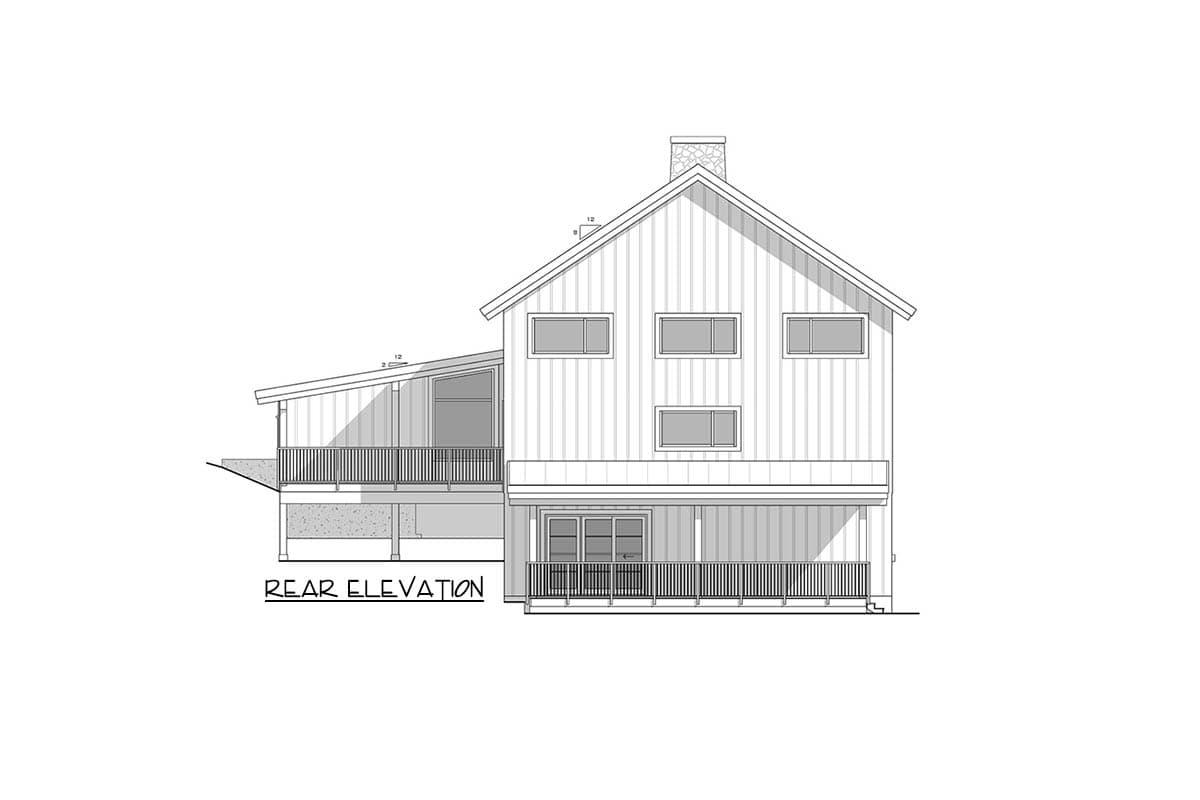

  • Elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required.
  • Electrical (lighting) plan
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,791 sq. ft.

1st Floor

1,944 sq. ft.

2nd Floor

847 sq. ft.

Optional Lower Level

920 sq. ft.

Porch, Front

81 sq. ft.

Deck

286 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Basement, Daylight, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

62' 0"

Max Ridge Height

33' 2"

Garage

Type

Attached

Area

322 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10'

First Floor

8'

Second Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

2 on 12

Framing Type

Stick And Truss

Architectural Style

Cabin

Contemporary

Mountain

Rustic

Special Features

Bedrooms - Clustered

Laundry - Main Level

Laundry - Upstairs

Loft

Master Suite - 1st Floor

Master Suite - 2nd Floor

Two Master Suites

Two Story Great Room

Plan Collections
