Plan 23052JD

Unique Two-Story Entry

Unique Two-Story Entry

Plan 23052JD

  • 3,035

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 3

    Cars

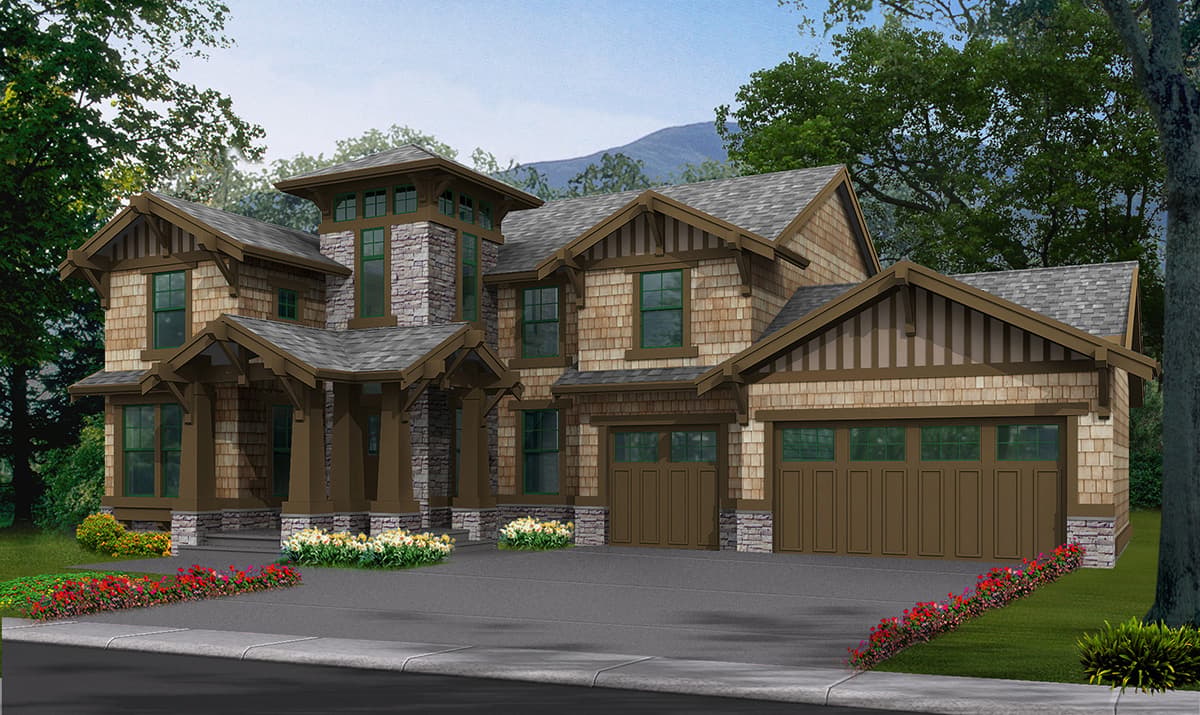

  • Step in off the attractive columned entry and enjoy the 2-story entry.

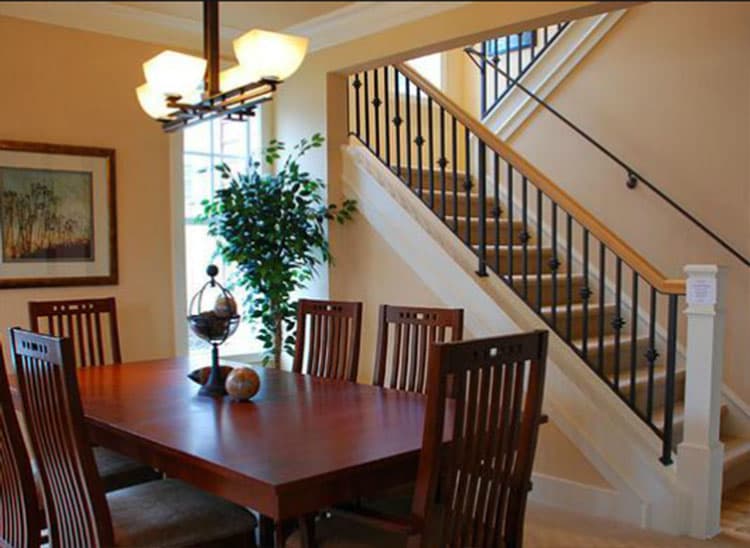

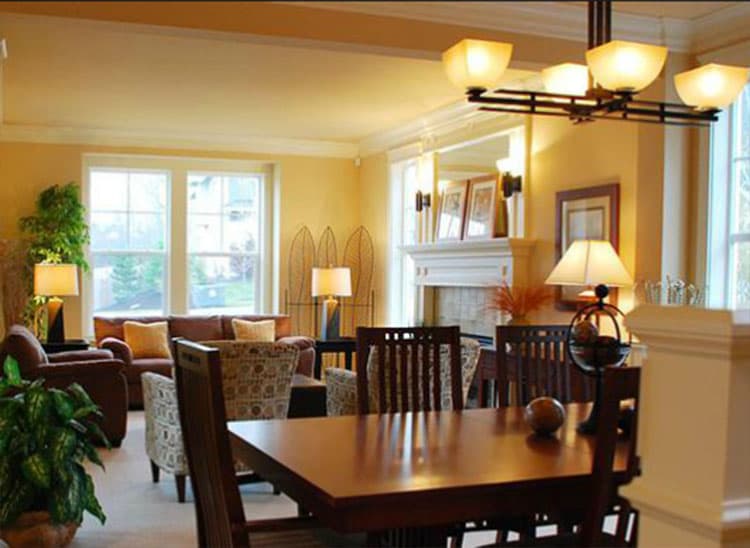

  • A fireplace greets you in the living room which is open to the 2-story dining room.
  • A den can serve as a home office or quiet study.

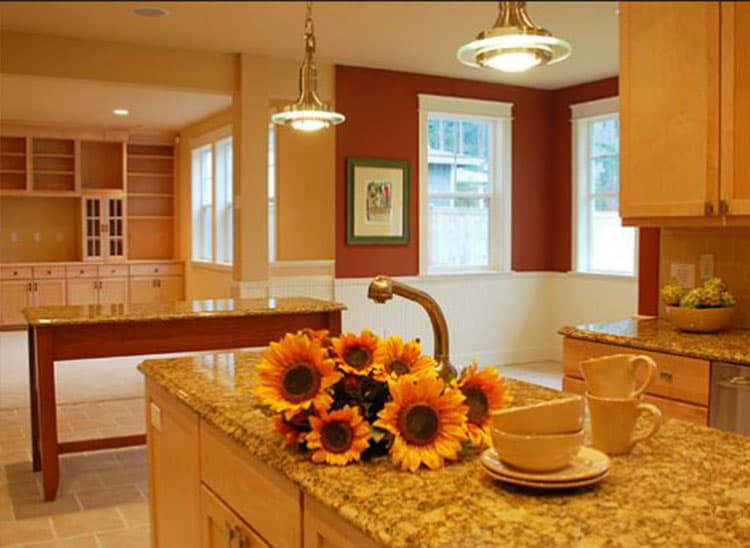

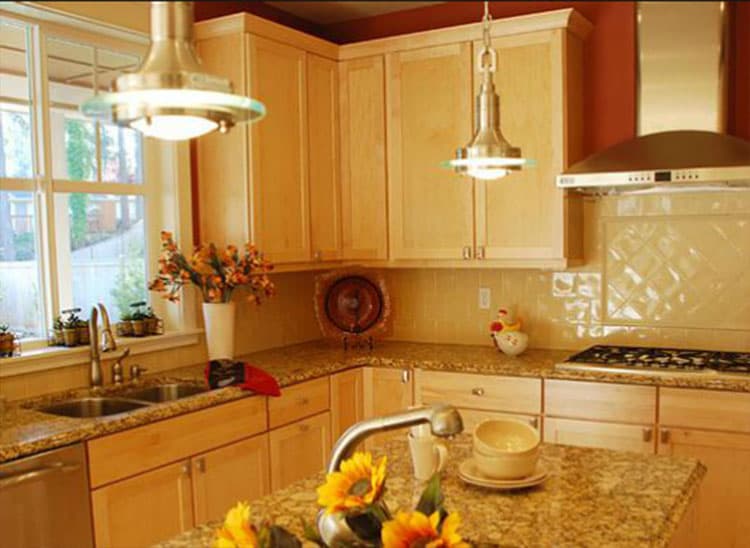

  • The family room is open to the kitchen and bright breakfast nook. It features a fireplace flanked by built-ins. A vaulted covered porch is steps away.
  • Upstairs, the master suite is vaulted as is the bonus room. Two more bedrooms complete this house plan.
  • Related Plans: Need a finished basement? See house plan 23242JD. Also see 23050JD on a crawl space. Both plans come with a 3-car tandem garage.
  • For a larger version, see house plan 23345JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information..

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet
Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Please note that an electrical schematic is not included.

Floor Plan

Plan details



Unique Two-Story Entry

  • 3,035

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,500
  • 5 Sets PLUS $1,600
  • CAD - multi-use $2,500
  • View all purchase option online

About This Plan

  • Step in off the attractive columned entry and enjoy the 2-story entry.
  • A fireplace greets you in the living room which is open to the 2-story dining room.
  • A den can serve as a home office or quiet study.
  • The family room is open to the kitchen and bright breakfast nook. It features a fireplace flanked by built-ins. A vaulted covered porch is steps away.
  • Upstairs, the master suite is vaulted as is the bonus room. Two more bedrooms complete this house plan.
  • Related Plans: Need a finished basement? See house plan 23242JD. Also see 23050JD on a crawl space. Both plans come with a 3-car tandem garage.
  • For a larger version, see house plan 23345JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information..

Floor Plans

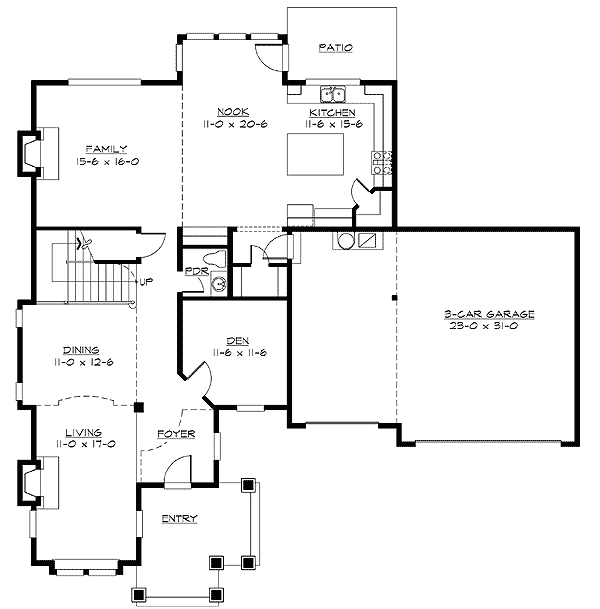

  • Main Level

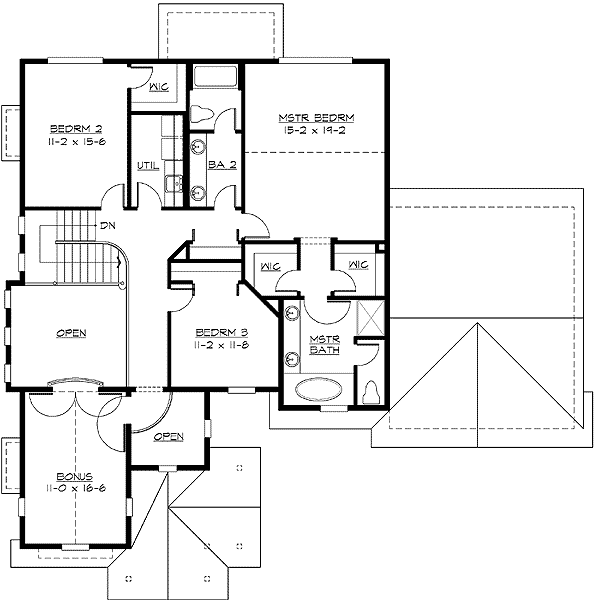

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,035 sq. ft.
  • 1st Floor: 1,553 sq. ft.
  • 2nd Floor: 1,482 sq. ft.
  • Porch, Front: 135 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 61' 5"
  • Depth: 62' 0"
  • Max ridge height: 27' 0"

Garage

  • Type: Attached
  • Area: 600 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
