Vaulted and Beamed Ceilings

Plan 22468DR

  • 1,212

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • Gorgeous vaulted and beamed ceilings make this two bedroom Northwest house plan a delight to live in.
  • The metal roofing and timber trim add excitement.
  • Everyone in the huge open great room area can enjoy the fireplace and a wall of windows overlooks the back covered patio.
  • With just two bedrooms and one bathroom, the home is easy to clean and maintain.
  • It makes a great vacation getaway or a small permanent home.
  • Related Plan: Get 2 bedrooms and an attached garage with house plan 22495DR or get 3 bedrooms and an attached garage with house plan 22493DR. And get a version with a finished lower level with house plan 22579DR.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

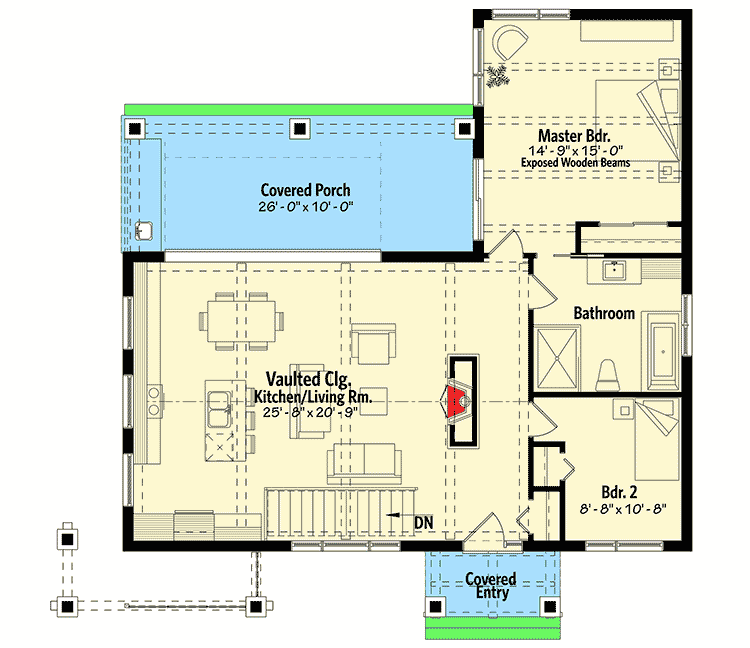

Vaulted and Beamed Ceilings - 22468DR floor plan - Main Level

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

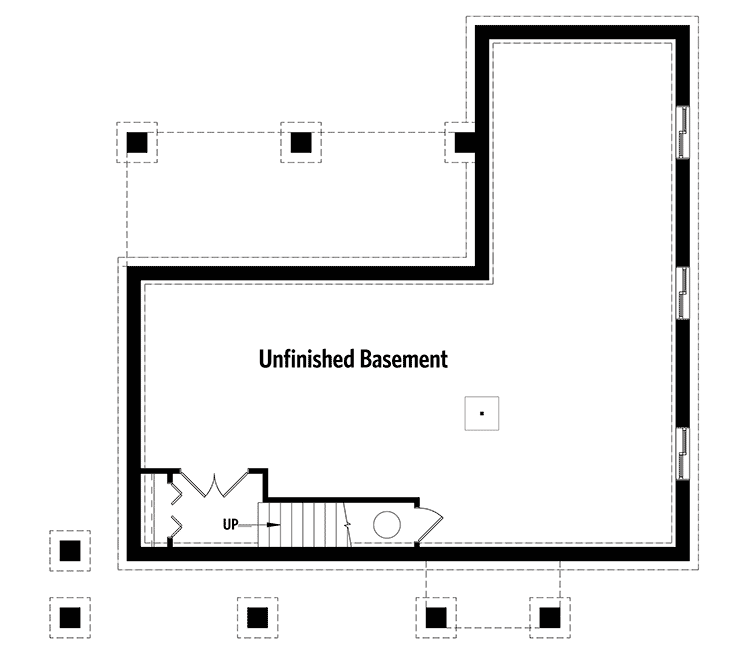

Vaulted and Beamed Ceilings - 22468DR floor plan - Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,212 sq. ft.
  • 1st Floor: 1,212 sq. ft.
  • Entry: 50 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 42' 0"
  • Depth: 40' 0"
  • Max ridge height: 22' 2"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Living Room Cathedral 12' 0"
Dining Room Cathedral 12' 0"
Kitchen Cathedral 12' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Vaulted and Beamed Ceilings

  • 1,212

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $1,300
  • 3 Sets + PDF $1,425
  • CAD + PDF - Single-Build $1,900
  • View all purchase option online

About This Plan

  • Gorgeous vaulted and beamed ceilings make this two bedroom Northwest house plan a delight to live in.
  • The metal roofing and timber trim add excitement.
  • Everyone in the huge open great room area can enjoy the fireplace and a wall of windows overlooks the back covered patio.
  • With just two bedrooms and one bathroom, the home is easy to clean and maintain.
  • It makes a great vacation getaway or a small permanent home.
  • Related Plan: Get 2 bedrooms and an attached garage with house plan 22495DR or get 3 bedrooms and an attached garage with house plan 22493DR. And get a version with a finished lower level with house plan 22579DR.

Floor Plans

  • Main Level

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,212 sq. ft.
  • 1st Floor: 1,212 sq. ft.
  • Entry: 50 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 42' 0"
  • Depth: 40' 0"
  • Max ridge height: 22' 2"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof
