Plan 21880DR Wrapping Porch and Open Floor Plan

Wrapping Porch and Open Floor Plan

Plan 21880DR

  • 1,887

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 1

    Cars

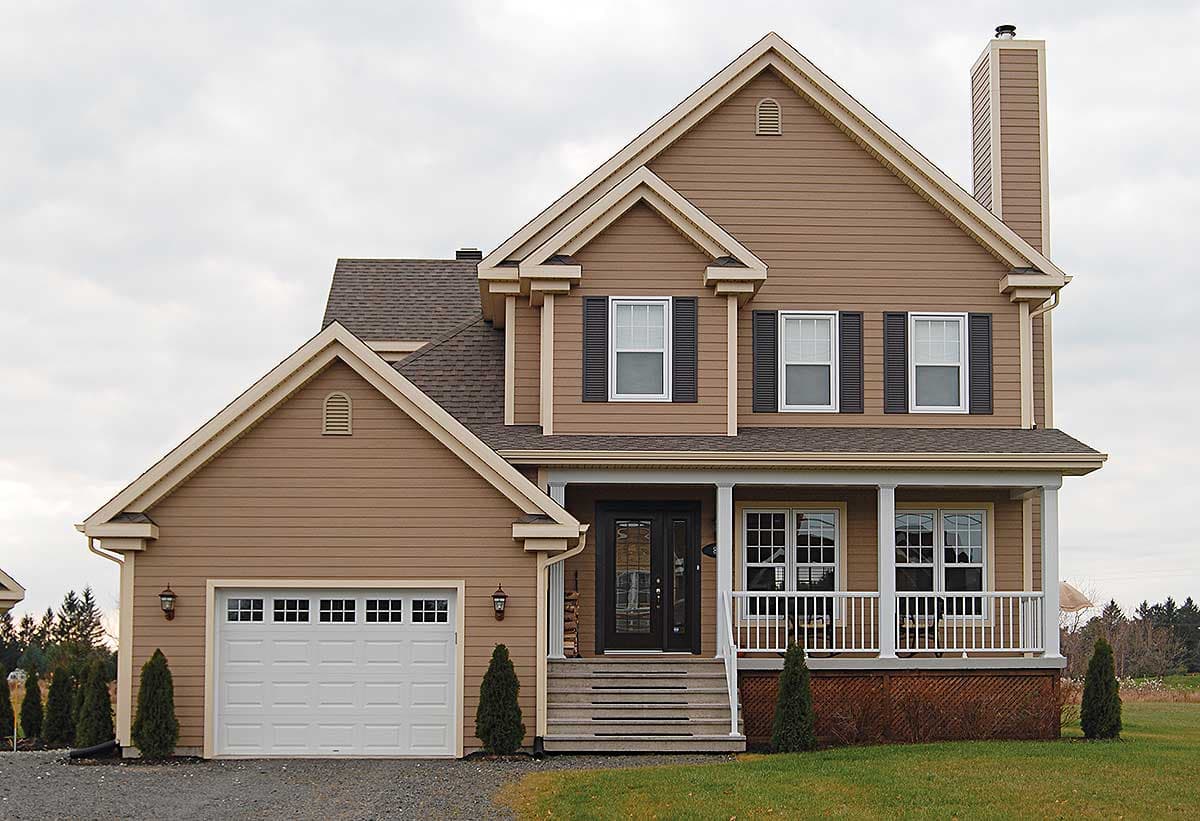

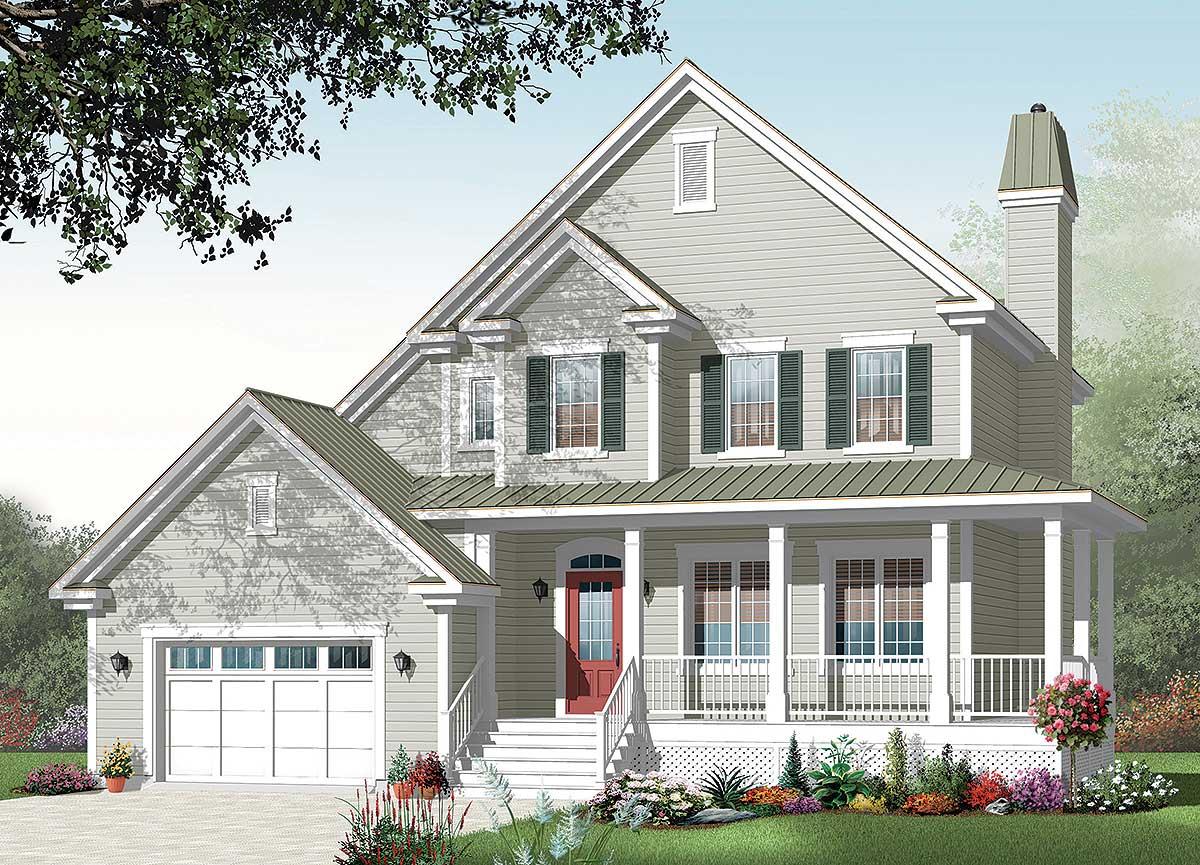

  • This attractive house plan features an L-shaped porch and a wide-open floor plan.
  • An air-lock entry helps keep out the cold in colder climates and reduces clutter wherever you build.
  • A fireplace is centered on the far wall. The home is open front to back making the home feel spacious.
  • A discrete office is located in the back corner.
  • Three bedrooms and two baths are located upstairs as well as a small bonus area over the garage.
  • Related Plans: For a smaller version in reverse layout see house plan 21730DR (1,719 sq. ft.).
  • Build with stone and brick with house plan 21987DR (1,828 sq. ft.).

Each plan includes the following:

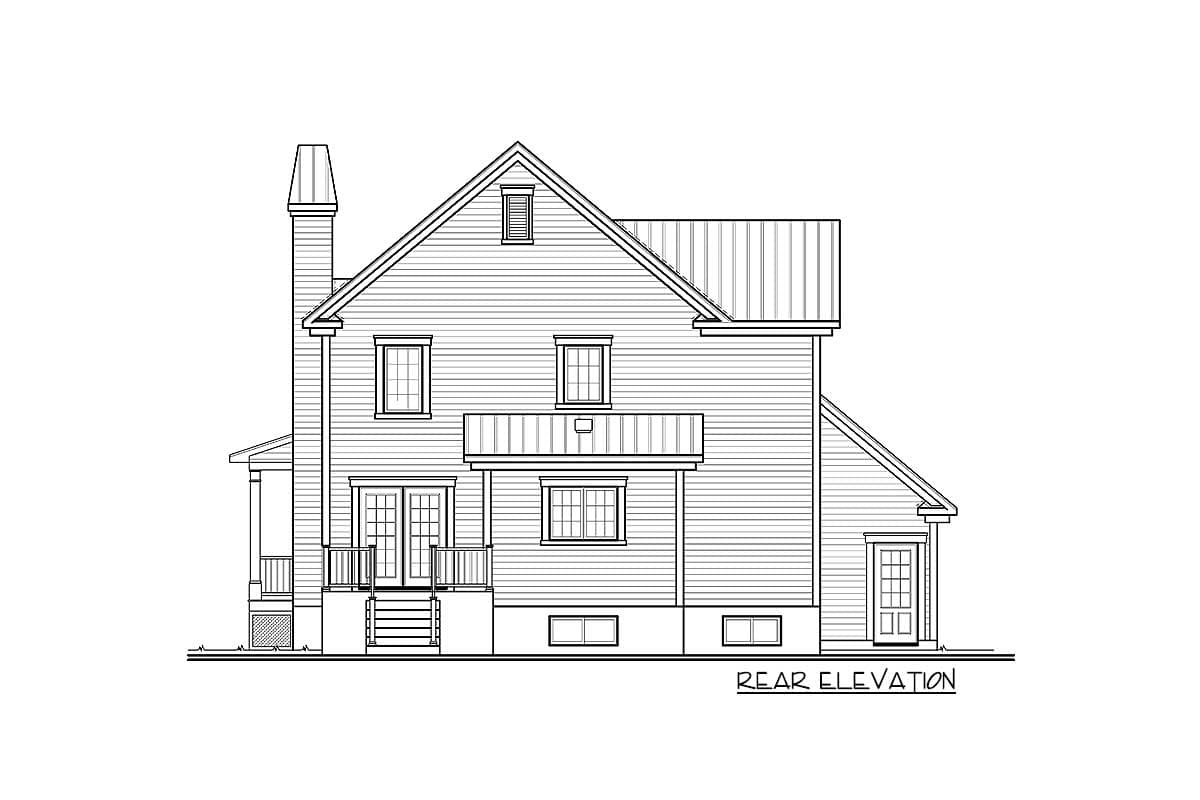

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

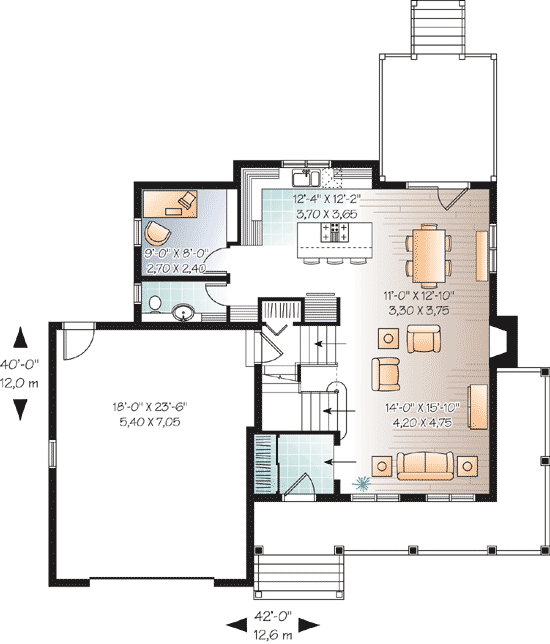

Wrapping Porch and Open Floor Plan - 21880DR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

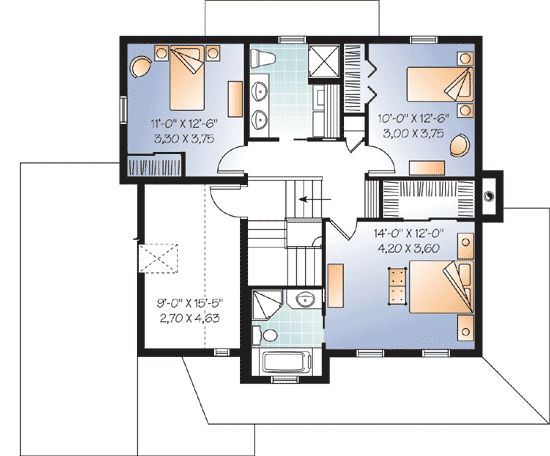

Wrapping Porch and Open Floor Plan - 21880DR floor plan - 2nd Floor

Plan details

Wrapping Porch and Open Floor Plan

  • 1,887

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 1

    Car garage

Buy This Plan
  • PDF - Single-Build $1,195
  • Reproducible Set $1,195
  • 5 Sets + PDF $1,320
  • CAD - Single-Build $1,795
  • View all purchase option online

About This Plan

  • This attractive house plan features an L-shaped porch and a wide-open floor plan.
  • An air-lock entry helps keep out the cold in colder climates and reduces clutter wherever you build.
  • A fireplace is centered on the far wall. The home is open front to back making the home feel spacious.
  • A discrete office is located in the back corner.
  • Three bedrooms and two baths are located upstairs as well as a small bonus area over the garage.
  • Related Plans: For a smaller version in reverse layout see house plan 21730DR (1,719 sq. ft.).
  • Build with stone and brick with house plan 21987DR (1,828 sq. ft.).

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,887 sq. ft.
  • 1st Floor: 878 sq. ft.
  • 2nd Floor: 1,009 sq. ft.
  • Bonus: 140 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 42' 0"
  • Depth: 40' 0"
  • Max ridge height: 34' 1"

Garage

  • Type: Attached
  • Area: 468 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 8" Second Floor / 8' 2"

Roof

  • Framing Type: Truss
