Plan 36040DK
3 Bed Craftsman with Vaulted Family Room
Heated S.F.
2,066
Beds
3
Baths
3
Stories
2
Cars
2
Plan Details
  • A charming shed dormer gives this Craftsman house plan lots of curb appeal as well as brings light into bedroom 3.
  • The formal dining room is open to the foyer, making it feel larger.
  • In back, the heart of the home is the huge vaulted family room that has a big fireplace that can be seen all the way from the kitchen.
  • A bar top island lets people sit and chat while dinner is cooking.
  • The breakfast nook opens to an optional covered terrace where you can grill or just relax in the shade.
  • The two bedrooms on the main floor are on opposite sides of the home, giving privacy to the master suite.
  • An additional bedroom can be found on the upper floor.
  • Related Plans: Get more space and 4 bedrooms with house plan 36037DK (2,291 sq. ft.).Get alternate exteriors with house plans 36041DK and 36042DK.
What's Included
  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3 Bed Craftsman with Vaulted Family Room

  • 2,066

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

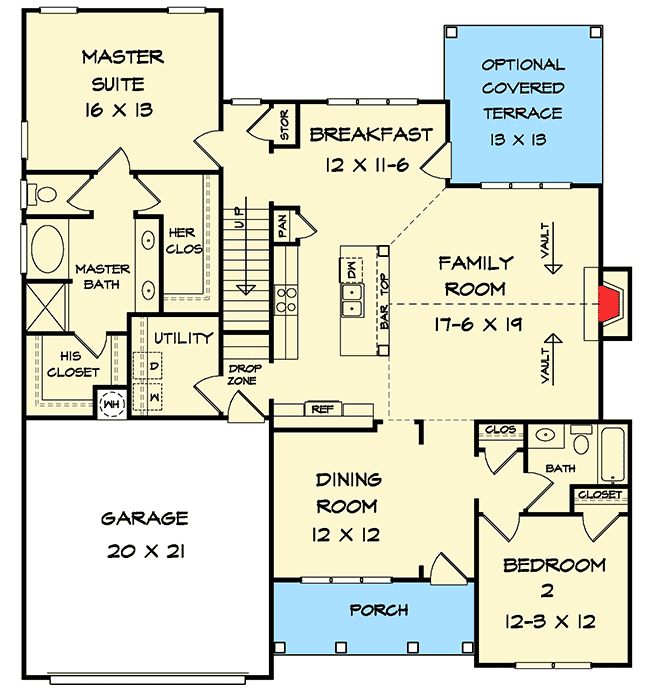

  • Main Level

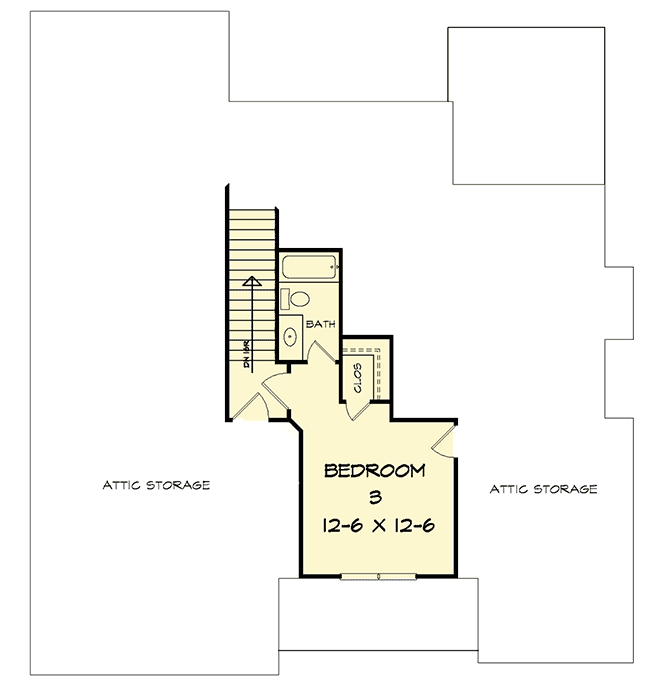

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,066 sq. ft.
  • 1st Floor: 1,764 sq. ft.
  • 2nd Floor: 302 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 55' 0"
  • Max ridge height: 27' 3"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 420 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick
