Plan 21184DR
Private Guest Suite in Cottage Design
Heated S.F.
2,219
Beds
3
Baths
3.5
Stories
2
Cars
2
Plan Details

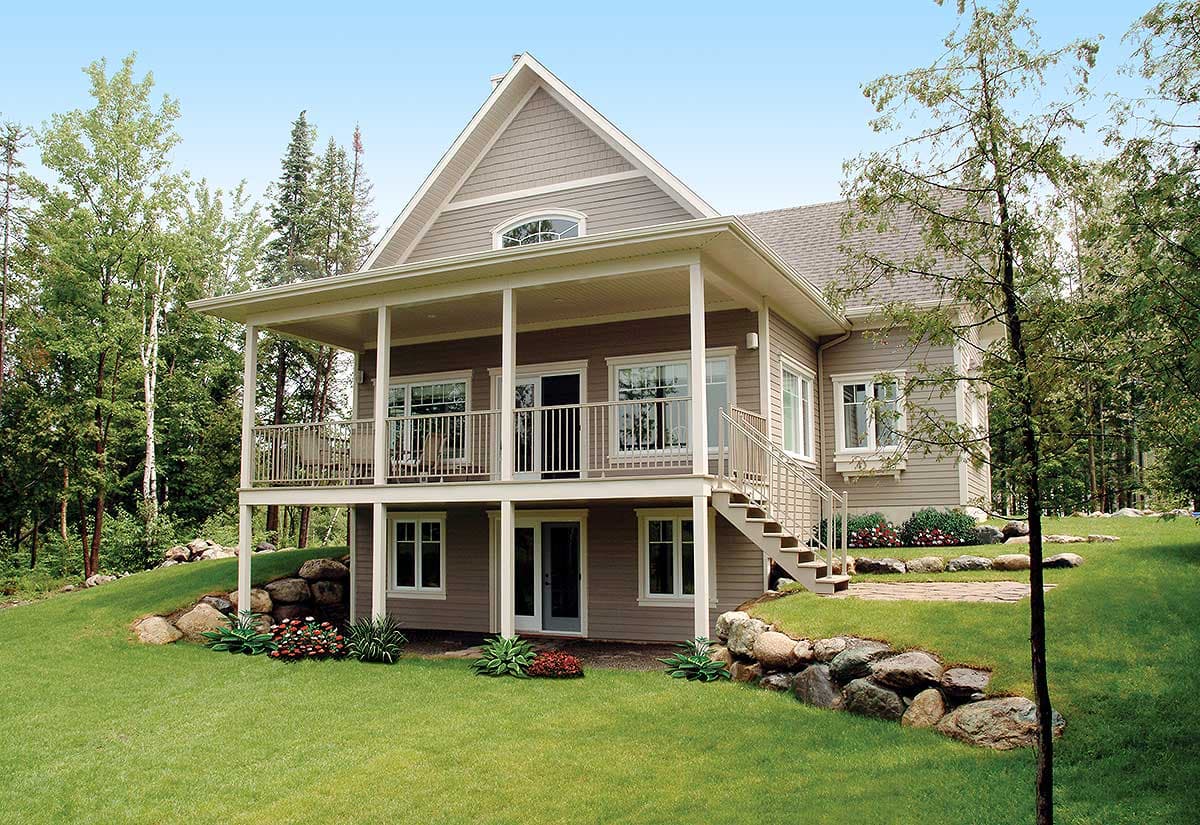

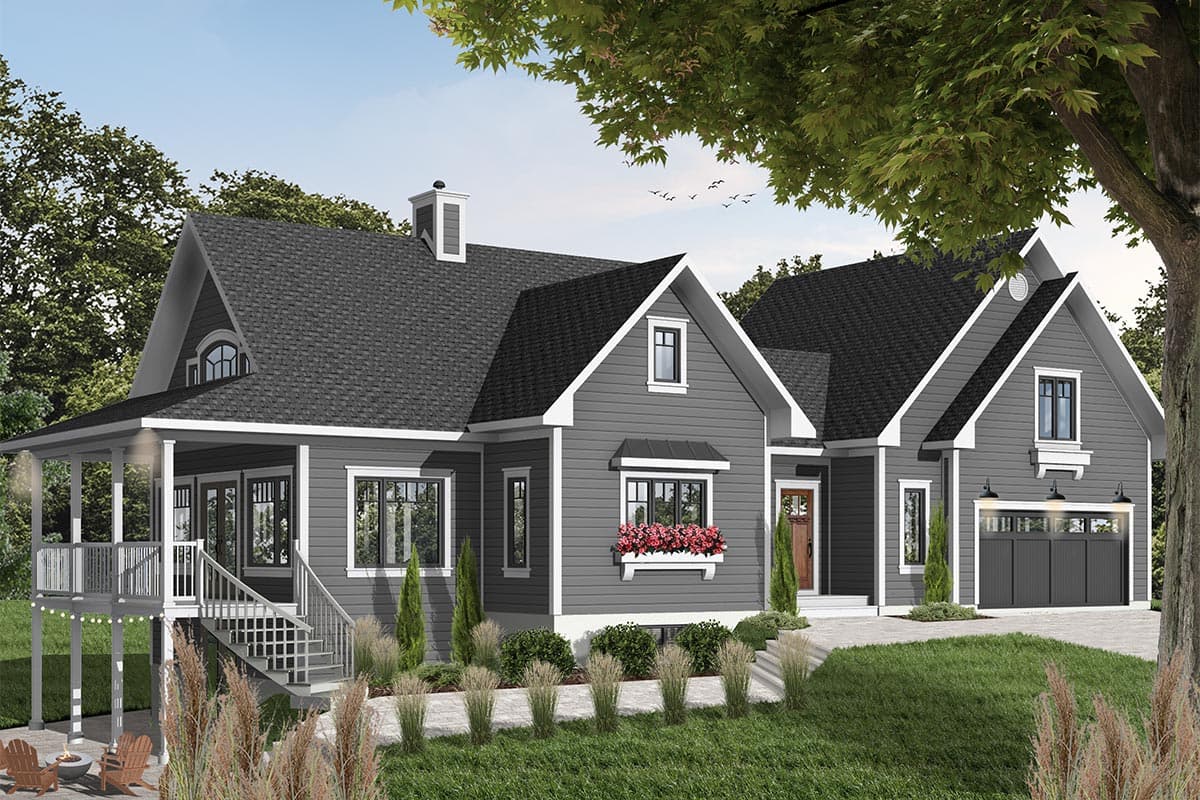

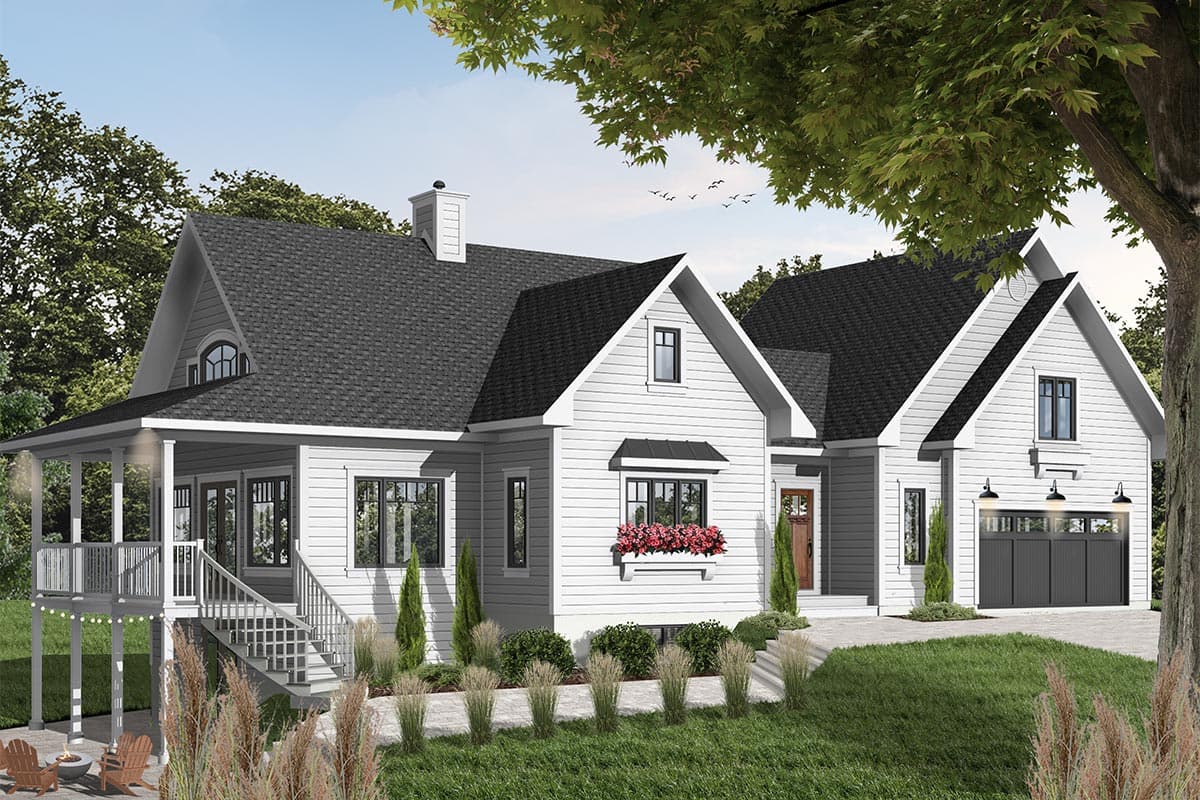

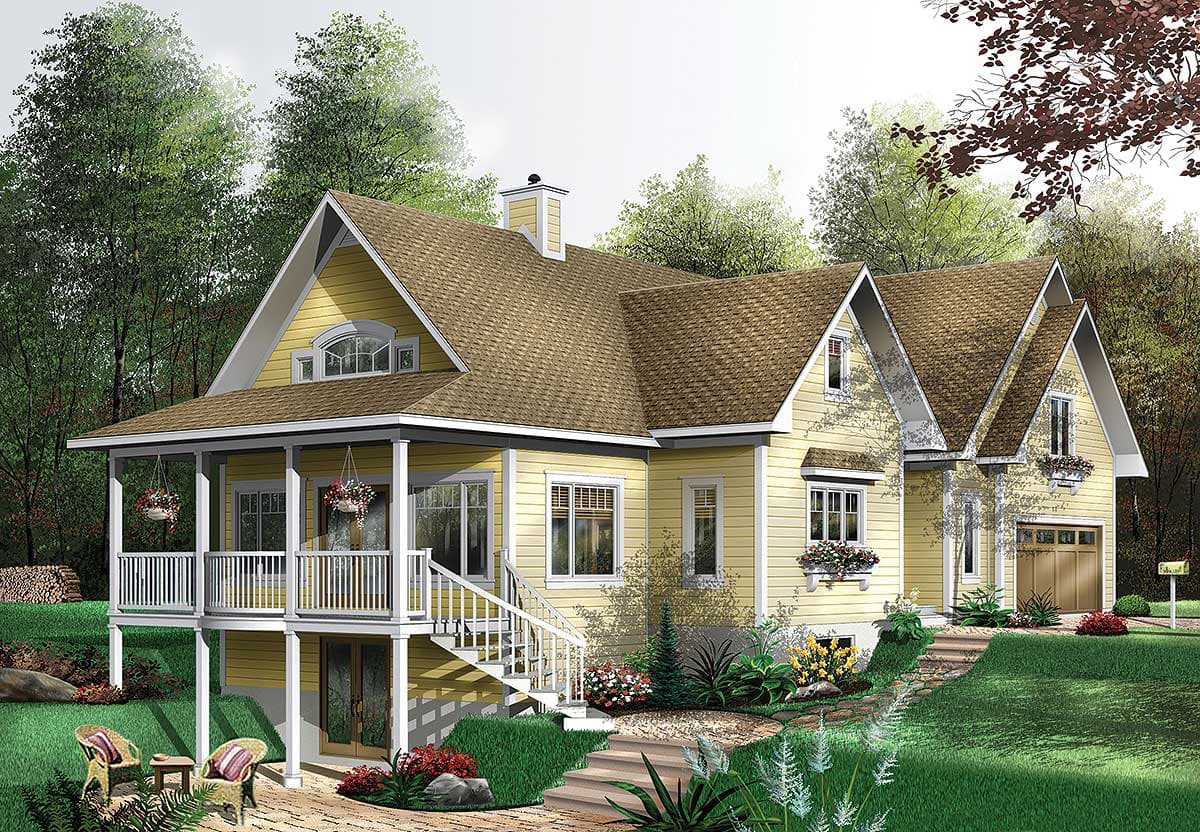

  • With its bedroom, sitting room and bathroom, the private suite over the garage of this charming country cottage offers hospitality to overnight guests. This house plan could serve as a great vacation retreat.

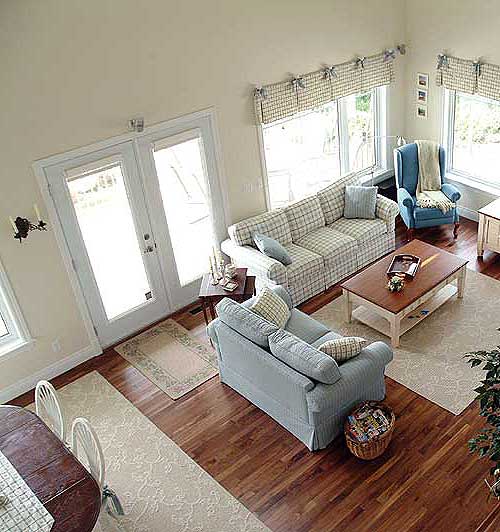

  • On the first floor, the open living area includes a kitchen with a combined island-table for informal meals. The dining area and the living area, focused on the fireplace, rise for two stories. The other rooms of the house have 8' ceilings and the garage has an 8'6" ceiling.
  • The master suite includes a walk-in closet and a private bath.

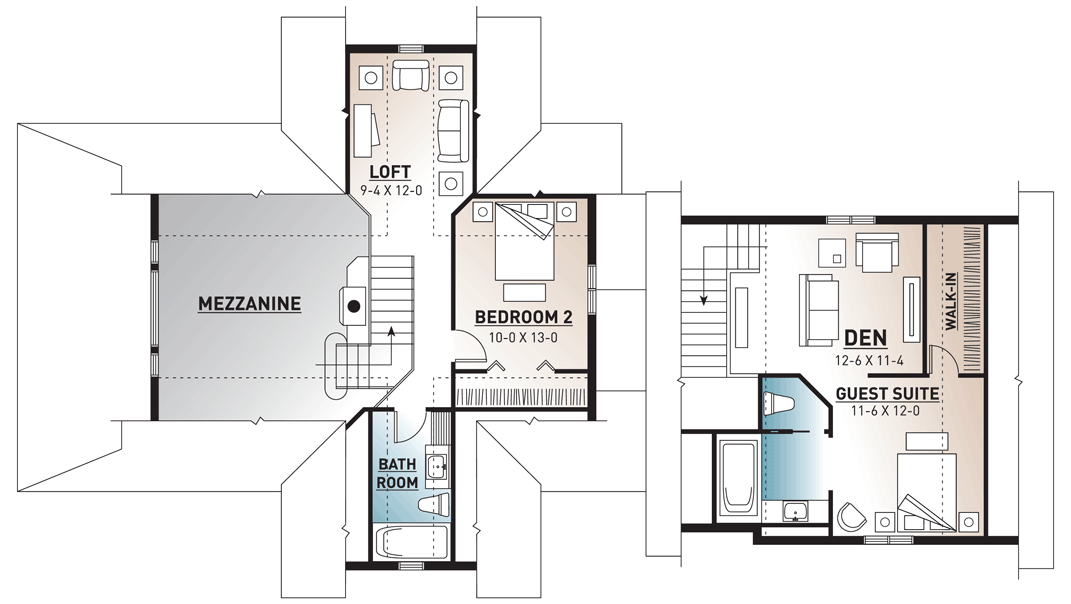

  • Upstairs, the hallway overlooks the dining and living areas below. An open sitting area provides a peaceful retreat. A bedroom and full bath complete the floor.
  • For those wondering about knee walls on the upper floor, this will help: above the garage, 5'2.5" head of bed and 6'10.5" across the room; the bedroom near the top of the stairs has 5'1.5" by the bed and 5'8" by the closet; and the upstairs living room has 5'2" knee walls.
  • Related Plans: Build in reverse with house plan 21128DR. Get more room with house plan 2106DR (2,526 sq. ft.). Get an alternate garage design with house plan 21959DR.
What's Included

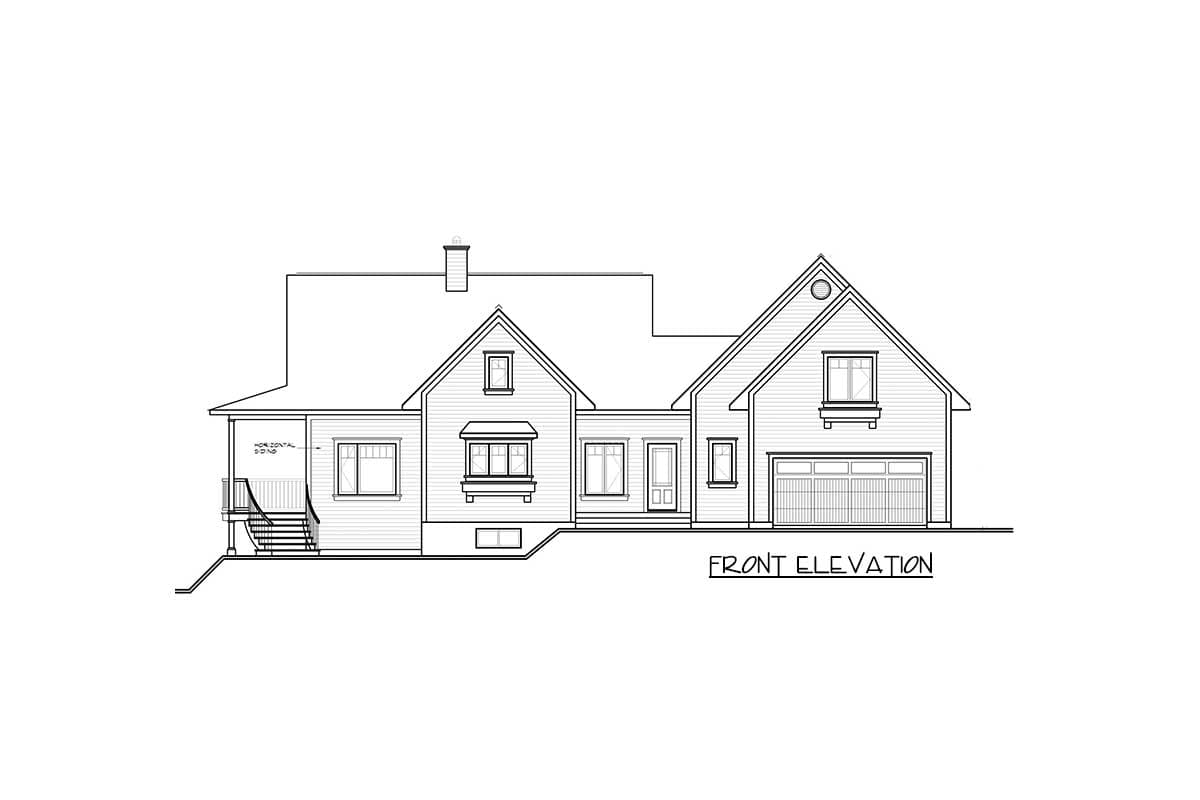

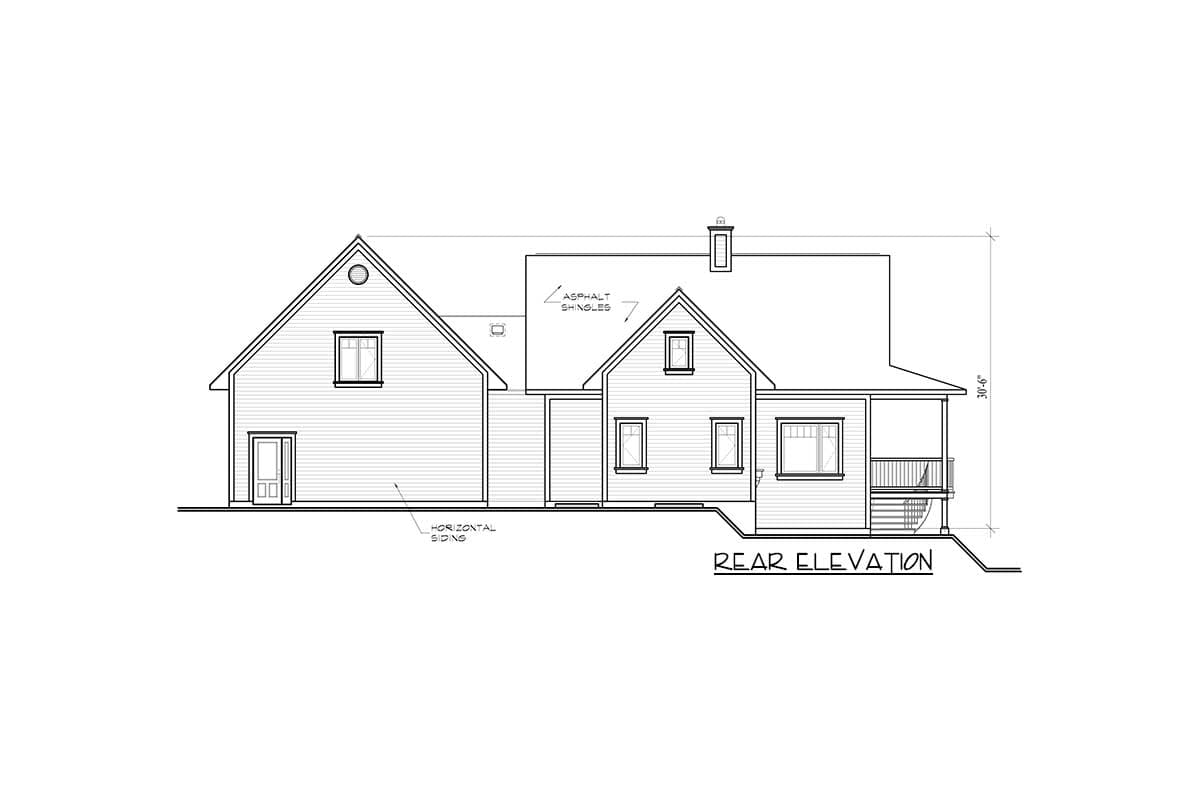

  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Private Guest Suite in Cottage Design

  • 2,219

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

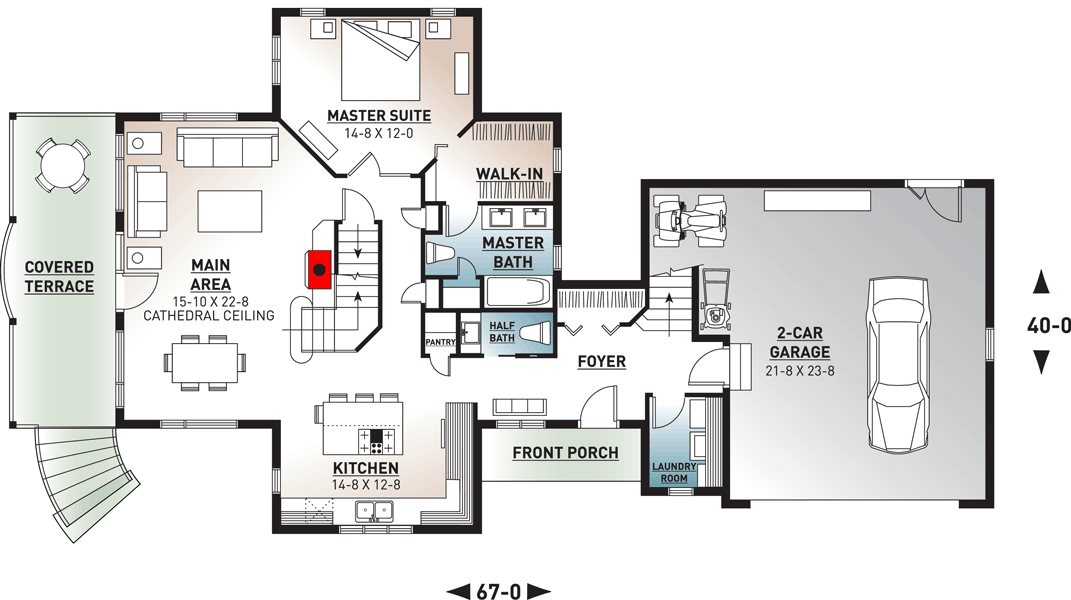

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,219 sq. ft.
  • 1st Floor: 1,232 sq. ft.
  • 2nd Floor: 987 sq. ft.

Dimensions

  • Width: 67' 0"
  • Depth: 40' 0"
  • Max ridge height: 35' 4"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 567 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
