Plan 22074SL
Shingle-style Garage Apartment
Heated S.F.
533
Beds
1
Baths
1
Stories
2
Cars
2
Plan Details
  • Ideal for extra parking with room for visitors or your college student, this two-car garage plan hosts a comfortable one bedroom apartment above.
  • Two 9'x8' over head doors open to the garage area featuring 616 square feet of parking area or storage.
  • Exterior stairs lead to the upstairs apartment providing an open floor plan with compact kitchen and flexible living area.
  • One bedroom and one bath will accommodate your guest's needs.
  • Increase your living and parking space with this garage apartment plan.
  • Related Plans: Get an alternate exterior with plan 22115SL
  • Finish the upstairs later and save construction costs with plan 22077SL and 22078SL with an alternate exterior.
What's Included
  • Foundation plan
  • Fully dimensioned floor plans
  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Shingle-style Garage Apartment

  • 533

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

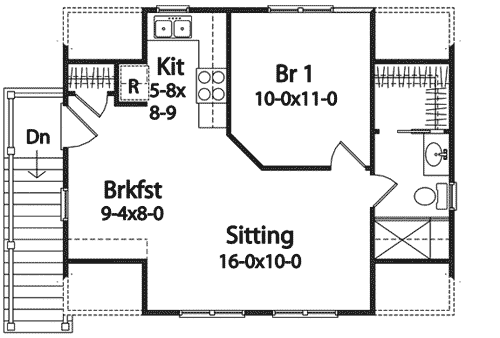

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 533 sq. ft.
  • 2nd Floor: 533 sq. ft.

Dimensions

  • Width: 32' 0"
  • Depth: 22' 0"
  • Max ridge height: 24' 10"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Garage

  • Type: Detached
  • Area: 615 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss
