Plan 86111BW
1-Story Coastal Contemporary Home Plan with Formal Dining Room - 1549 Sq Ft
Heated S.F.
1,549
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 86111BW

Main Level
slide image 0

Plan 86111BW

1-800-854-7852

1-262-521-4596

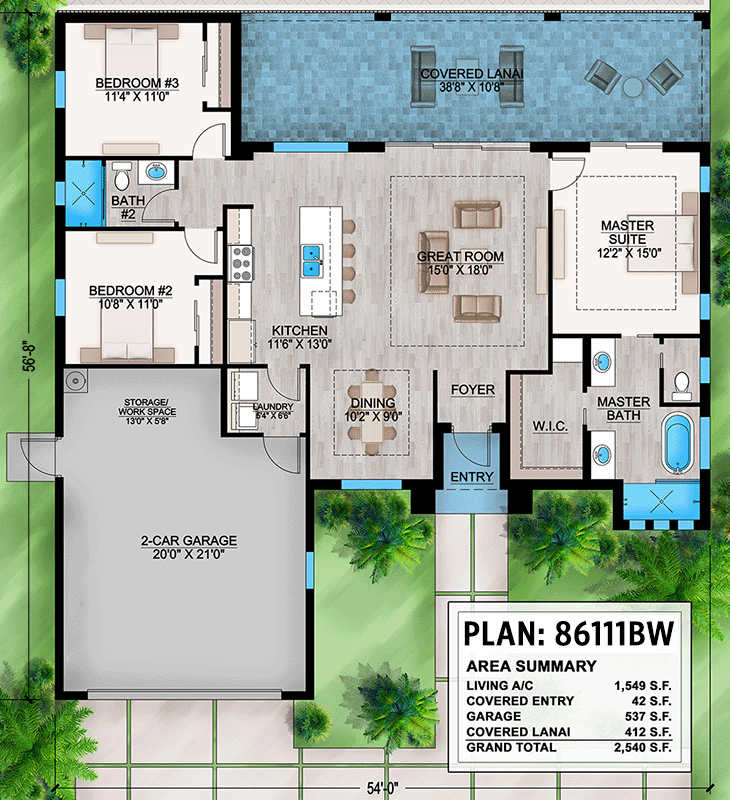

Main Level
floor plan image Main Level
Plan Details
  • This 1-story Coastal Contemporary home plan features 3 bedrooms, 2 baths, and a 2-car front-entry garage.
  • This open-concept design combines the great room, island kitchen, and dining area with oversized glass doors that open onto a covered lanai.
  • Enjoy casual meals and conversation at the kitchen island's eating bar, with easy access to the garage through the laundry room.
  • The master bedroom suite features a walk-in closet, dual sinks, and a separate tub and shower.
  • Other amenities include 2 secondary bedrooms, a full bath, and extra space in the garage for storage.
  • Related Plans: Get a larger version with house plans 86147BW (1,960 sq. ft.), 86148BW (2,044 sq. ft.) and house plan 86149BW (2,174 sq. ft.).
What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Size

Electrical Layouts

  • Building Section Markers
  • Electrical Outlets, Fixtures and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Floor and Deck Joist Sizes, Spacing and Direction
  • Electrical Locations

Roof Plan - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Floor Joist Size and Spacing
  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness

Miscellaneous Notes and Details

  • Miscellaneous General Notes
  • Stairway Details (if applicable)

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,549 sq. ft.

1st Floor

1,549 sq. ft.

Entry

42 sq. ft.

Lanai

412 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

54' 0"

Depth

56' 8"

Max Ridge Height

17' 2"

Garage

Type

Attached

Area

537 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 4"

Room

Ceiling Type

Height

Master Bedroom

Coffered

9' 4''

Master Bath

Flat

9' 4''

Great Room

Coffered

9' 4''

Dining Room

Coffered

9' 4''

Kitchen

Flat

9' 4''

Entry

Flat

10' 8''

Foyer

Flat

9' 4''

Bedroom 2

Flat

9' 4''

Bedroom 3

Flat

9' 4''

Bath 2

Flat

9' 4''

Lanai

Flat

9' 4''

Laundry Room

Flat

9' 4''

Garage

Flat

9' 4''

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Coastal
