1910 Square Foot Mountain Home Plan with 287 Square Foot Third Story Loft

Plan 680157VR

  • 1,910

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 3

    Stories

  • 2

    Cars

  • This 3 bed, 2 bath mountain home plan gives you 3 beds, 3 baths and 1,910 square feet of heated living space to enjoy, plus 426 square feet of porches and balconies.
  • The double garage resides on the main level, and includes additional storage space. A door leads to the entry with stairs and a bedroom suite.
  • Oversized windows surround the second level, providing a light and airy interior with a vaulted ceiling. The kitchen and family room are open to one another, and extend outdoors onto a spacious 10'-deep balcony spanning the entire width of the home.
  • The wrap-around kitchen has a double sink set below windows looking out front and a pantry.
  • A barn door grants access to the master bedroom with walk-in closet and its own bathroom. Bed 2 uses the hall bath.
  • A ship ladder in the family room leads to a 287 square foot loft.
  • Related Plans: Get alternate versions with house plans 68633VR and 68666VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

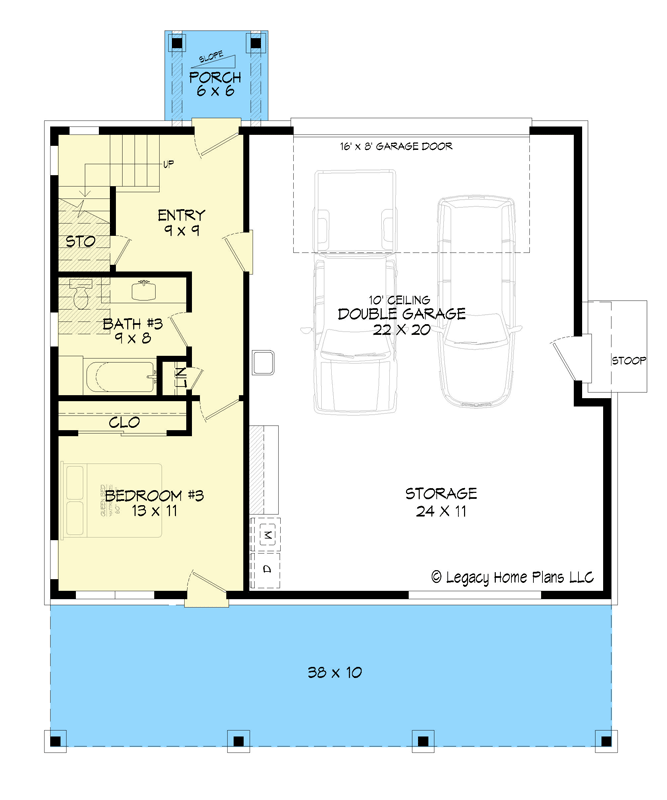

1910 Square Foot Mountain Home Plan with 287 Square Foot Third Story Loft - 680157VR floor plan - Main Level

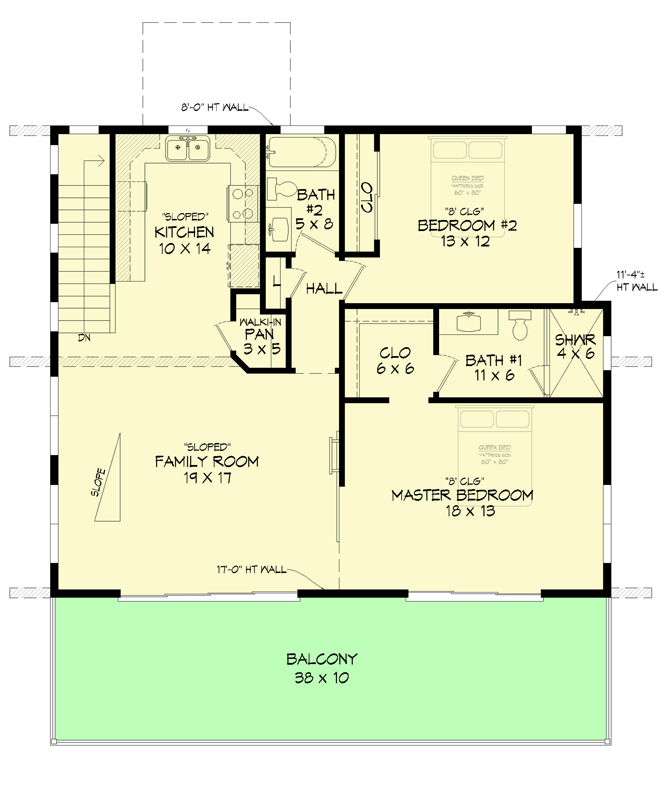

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
1910 Square Foot Mountain Home Plan with 287 Square Foot Third Story Loft - 680157VR floor plan - 2nd Floor

3rd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

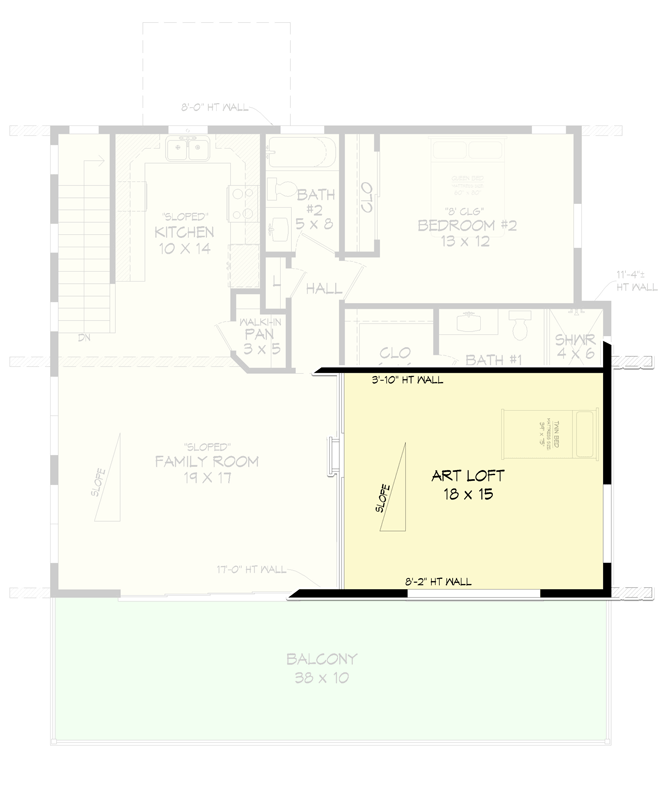

1910 Square Foot Mountain Home Plan with 287 Square Foot Third Story Loft - 680157VR floor plan - 3rd Floor
